All Wheel Drive (AWD) Relay Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

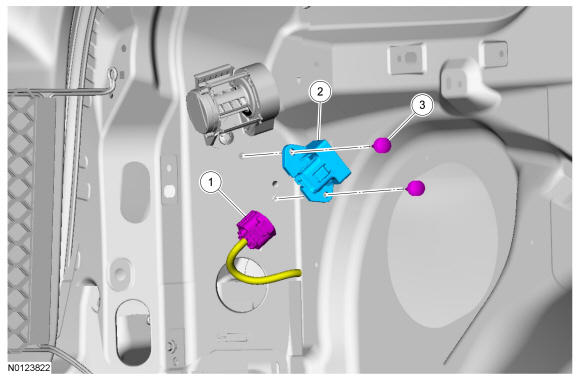

Exploded View

GFD116733Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - AWD relay module electrical connector (part of 14A005)
2 7E453 AWD relay module
3 W707373 AWD relay module pushpin (2 required)
