Connector Repair Procedures

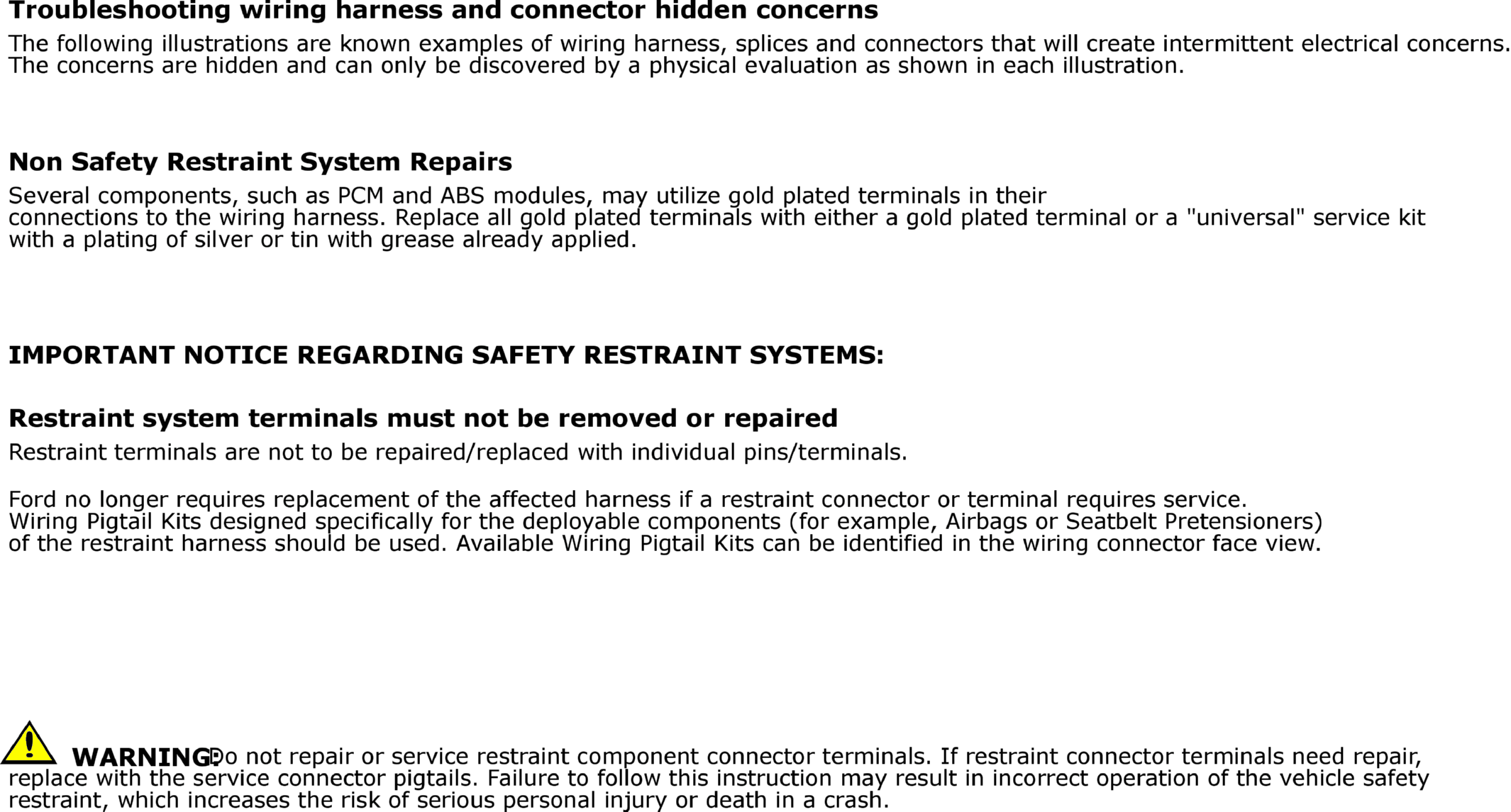

GFDW42607Courtesy of FORD MOTOR COMPANY

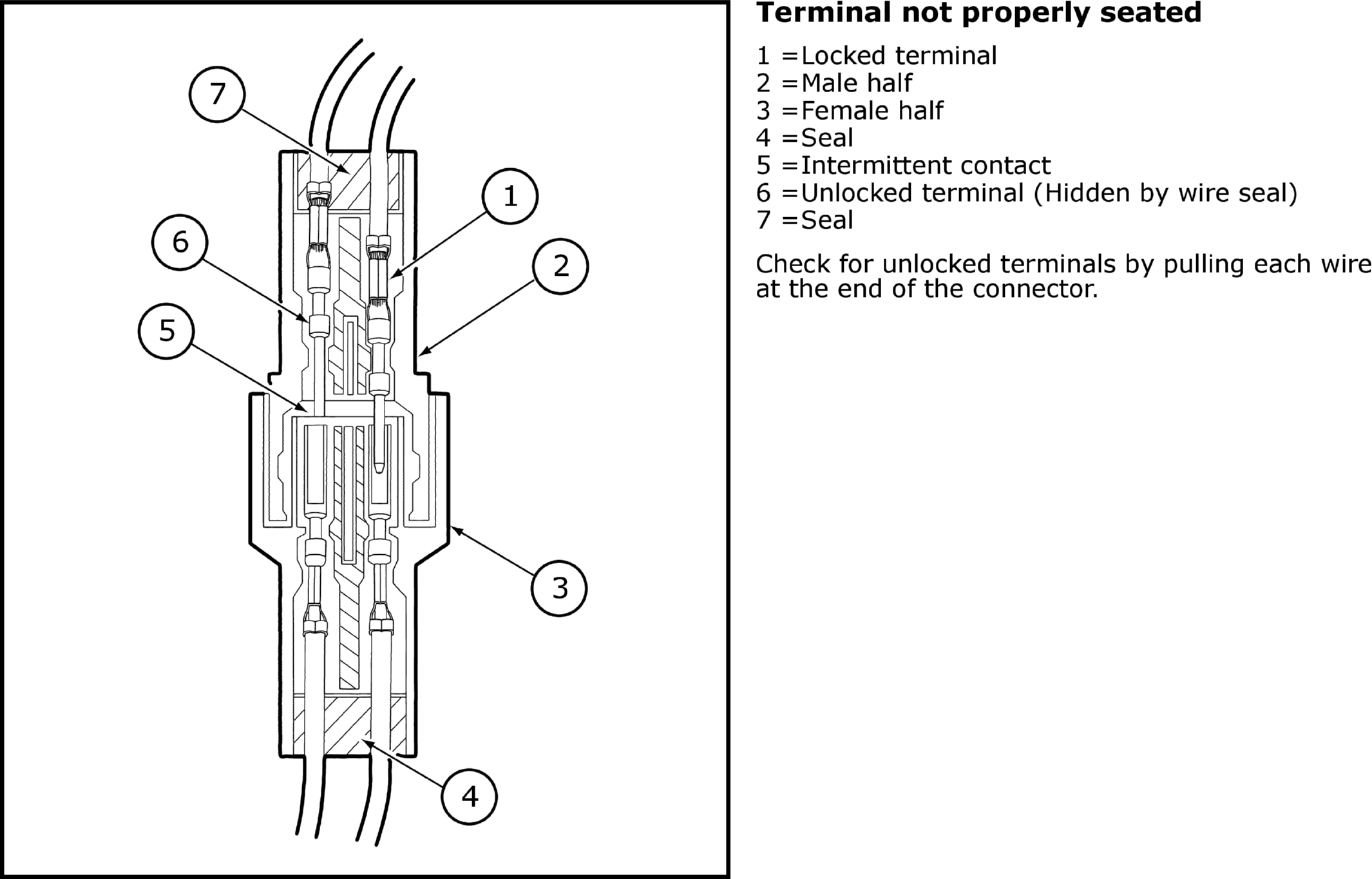

GFDW42608Courtesy of FORD MOTOR COMPANY

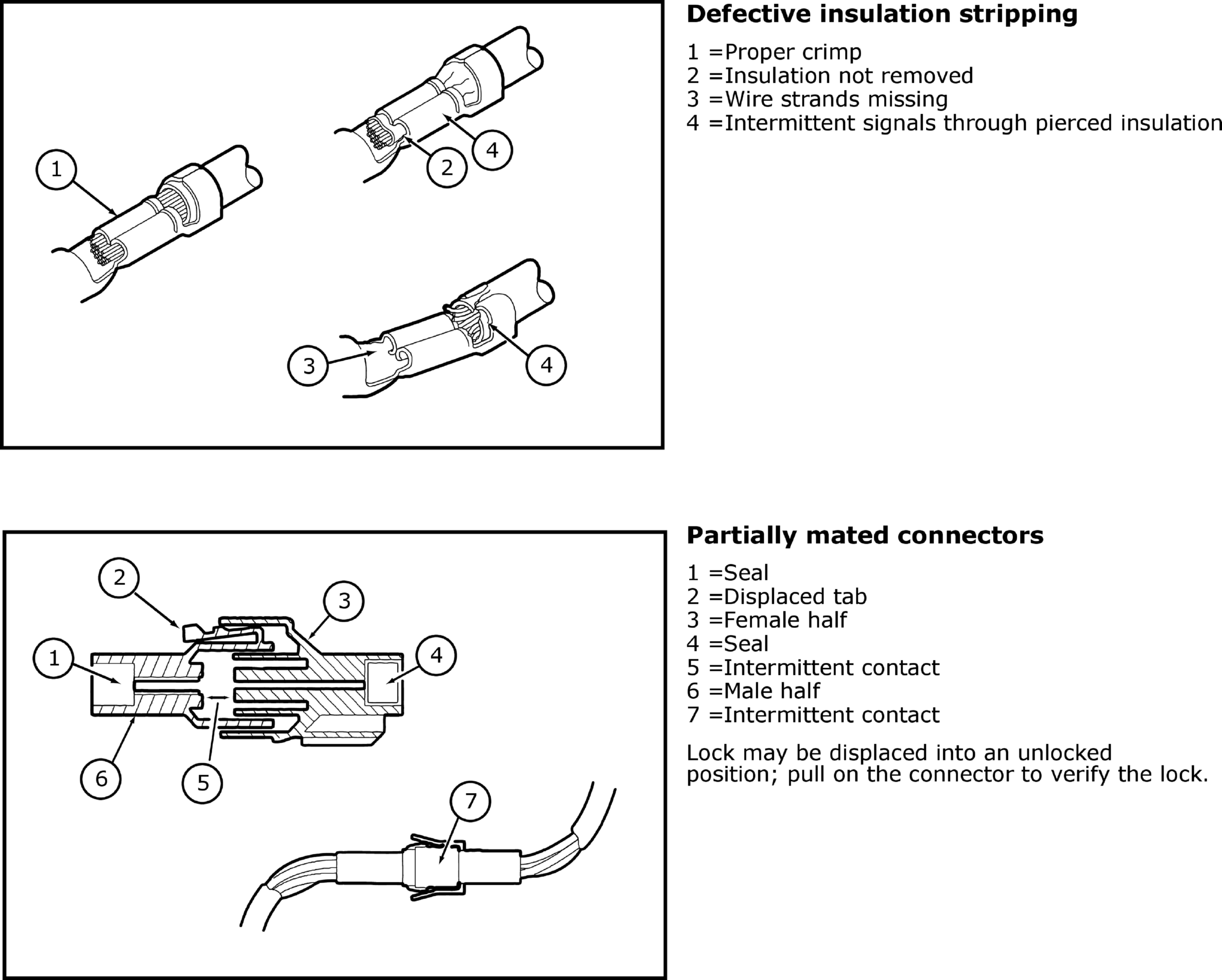

GFDW42609Courtesy of FORD MOTOR COMPANY

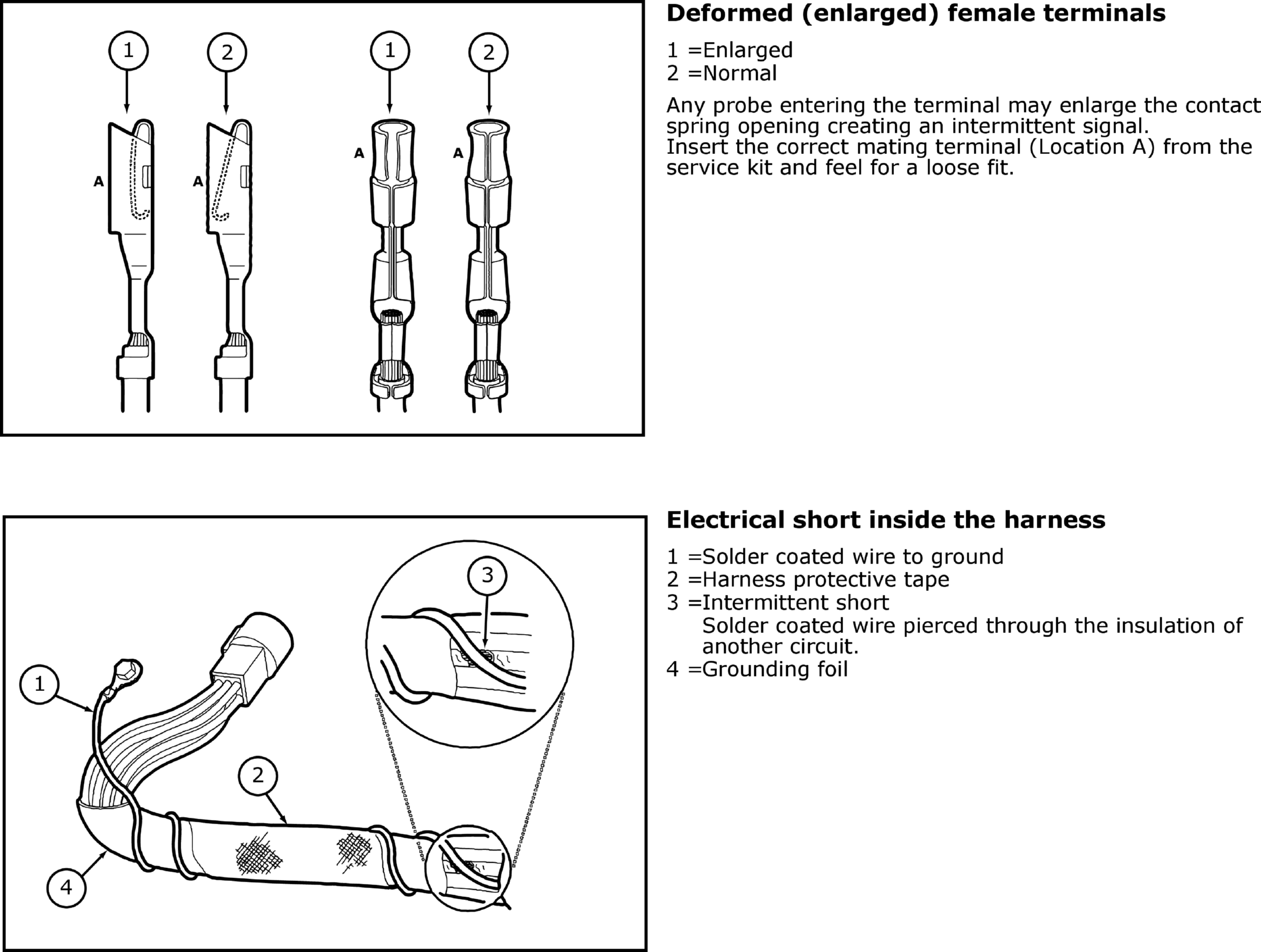

GFDW42610Courtesy of FORD MOTOR COMPANY

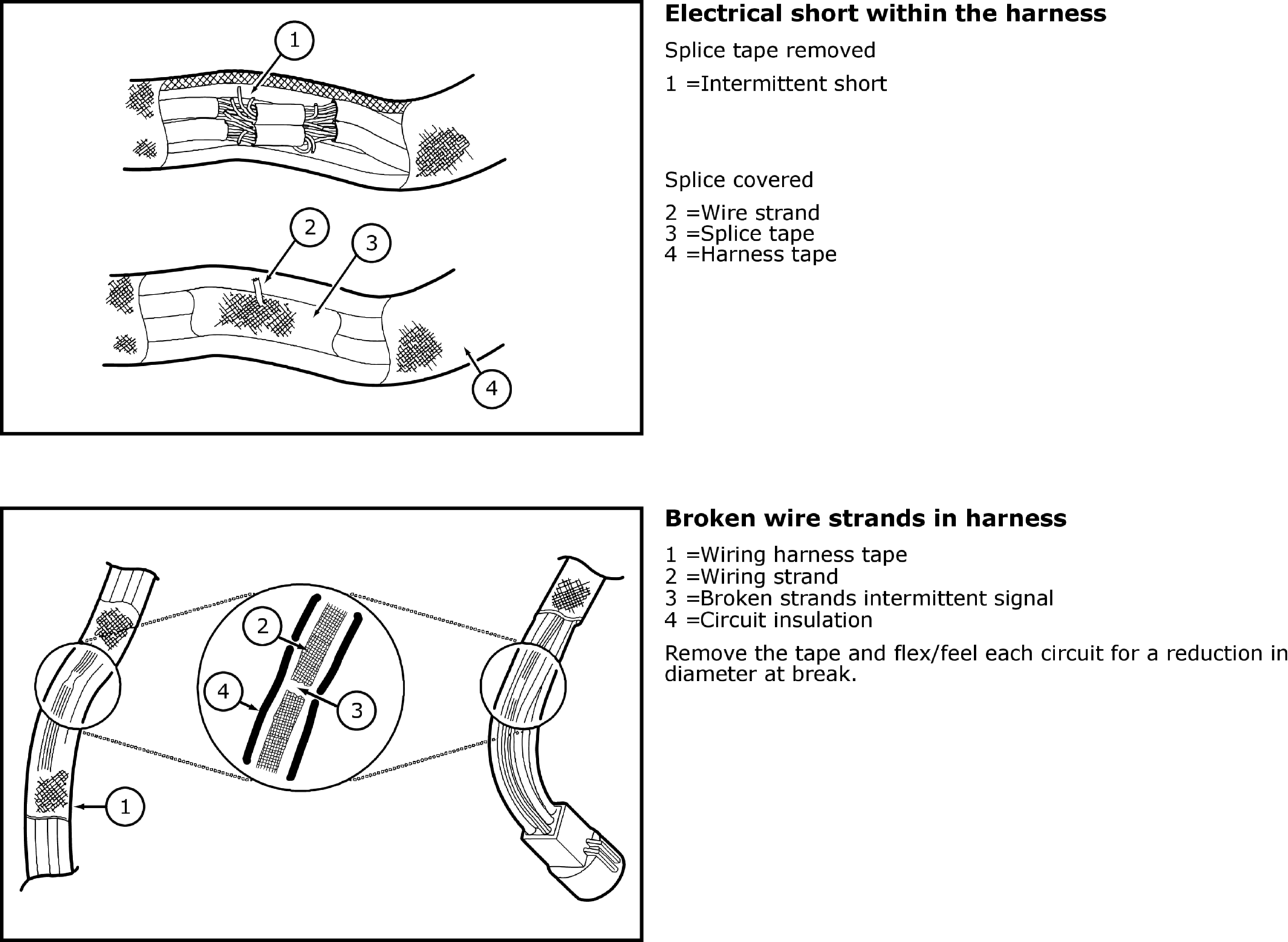

GFDW42611Courtesy of FORD MOTOR COMPANY

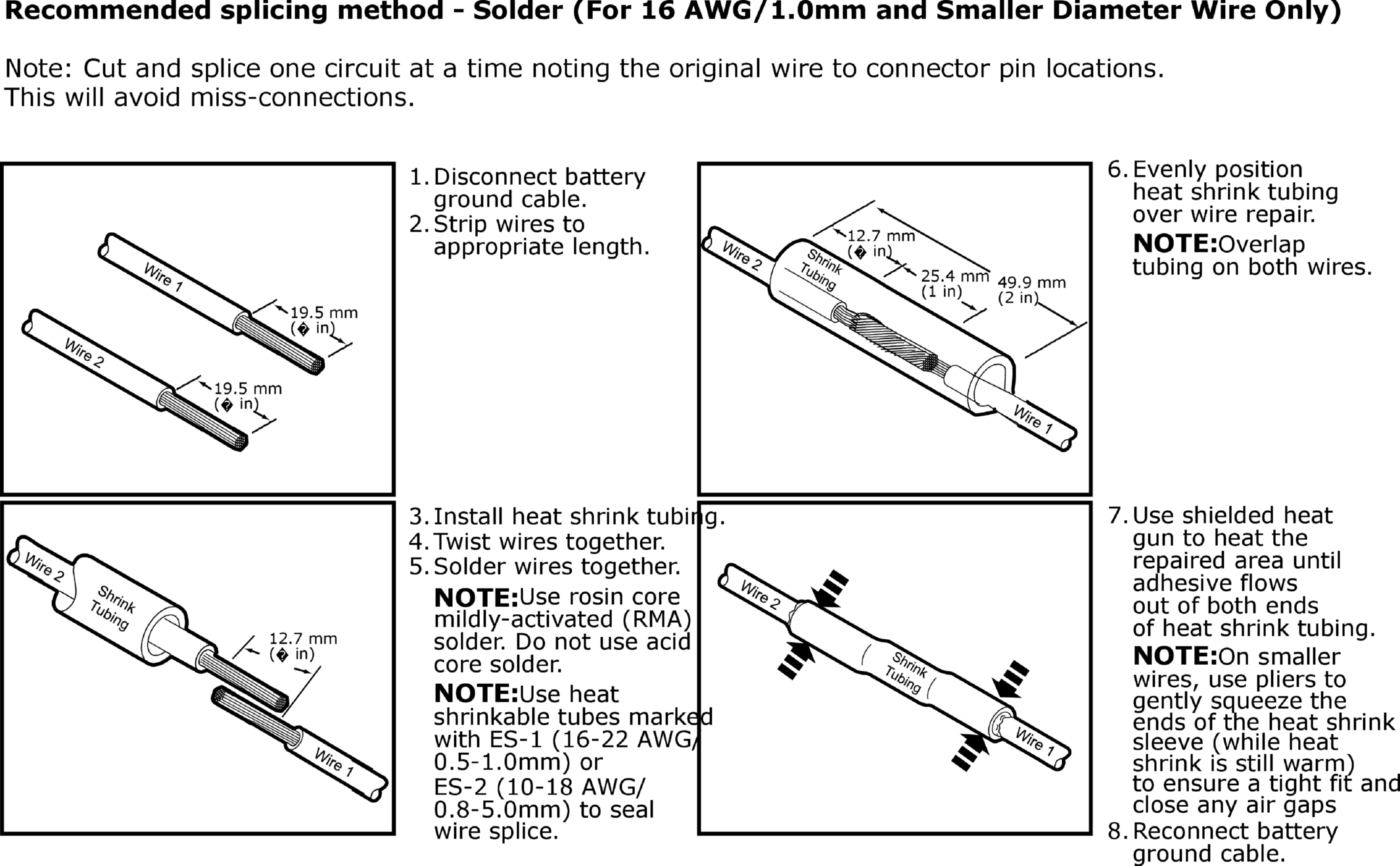

GFDW42612Courtesy of FORD MOTOR COMPANY

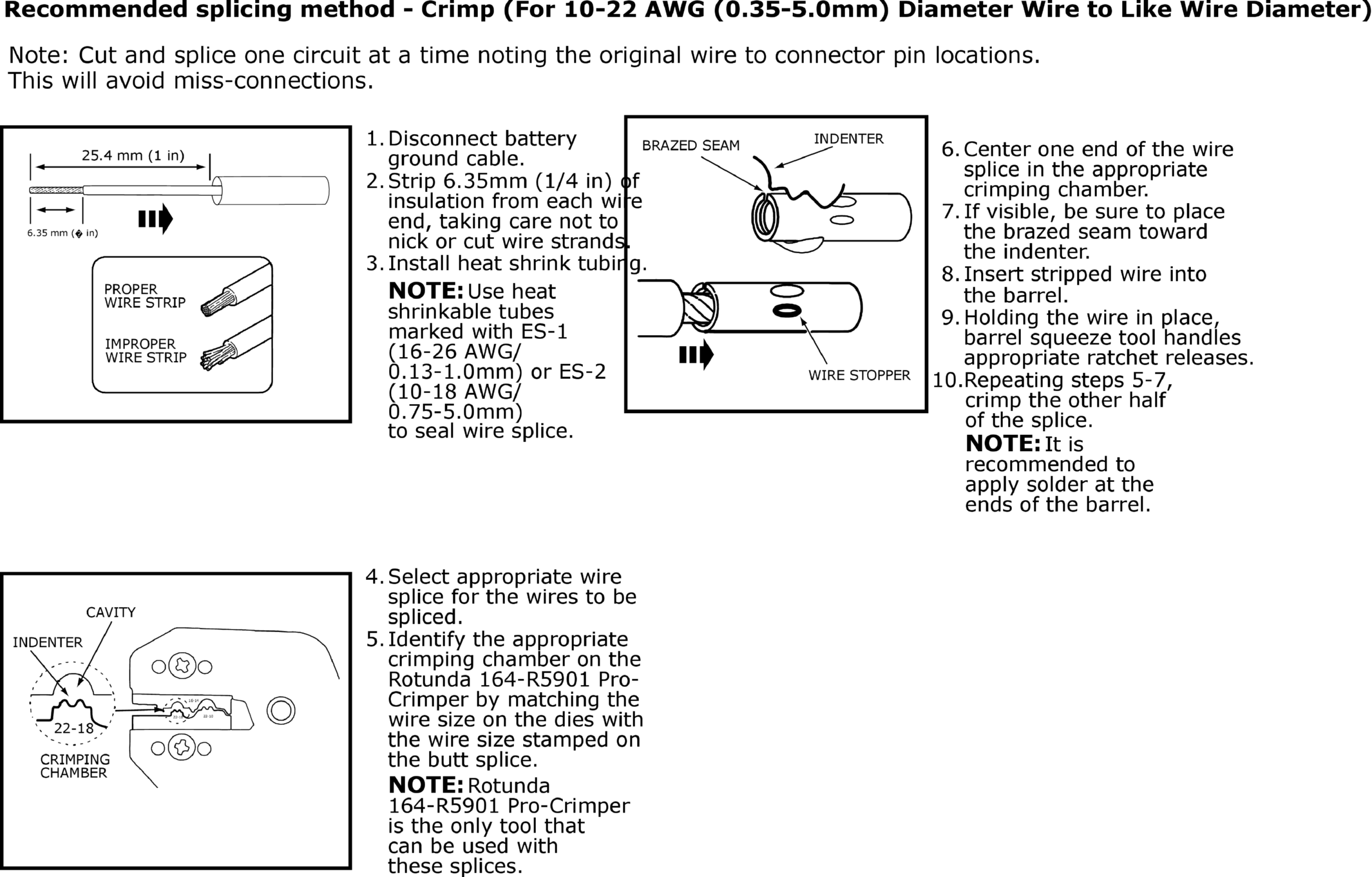

GFDW42613Courtesy of FORD MOTOR COMPANY

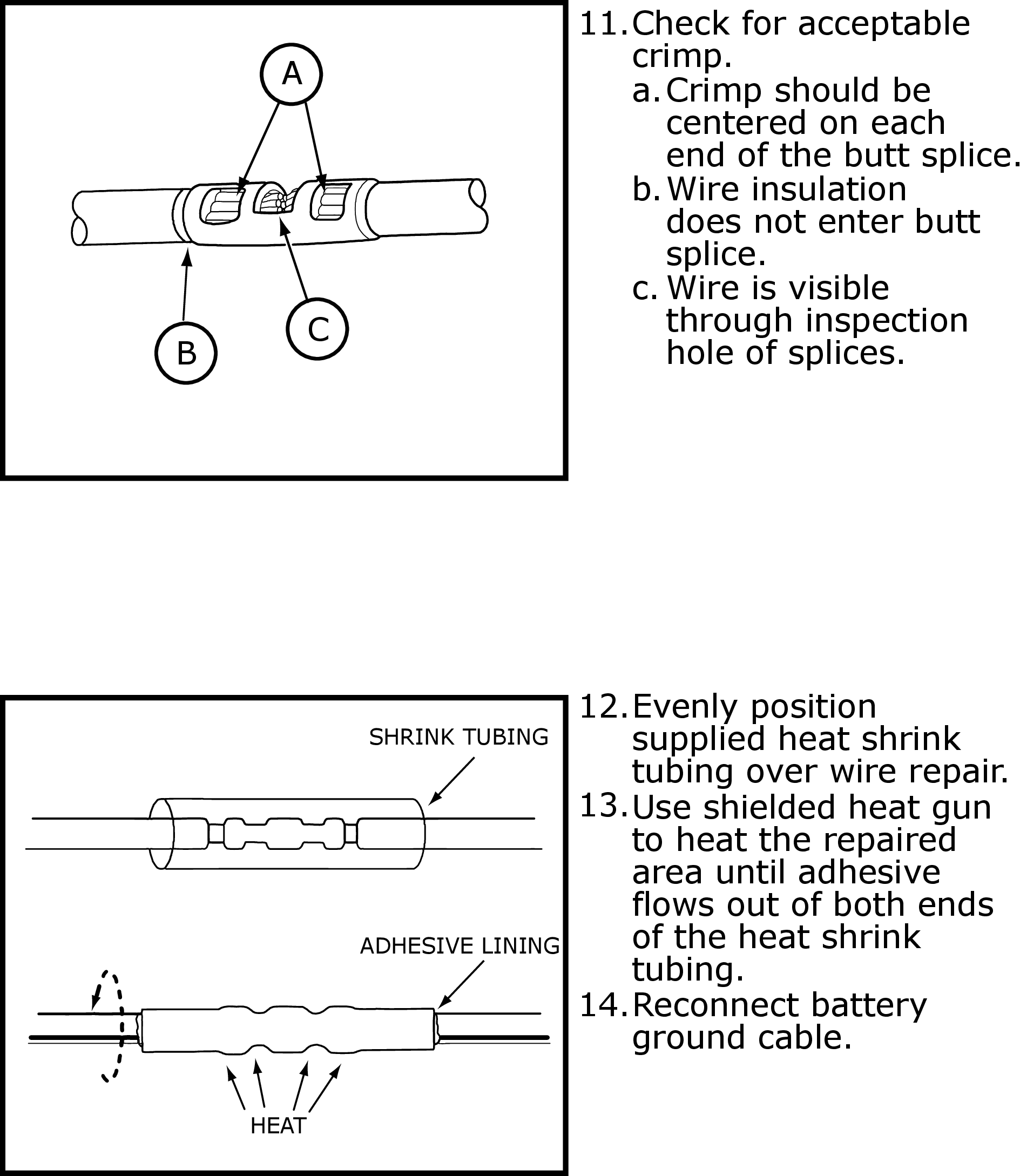

GFDW42614Courtesy of FORD MOTOR COMPANY

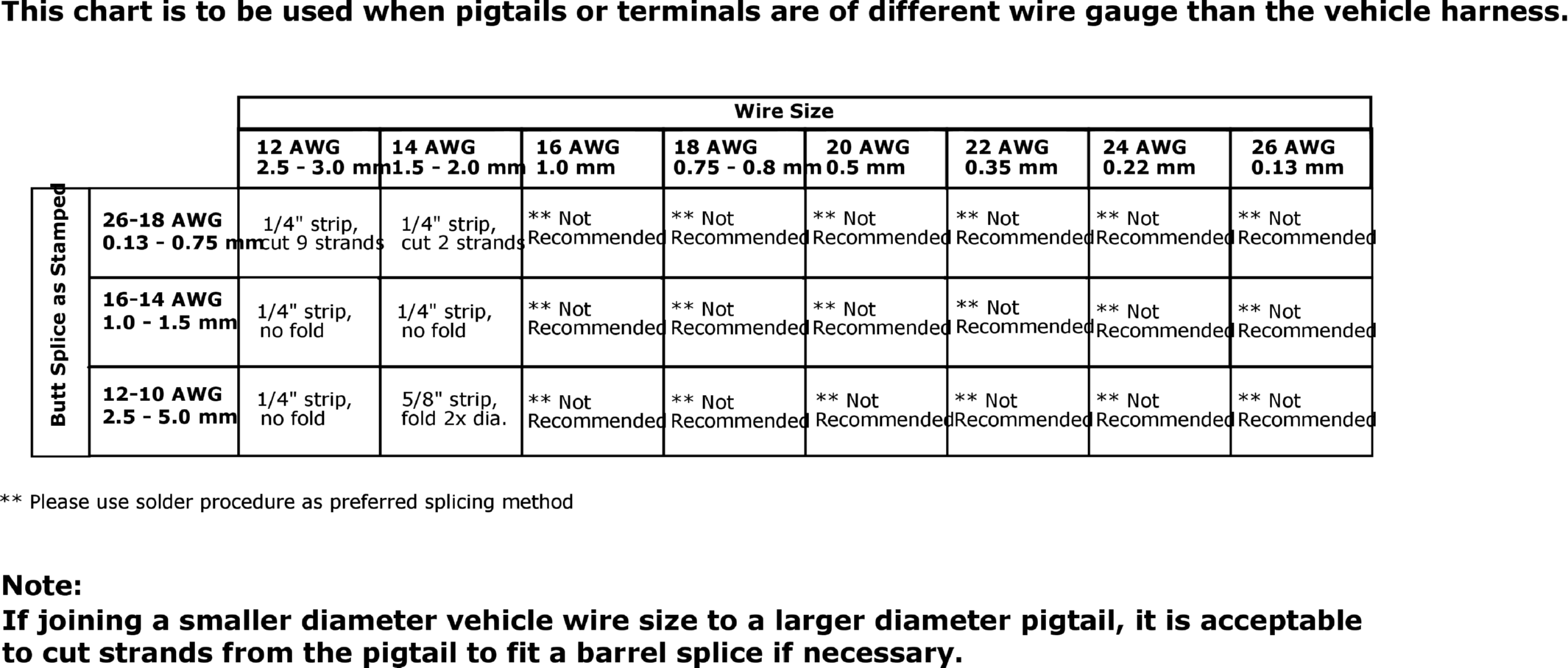

GFDW42615Courtesy of FORD MOTOR COMPANY
