Connector Repair Procedures

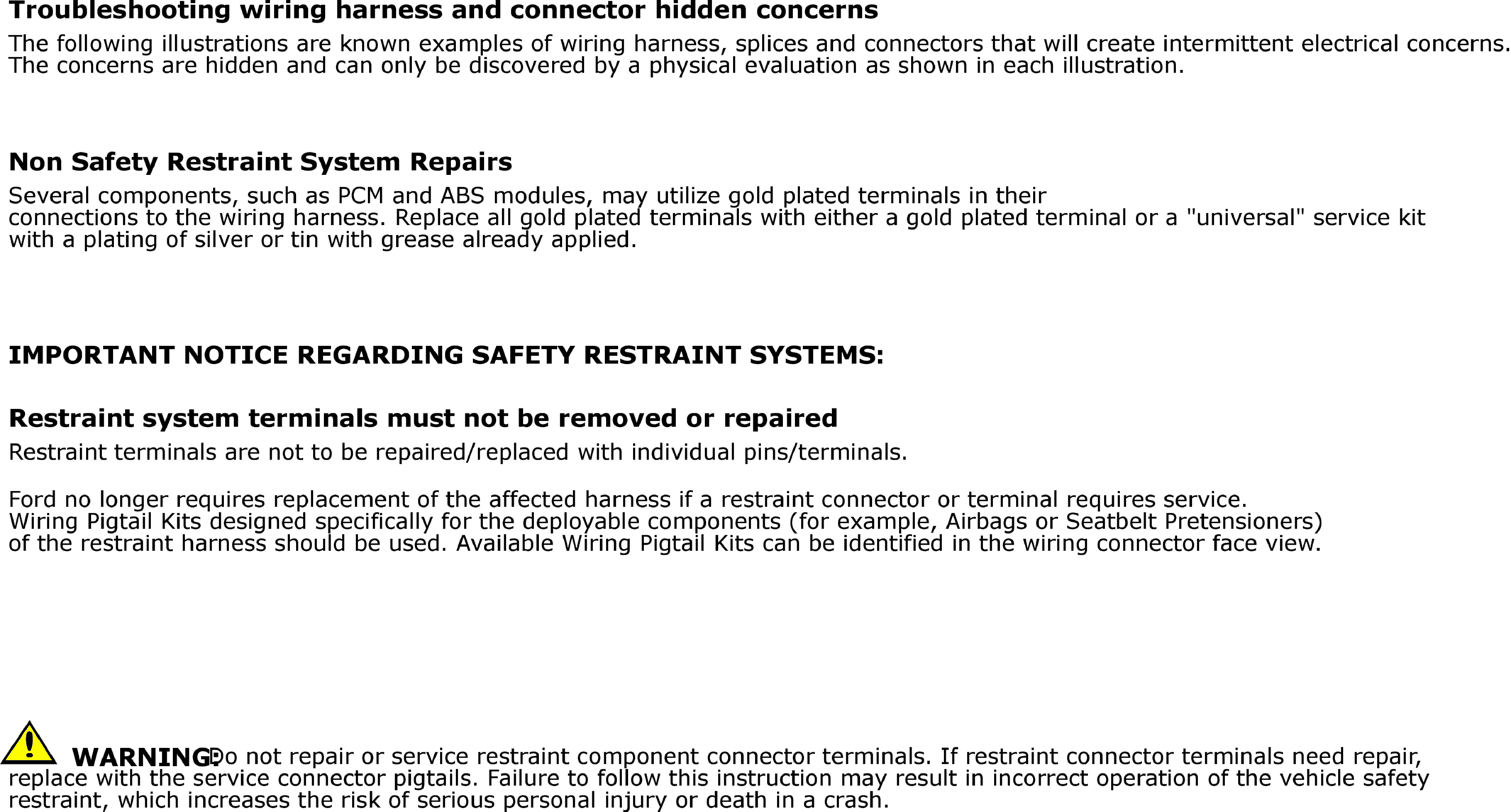

GFDW32702Courtesy of FORD MOTOR COMPANY

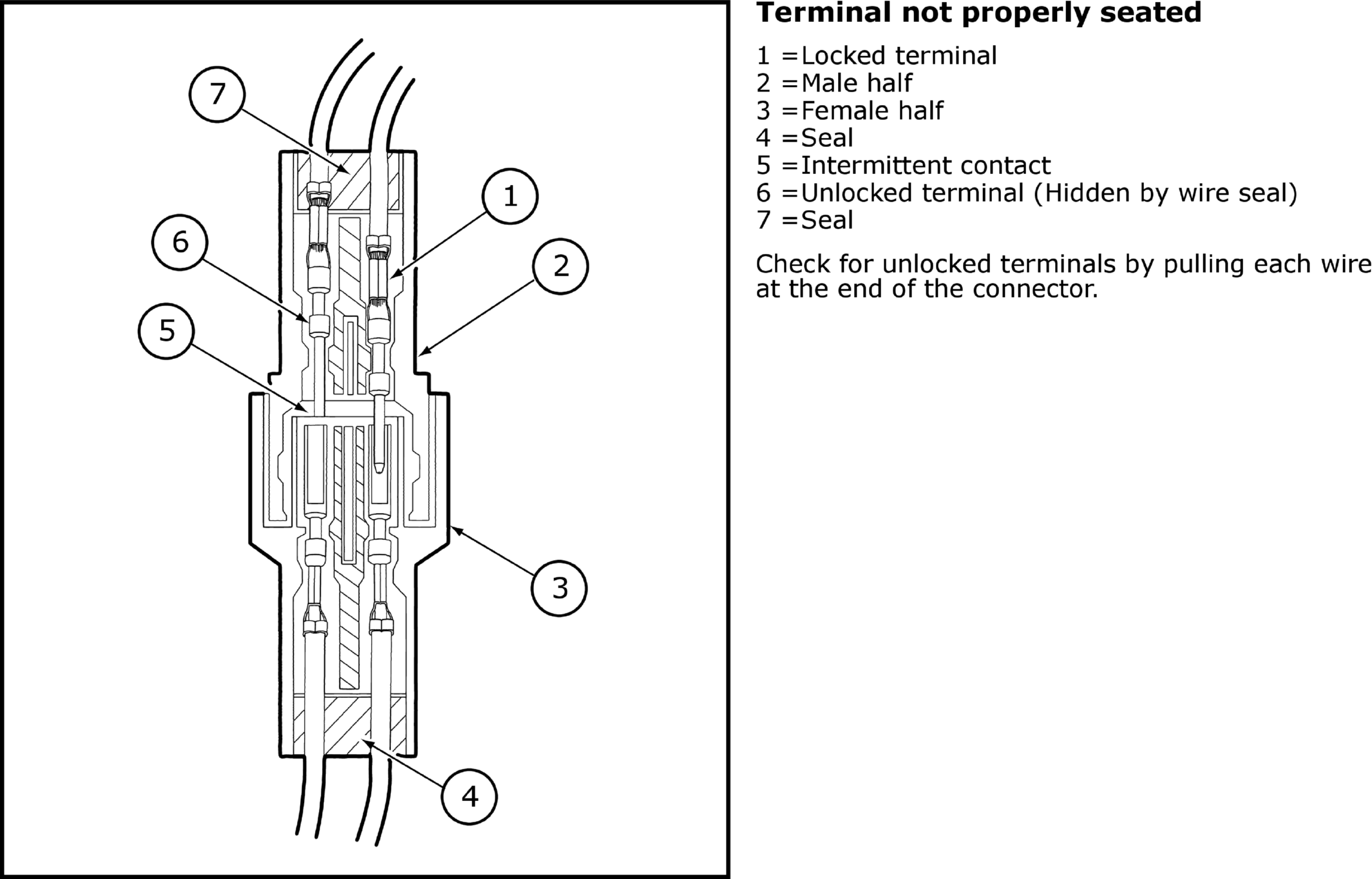

GFDW32703Courtesy of FORD MOTOR COMPANY

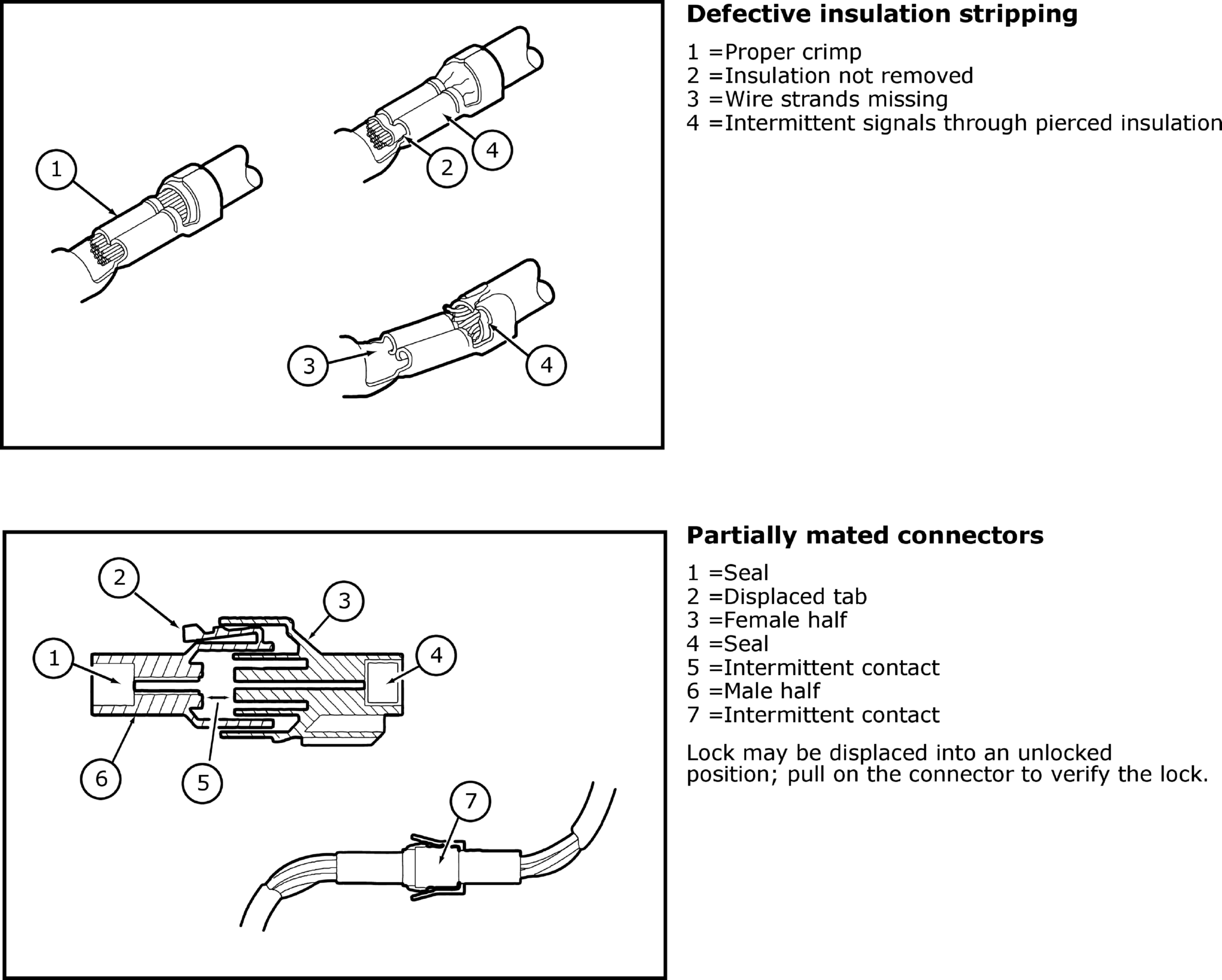

GFDW32704Courtesy of FORD MOTOR COMPANY

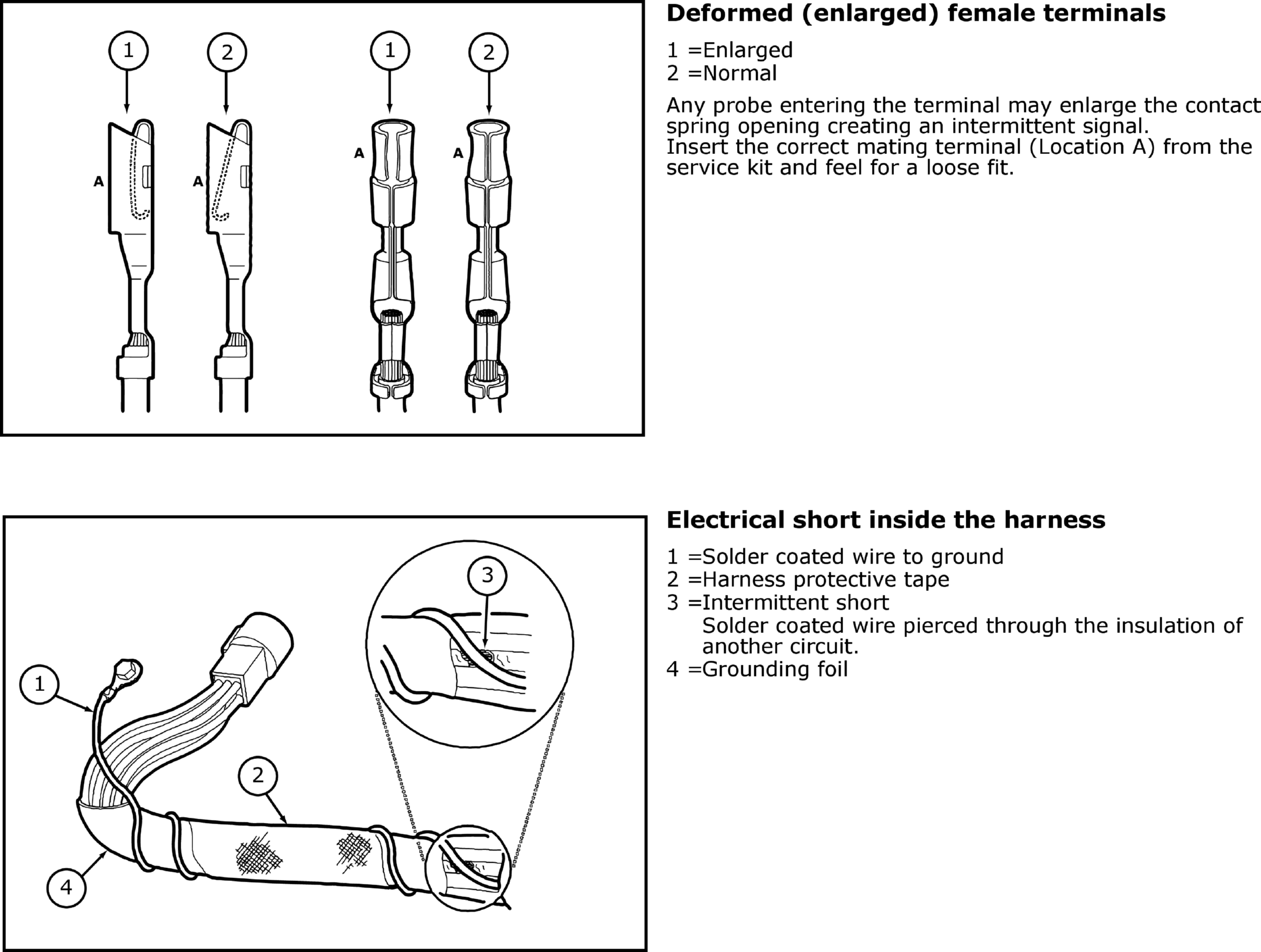

GFDW32705Courtesy of FORD MOTOR COMPANY

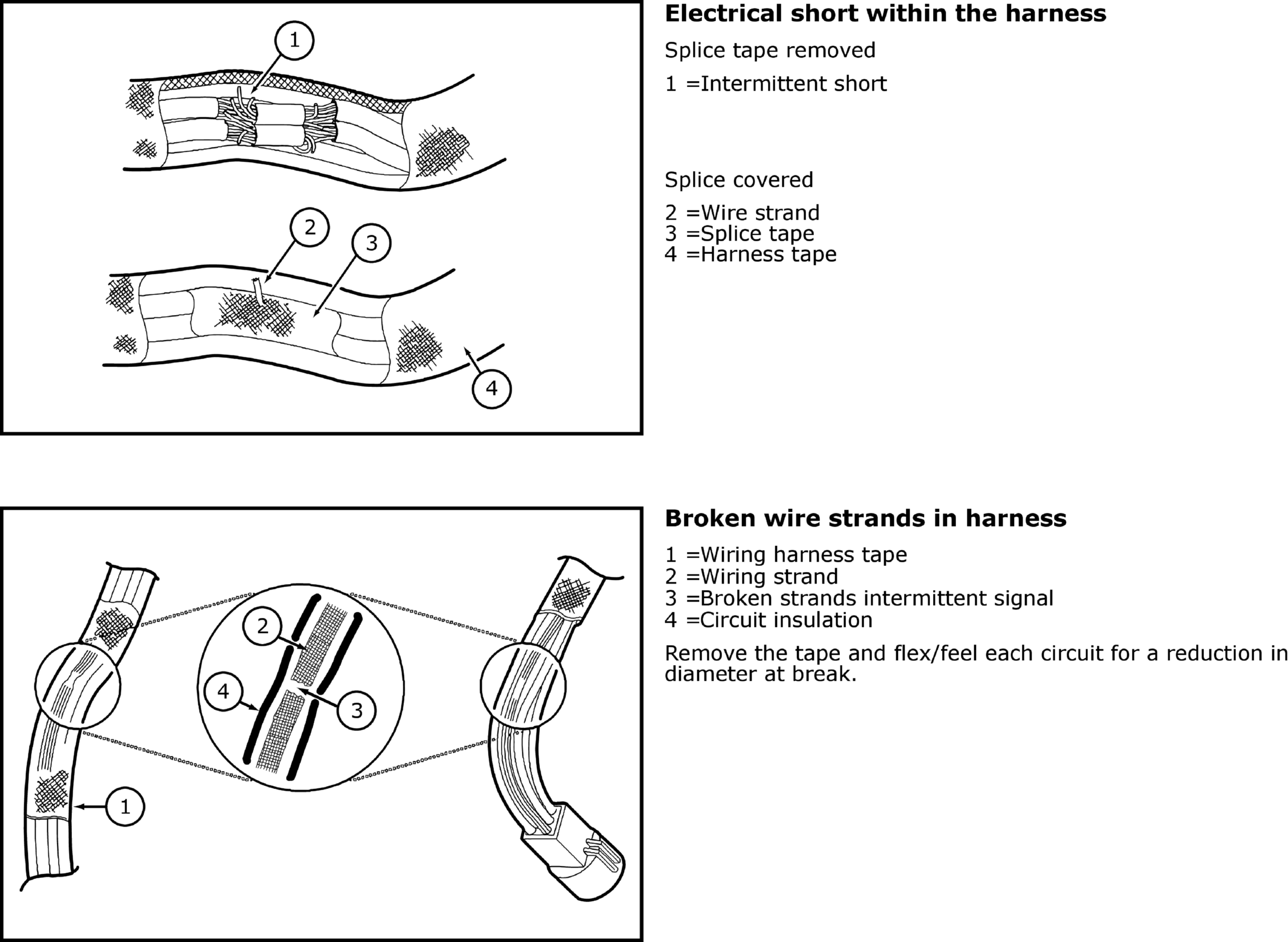

GFDW32706Courtesy of FORD MOTOR COMPANY

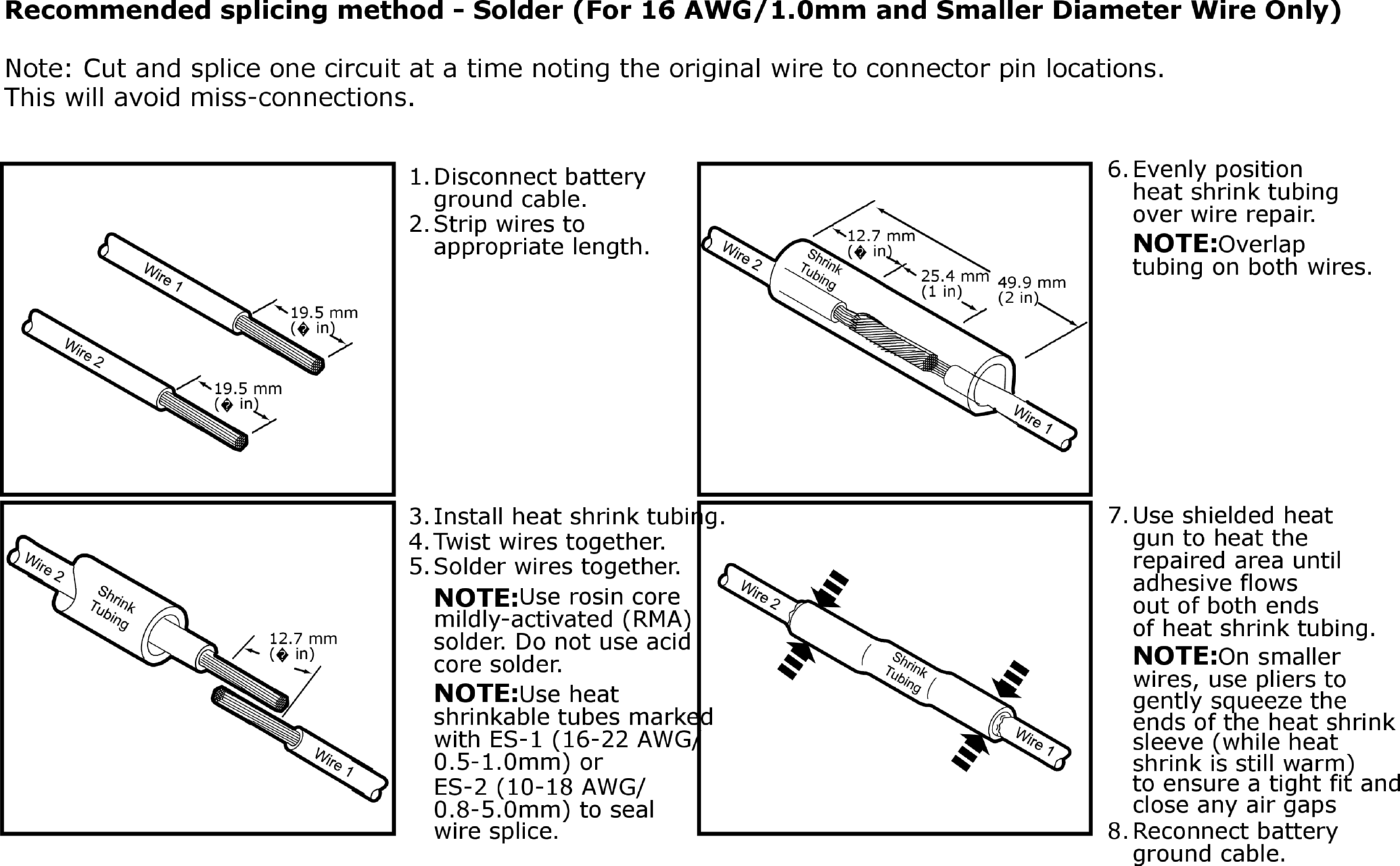

GFDW32707Courtesy of FORD MOTOR COMPANY

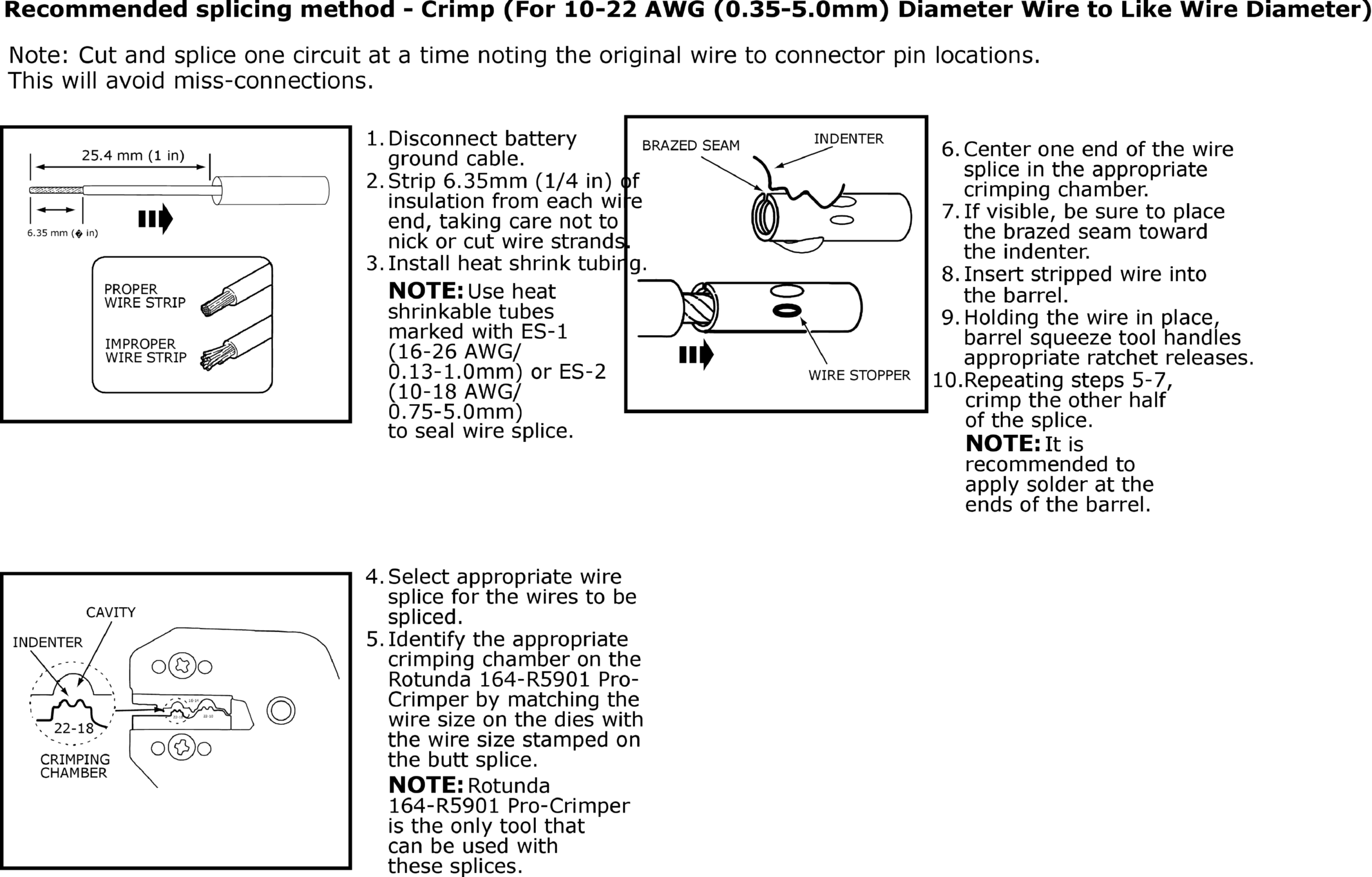

GFDW32708Courtesy of FORD MOTOR COMPANY

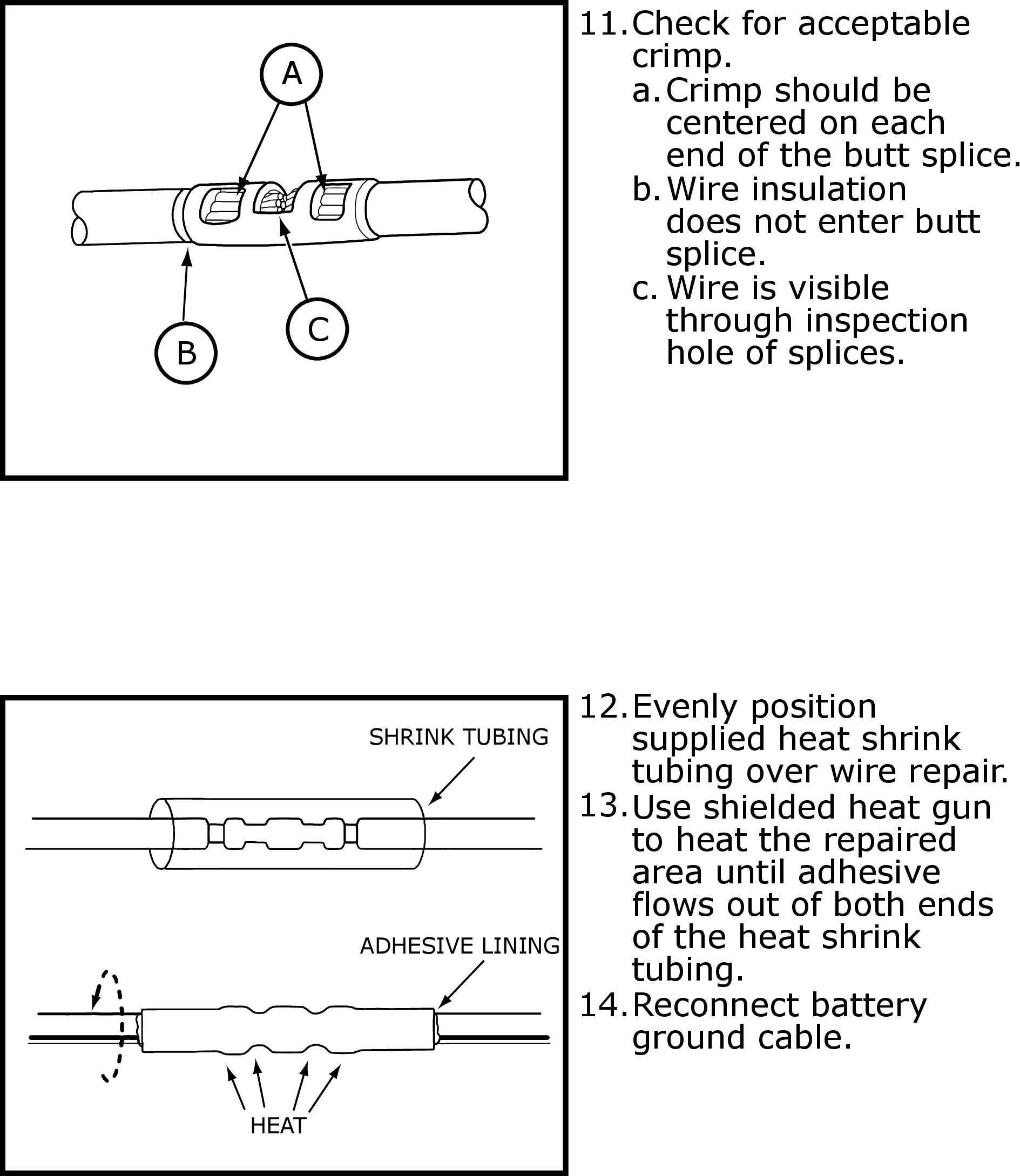

GFDW32709Courtesy of FORD MOTOR COMPANY

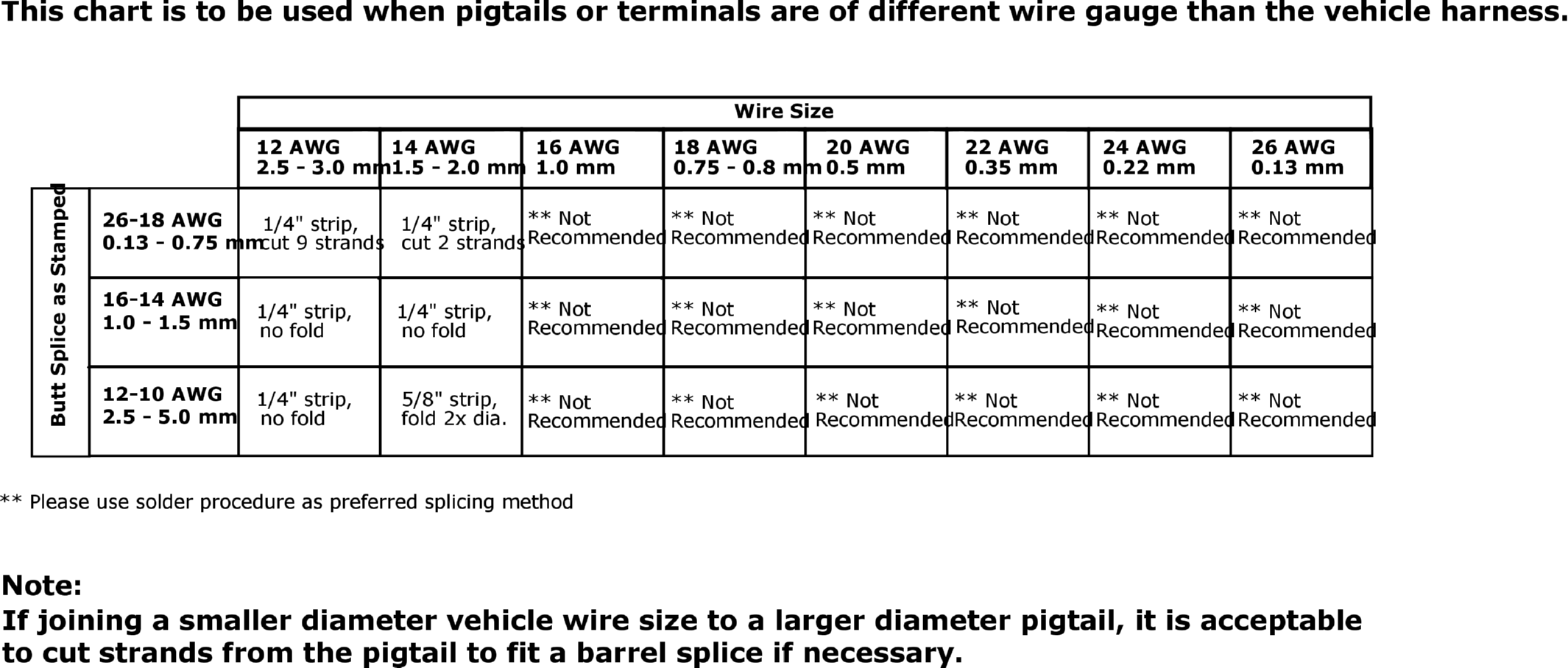

GFDW32710Courtesy of FORD MOTOR COMPANY
