Network Message Chart
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Passenger mirror command | DDM | When the exterior mirror control switch requests movement of the RH exterior mirror, the DDM sends the request to the PDM to drive the RH exterior mirror motor in the desired direction. |
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Passenger mirror command | DDM | When the exterior mirror control switch requests movement of the RH exterior mirror, the DDM sends the request to the PDM to drive the RH exterior mirror motor in the desired direction. |
Power Mirror Operation
When the LH or RH exterior mirror is selected with the exterior mirror selection switch and the exterior mirror control switch is pressed up, down, left or right, the command is sent through a LIN circuit between the LH front window control switch and the DDM. If the LH mirror is selected, the DDM supplies voltage and ground to the appropriate LH exterior mirror motor. If the RH mirror is selected, the DDM sends the passenger mirror command message through the MS-CAN to the PDM. Based on the passenger mirror command message, the PDM supplies voltage and ground to the appropriate RH exterior mirror motor.

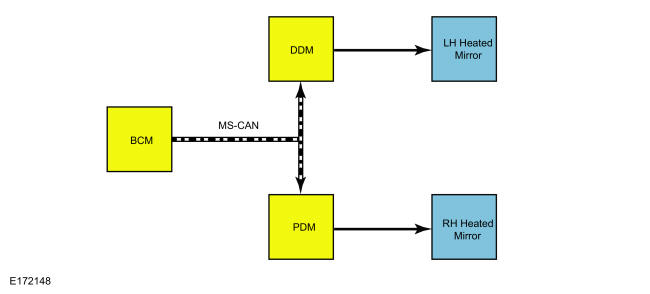

System Diagram - Exterior, Heated
Network Message Chart
Module Network Input Messages - DDM and PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Outer mirror defrost command | BCM | Used to command the heated mirrors on and off. |
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Passenger mirror command | DDM | When the exterior mirror control switch requests movement of the RH exterior mirror, the DDM sends the request to the PDM to drive the RH exterior mirror motor in the desired direction. |
Power Mirror Operation
When the LH or RH exterior mirror is selected with the exterior mirror selection switch and the exterior mirror control switch is pressed up, down, left or right, the command is sent through a LIN circuit between the LH front window control switch and the DDM. If the LH mirror is selected, the DDM supplies voltage and ground to the appropriate LH exterior mirror motor. If the RH mirror is selected, the DDM sends the passenger mirror command message through the MS-CAN to the PDM. Based on the passenger mirror command message, the PDM supplies voltage and ground to the appropriate RH exterior mirror motor.
System Diagram - Exterior, Heated
Network Message Chart
Module Network Input Messages - DDM and PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Outer mirror defrost command | BCM | Used to command the heated mirrors on and off. |
Heated Exterior Mirror Operation
The rear window defrost switch controls operation of the heated exterior mirror glass. The heated exterior mirror glass only operates when the rear window defrost system is active. For a detailed description of the rear window defrost system operation, Refer to: Glass, Frames and Mechanisms - Vehicles With: One-Touch Open and Close Front Windows - System Operation and Component Description
Based on messages received from the BCM through the MS-CAN, the DDM supplies voltage to the LH heated exterior mirror glass and the PDM supplies voltage and ground to the RH heated exterior mirror glass.

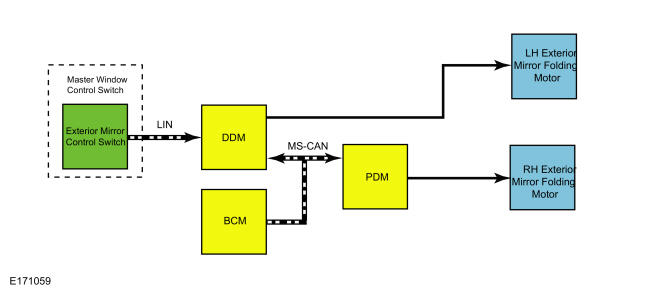

System Diagram - Exterior, Power Folding
Network Message Chart
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Central lock last command | BCM | Provides the DDM with information on what initiated the last lock event. |
| Central lock command | BCM | In addition to locking or unlocking the door, the DDM uses this message to fold or unfold the LH exterior mirror. |
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Passenger mirror fold command | DDM | When an exterior mirror fold or unfold is initiated by the driver by pressing the mirror fold switch or unlocking / locking the vehicle, the DDM sends the request to the PDM to fold or unfold the RH exterior mirror. |
