Pinpoint Test DK: Accelerator Pedal Position (APP) Sensor: Introduction: Notes

NOTE: After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.

This pinpoint test is intended to diagnose the following:

APP sensor (9F836)
harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, APPVREF2, VPWR and GND
PCM (12A650)

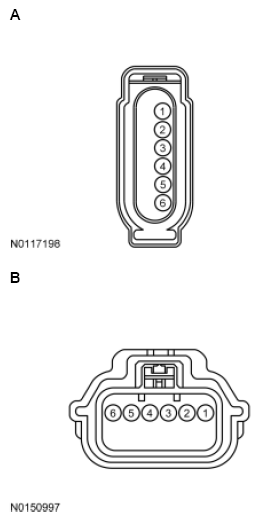

Fig 1: Identifying Accelerator Pedal Position (APP) Sensor Connector
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Fiesta	A	4 6 2 5 3 1	GND VPWR APP2 APP1 APPRTN2 APPVREF2
All other vehicles	B	5 2 4 6 3 1	APP2 APP1 APPRTN2 APPVREF2 APPRTN1 APPVREF1

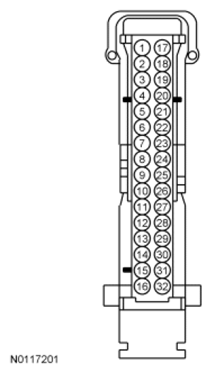

Fig 2: Identifying Instrument Panel Cluster (IPC) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
31	APPVREF2 (Accelerator Pedal Position Reference Voltage 2)
13	APPRTN2 (Accelerator Pedal Position Return 2)
14	APP2 (Accelerator Pedal Position 2)
