Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location: Notes

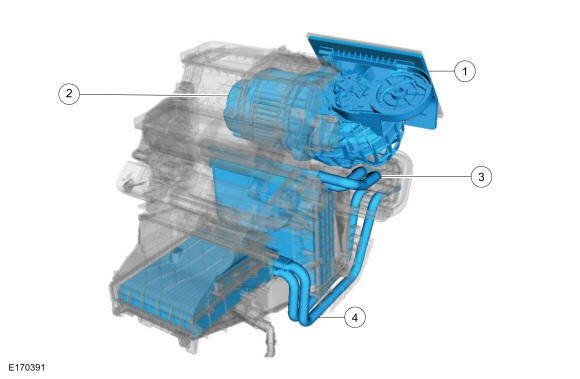

GFD46418Courtesy of FORD MOTOR COMPANY
Item Description
1 Air inlet duct
2 Blower motor
3 Evaporator
4 Heater core

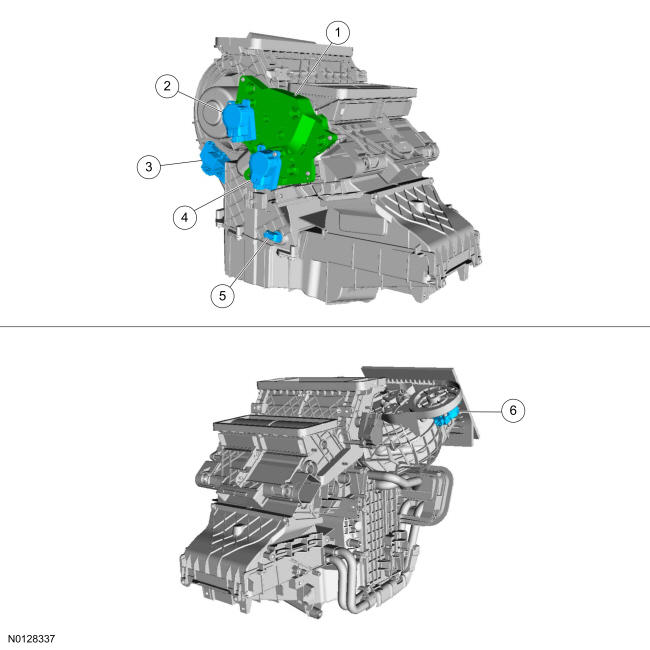

GFD46424Courtesy of FORD MOTOR COMPANY
Item Description
1 Actuating assembly
2 Air distribution door actuator
3 Blower motor control module
4 Temperature door actuator
5 Evaporator temperature sensor
6 Air inlet actuator
