SCR System

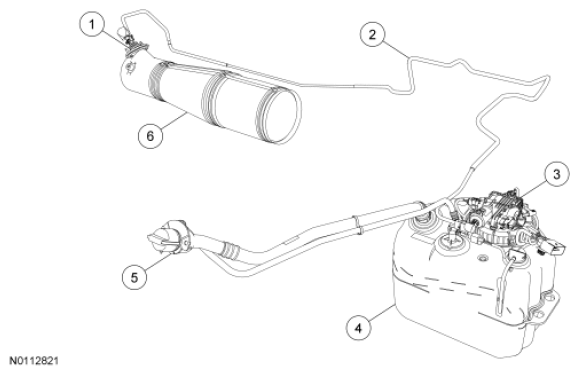

Fig 1: Identifying Selective Catalytic Reduction System Components
G07432301
Item Number Description
1 - Reductant Injector
2 - Reductant Pressure Line
3 - Reductant Pump Assembly
4 - Reductant Tank
5 - Reductant Tank Filler Hose
6 - SCR Catalyst
