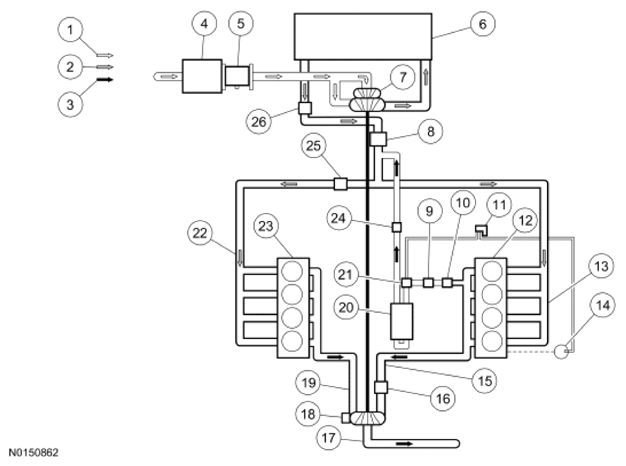

| 1 |
- |
Intake Air |
| 2 |
- |
Compressed Air |
| 3 |
- |
Exhaust Air |
| 4 |
- |
Air Filter |
| 5 |
- |
Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor |
| 6 |
- |
Charge Air Cooler (CAC) |
| 7 |
- |
Turbocharger Compressor Wheel |
| 8 |
- |
Intake Throttle Assembly |
| 9 |
- |
Exhaust Gas Recirculation (EGR) Valve |
| 10 |
mdash |
Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT 11) |
| 11 |
- |
Exhaust Gas Recirculation (EGR) Cooler Bypass Valve solenoid |
| 12 |
- |
Cylinder Head Bank 1 |
| 13 |
- |
Intake Manifold Bank 1 |
| 14 |
- |
Mechanical Vacuum Pump |
| 15 |
- |
Exhaust Manifold Bank 1 |
| 16 |
- |
Exhaust Pressure (EP) Sensor |
| 17 |
- |
Outlet To Exhaust System |
| 18 |
- |
Turbocharger Actuator |
| 19 |
- |
Exhaust Manifold Bank 2 |
| 20 |
- |
Exhaust Gas Recirculation (EGR) Cooler |
| 21 |
- |
Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Actuator |
| 22 |
- |
Intake Manifold Bank 2 |
| 23 |
- |
Cylinder Head Bank 2 |
| 24 |
- |
Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT 12) |
| 25 |
- |
Manifold Absolute Pressure (MAP) Sensor |
| 26 |
- |
Charge Air Cooler Temperature (CACT) Sensor |
