Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: On both sides.

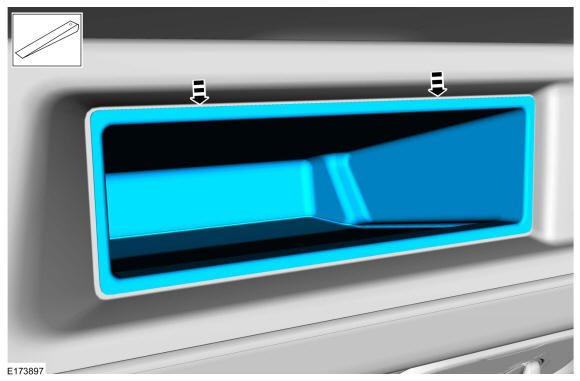

Remove the overhead console storage compartment bin.

GFD76435

Courtesy of FORD MOTOR COMPANY

2.

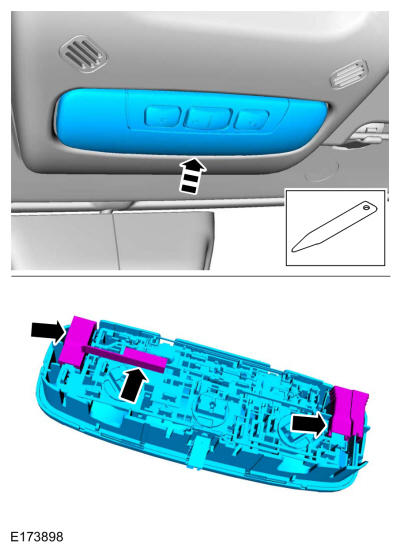

Lower the dome lamp assembly, disconnect the 3 electrical connectors and remove the dome lamp assembly.

GFD76436

Courtesy of FORD MOTOR COMPANY

3.

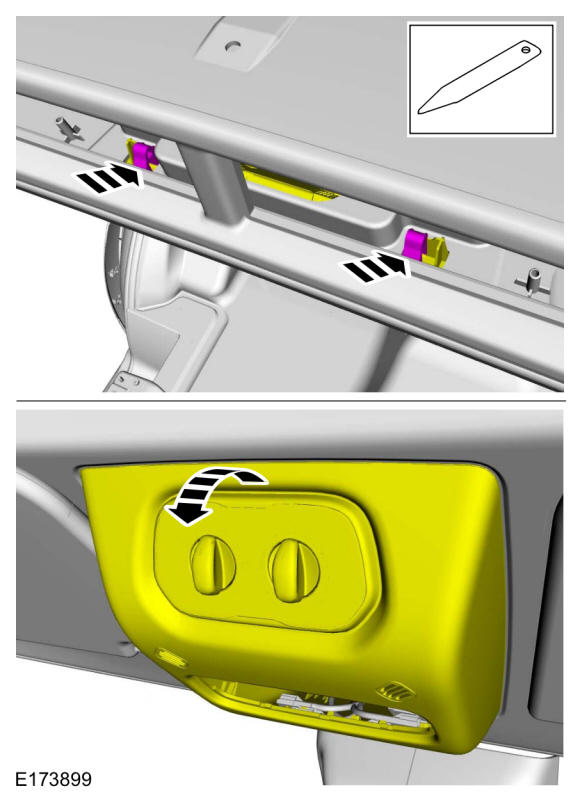

Release the 2 tabs and rotate the overhead console assembly downward.

GFD77024

Courtesy of FORD MOTOR COMPANY

4.

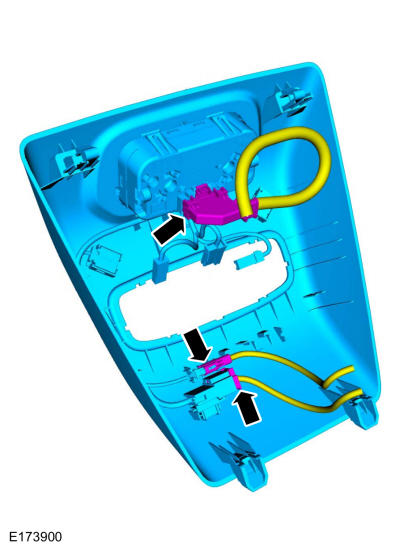

Disconnect the 3 electrical connectors and remove the overhead console.

GFD76438

Courtesy of FORD MOTOR COMPANY

5.

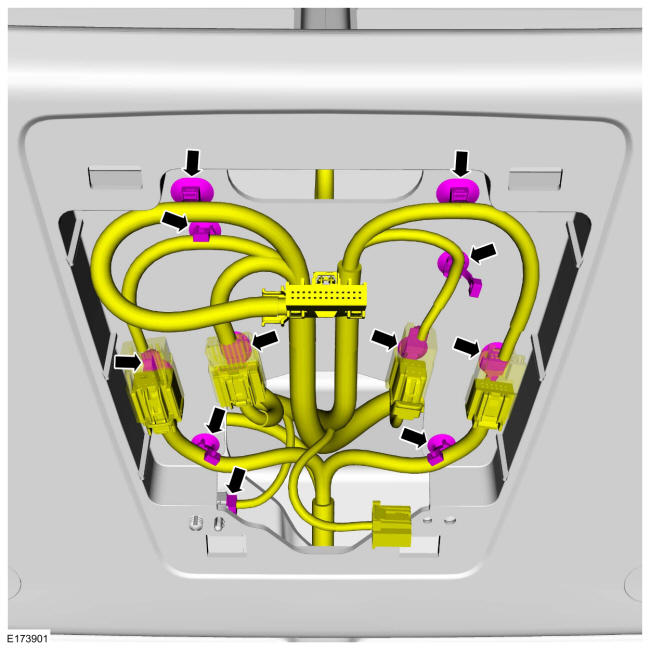

Release the 10 harness retainers, disconnect the electrical connector and position the harness through the opening.

GFD77025

Courtesy of FORD MOTOR COMPANY

6.

NOTE: On boths sides.

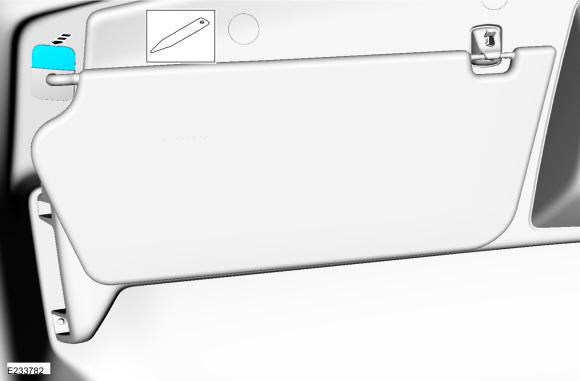

Remove the cover.

Use the General Equipment: Interior Trim Remover

GFD77026

Courtesy of FORD MOTOR COMPANY

7.

NOTE: On boths sides.

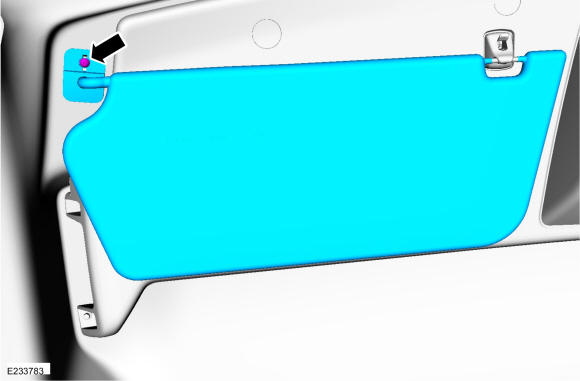

Remove the screw and the sunvisor.

GFD77027

Courtesy of FORD MOTOR COMPANY

8.

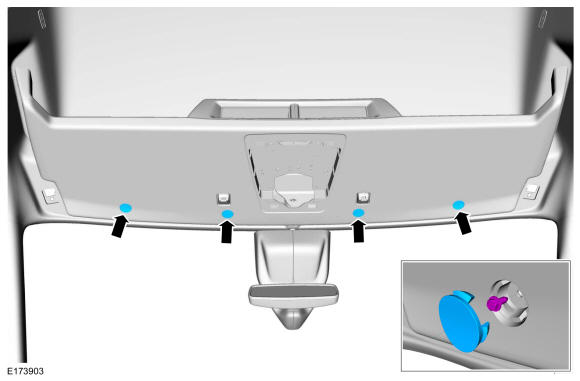

Remove the 4 trim covers and remove the 4 screws.
Torque

: 53 lb.in (6 Nm)

GFD77028

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the overhead console storage compartment or damage to the components may occur.

Remove the 6 screws and the overhead console storage compartment.

Torque

: 53 lb.in (6 Nm)

GFD77029

Courtesy of FORD MOTOR COMPANY
