Electronic Engine Controls - Rear

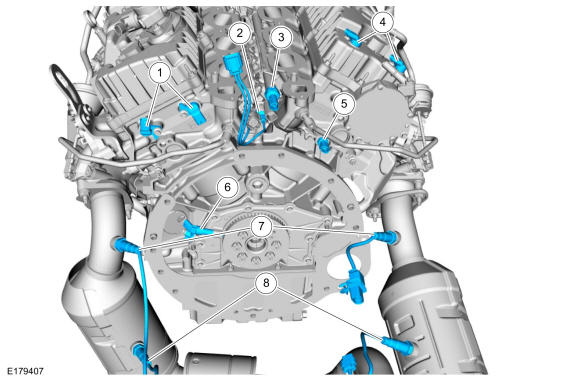

GFD75367Courtesy of FORD MOTOR COMPANY
Item Description
1 LHCMP sensor
2 KS
3 FRP sensor
4 RHCMP sensor
5 CHT sensor
6 CKP sensor
7 HO2S
8 Catalyst monitor sensor
