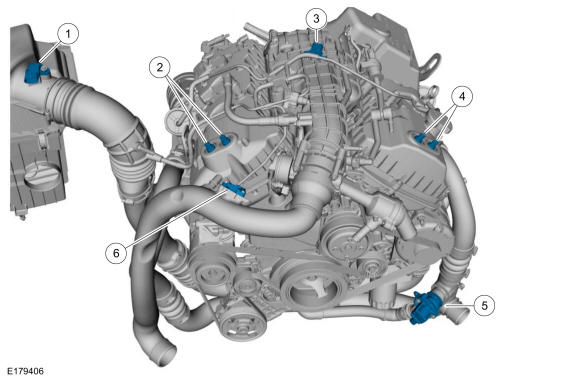

Electronic Engine Controls- Front

GFD75366Courtesy of FORD MOTOR COMPANY
Item Description
1 TCIPT
2 RHVCT oil control solenoid
3 MAPT sensor
4 LHVCT oil control solenoid
5 Turbocharger By-Pass Valve
6 Turbocharger Boost Pressure and Charge Air Temperature Sensor
