Connector Repair Procedures

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

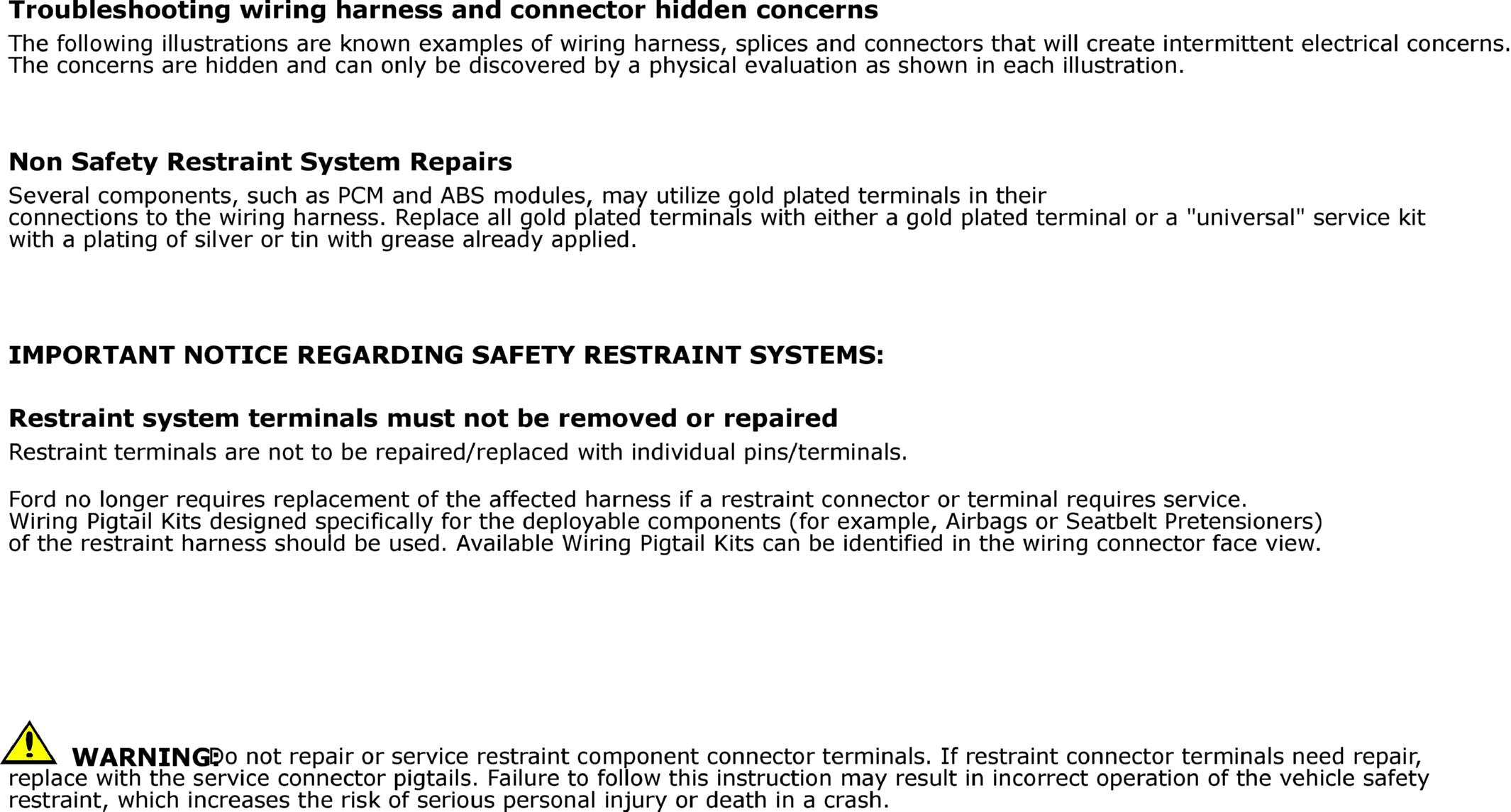

GFDW61392Courtesy of FORD MOTOR COMPANY

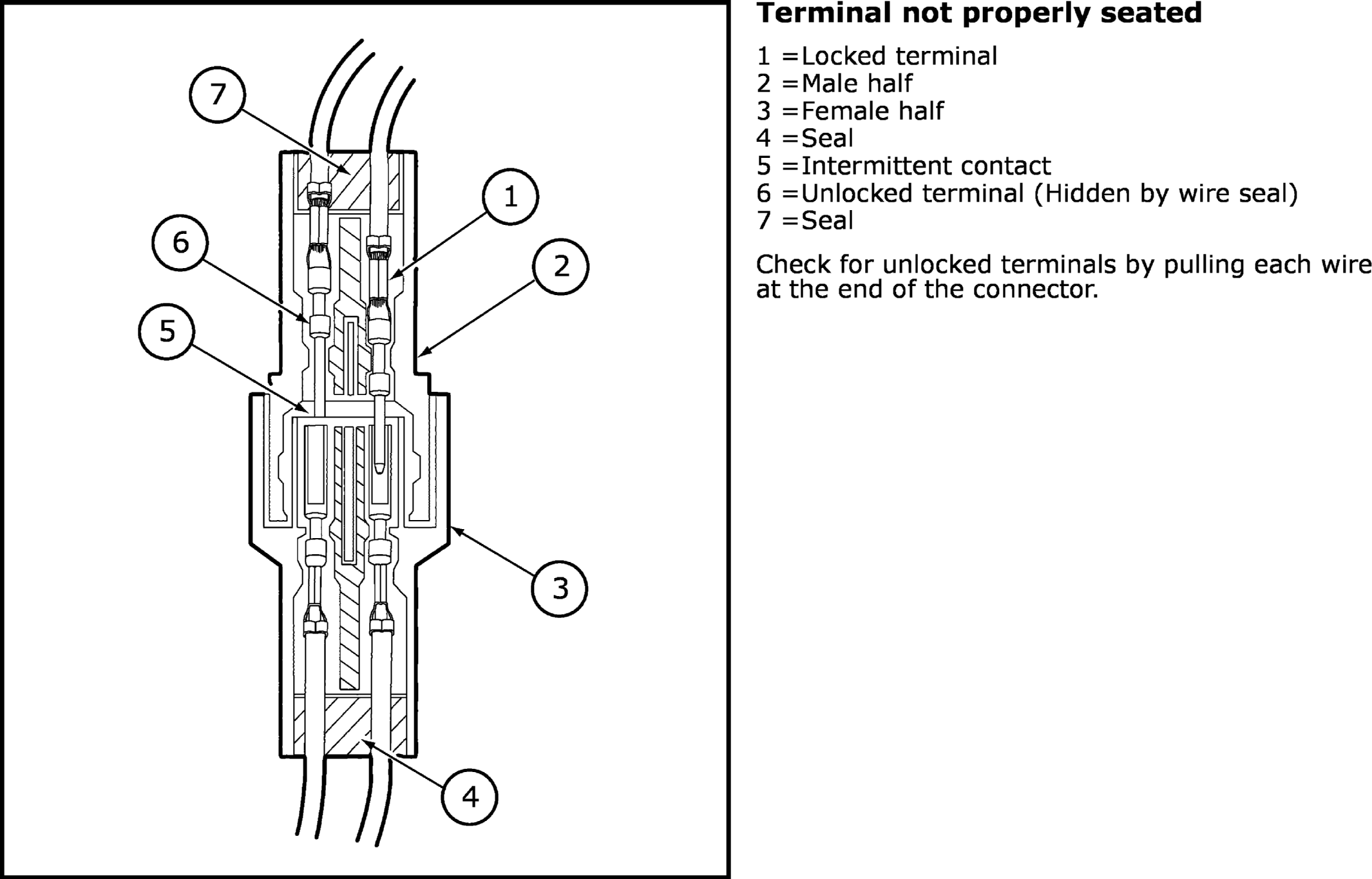

GFDW61393Courtesy of FORD MOTOR COMPANY

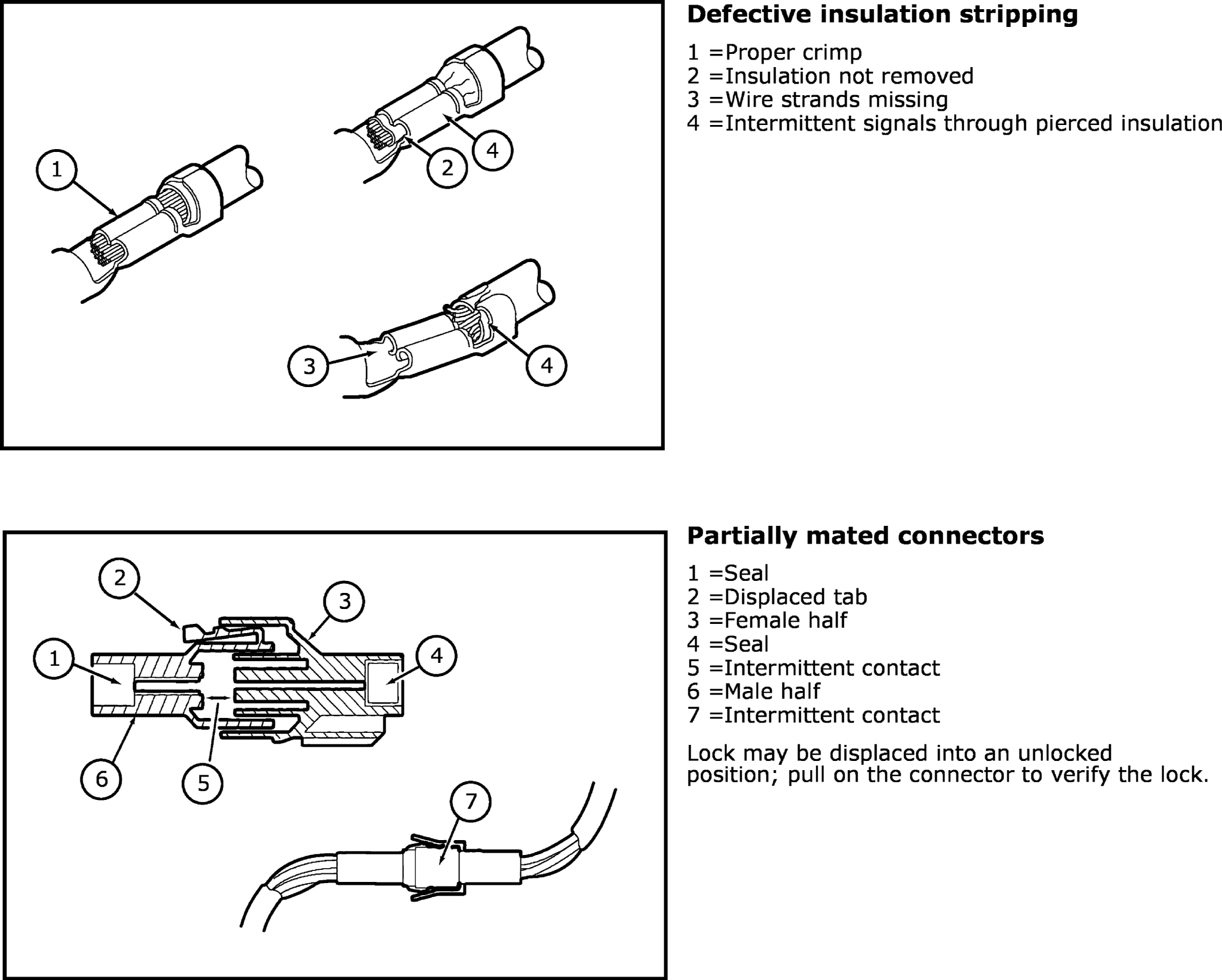

GFDW61394Courtesy of FORD MOTOR COMPANY

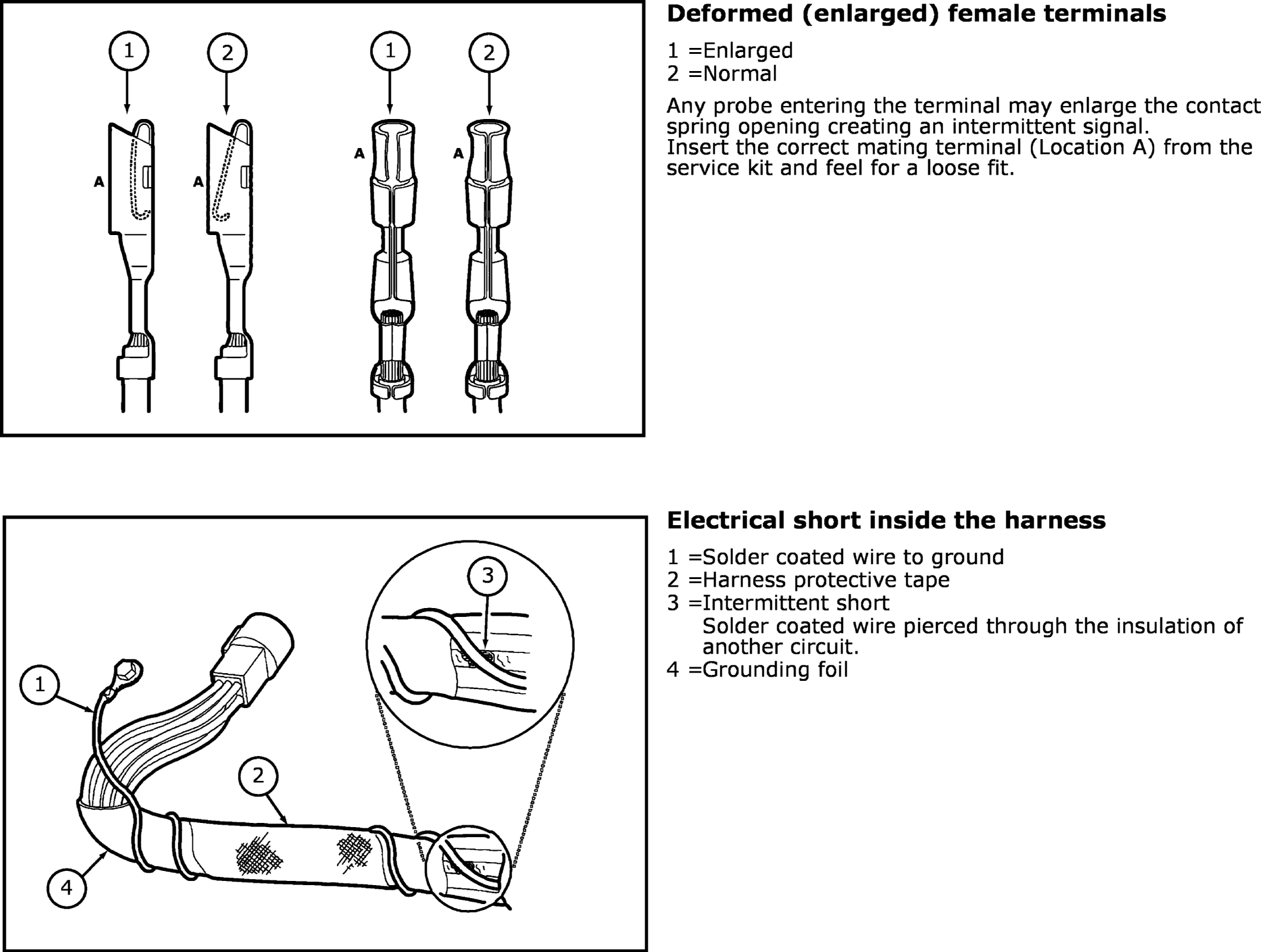

GFDW61395Courtesy of FORD MOTOR COMPANY

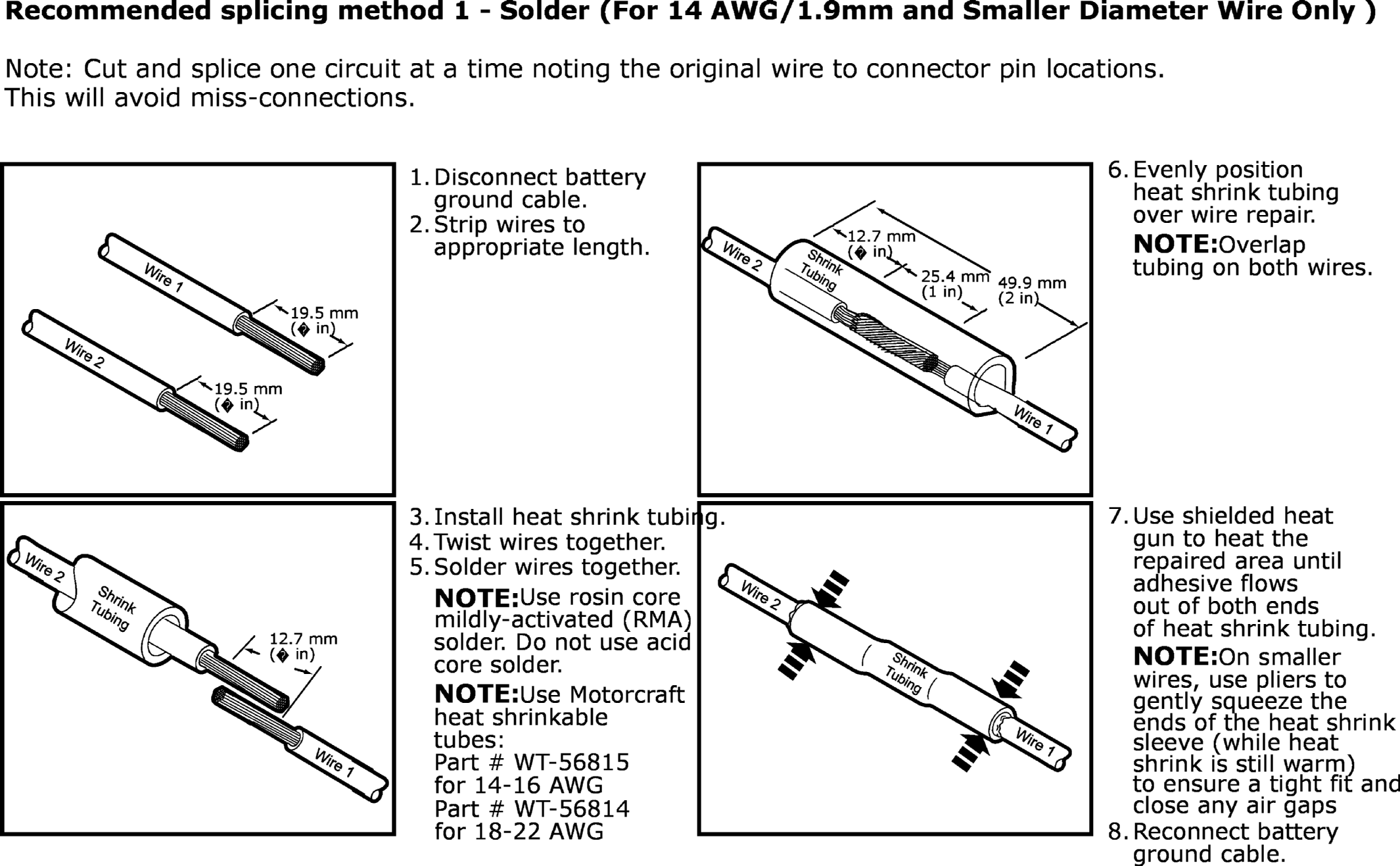

GFDW61396Courtesy of FORD MOTOR COMPANY

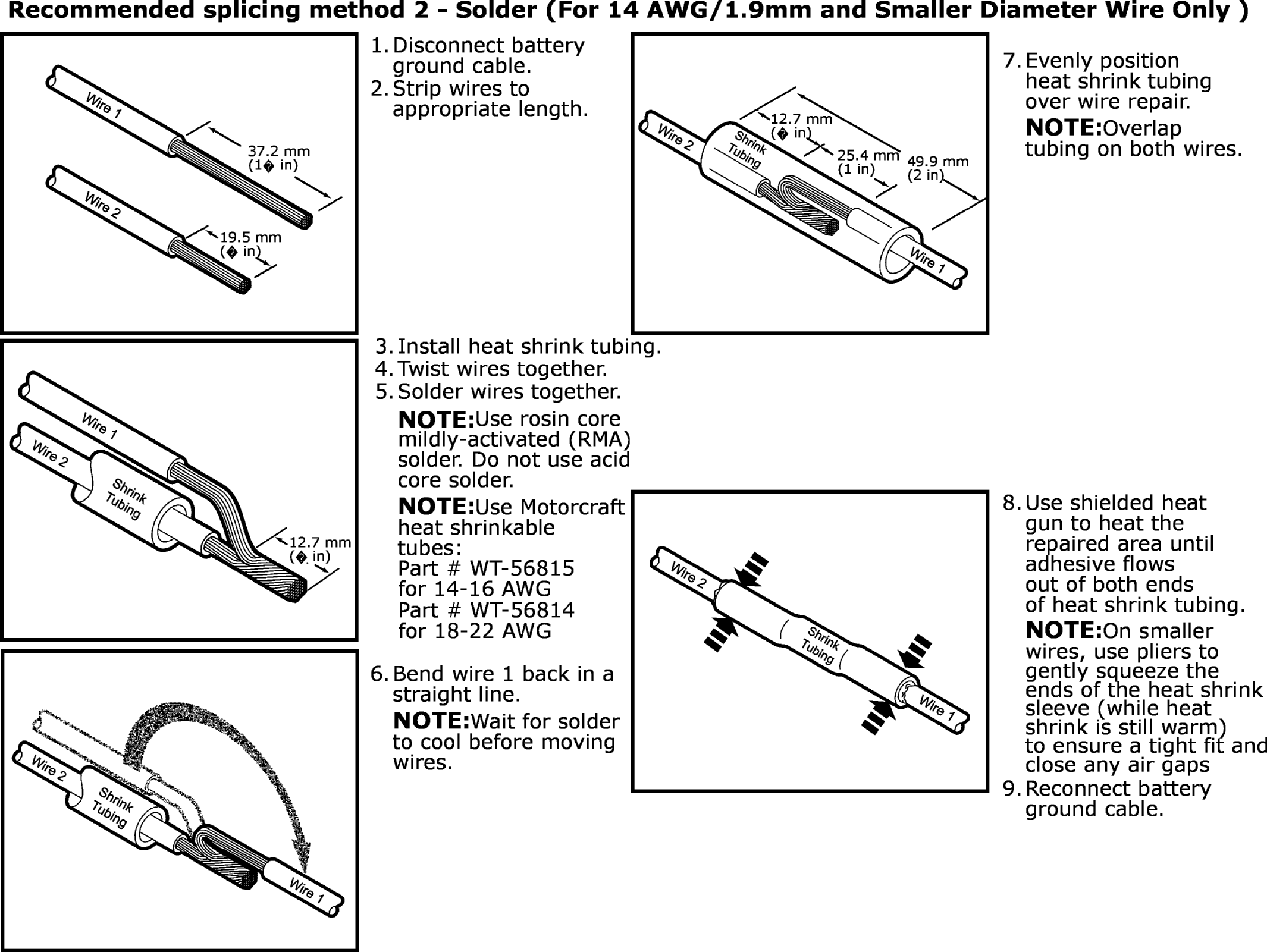

GFDW61397Courtesy of FORD MOTOR COMPANY

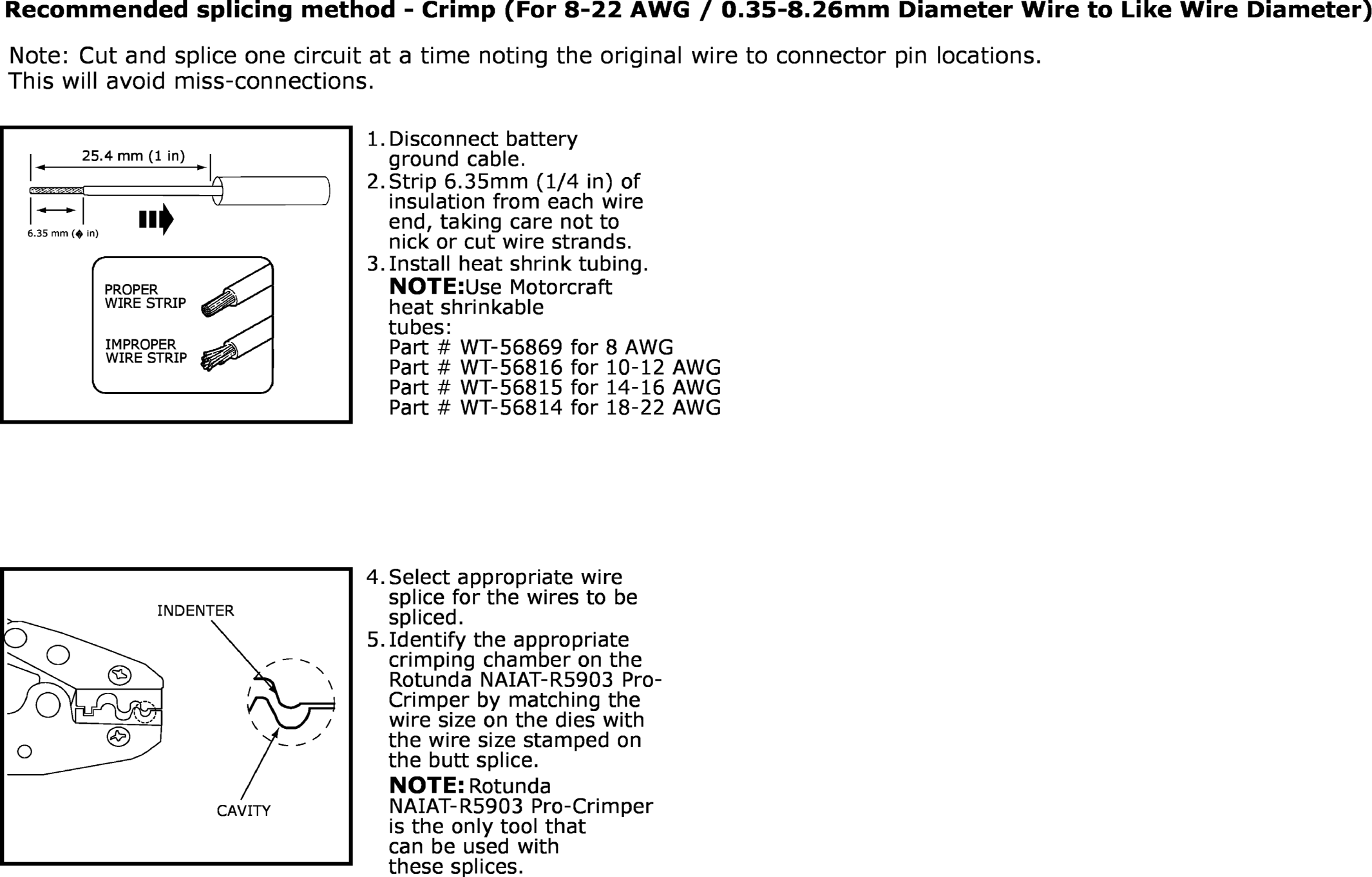

GFDW61398Courtesy of FORD MOTOR COMPANY

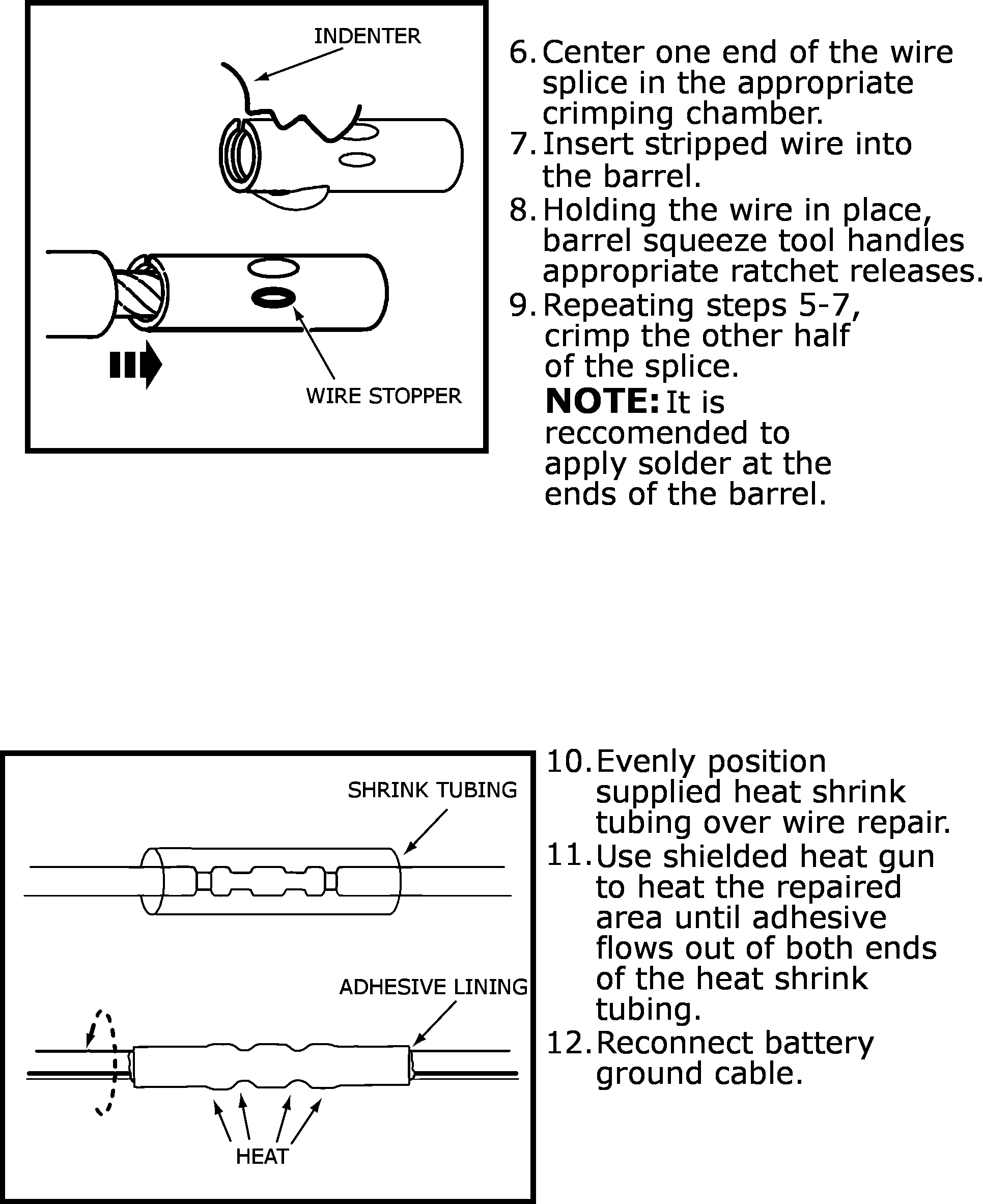

GFDW61399Courtesy of FORD MOTOR COMPANY

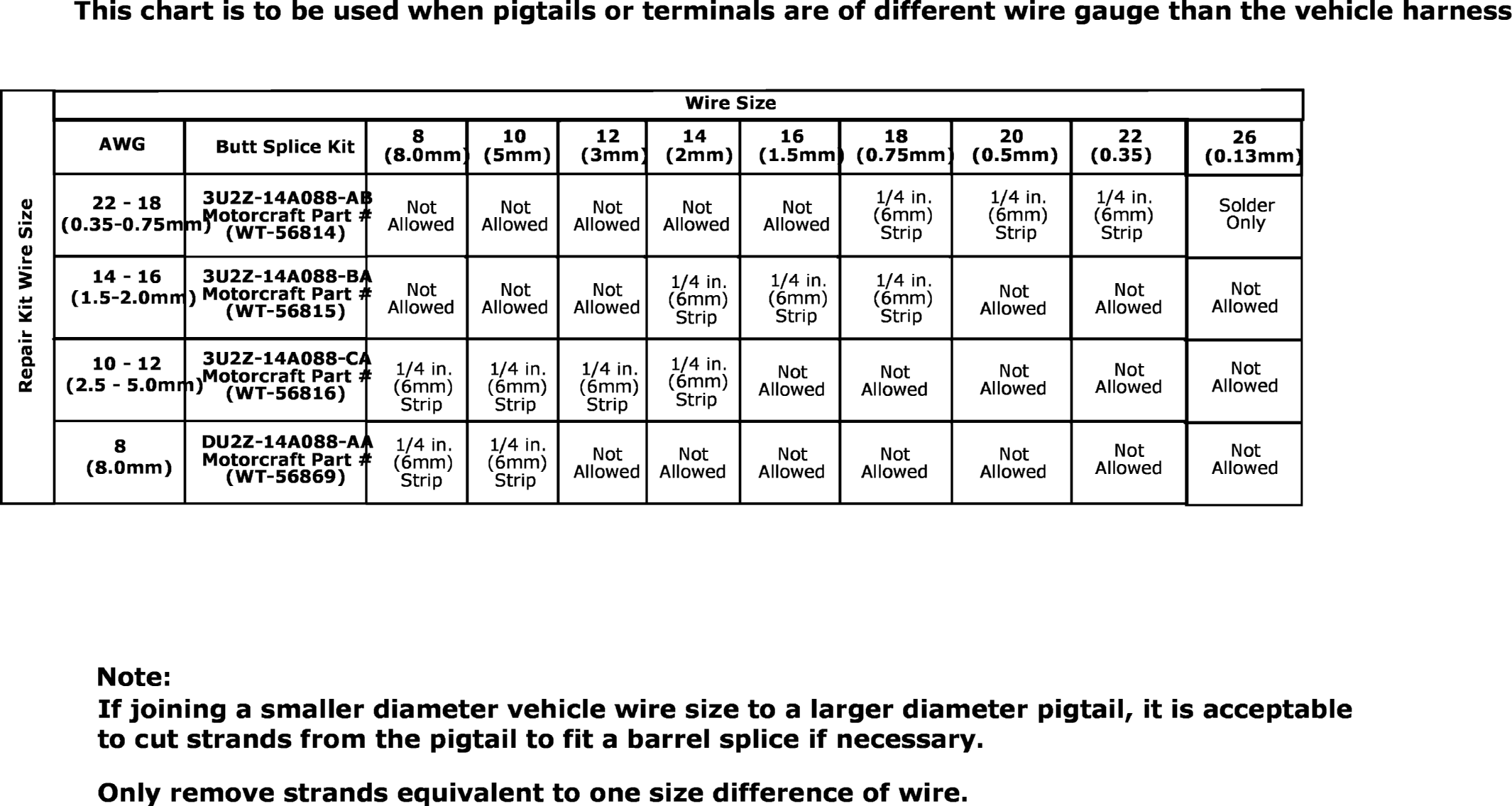

GFDW61400Courtesy of FORD MOTOR COMPANY
