Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

2.

NOTE: Low roof van shown, others are similar.
1. 1.

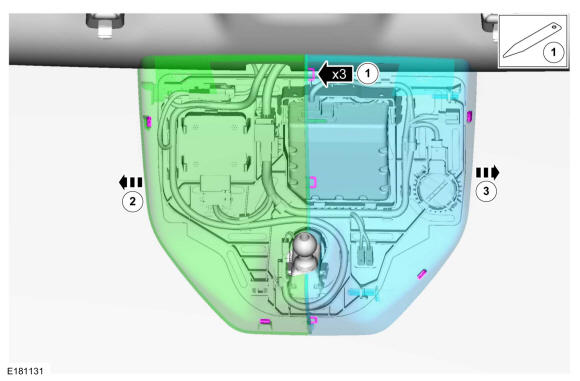

  Using a non marring tool separate the IPMA trim covers.
1. 2.

  Remove the LH IPMA trim cover.
1. 3.

  Remove the RH IPMA trim cover.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Low roof van shown, others are similar.

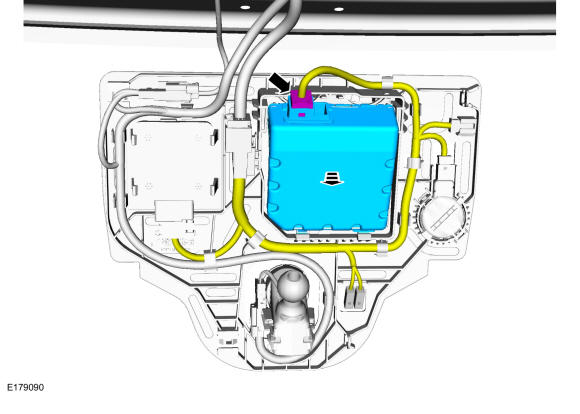

Disconnect the IPMA electrical connector and remove the IPMA.
