Line Pressure Control (LPC) Solenoid
The Line Pressure Control (LPC) solenoid, is a Variable Force Solenoid (VFS) that varies hydraulic pressure by actuating a hydraulic valve.
The PCM applies variable current to the LPC solenoid which varies pressure in the VFS5 hydraulic circuit to the main regulator valve.

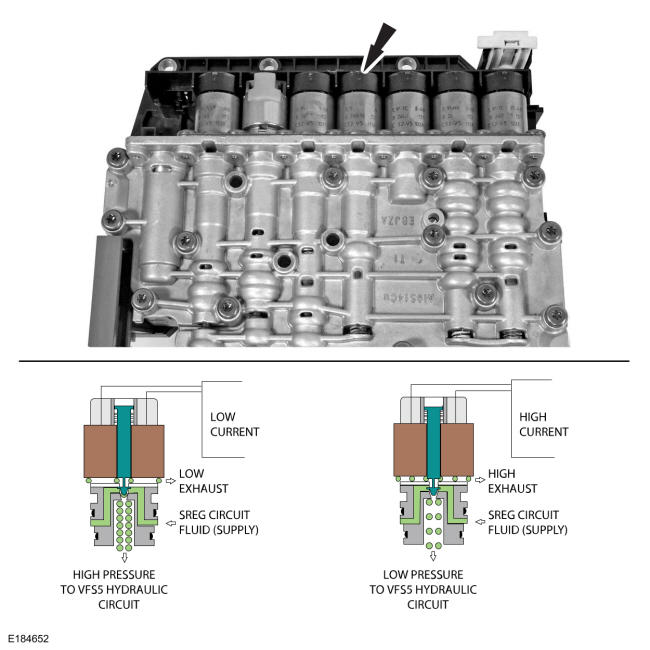

The LPC solenoid uses inversely proportional operation. As the current from the PCM decreases, the pressure from the solenoid increases. As the current from the PCM increases, the pressure from the solenoid decreases. The LPC solenoid is supplied hydraulic pressure from the SREG circuit.
With zero current, the LPC solenoid fully opens the hydraulic valve which applies the maximum amount of hydraulic pressure to the main regulator valve through the VFS5 hydraulic circuit and applies maximum line pressure in the PUMP hydraulic circuit. With maximum current to the solenoid, the hydraulic valve fully closes the outlet port for minimum pressure to the VFS5 hydraulic circuit, lowering the line pressure in the PUMP hydraulic circuit.
