Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.

2.

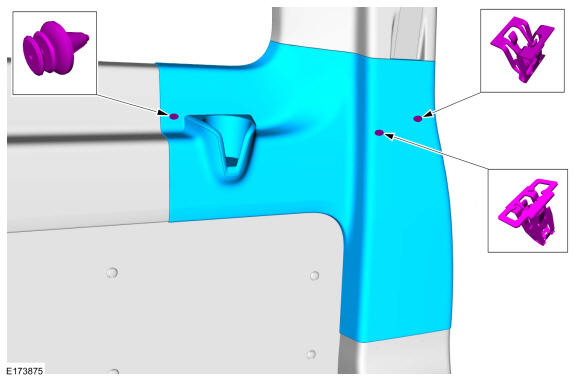

Release the clips and remove the middle B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

3.

Release the clips and remove the lower B-pillar trim panel

Courtesy of FORD MOTOR COMPANY

4.

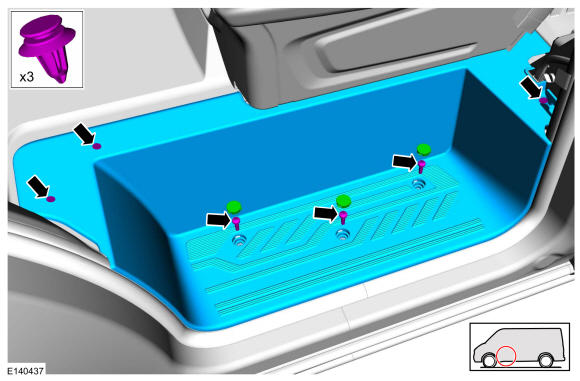

- Remove the 3 footwell trim panel screw covers and 3 screws.
- Remove the footwell trim panel.

Courtesy of FORD MOTOR COMPANY

5.

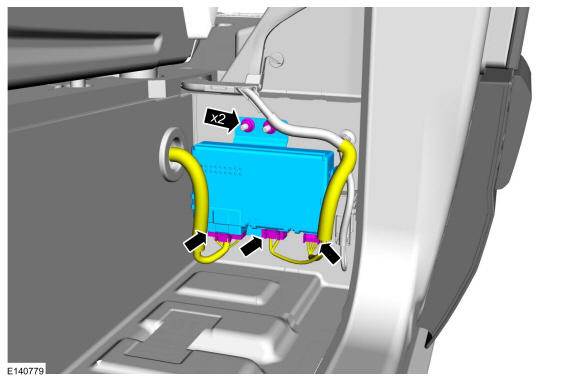

- Disconnect the 3 trailer module electrical connectors.
- Remove the 2 trailer module nuts and the trailer module.
  Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
