System Diagram

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

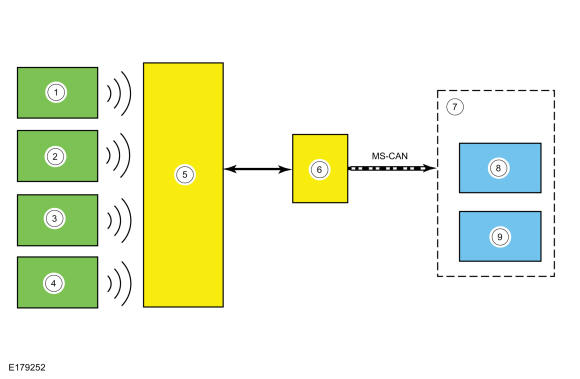

GFD142696Courtesy of FORD MOTOR COMPANY
Item Description
1 LH front TPMS sensor
2 RH front TPMS sensor
3 LH rear TPMS sensor
4 RH rear TPMS sensor
5 Radio Frequency (RF) receiver
6 BCM
7 IPC
8 Message center display
9 TPMS warning indicator
