System Diagrams
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

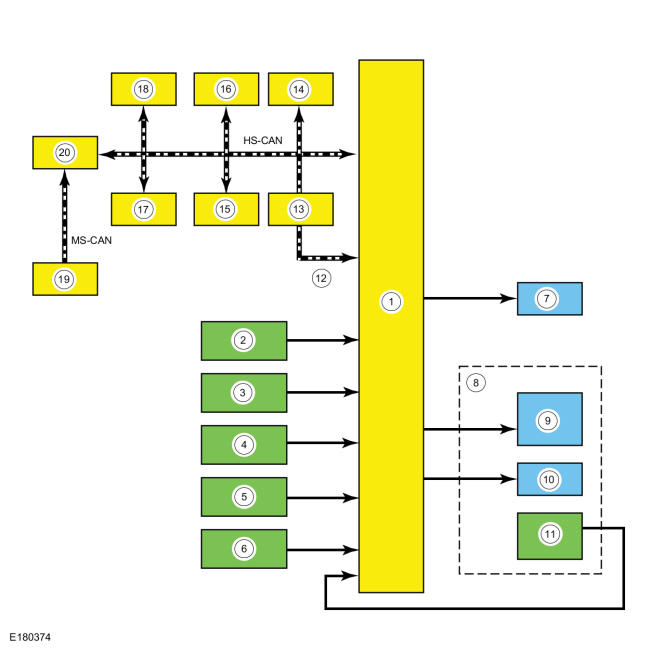

ABS and Stability Control System Diagram
| Item | Description |
|---|---|
| 1 | ABS module |
| 2 | LH front wheel speed sensor |
| 3 | RH front wheel speed sensor |
| 4 | LH rear wheel speed sensor |
| 5 | RH rear wheel speed sensor |
| 6 | Traction control switch |
| 7 | Traction control switch LED indicator |
| 8 | HCU |
| 9 | Hydraulic pump motor |
| 10 | Hydraulic valve solenoids |
| 11 | Brake pressure sensor |
| 12 | Private HS-CAN |
| 13 | RCM |
| 14 | PCM |
| 15 | SASM |
| 16 | TRM |
| 17 | TCM (3.2L engines only) |
| 18 | TBM |
| 19 | IPC |
| 20 | BCM |

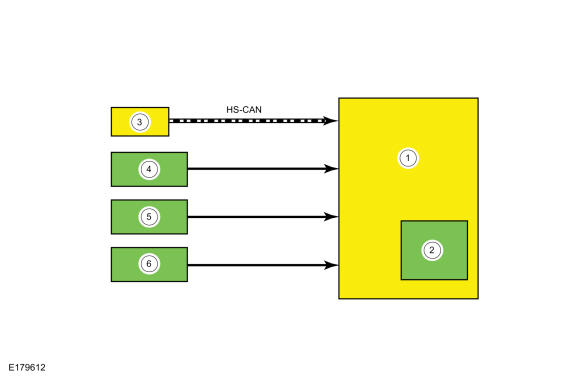

SASM System Diagram
| Item | Description |
|---|---|
| 1 | SASM |
| 2 | Steering wheel rotation sensor |
| 3 | BCM |
| 4 | RH multifunction switch |
| 5 | LH multifunction switch |
| 6 | Steering wheel switches |
