Transmission Fluid Level Check
Materials
| Name | Specification |
|---|---|
| Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC | MERCON ® LVWSS-M2C938-A |
Check
- 2.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

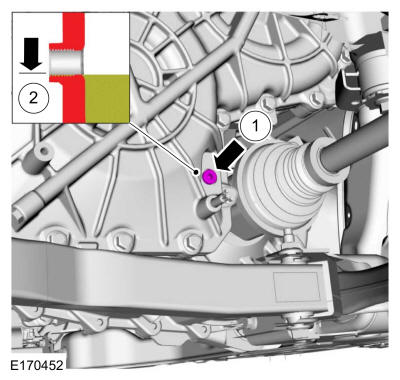

- 6.NOTE: The transmission fluid should be even with the bottom of the oil leveling plug hole.

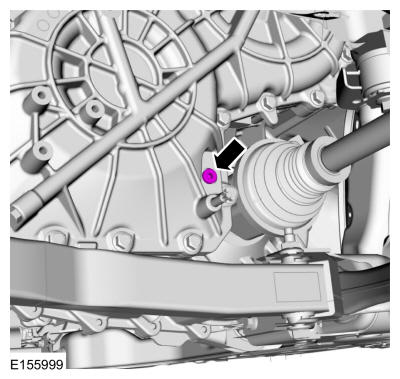

Remove the oil leveling plug and check the transmission fluid level.
Adding Additional Transmission Fluid
NOTE:
The following procedure uses the Mityvac MITMV6412 ATF Refill System.
- 8.

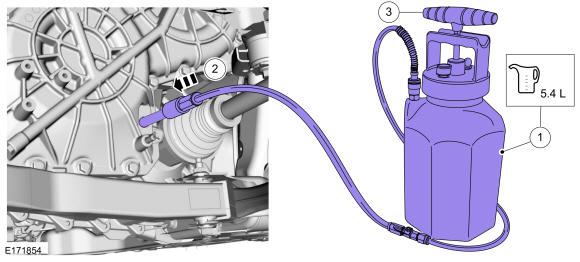

Fill the transmission with transmission fluid.- 1.
Fill the Mityvac MITMV6412 with transmission fluid.Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
- 2.

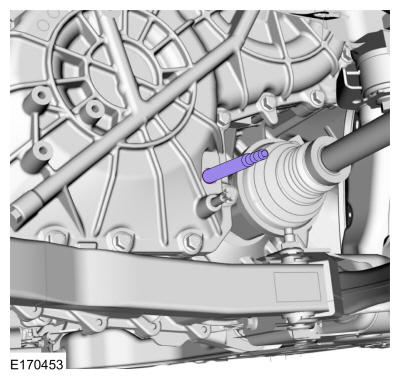

Connect the Mityvac MITMV6412.
- 3.
Follow the manufacturer instructions to dispense the fluid into the transmission.
- 1.
- 9.
- 1.

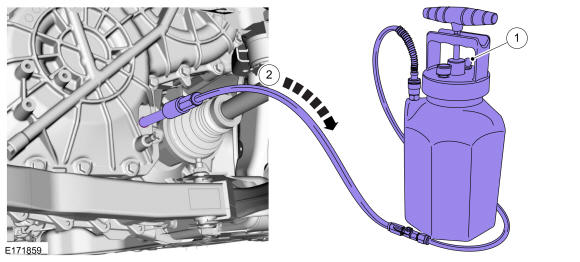

Release the pressure.
- 2.
Allow all excess fluid to drain back into the canister, then remove the Mityvac MITMV6412.
- 1.
