Pinpoint Test X : The Liftgate Passive Entry Feature Is Inoperative
- X1 CHECK THE LIFTGATE LATCH RELEASE OPERATION FROM THE LIFTGATE RELEASE SWITCH
- Unlock the doors using the door lock control switch.
- Press the liftgate release button located on the liftgate.
Does the liftgate latch release (manual liftgate) or the liftgate open (power liftgate)?
Yes GO to X2 No For vehicles equipped with a manual liftgate, GO to Pinpoint Test N For vehicles equipped with a power liftgate, REFER to: Body Closures . - X2 CHECK THE RKE (REMOTE KEYLESS ENTRY) OPERATION
- Close the liftgate.
- Press the liftgate button twice on a passive key.
Does the liftgate latch release (manual liftgate) or the liftgate open (power liftgate)?
Yes GO to X3 No GO to Pinpoint Test R - X3 CHECK THE KEYLESS ENTRY REAR ANTENNA
- Ignition OFF.

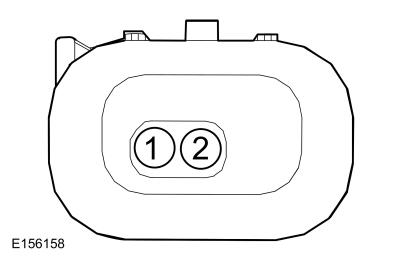

- Disconnect Keyless Entry Rear Antenna C4082 .
Is the resistance between 1 and 3 ohms?
Yes GO to X4 No INSTALL a new keyless entry rear antenna. Refer to: Keyless Entry Rear Antenna . - X4 CHECK THE KEYLESS ENTRY REAR ANTENNA CIRCUITS FOR A SHORT TO VOLTAGE
- Disconnect RFA Module C4392A .
- Ignition ON.
Is any voltage present?
Yes REPAIR the circuit in question. No GO to X5 - X5 CHECK THE KEYLESS ENTRY REAR ANTENNA CIRCUITS FOR A SHORT TO GROUND
- Ignition OFF.
Are the resistances greater than 10, 000 ohms?
Yes GO to X6 No REPAIR the circuit in question. - X6 CHECK THE KEYLESS ENTRY REAR ANTENNA CIRCUITS FOR AN OPEN
Are the resistances less than 3 ohms?
Yes GO to X7 No REPAIR the circuit in question. - X7 CHECK FOR CORRECT RFA (REMOTE FUNCTION ACTUATOR) MODULE OPERATION
- Disconnect and inspect all RFA module connectors.
- Repair:
- corrosion (install new connector or terminal - clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary
- Reconnect the RFA module connectors. Make sure they seat and latch correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes CHECK OASIS for any applicable TSB. If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSB addresses this concern, INSTALL a new RFA module. Refer to: Remote Function Actuator (RFA) Module . No The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
