Front Door Lock Switch LH - With Memory

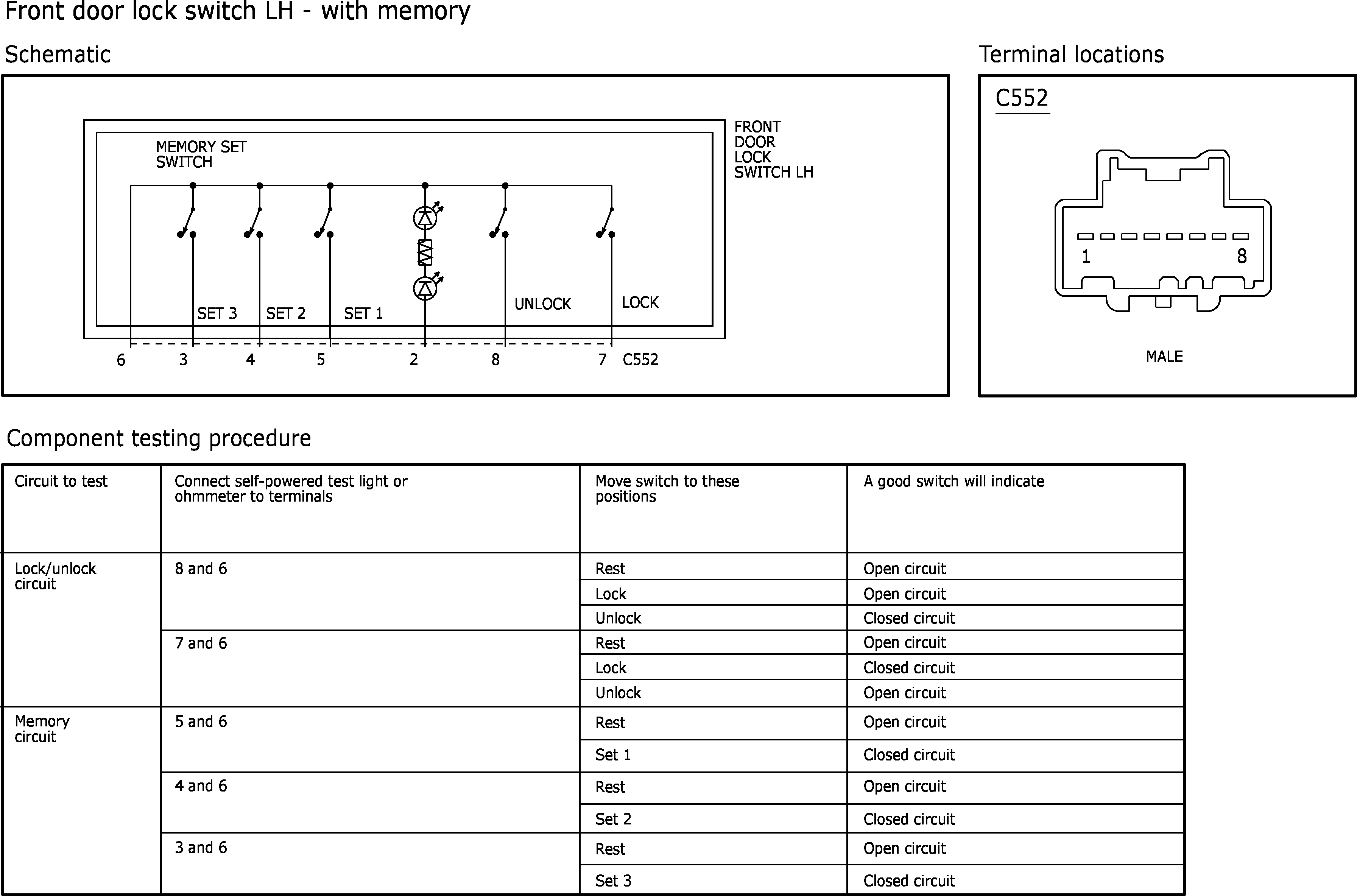

Fig 1: Front Door Lock Switch LH - With Memory
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
