Front Seat Control Switch RH (6 - Way)

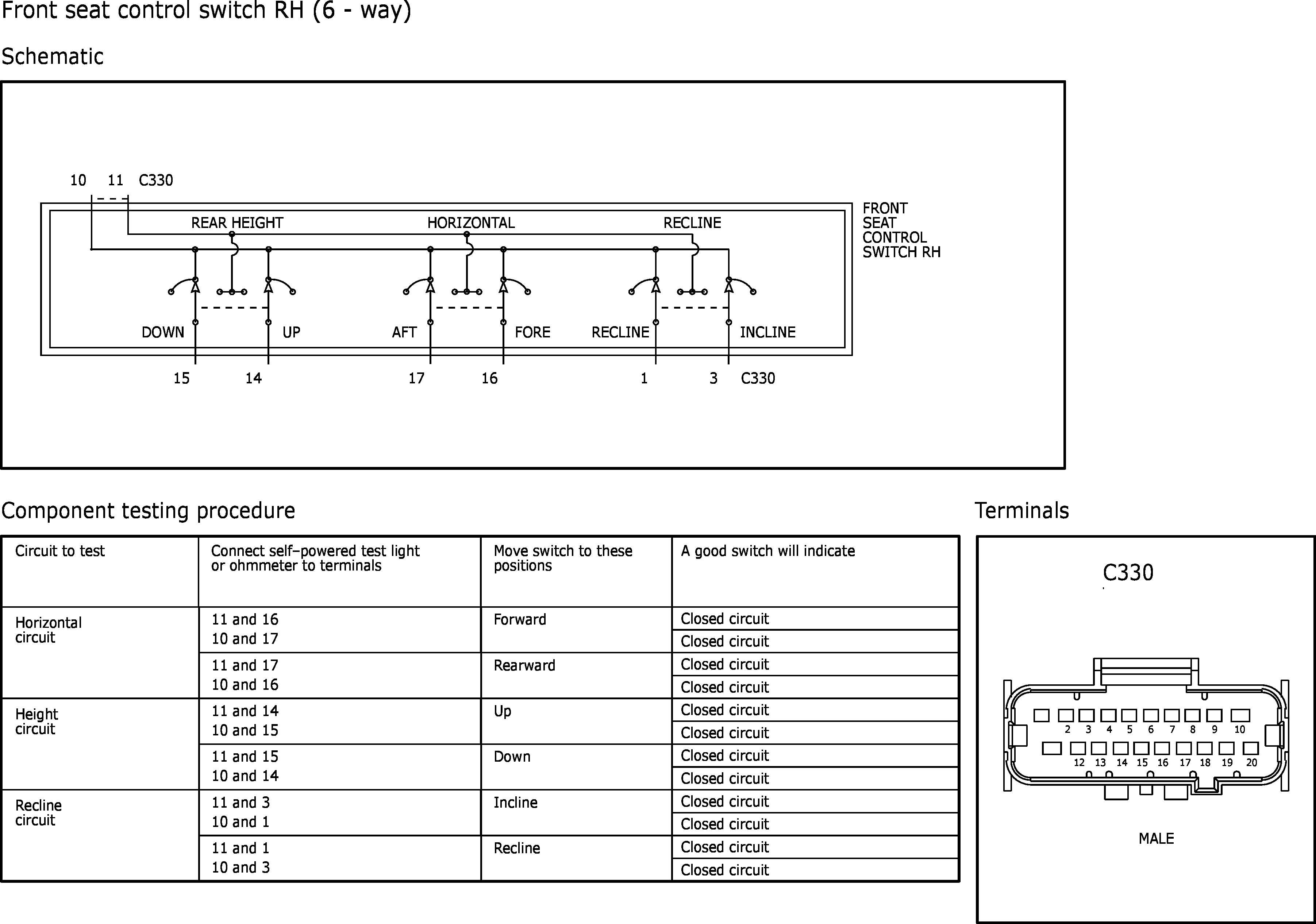

Fig 1: Front Seat Control Switch RH (6 - Way)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
