OEM Ground Distribution: Grounds

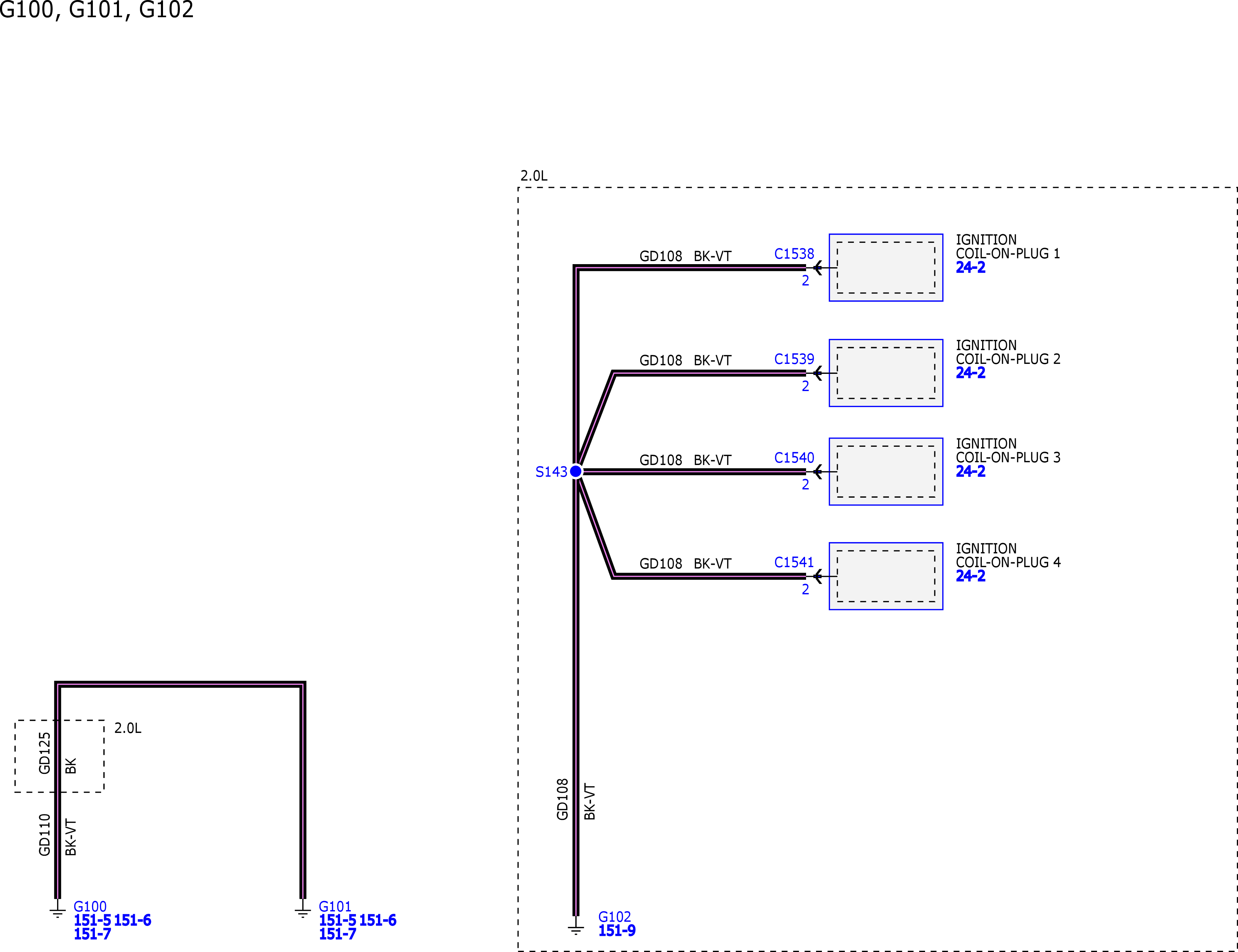

GFDW5209Courtesy of FORD MOTOR COMPANY

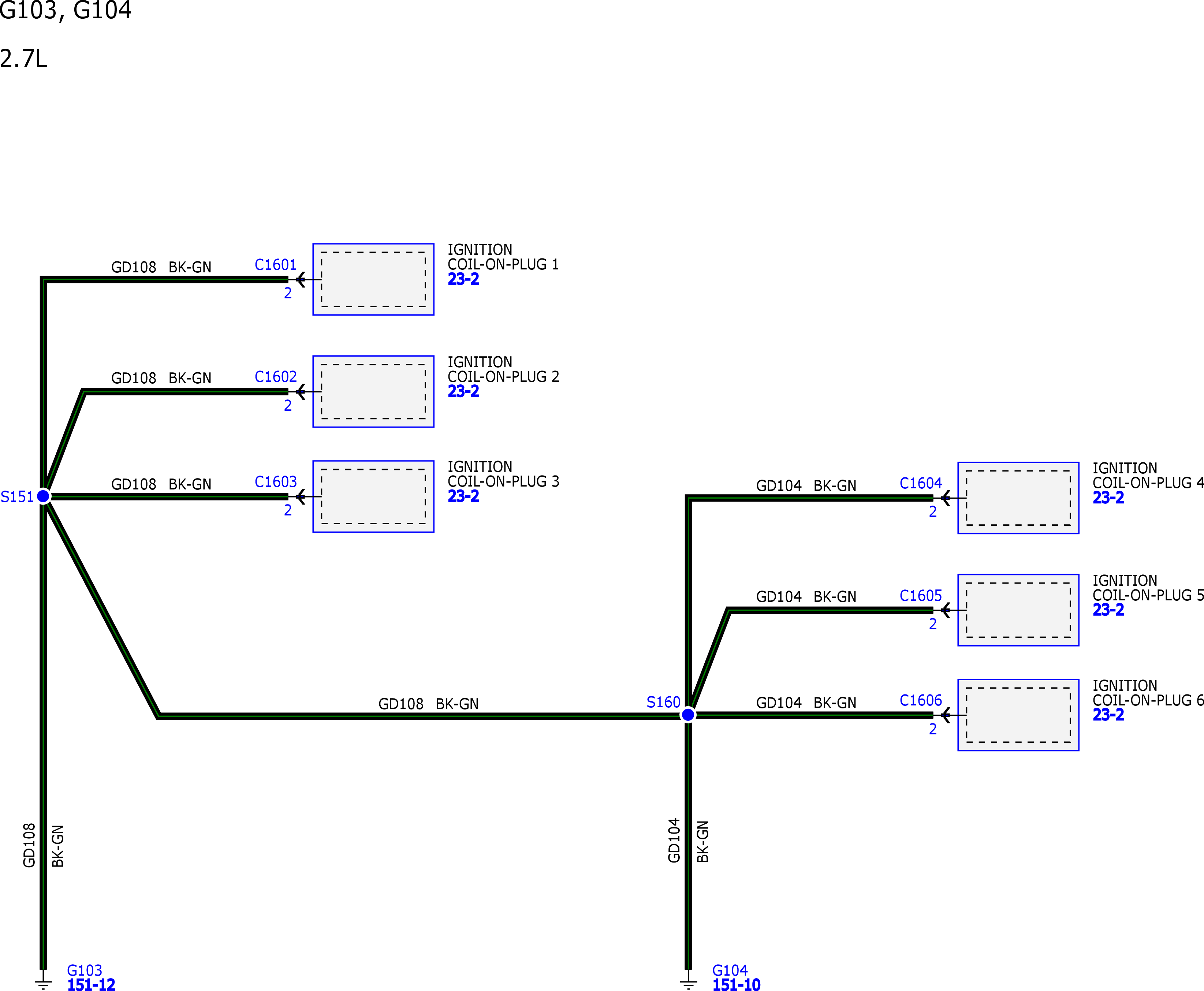

GFDW5210Courtesy of FORD MOTOR COMPANY

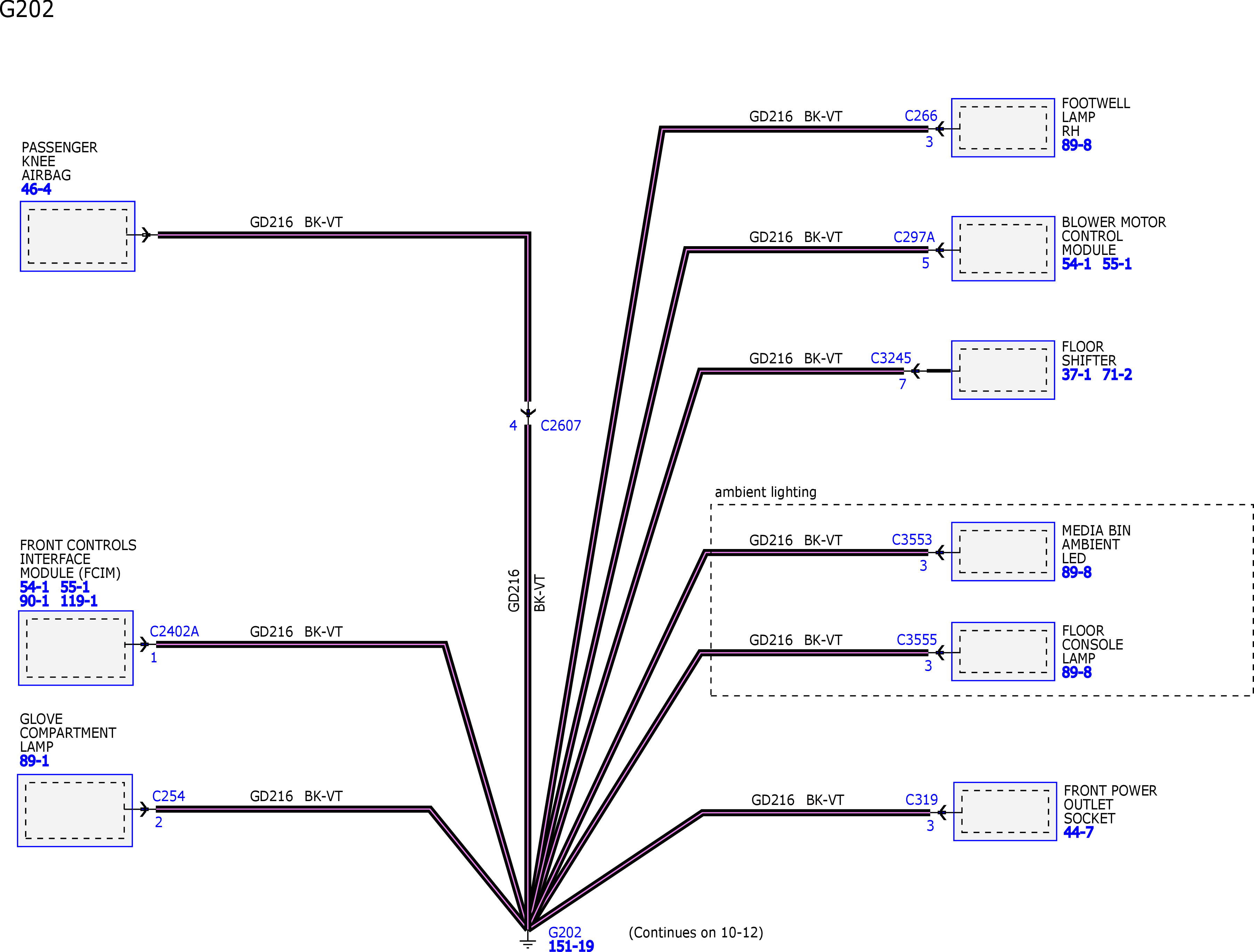

GFDW5211Courtesy of FORD MOTOR COMPANY

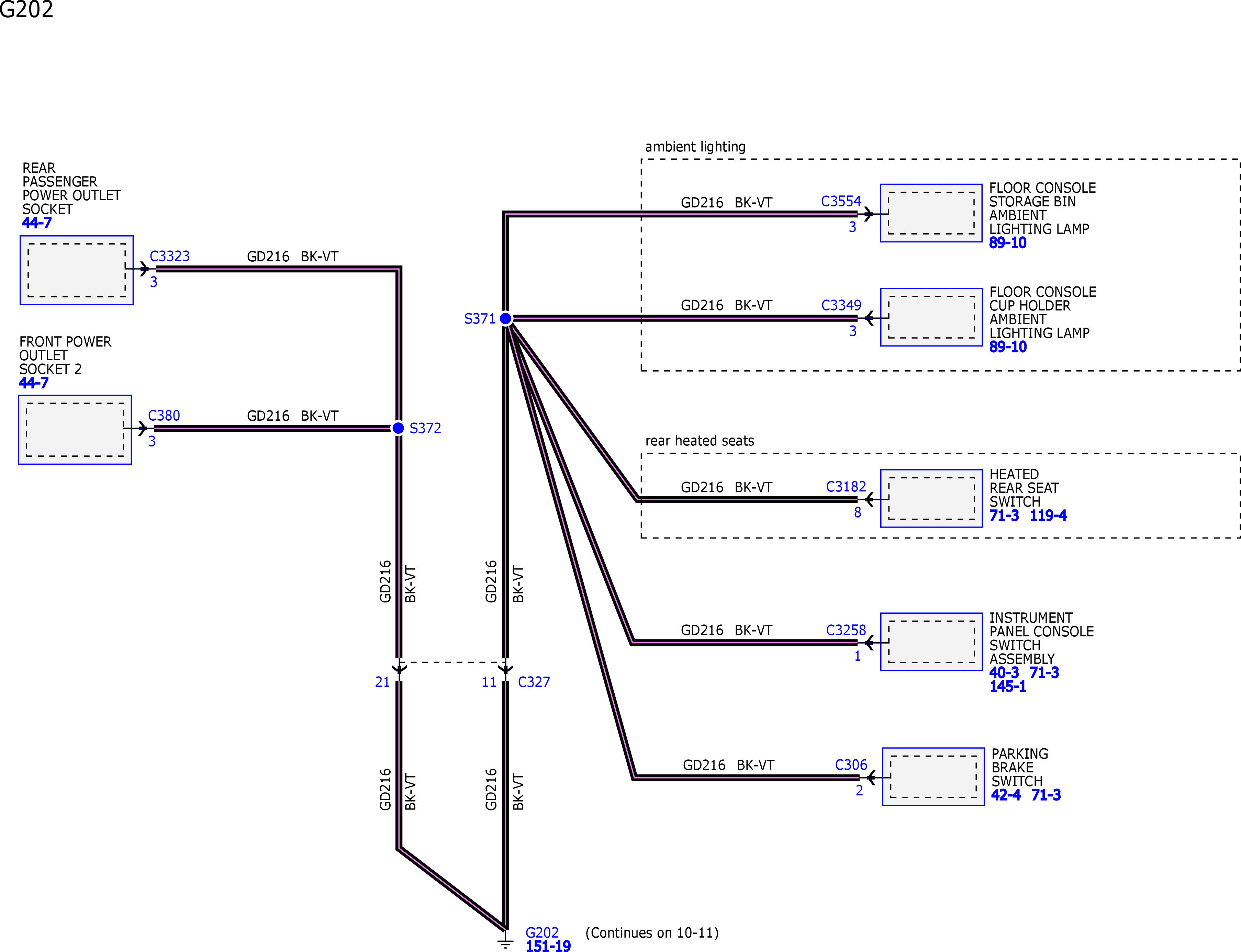

GFDW5212Courtesy of FORD MOTOR COMPANY

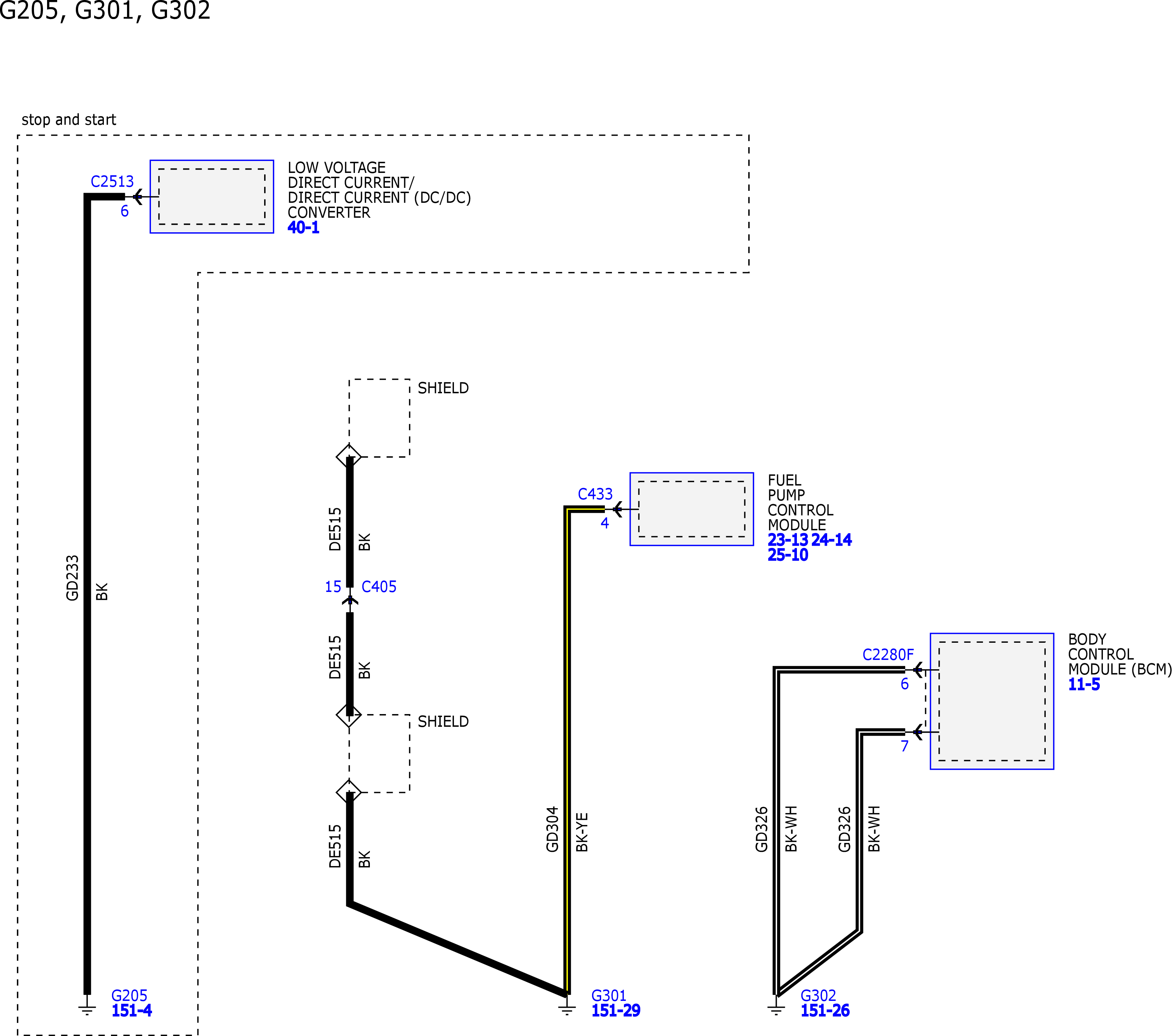

GFDW5213Courtesy of FORD MOTOR COMPANY

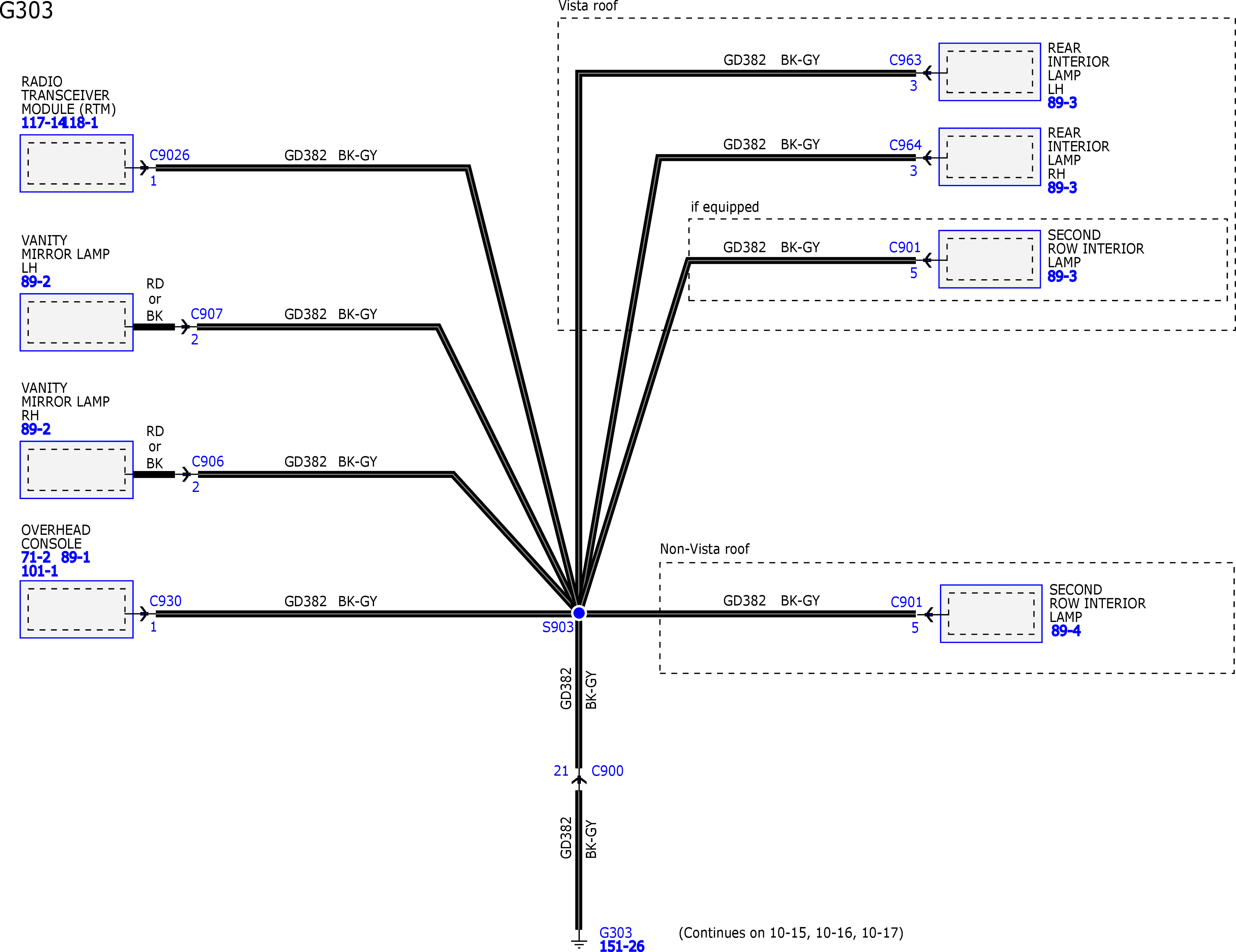

GFDW5214Courtesy of FORD MOTOR COMPANY

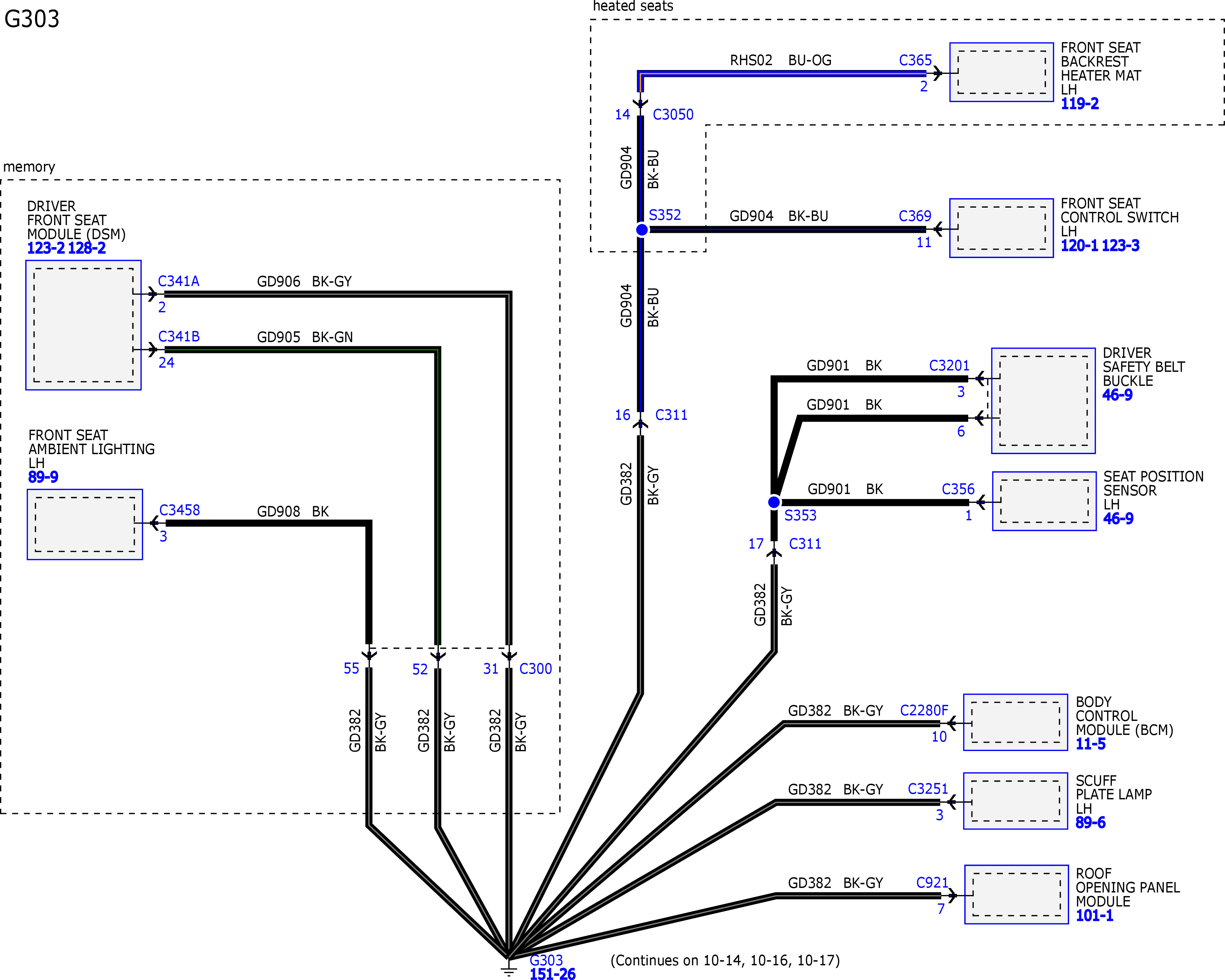

GFDW5215Courtesy of FORD MOTOR COMPANY

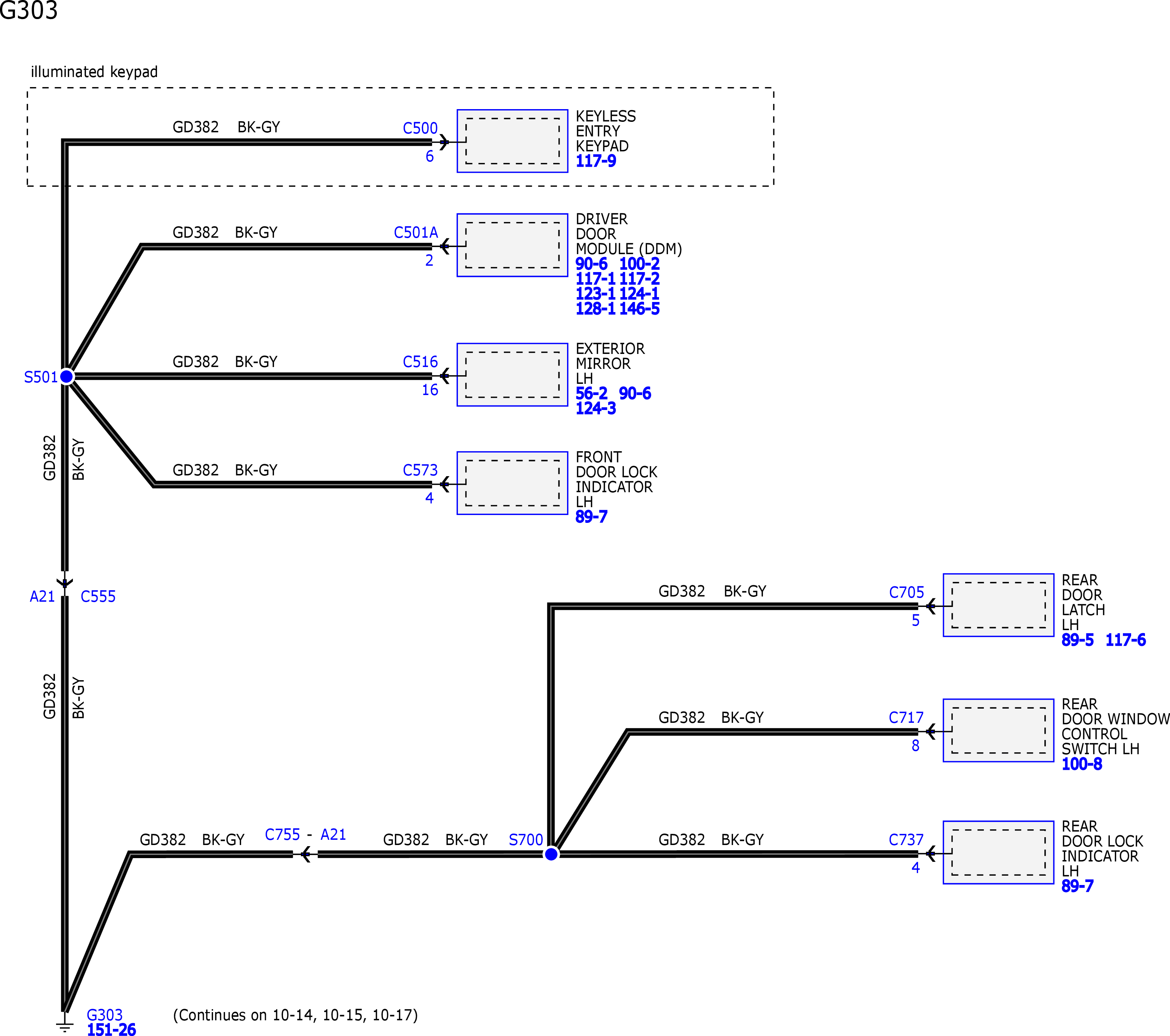

GFDW5216Courtesy of FORD MOTOR COMPANY

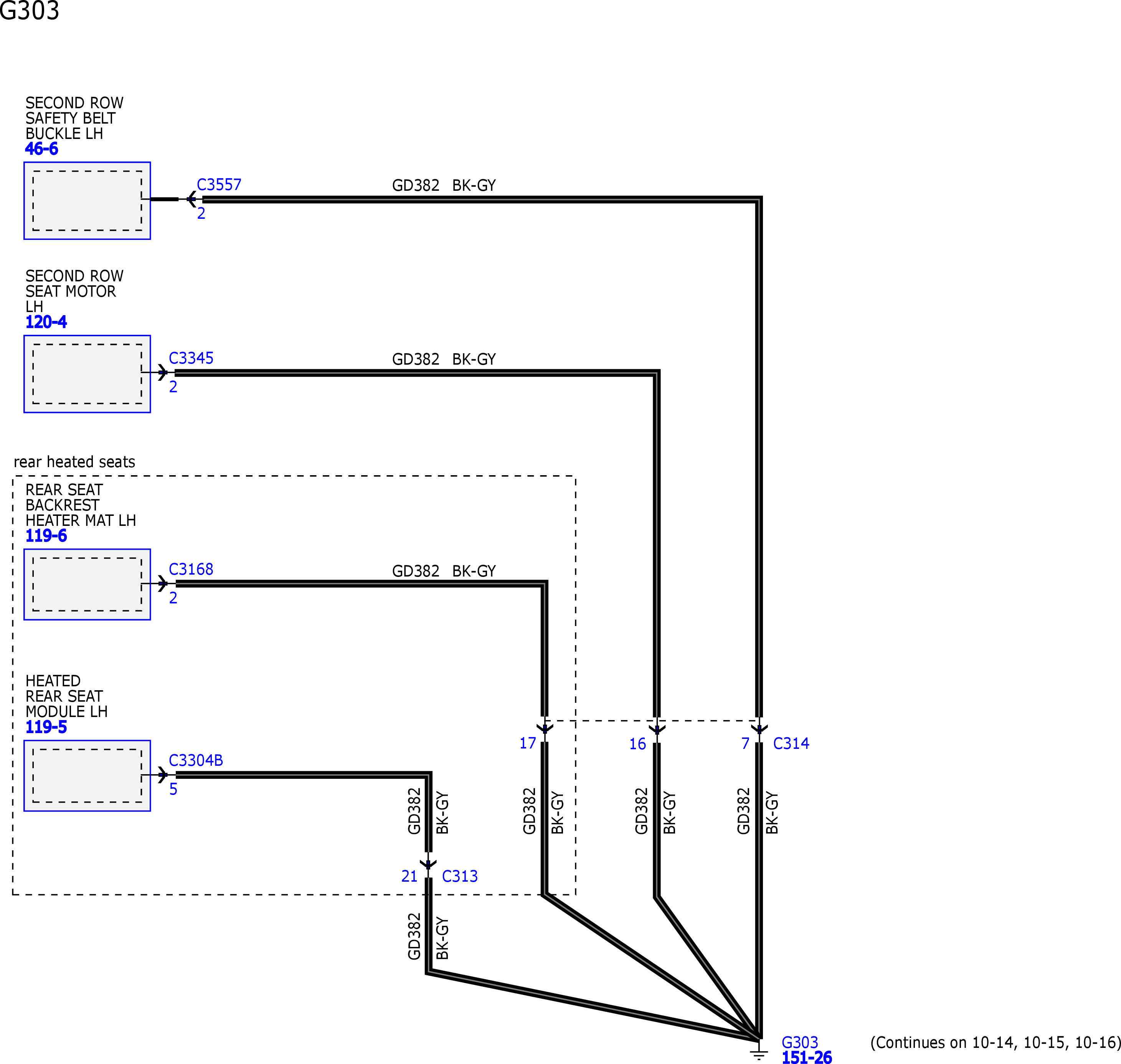

GFDW5217Courtesy of FORD MOTOR COMPANY

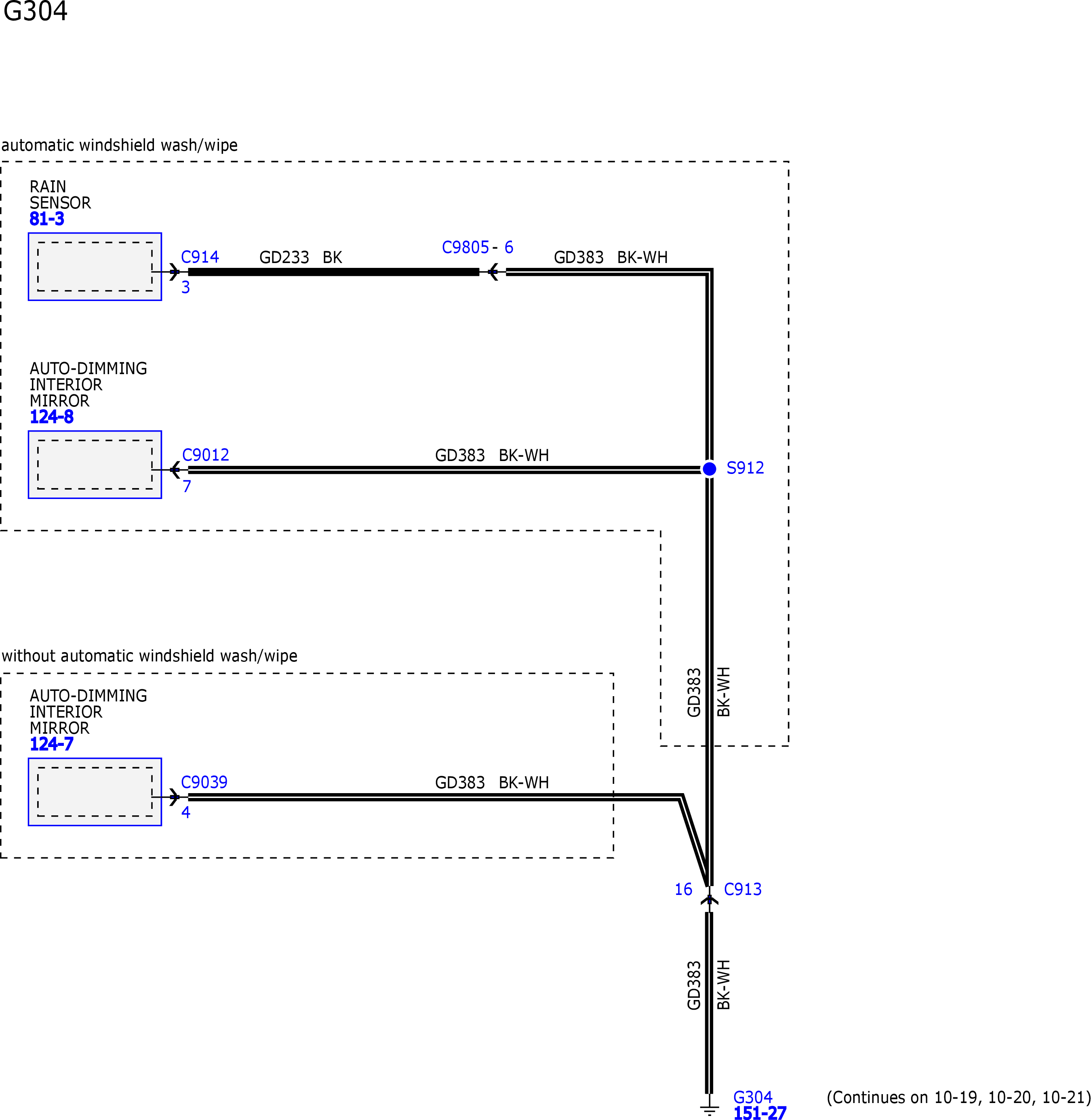

GFDW5218Courtesy of FORD MOTOR COMPANY

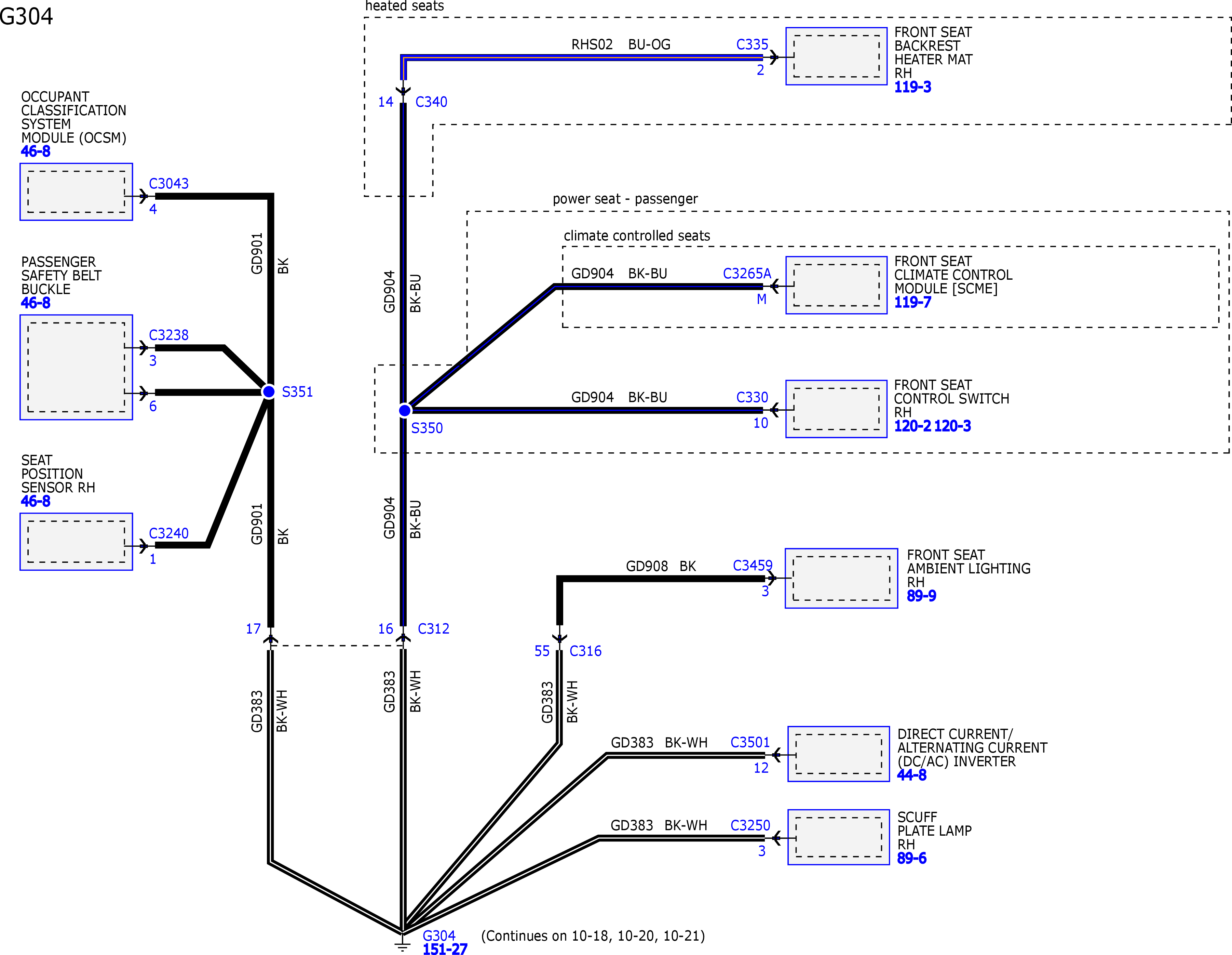

GFDW5219Courtesy of FORD MOTOR COMPANY

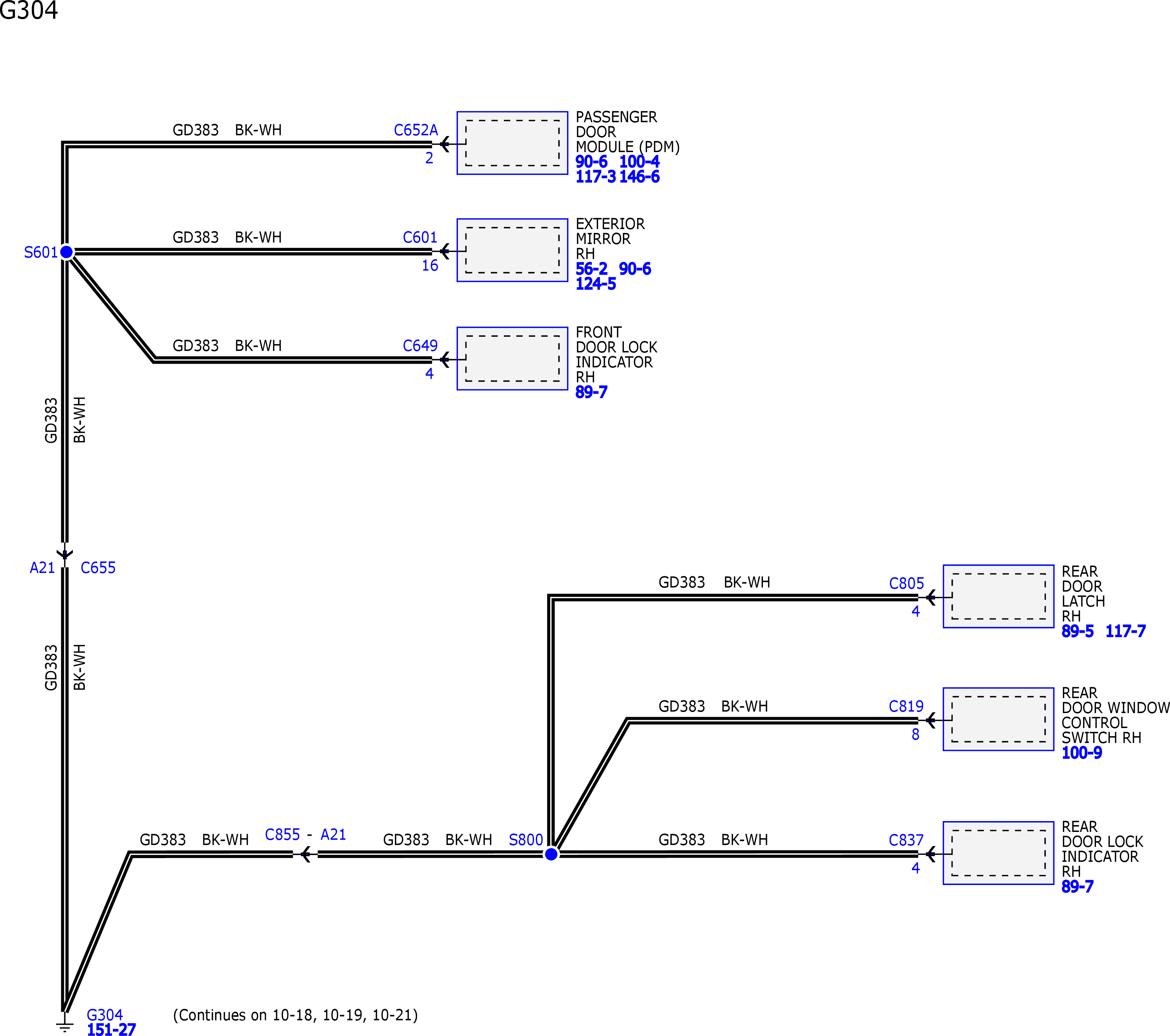

GFDW5220Courtesy of FORD MOTOR COMPANY

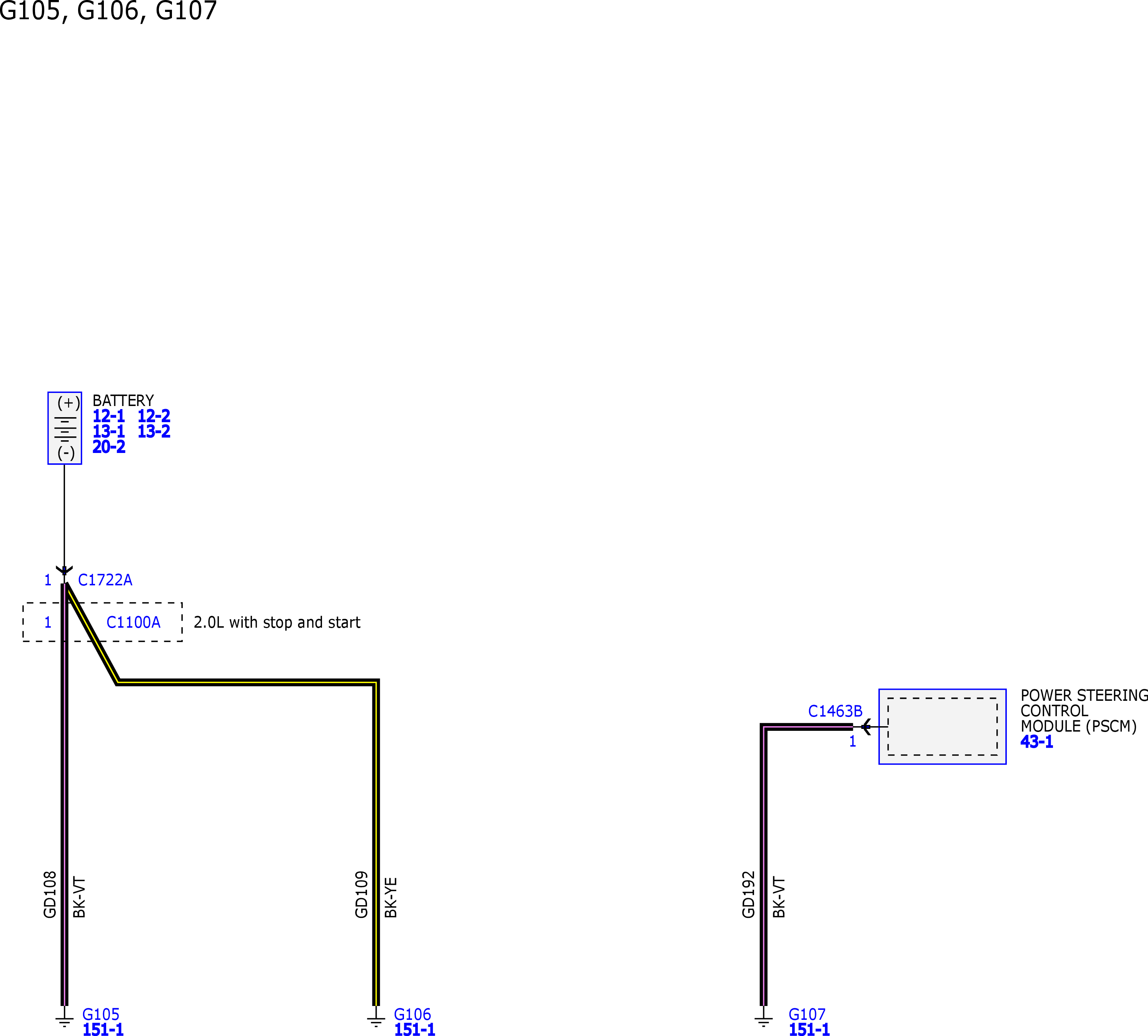

GFDW5221Courtesy of FORD MOTOR COMPANY

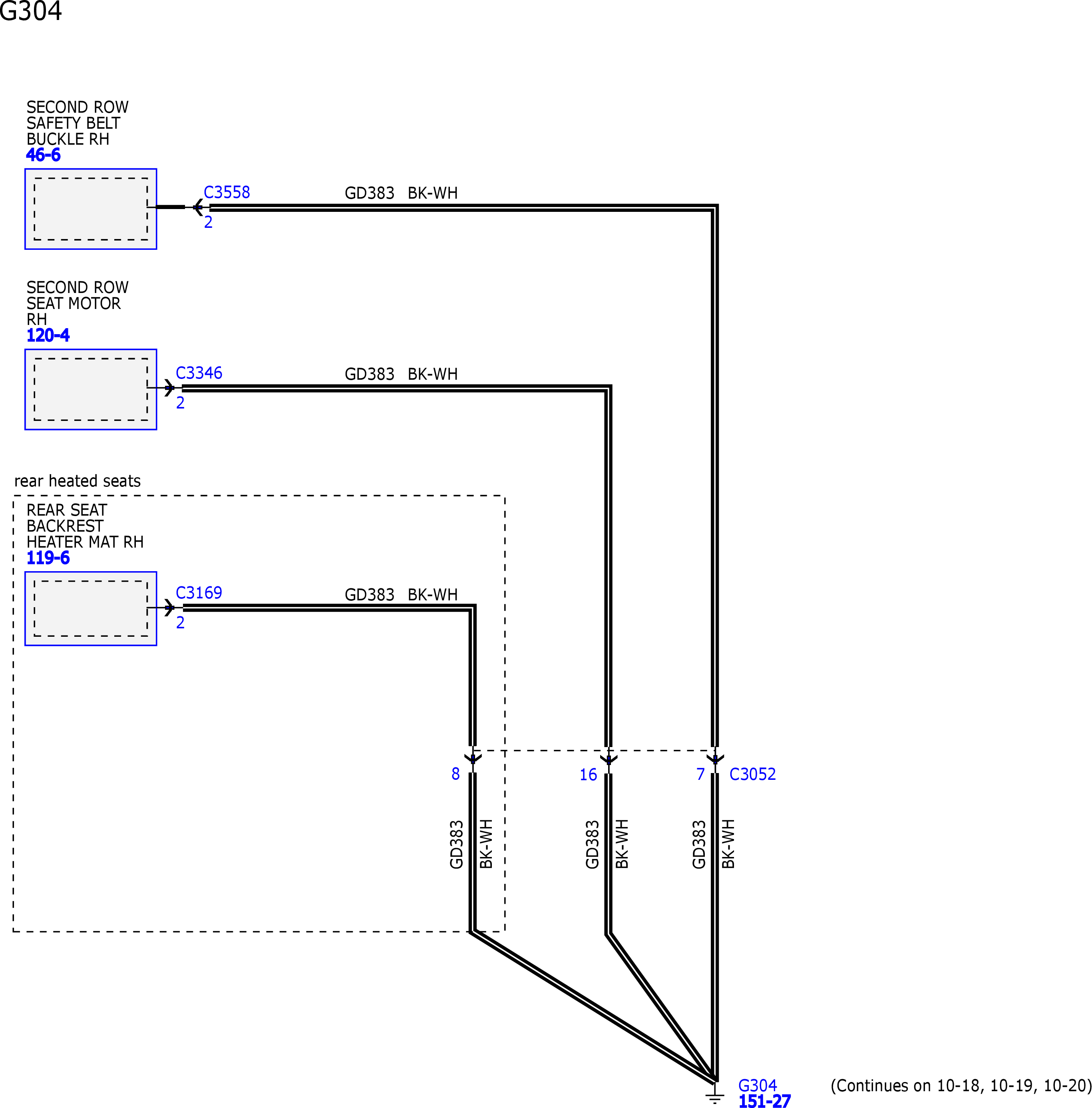

GFDW5222Courtesy of FORD MOTOR COMPANY

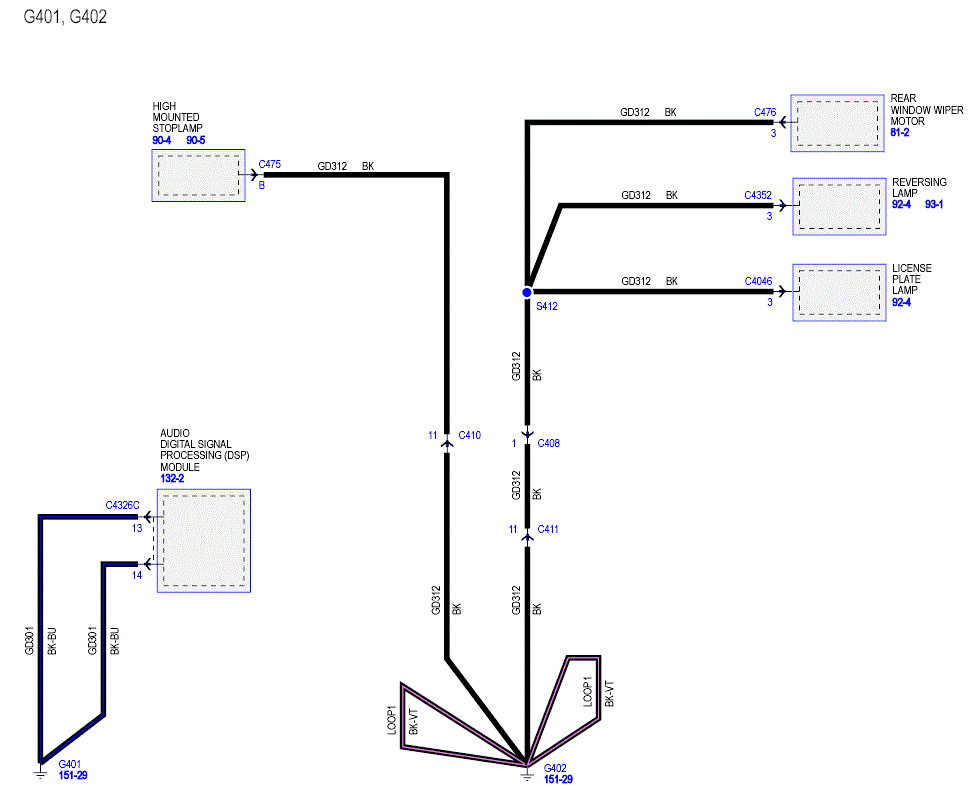

G00566284Courtesy of FORD MOTOR CO.

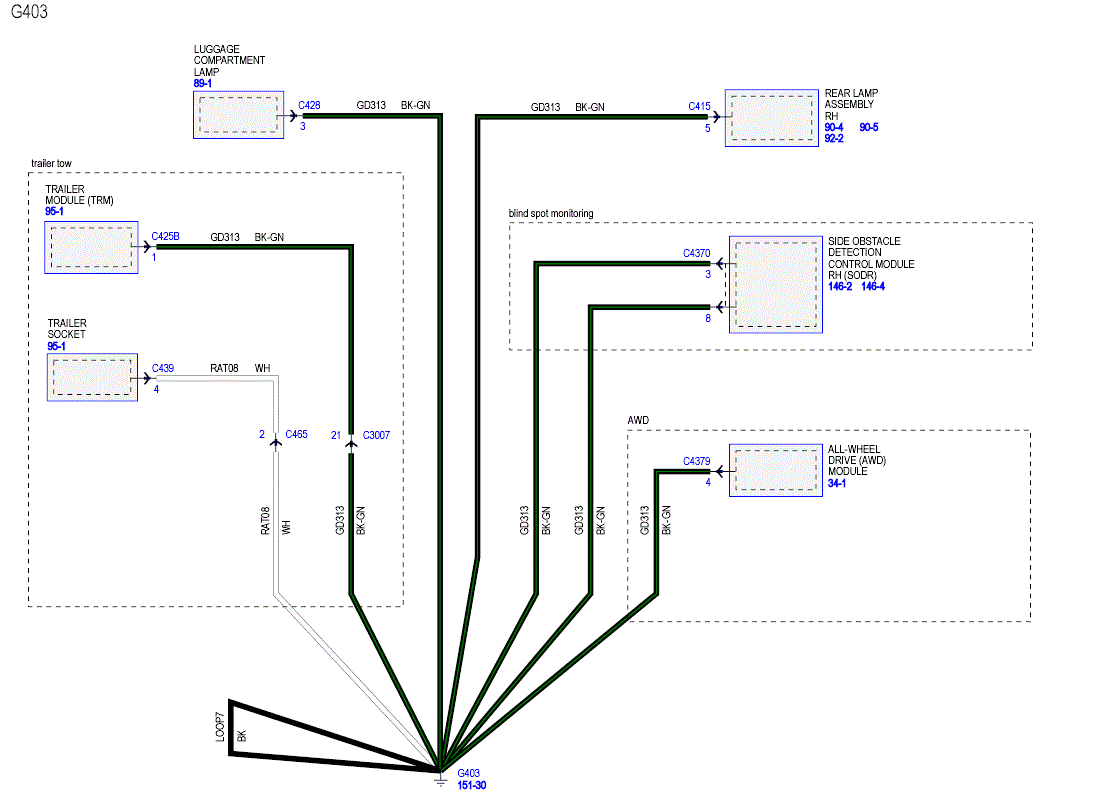

G00566285Courtesy of FORD MOTOR CO.

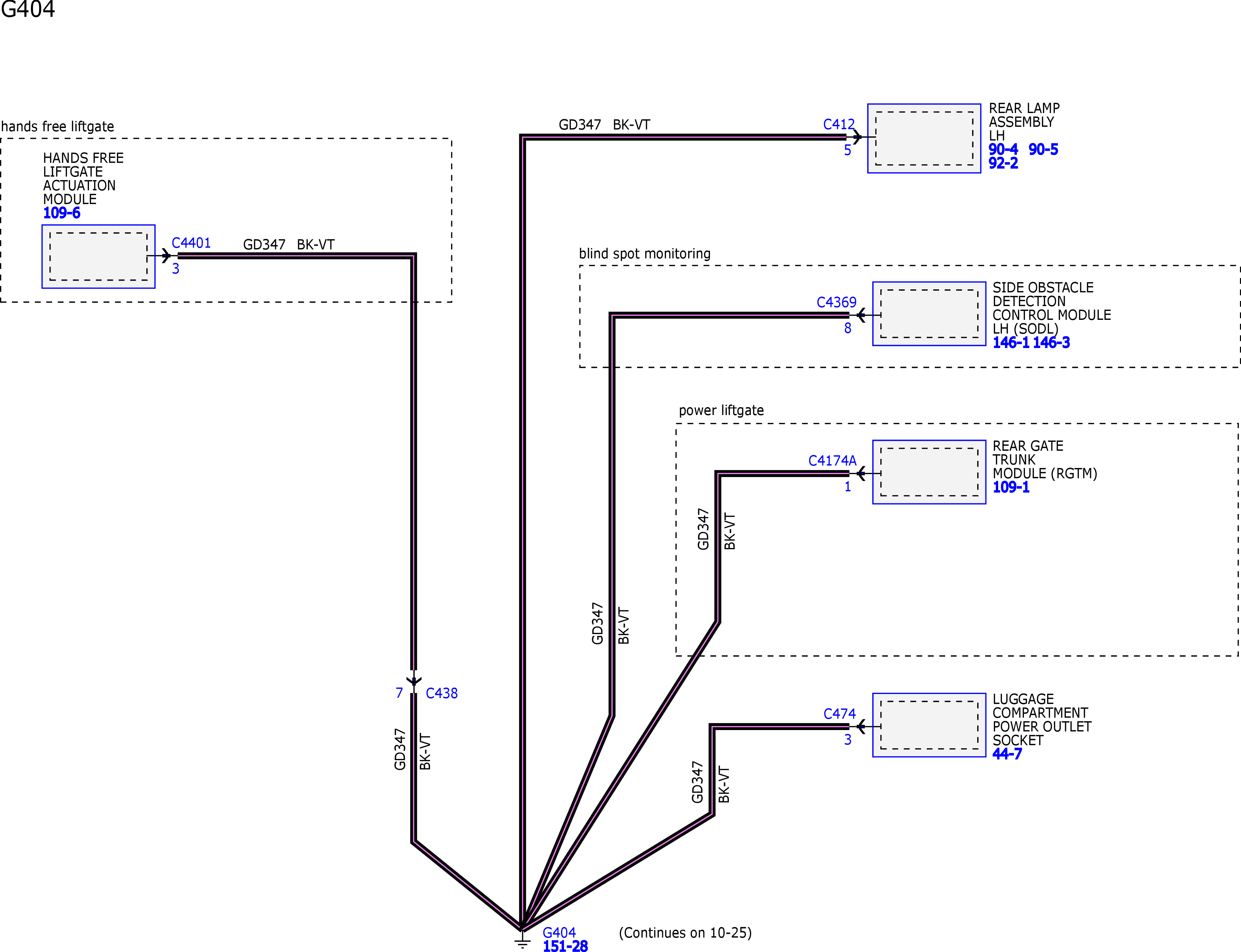

GFDW5225Courtesy of FORD MOTOR COMPANY

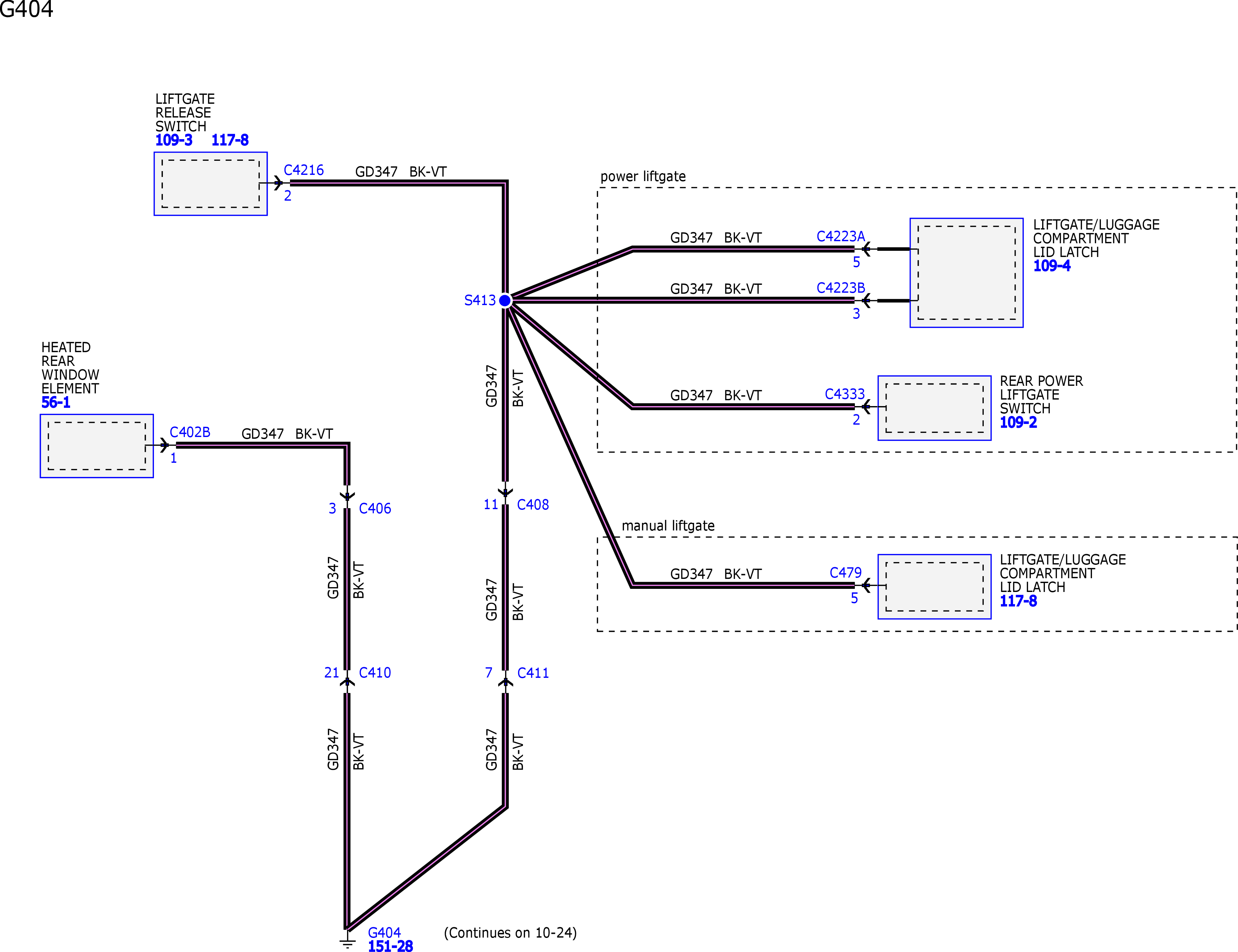

GFDW5226Courtesy of FORD MOTOR COMPANY

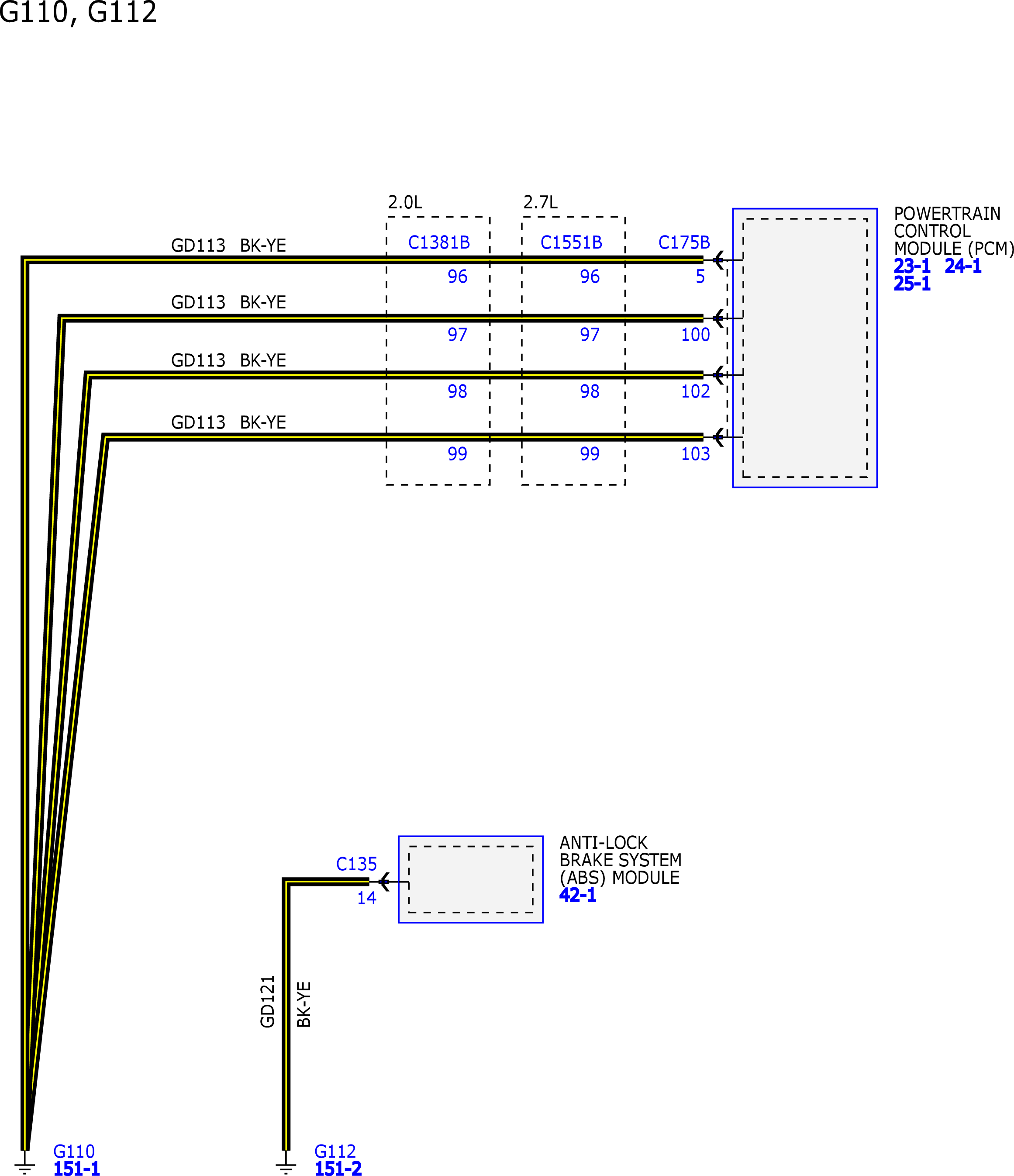

GFDW5227Courtesy of FORD MOTOR COMPANY

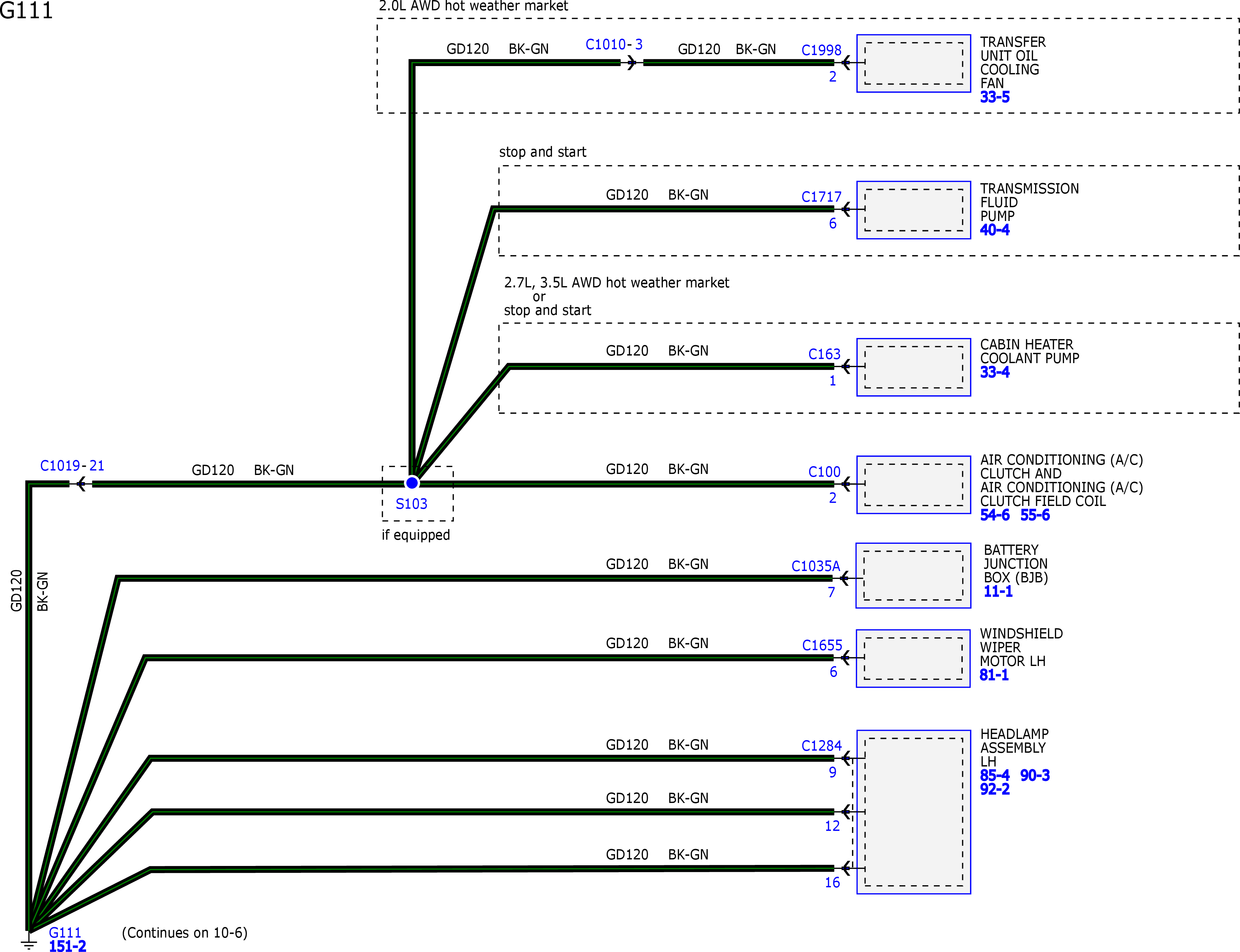

GFDW5228Courtesy of FORD MOTOR COMPANY

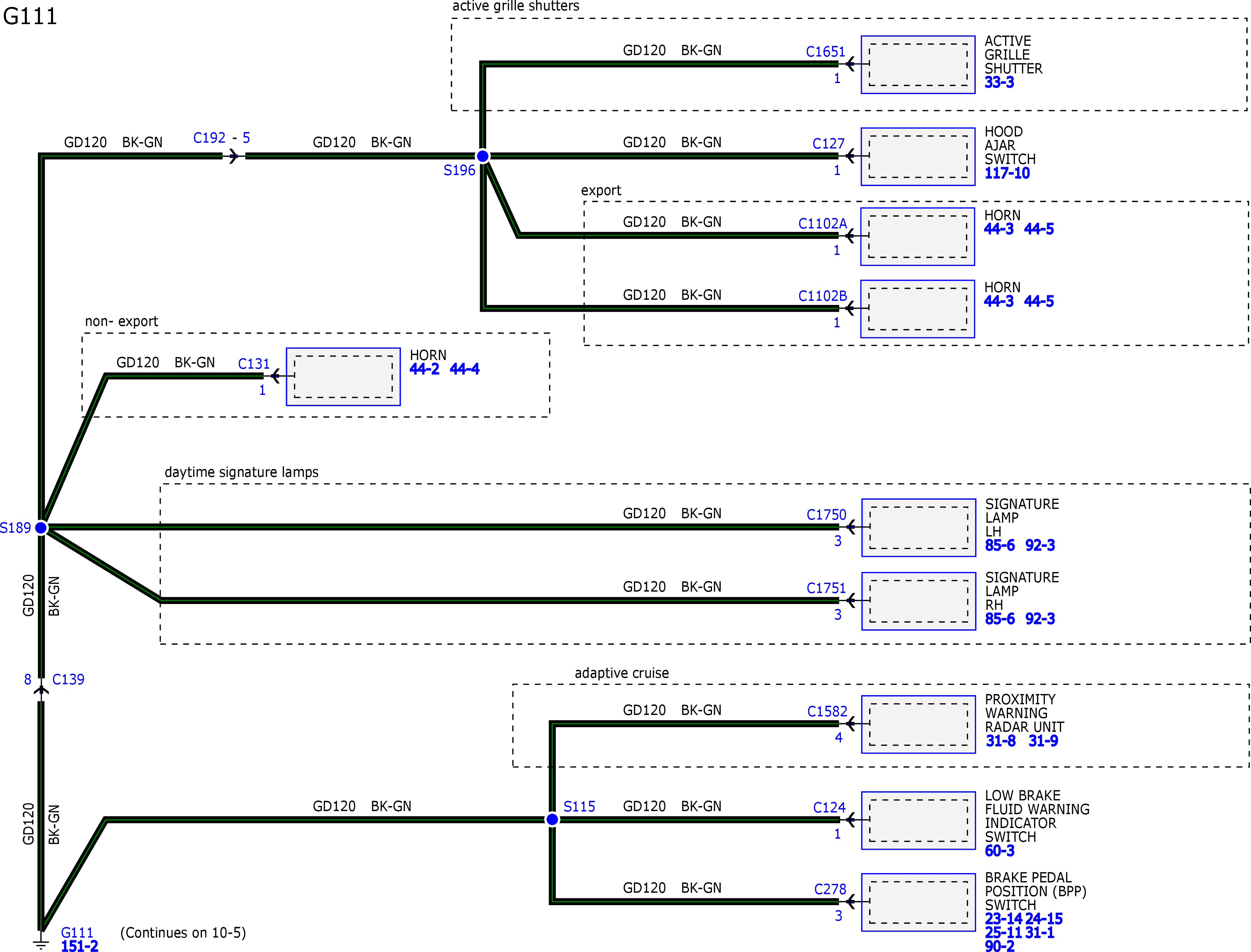

GFDW5229Courtesy of FORD MOTOR COMPANY

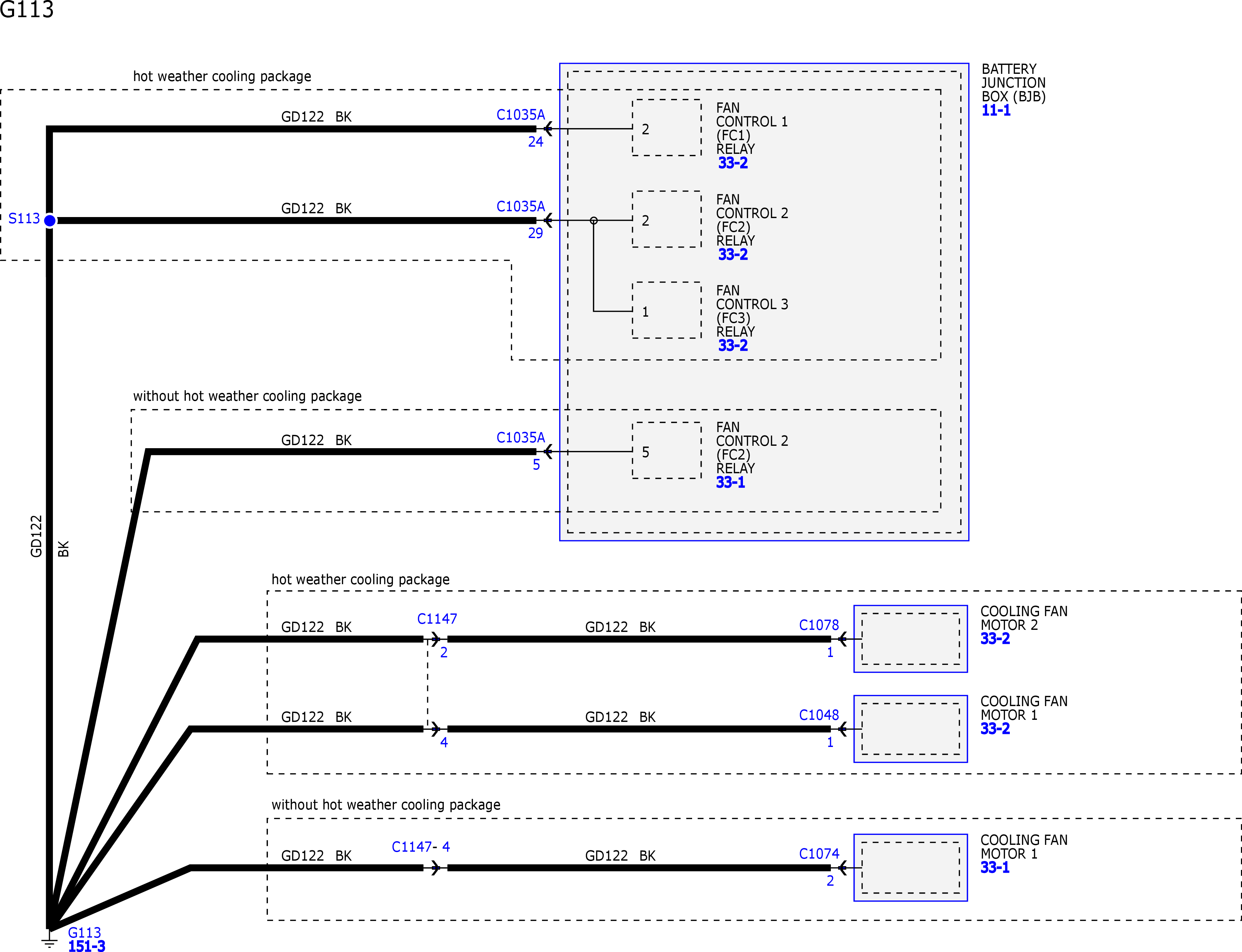

GFDW5230Courtesy of FORD MOTOR COMPANY

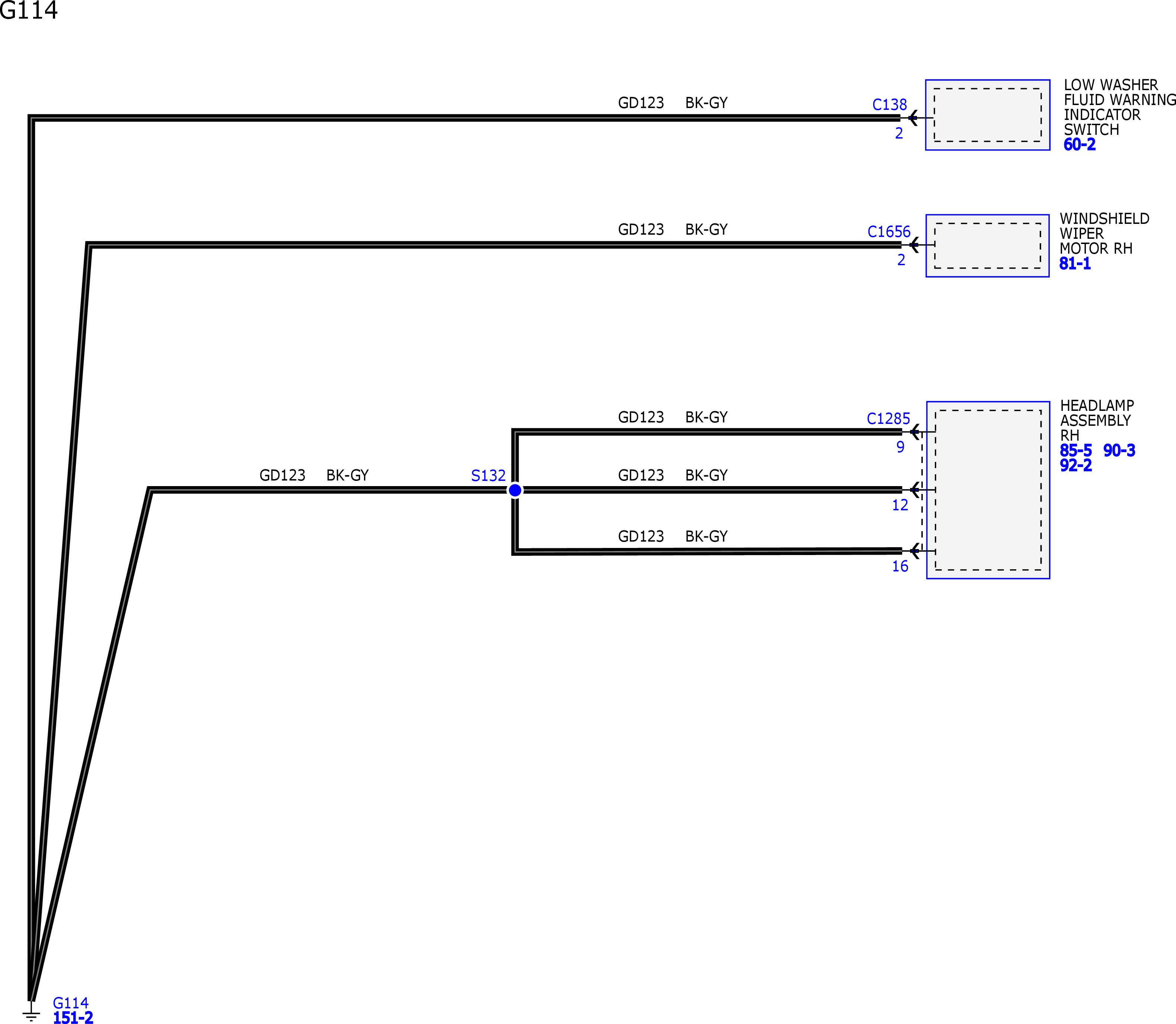

GFDW5231Courtesy of FORD MOTOR COMPANY

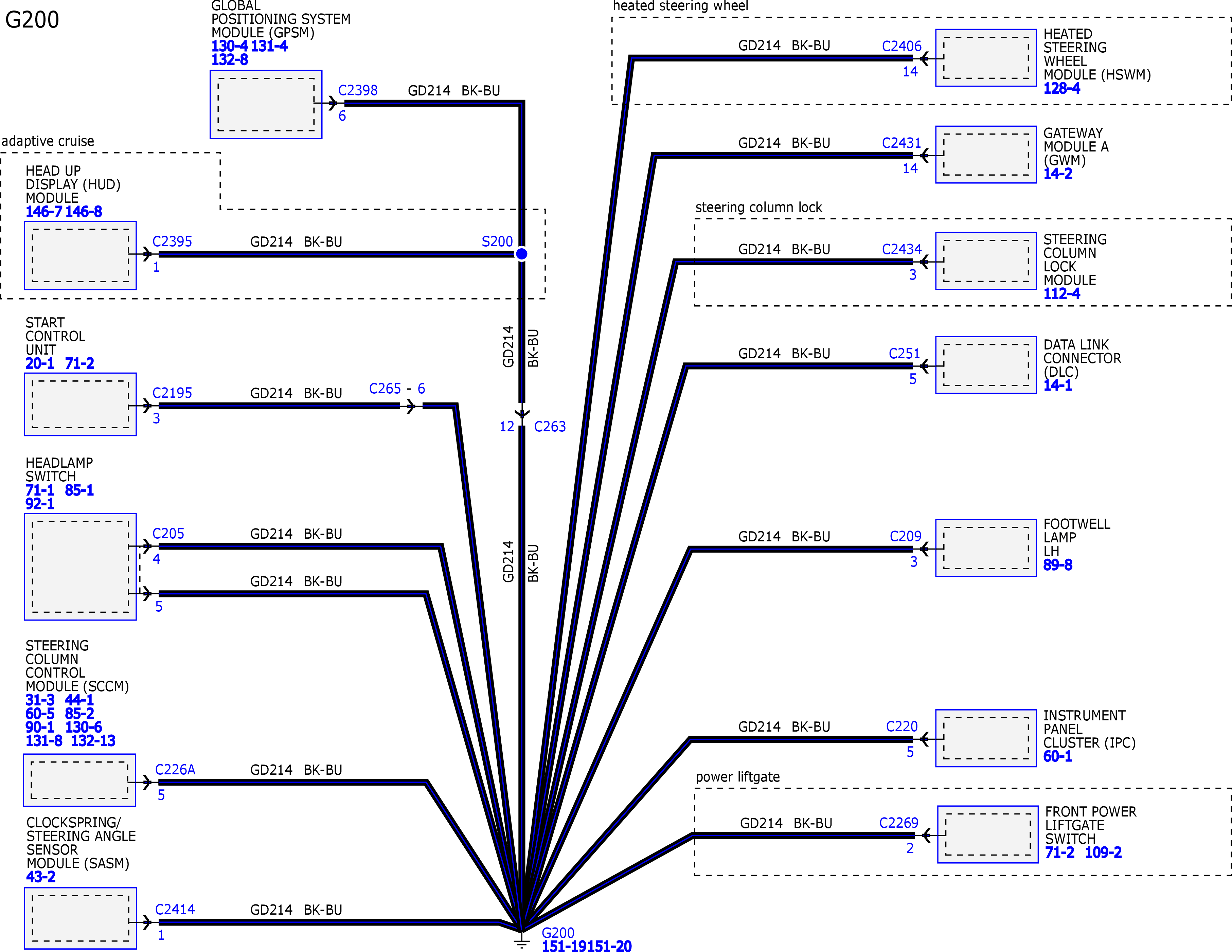

GFDW5232Courtesy of FORD MOTOR COMPANY

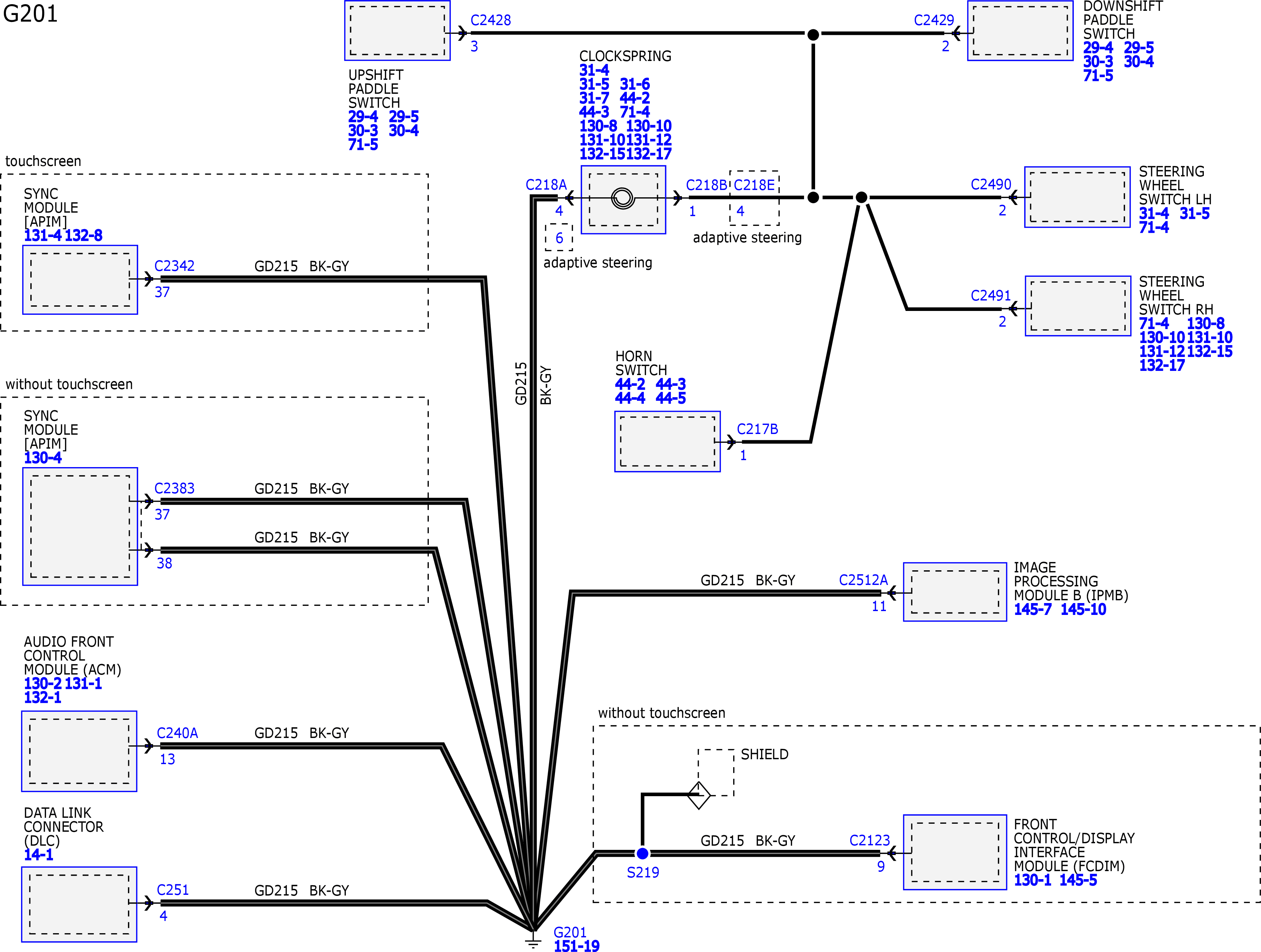

GFDW5233Courtesy of FORD MOTOR COMPANY
