Body Control Module (BCM): Removal
WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
- 2.NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.
- 3.

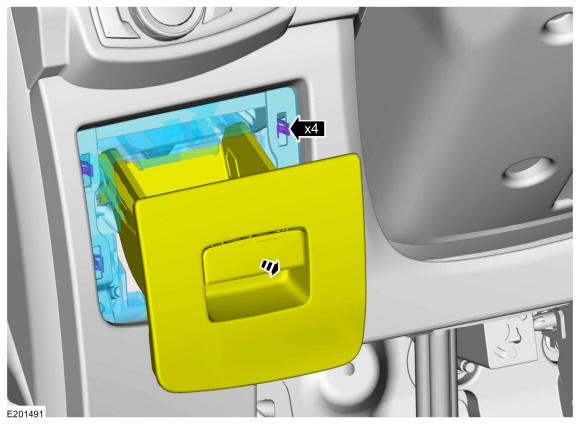

For increased visibility, open the stowage box and remove the retainers and the stowage box assembly.
