Cruise Control Radar Alignment

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Activation

Vertical Alignment

NOTE: In order to align the CCM, the front bumper cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.

NOTE: Damage to the CCM bracket may affect correct alignment. When aligning the CCM, inspect the CCM bracket for damage and repair as necessary before carrying out the alignment procedure.

1.

Remove the front bumper cover. Refer to: Front Bumper Cover .

2.

Place the vehicle on a wheel alignment bay station.

3.

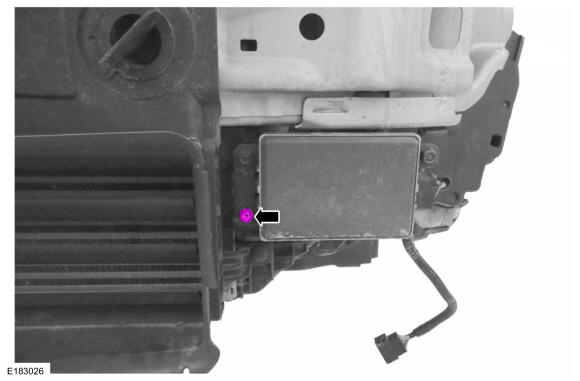

Locate the CCM alignment screw.

Courtesy of FORD MOTOR COMPANY

4.

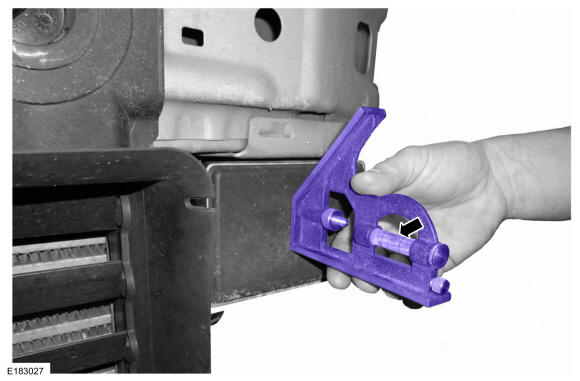

Place a combination square level on the face of the CCM and check the alignment.

Courtesy of FORD MOTOR COMPANY

5.

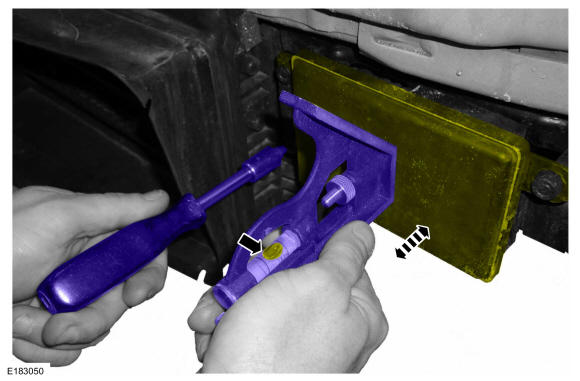

Keeping the combination square level on the face of the CCM, adjust the pitch by using an E20 Torx ® bit to adjust the screw until the CCM is vertical and level.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Prior to installing the front bumper cover, clean and remove any debris on the front or back of the cover.

Install the front bumper cover.

Horizontal Alignment

NOTE: The horizontal alignment for the CCM is a software calibration. No manual adjustment is needed for this procedure. The scan tool calibrates the CCM through the CCM procedure in programmable parameters.

7.

NOTE: The vehicle's engine must be running during the horizontal alignment procedure. Failure to leave the engine running throughout the entire procedure results in the cancellation of the alignment procedure and the system remains non-functional.

Start the engine.

8.

Follow the scan tool on-screen instructions to carry-out the CCM calibration procedure located in IDS under Toolbox > Electrical > Cruise Control > CCM Calibration.
