Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Cruise control module (CCM)

1.

Remove the front bumper cover. Refer to: Front Bumper Cover .

2.

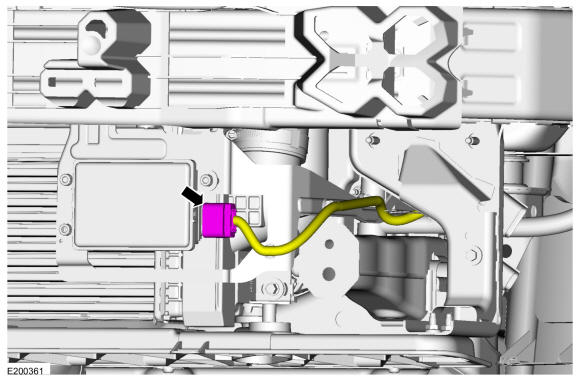

Disconnect the CCM electrical connector.

GFD17496

Courtesy of FORD MOTOR COMPANY

3.

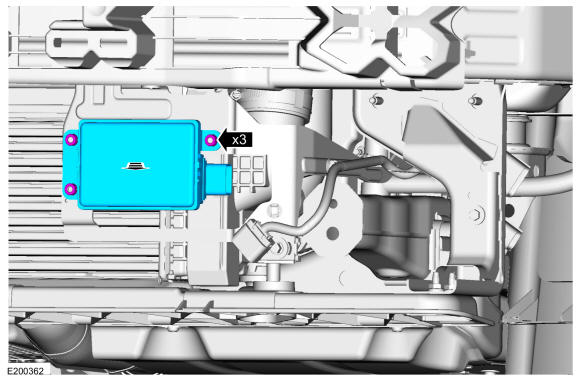

Separate the CCM grommets and remove the CCM.

GFD17497

Courtesy of FORD MOTOR COMPANY

4.

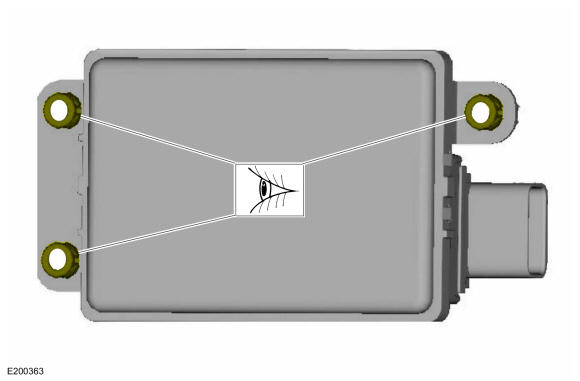

Inspect the grommets for damage. If damaged, install new grommets.

GFD17498

Courtesy of FORD MOTOR COMPANY

Cruise control module (CCM) bracket

5.

Remove the CCM.

6.

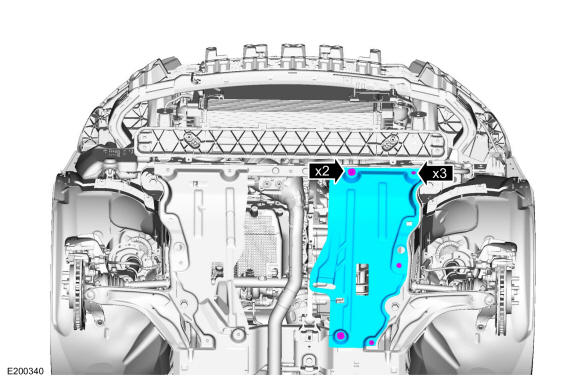

Remove the screws and the LH under engine shield.

GFD17499

Courtesy of FORD MOTOR COMPANY

7.

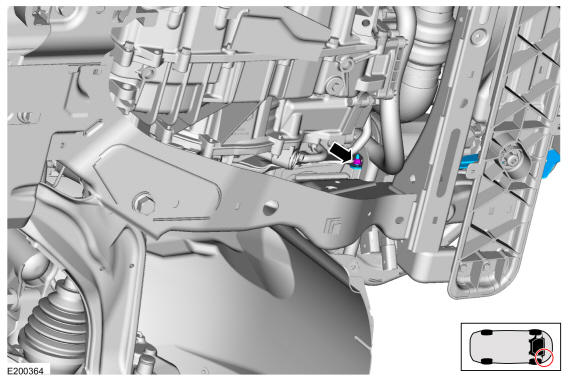

Remove the rear CCM bracket nut.
Torque: 80 lb.in (9 Nm)

GFD17500

Courtesy of FORD MOTOR COMPANY

8.

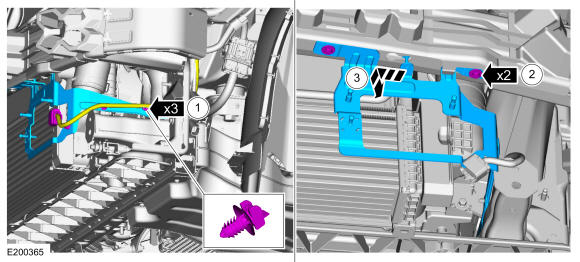

Remove the CCM bracket.
1. 1.

  Separate the wiring harness retainers.
1. 2.

  Remove the CCM bracket bolts.
  Torque: 80 lb.in (9 Nm)
1. 3.

  Slide the CCM bracket out of the front bumper slot.

GFD17501

Courtesy of FORD MOTOR COMPANY
