OEM Ground Distribution: Grounds

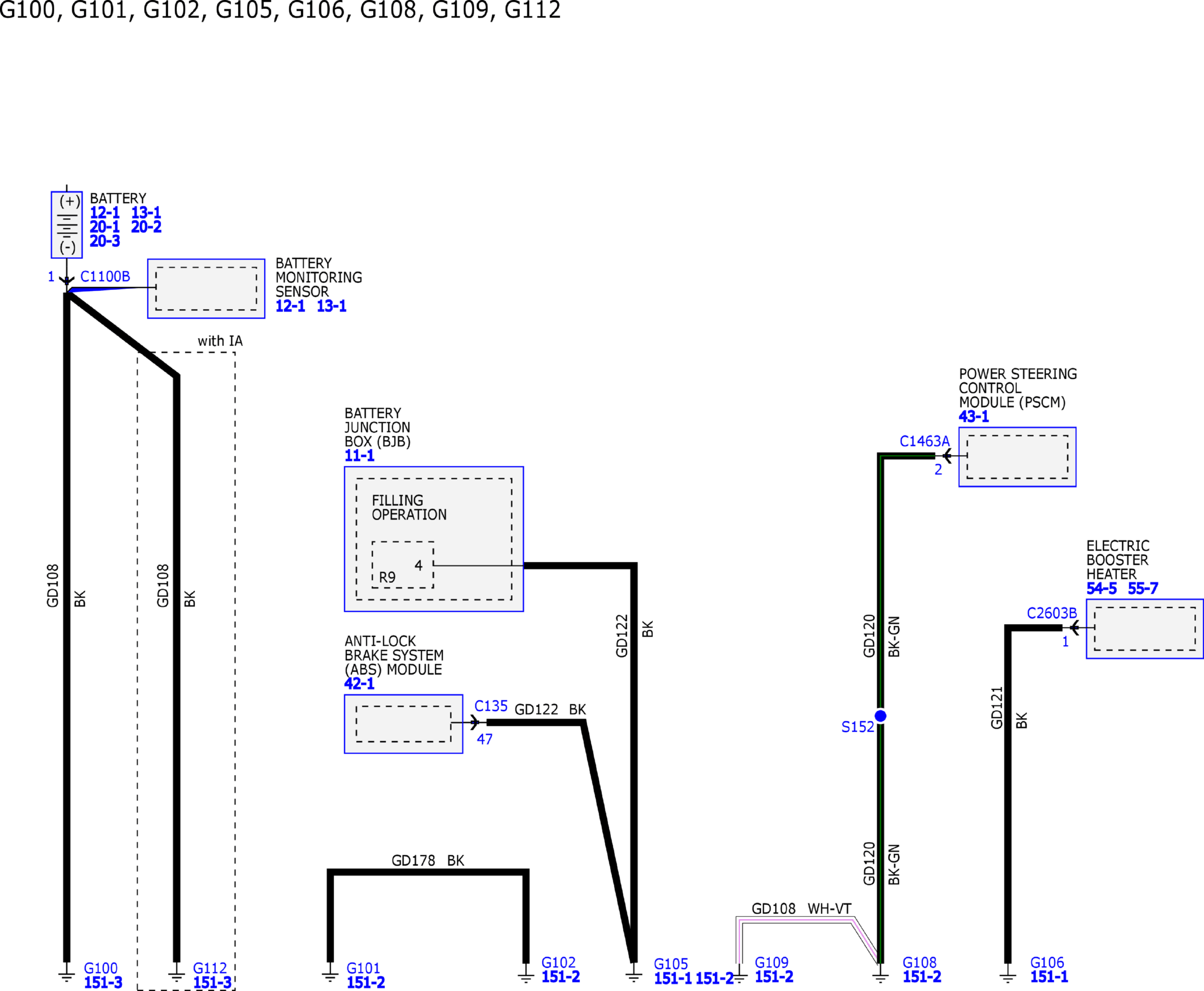

GFDW47958Courtesy of FORD MOTOR COMPANY

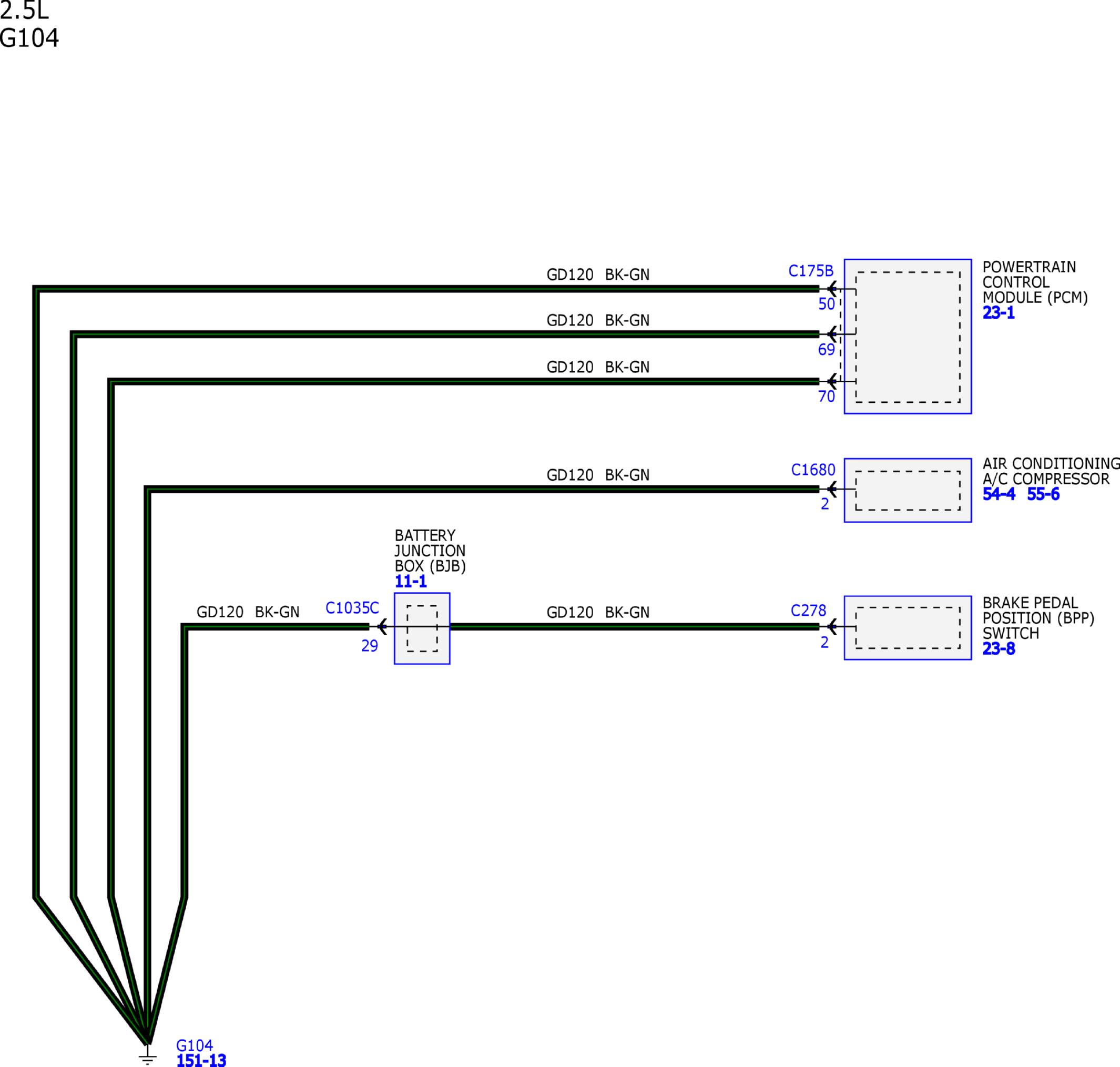

GFDW47959Courtesy of FORD MOTOR COMPANY

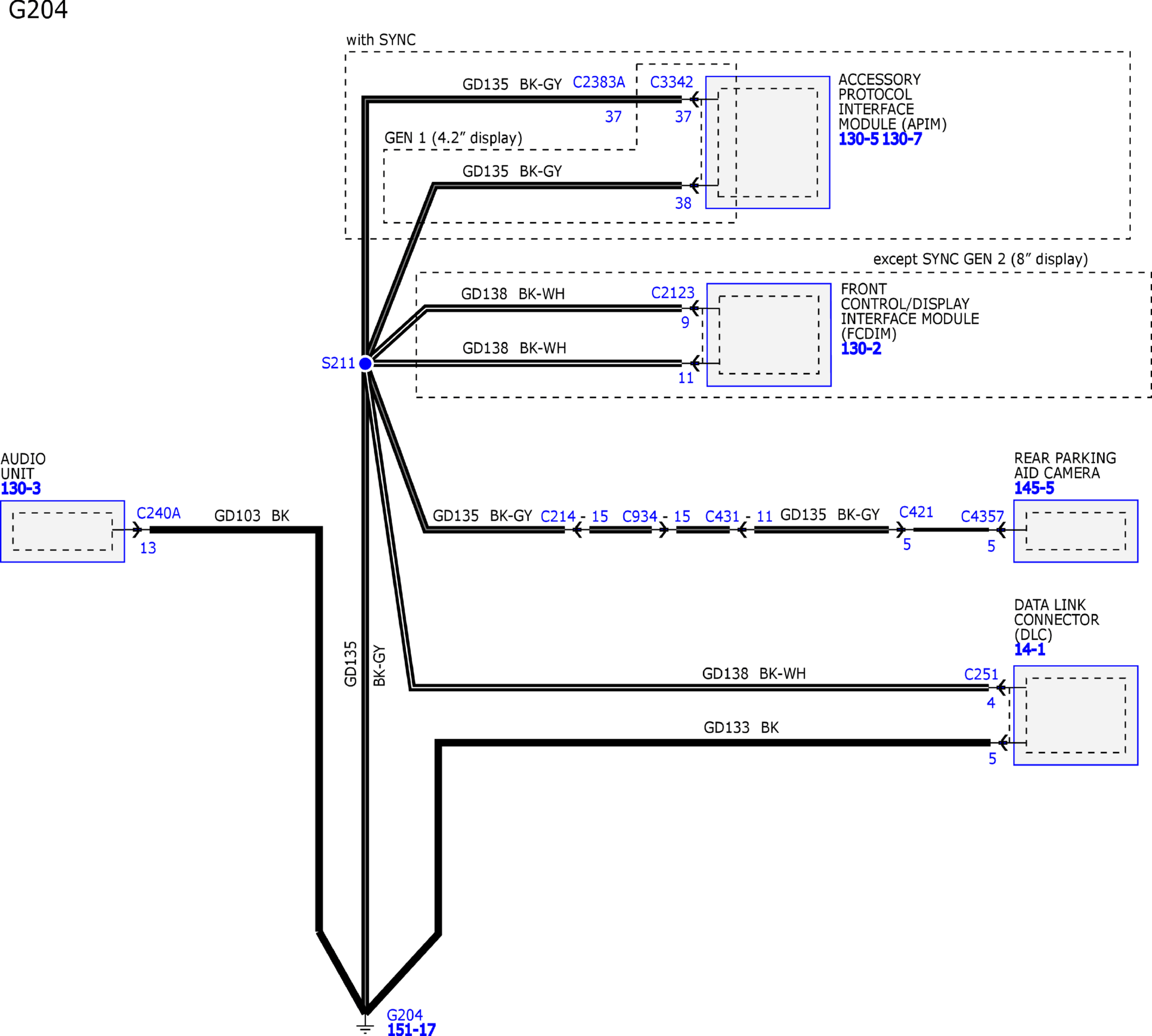

GFDW47960Courtesy of FORD MOTOR COMPANY

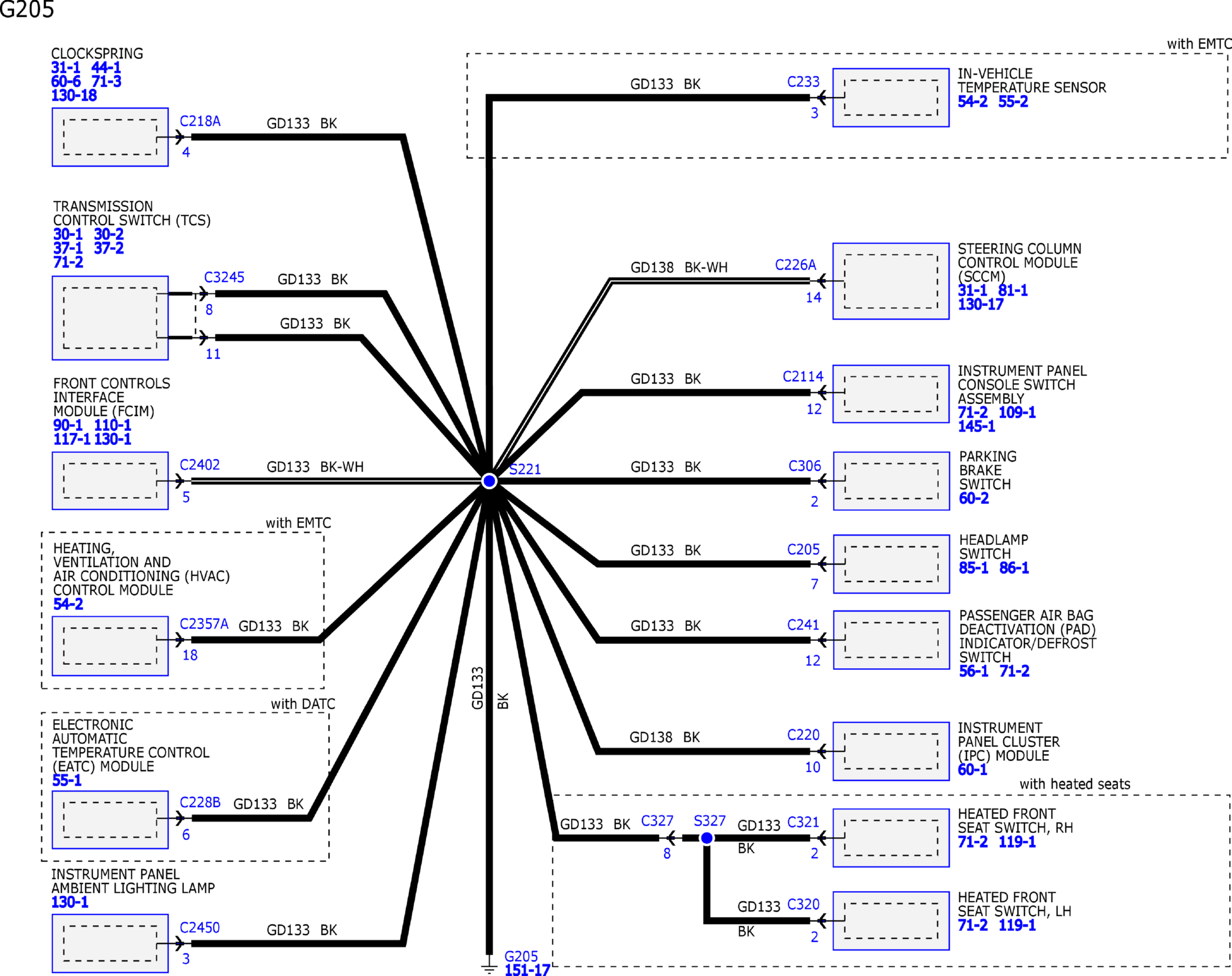

GFDW47961Courtesy of FORD MOTOR COMPANY

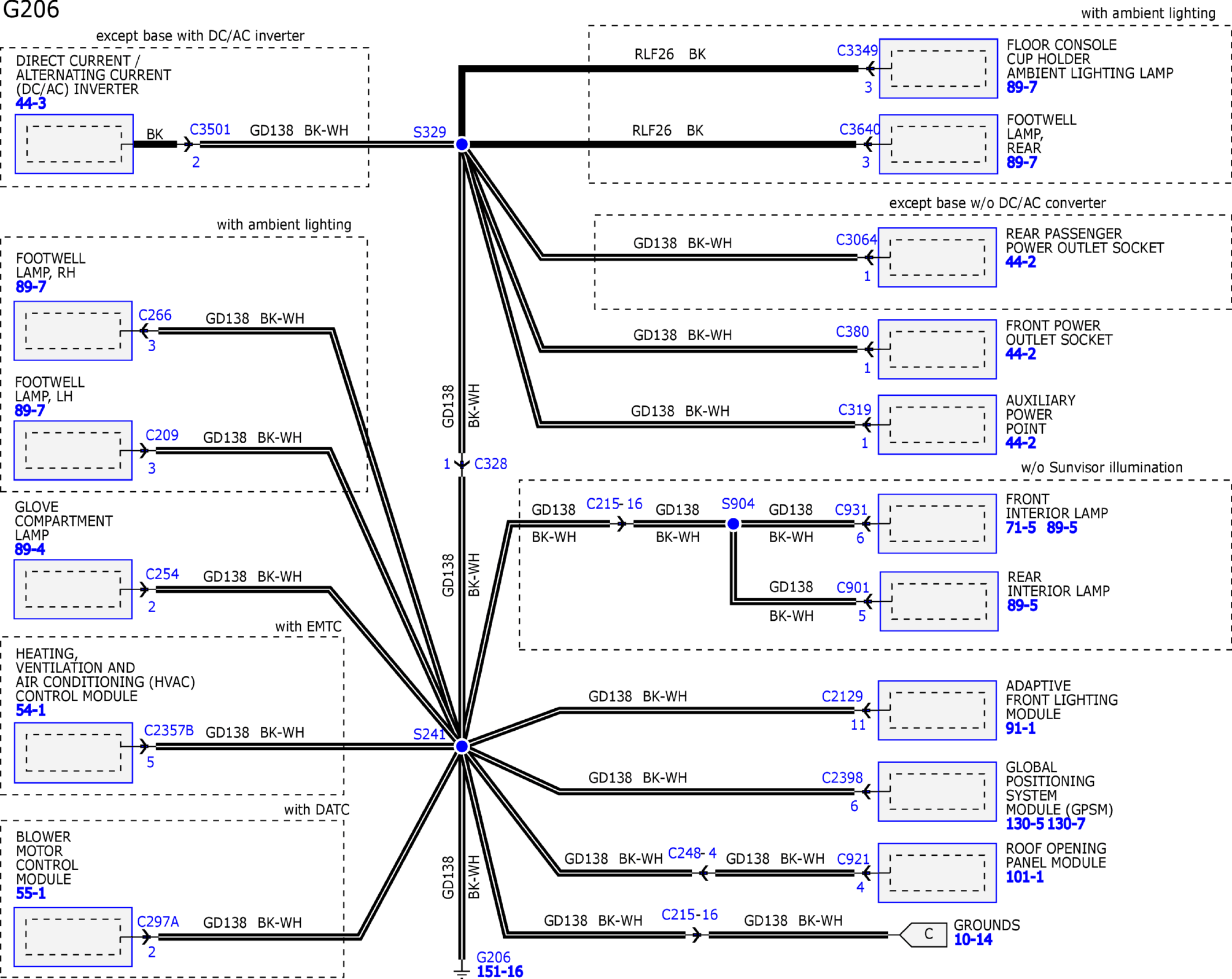

GFDW47962Courtesy of FORD MOTOR COMPANY

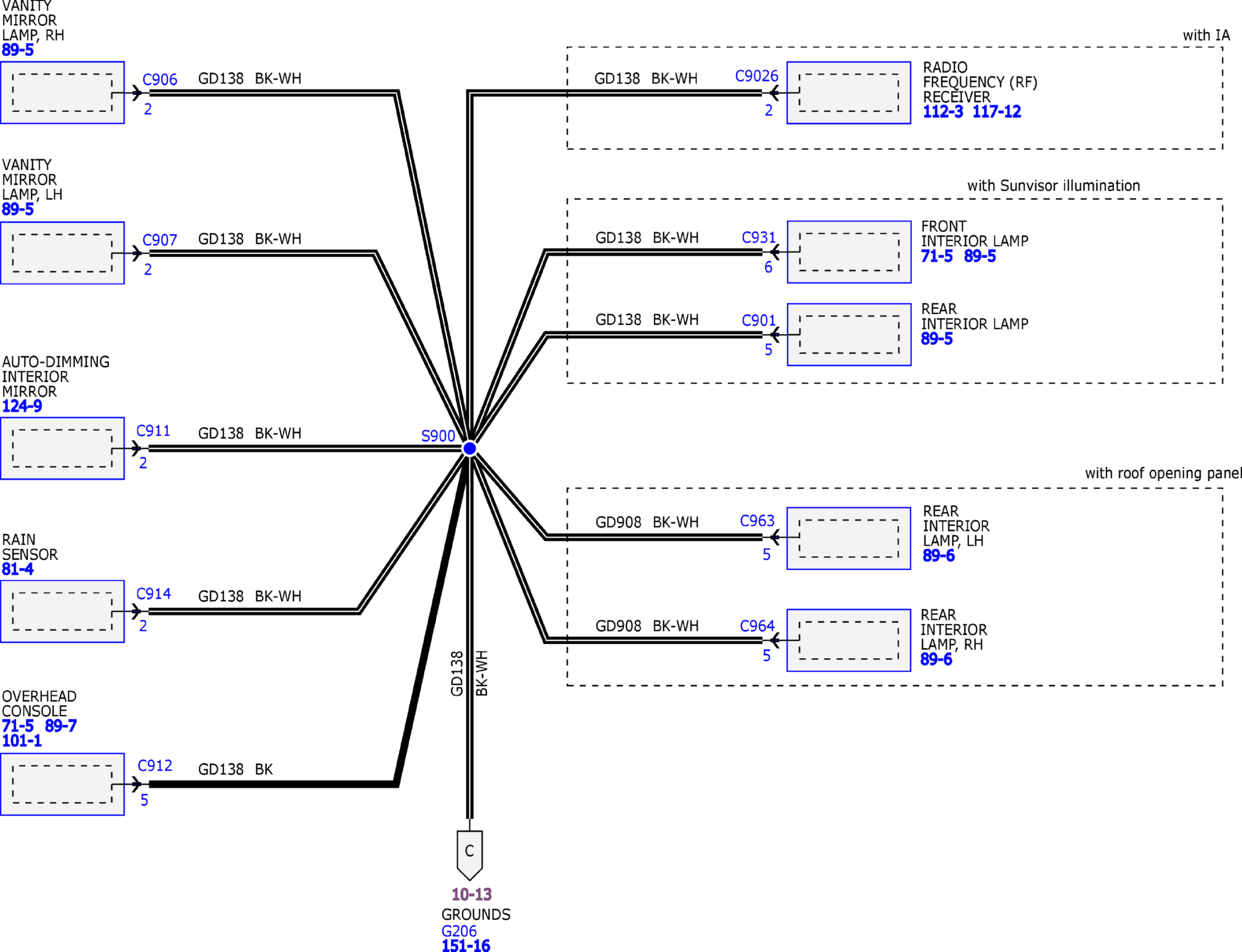

GFDW47963Courtesy of FORD MOTOR COMPANY

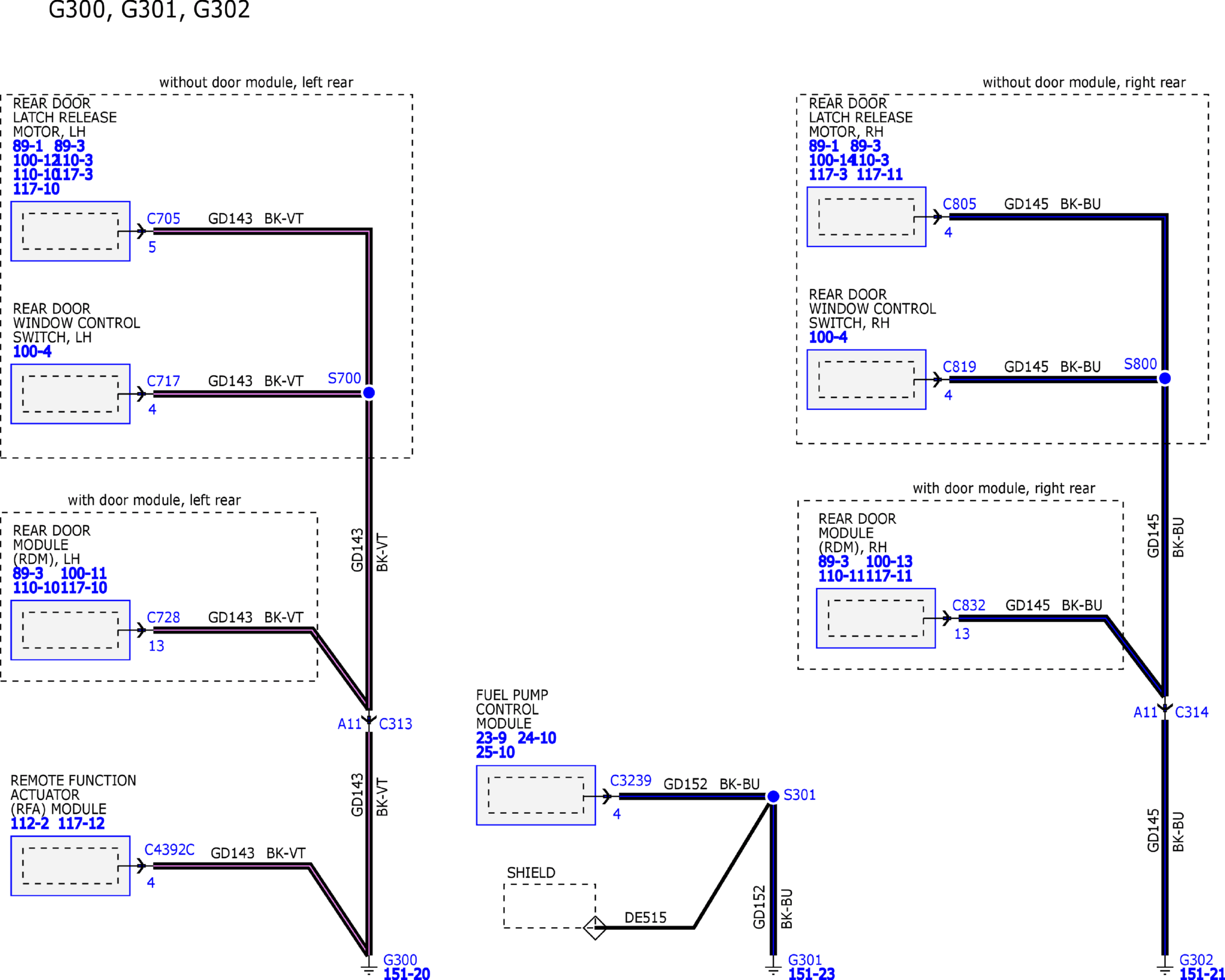

GFDW47964Courtesy of FORD MOTOR COMPANY

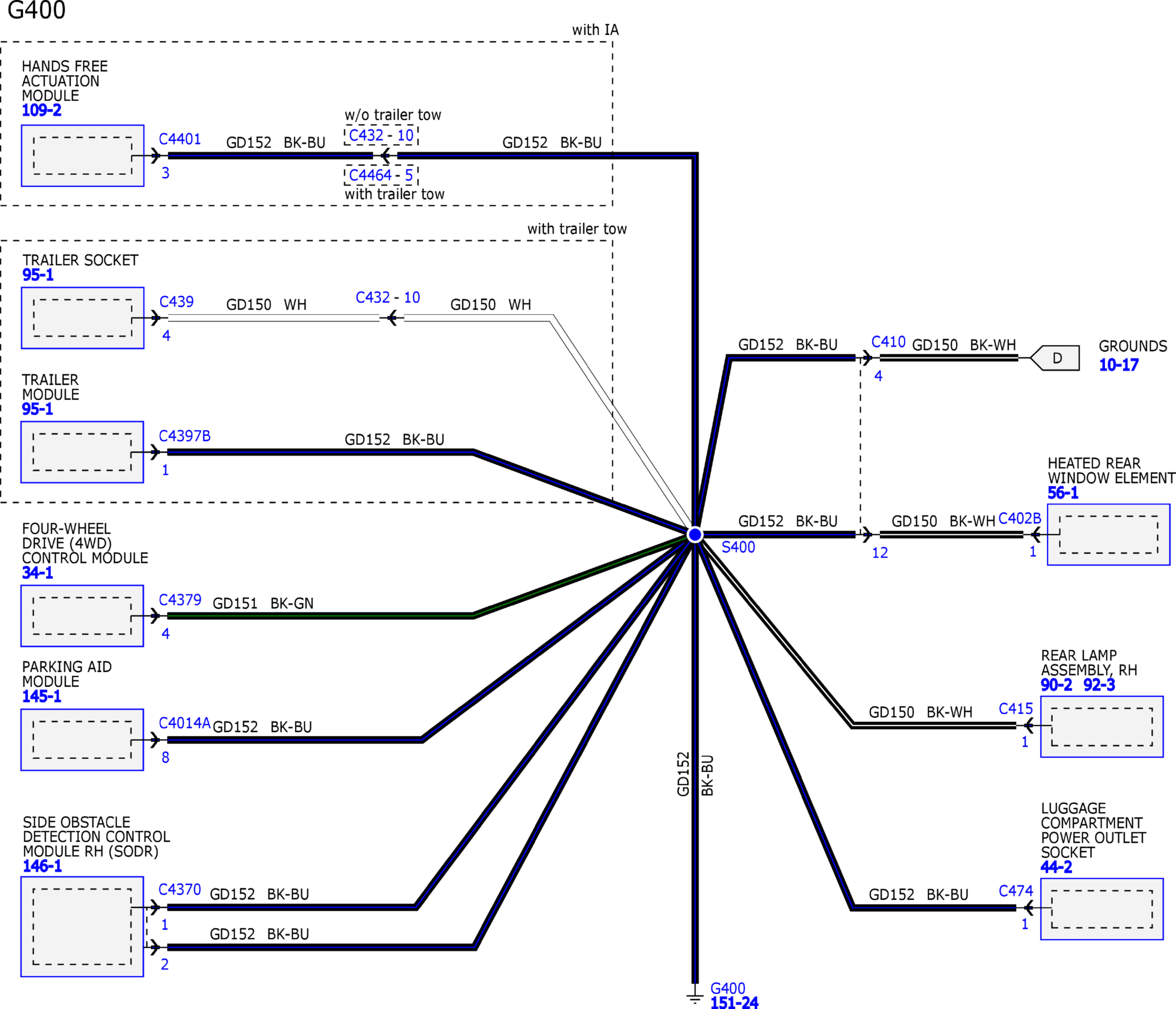

GFDW47965Courtesy of FORD MOTOR COMPANY

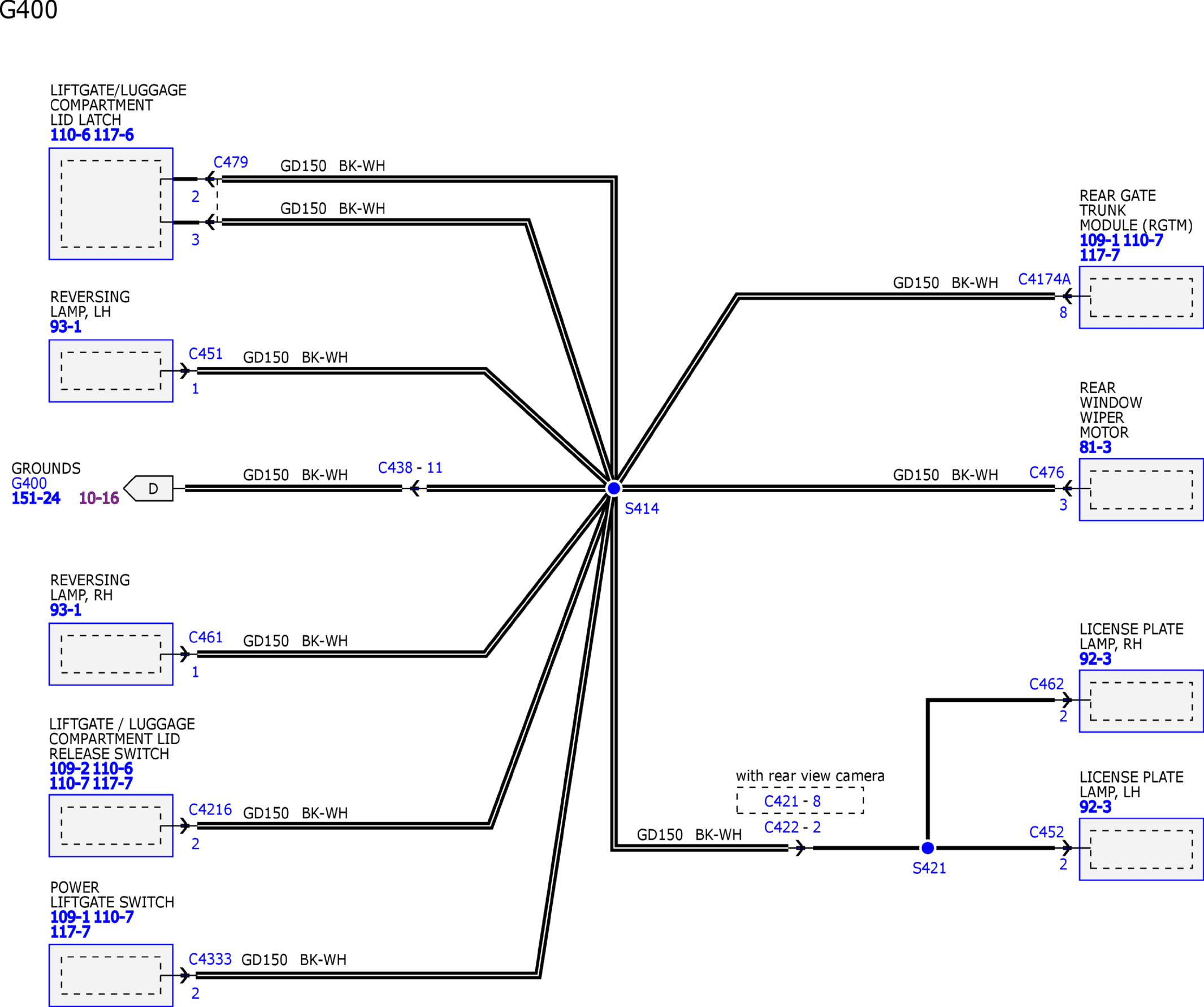

GFDW47966Courtesy of FORD MOTOR COMPANY

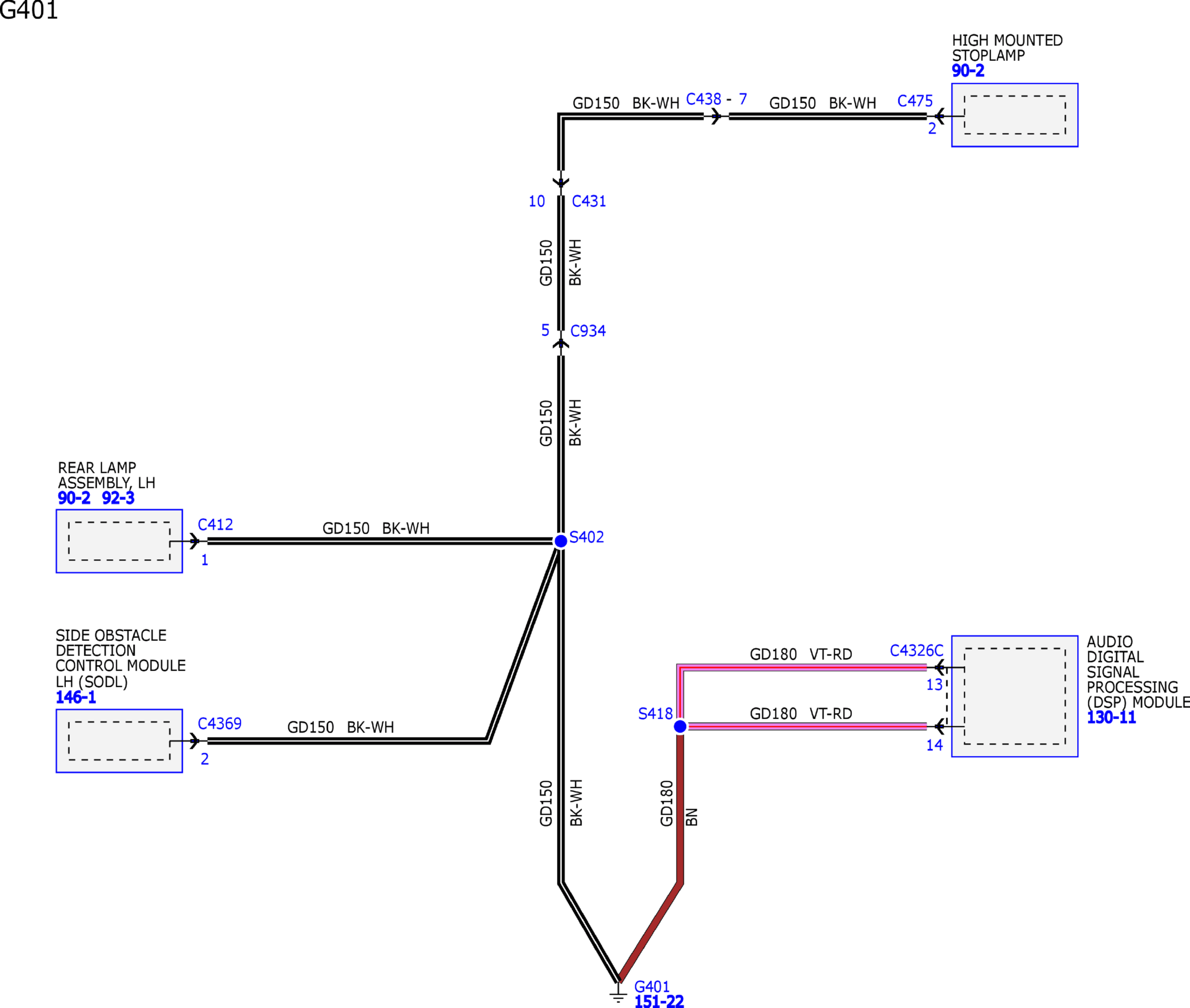

GFDW47967Courtesy of FORD MOTOR COMPANY

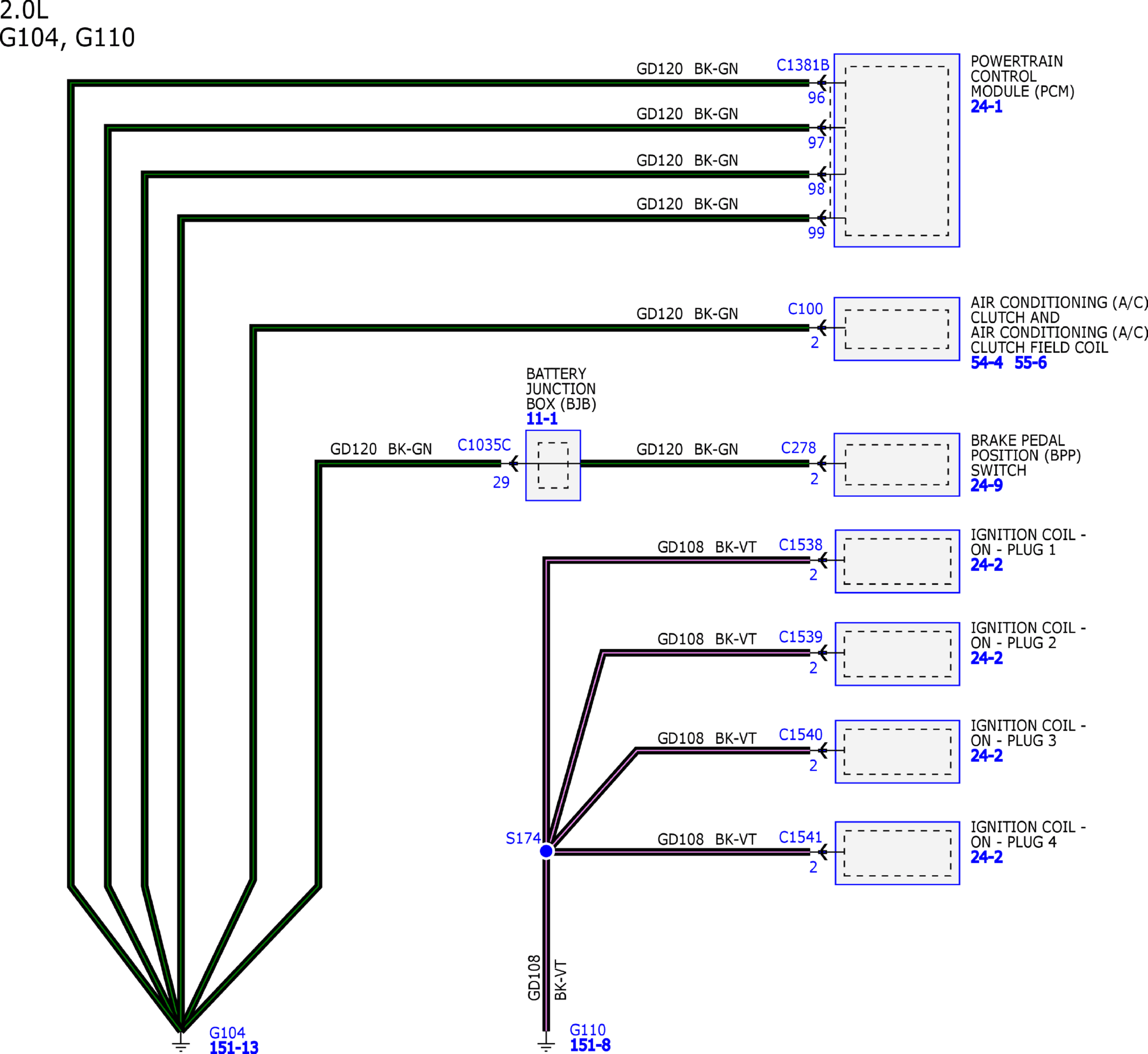

GFDW47968Courtesy of FORD MOTOR COMPANY

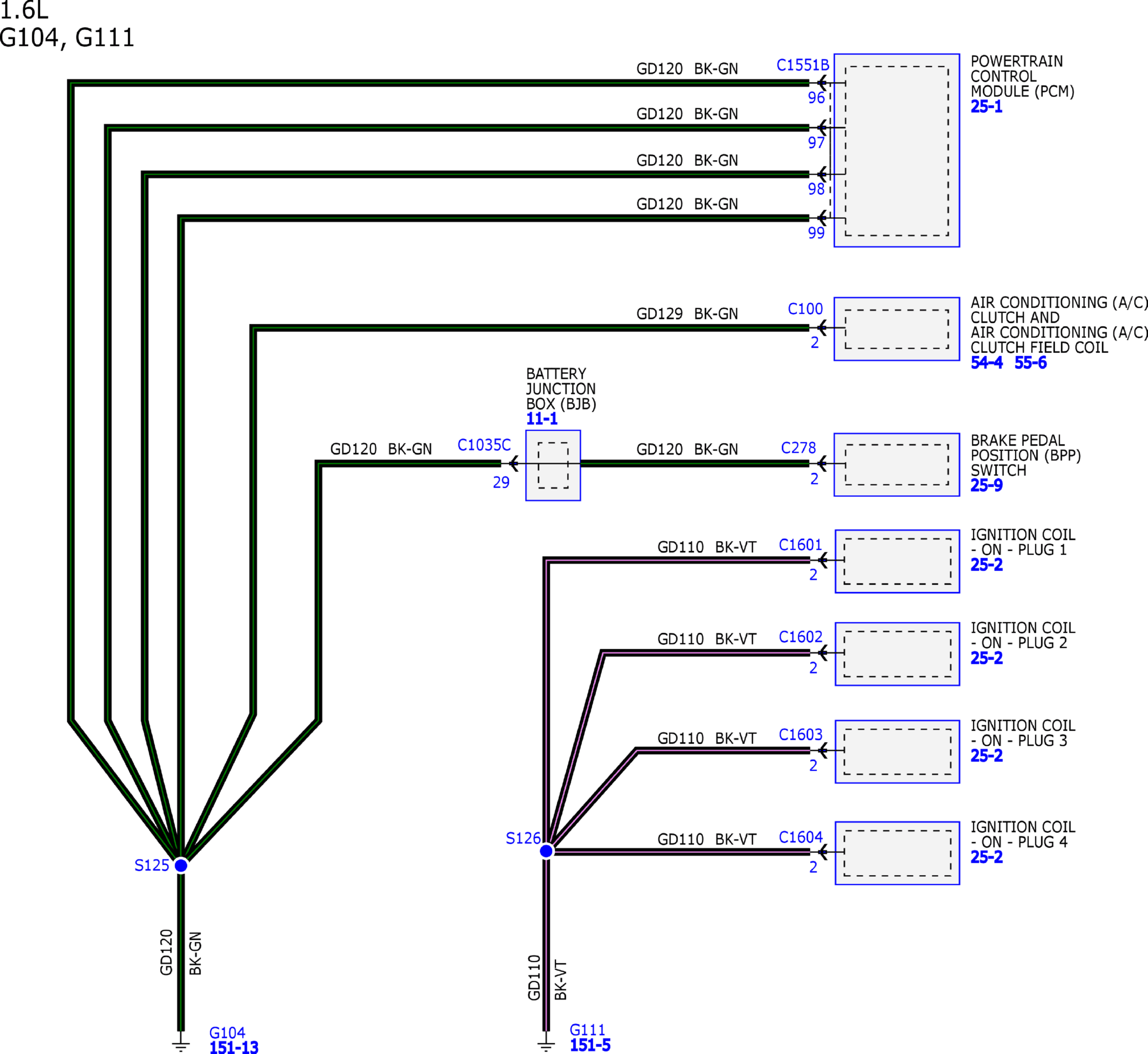

GFDW47969Courtesy of FORD MOTOR COMPANY

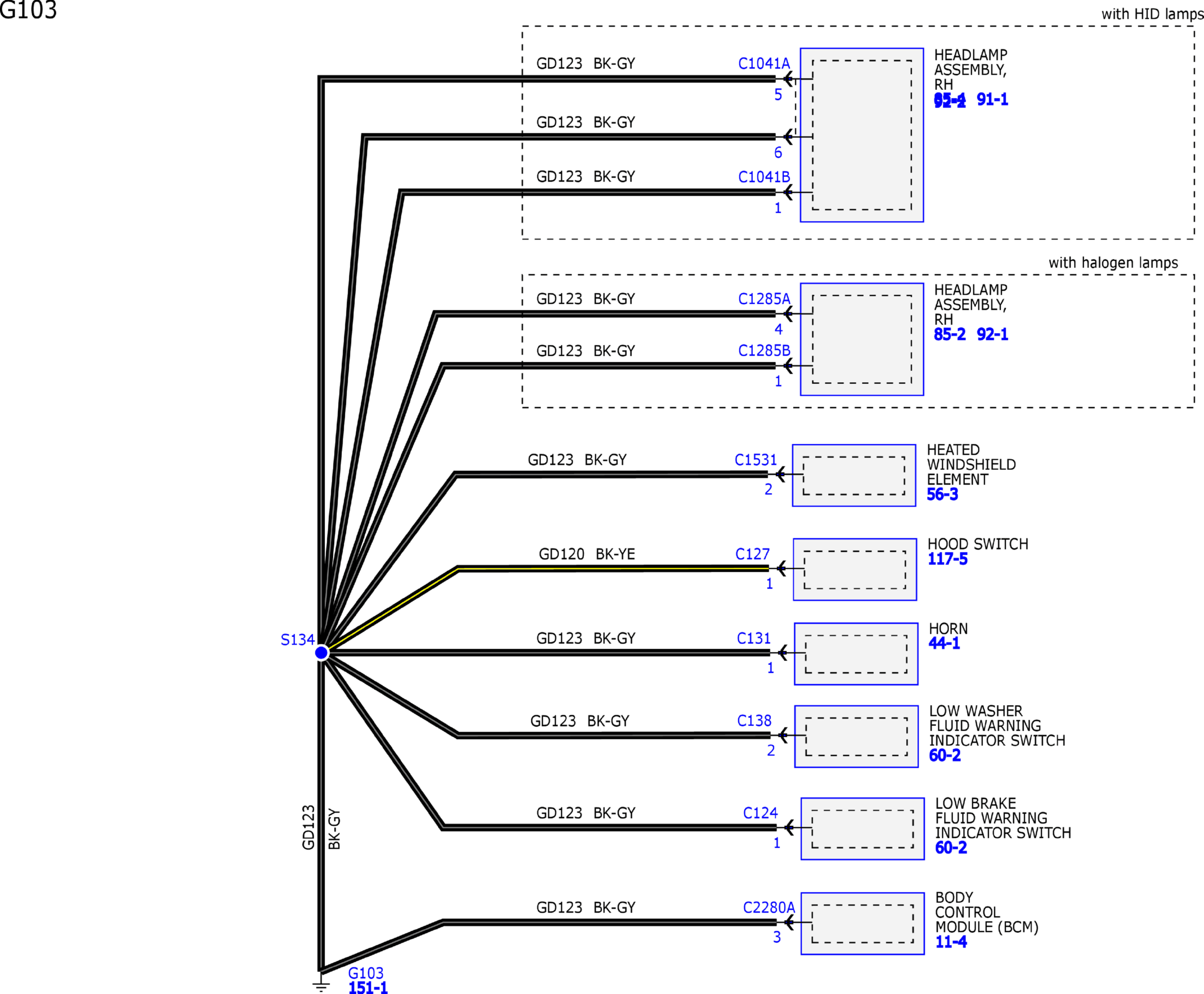

GFDW47970Courtesy of FORD MOTOR COMPANY

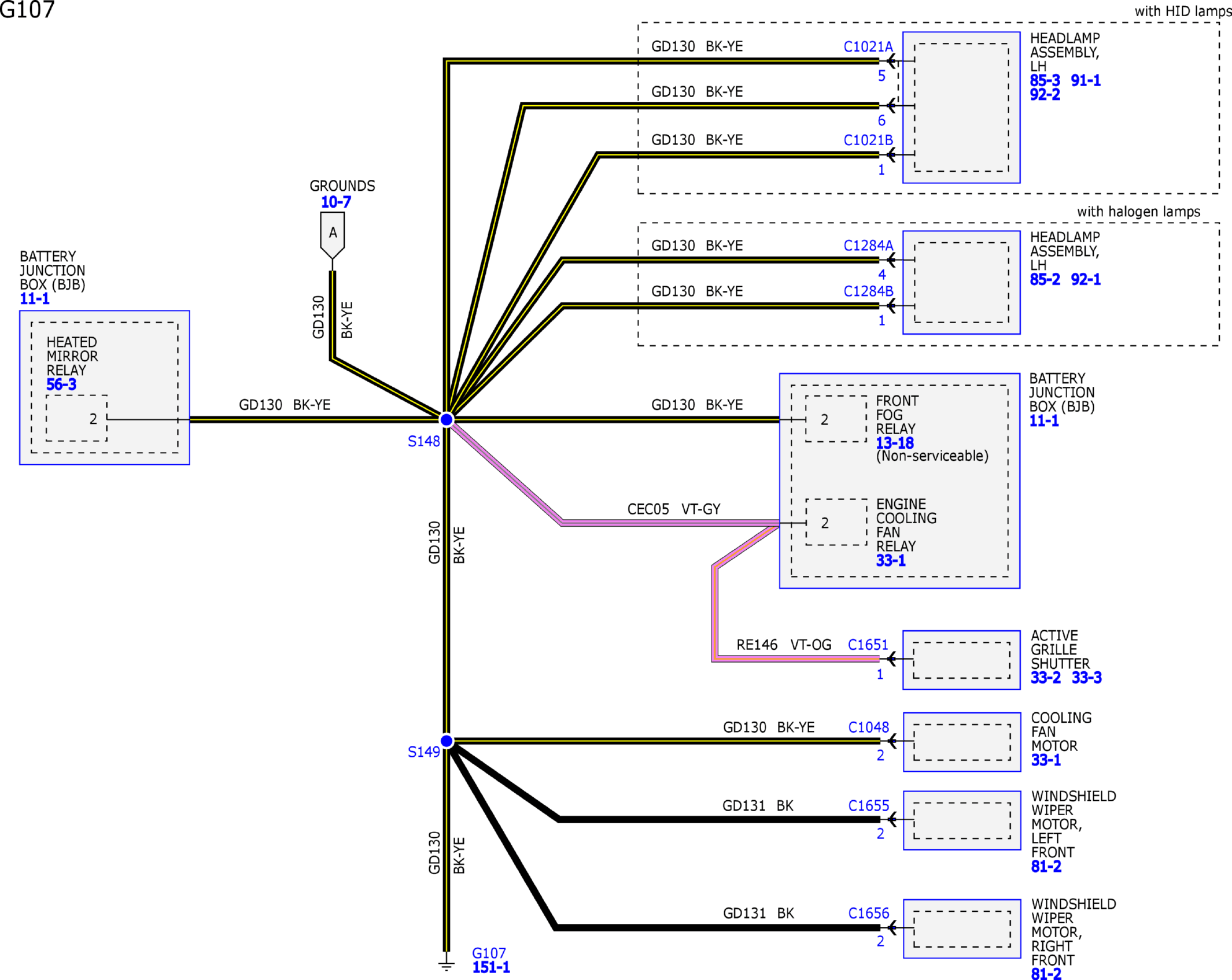

GFDW47971Courtesy of FORD MOTOR COMPANY

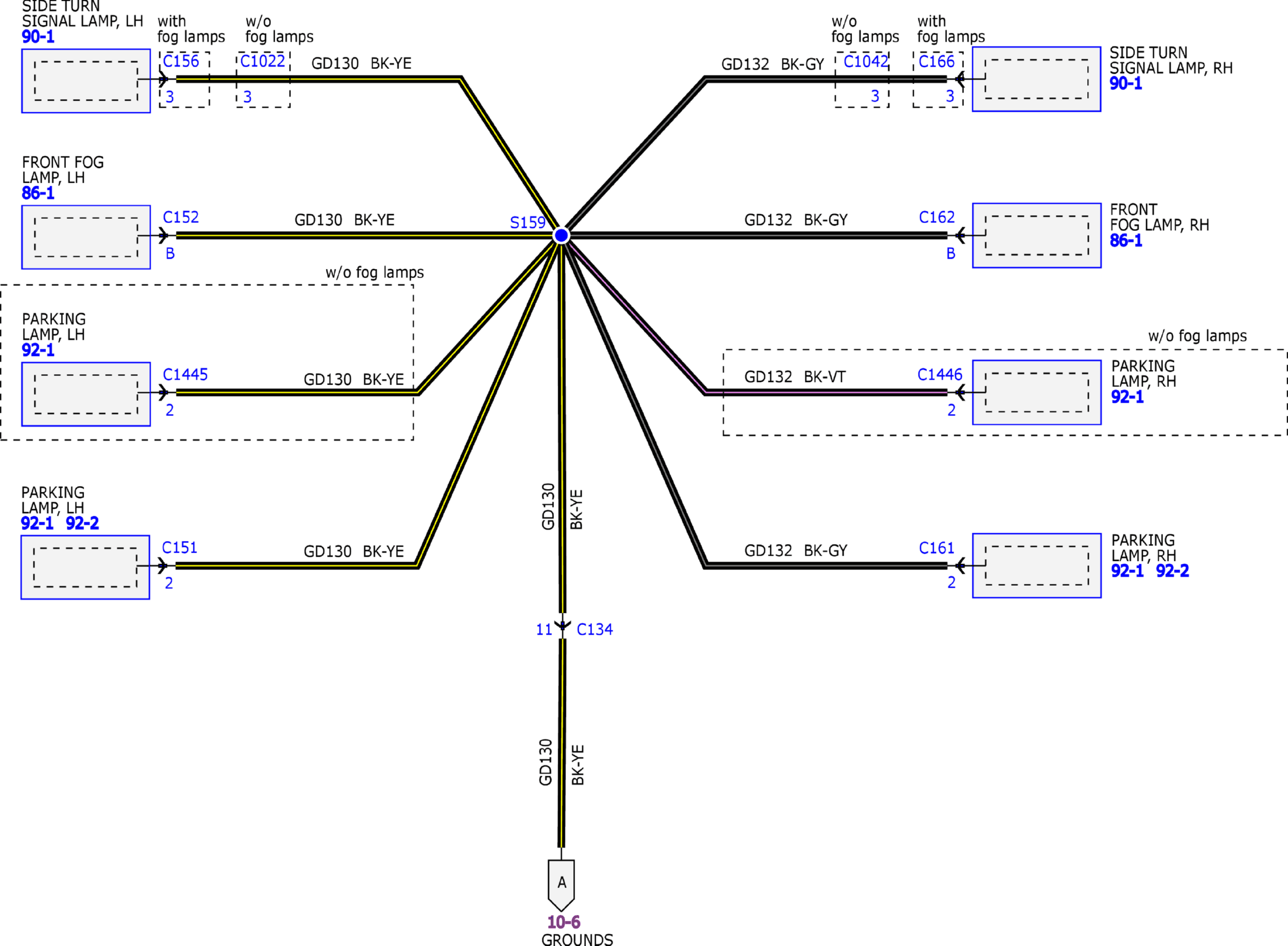

GFDW47972Courtesy of FORD MOTOR COMPANY

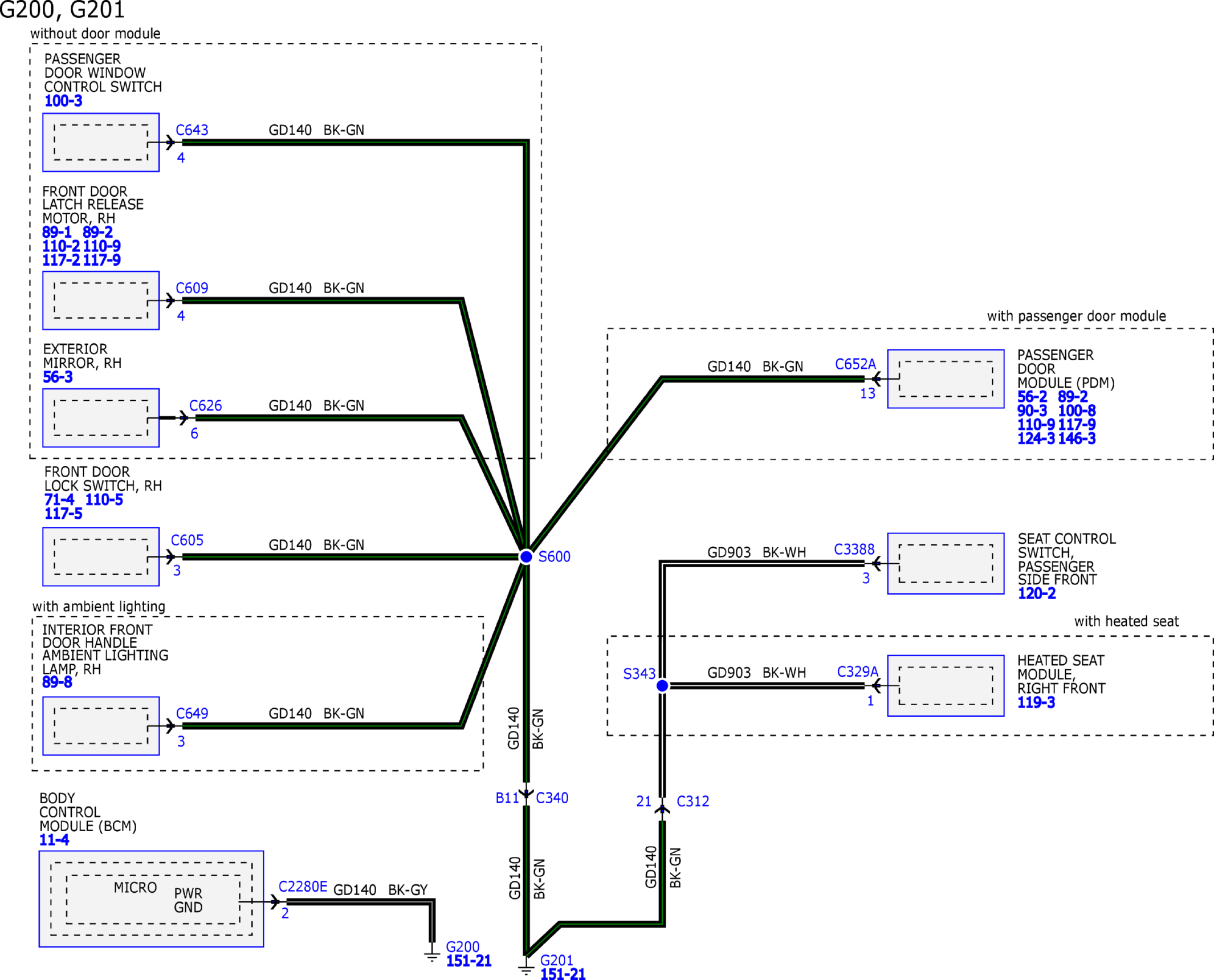

GFDW47973Courtesy of FORD MOTOR COMPANY

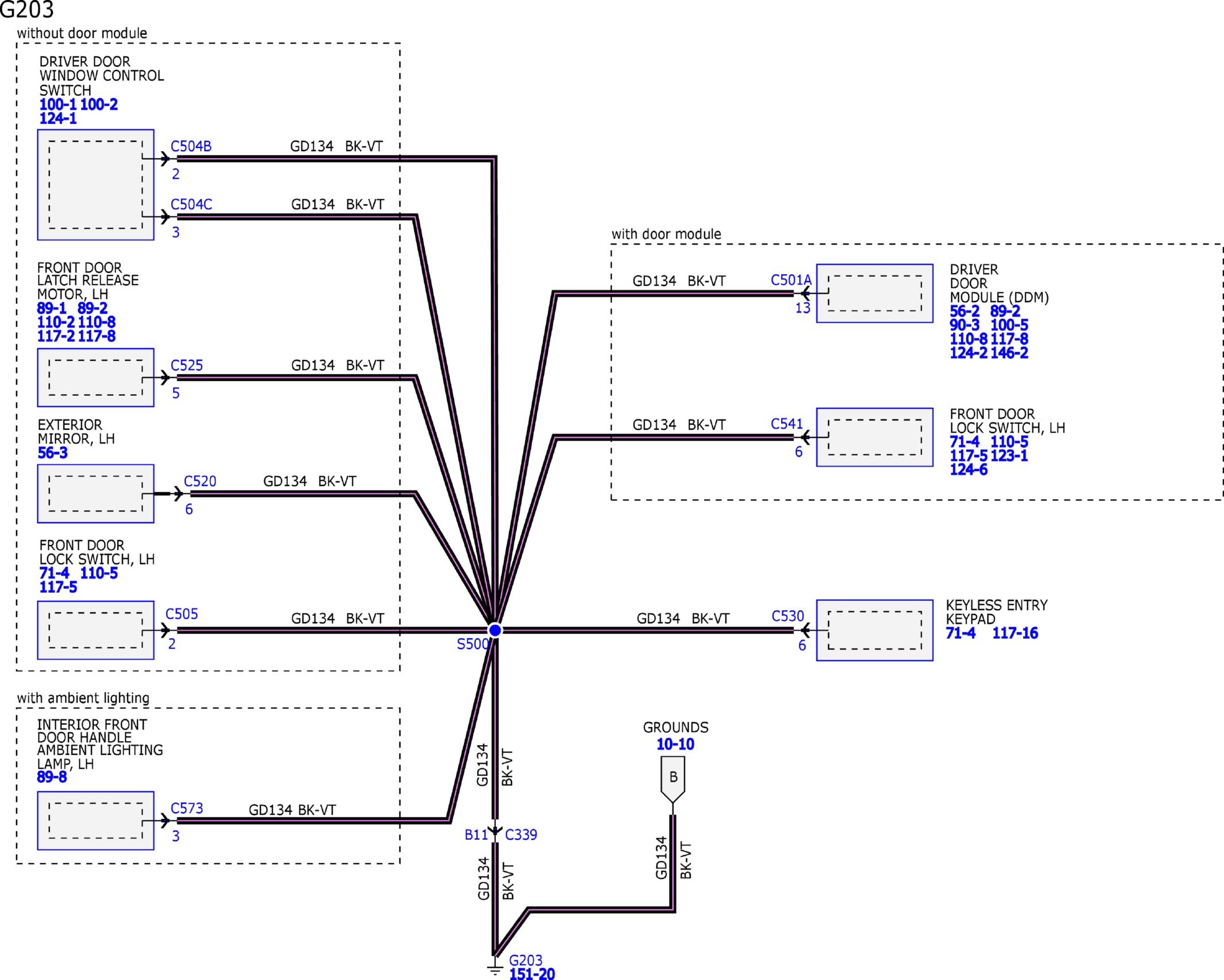

GFDW47974Courtesy of FORD MOTOR COMPANY

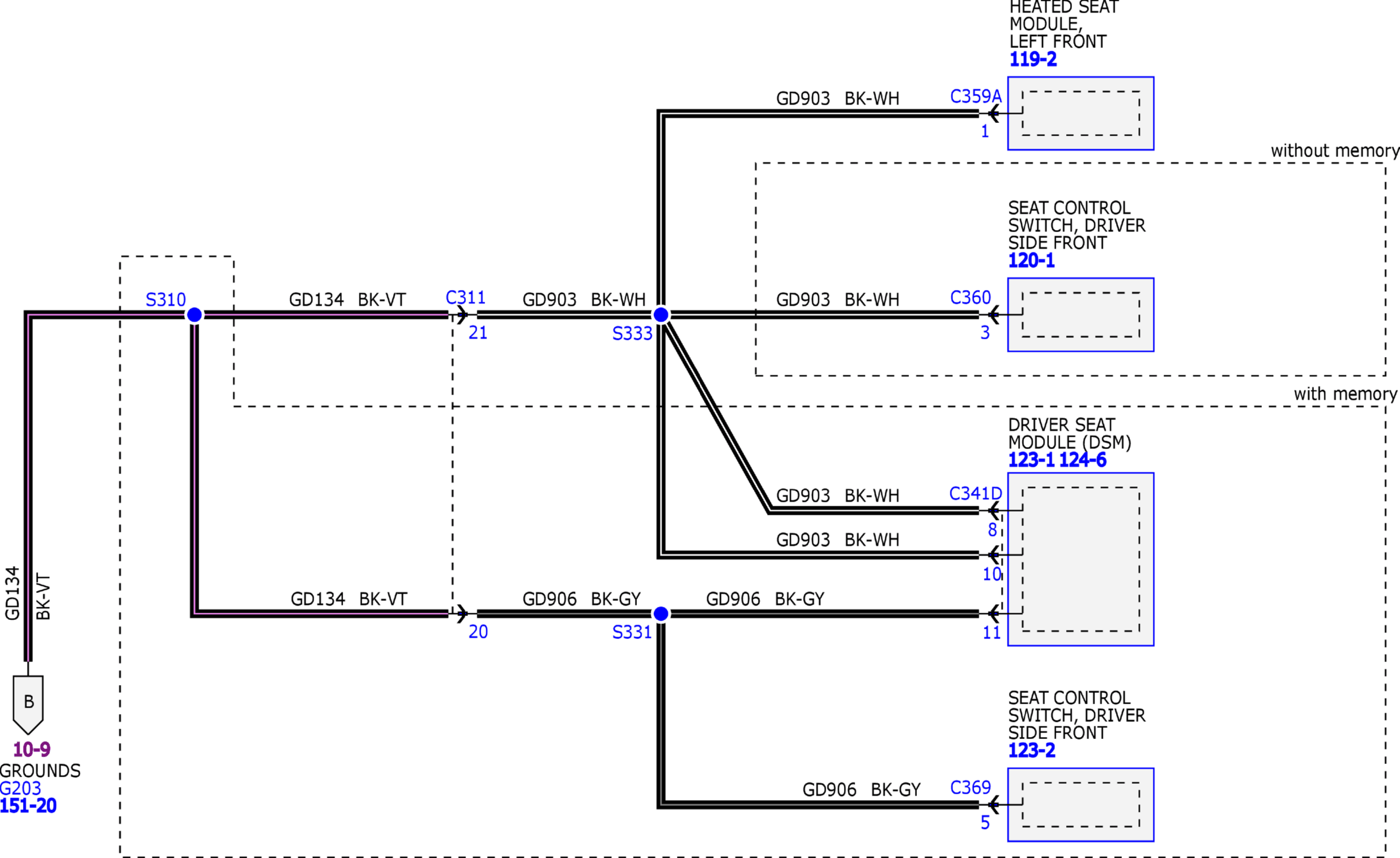

GFDW47975Courtesy of FORD MOTOR COMPANY
