Heated Second Row Seat Module: Removal

NOTE: Second row single seat shown in illustration, second row double seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

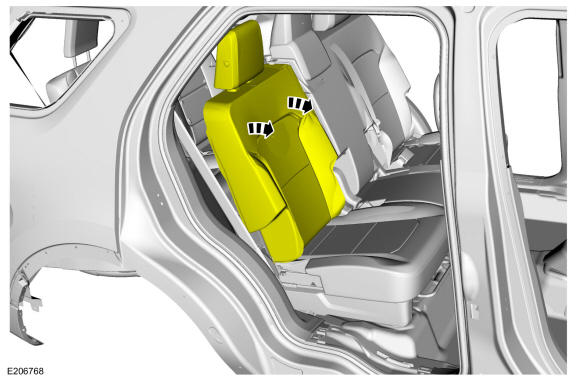

Place the backrest in the fold flat position.

GFD125399

Courtesy of FORD MOTOR COMPANY

2.

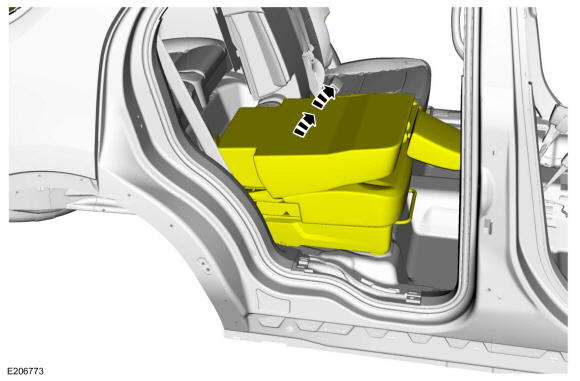

Place the seat in the easy entry position.

GFD125400

Courtesy of FORD MOTOR COMPANY

3.

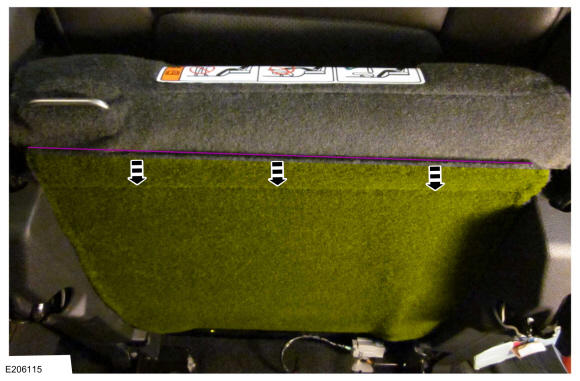

Release the seat cushion cover J-clip.

GFD127688

Courtesy of FORD MOTOR COMPANY

4.

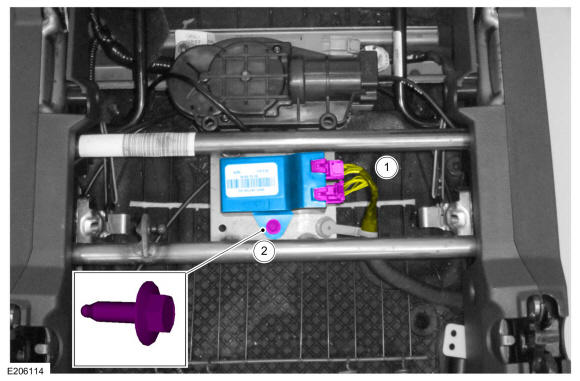

Remove the heated seat module.
1. 1.

  Disconnect the electrical connectors.
1. 2.

  Remove the fastener.
  Torque

  : 89 lb.in (10 Nm)

GFD127689

Courtesy of FORD MOTOR COMPANY
