| 2 |

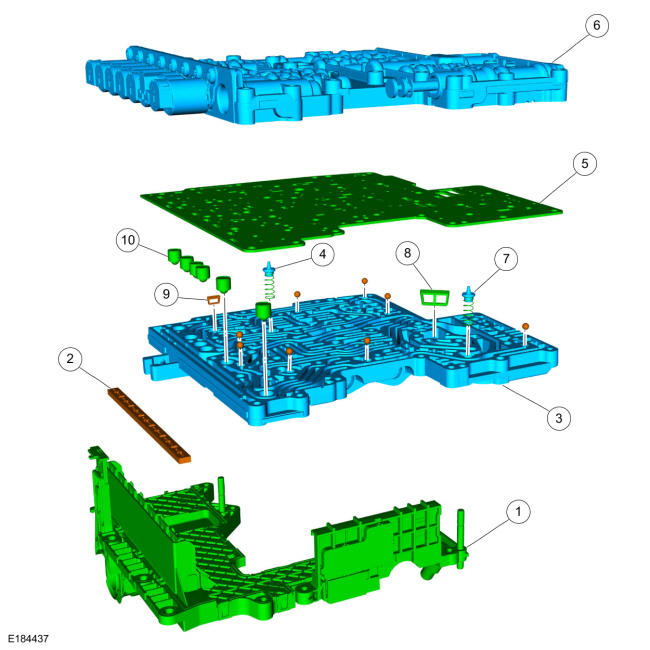

Foam strip seal |
| 3 |
Transmission control valve body (upper) |
| 4 |
Clutch exhaust valve |
| 5 |
Transmission control valve body separator plate |
| 6 |
Transmission control valve body (lower) |
| 7 |
Converter drain back valve |
| 8 |
Transmission control filter assembly |
| 9 |
Transmission fluid filter |
| 10 |
Transmission solenoid damper valve assembly |
| 11 |

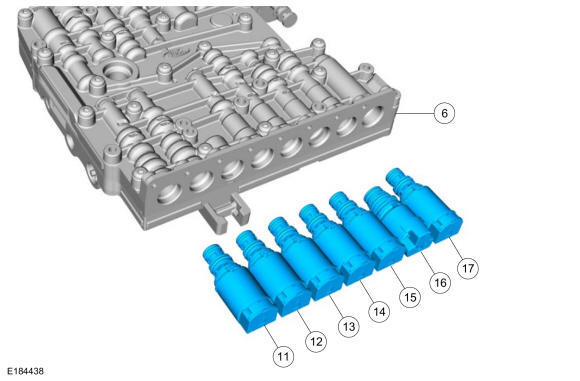

Solenoid A (SSA) |
| 12 |
Solenoid B (SSB) |
| 13 |
Solenoid C (SSC) |
| 14 |
Line Pressure Control (LPC) solenoid |
| 15 |
Shift Solenoid D (SSD) |
| 16 |
Shift Solenoid E (SSE) |
| 17 |
Torque Converter Clutch (TCC) solenoid |
| 18 |

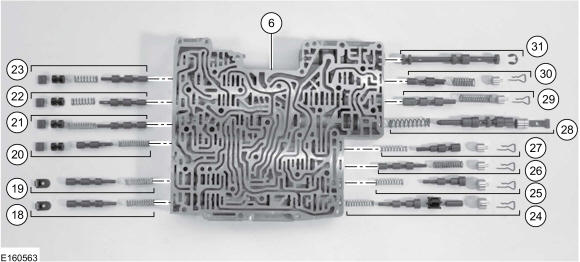

Forward (A) clutch latch valve assembly |
| 19 |
Direct (B) clutch latch valve assembly |
| 20 |
Solenoid regulator valve |
| 21 |
Low/reverse (D1) clutch latch valve assembly |
| 22 |
Drive enable valve |
| 23 |
Solenoid multiplex valve |
| 24 |
Forward (A) clutch regulator valve assembly |
| 25 |
Overdrive (E) clutch regulator valve assembly |
| 26 |
Overdrive (E) clutch latch valve assembly |
| 27 |
Bypass clutch control regulator valve assembly |
| 28 |
Main regulator valve assembly |
| 29 |
Converter release regulator valve assembly |
| 30 |
Lubrication control valve assembly |
| 31 |
Manual valve assembly |
| 32 |

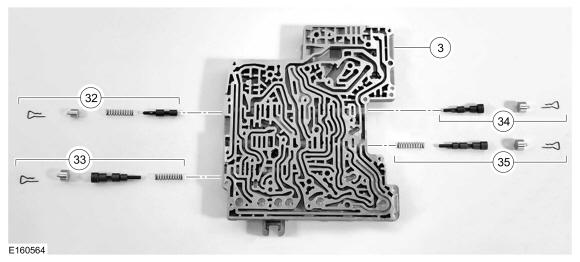

Low/reverse (D2) clutch latch valve assembly |
| 33 |
Direct (B) clutch regulator valve assembly |
| 34 |
Low/reverse (D1) clutch regulator valve assembly |
| 35 |
Intermediate (C) clutch regulator valve |
| 36 |

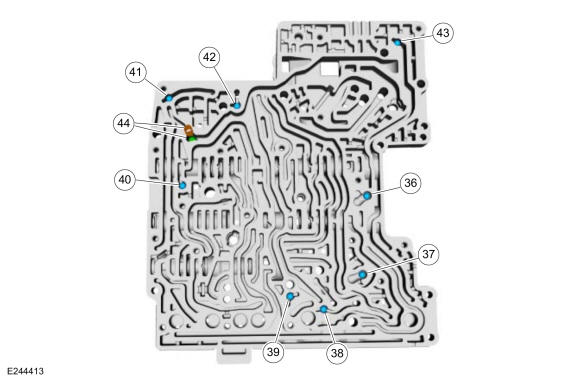

Reverse/drive control check ball |
| 37 |
Shift solenoid control check ball |
| 38 |
Intermediate clutch exhaust control check ball |
| 39 |
Direct clutch exhaust control check ball |
| 40 |
Low/reverse clutch exhaust control check ball |
| 41 |
Forward clutch exhaust control check ball |
| 42 |
Overdrive clutch exhaust control check ball |
| 43 |
Reverse exhaust control check ball |
| 44 |
Auxiliary pump check ball and spring (model dependent) |
