Pinpoint Test P : B1B71:11, B1B71:13
NOTE:
Use the Rotunda Flex Probe kit when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
- P1 CHECK THE IPC (INSTRUMENT PANEL CLUSTER) OUTPUT VOLTAGE TO THE EVAPORATOR TEMPERATURE SENSOR
- Ignition OFF.
- Disconnect Evaporator Temperature Sensor C296 .
- Ignition ON.
- Select PANEL and press the A/C button (indicator on) on the HVAC controls.
Is the voltage between 4.7 and 5.1 volts?
Yes GO to P2 No GO to P3 - P2 CHECK THE EVAPORATOR TEMPERATURE SENSOR
- Ignition OFF.
- Allow enough time for the evaporator to stabilize to the ambient temperature.
- Measure:
Positive Lead Measurement / Action Negative Lead

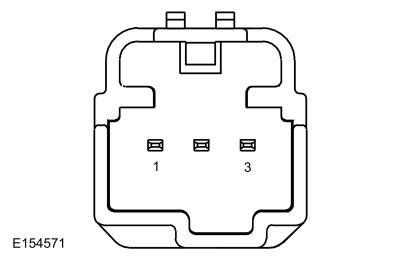

C296-1 (component side)
C296-3 (component side)
- Compare the resistance values to the table below:
Ambient Temperature Resistance 0-10 °C (32-50 °F) 5, 892-9, 893 ohms 10-20 °C (50-68 °F) 3, 689-6, 048 ohms 20-25 °C (68-77 °F) 2, 950-3, 805 ohms 25-30 °C (77-86 °F) 2, 374-3, 050 ohms 30-35 °C (86-95 °F) 1, 923-2, 460 ohms 35-40 °C (95-104 °F) 1, 566-1, 996 ohms 40-50 °C (104-122 °F) 1, 057-1, 630 ohms
Did the evaporator temperature sensor test OK?
Yes GO to P7 No INSTALL a new evaporator temperature sensor. Refer to: Evaporator Temperature Sensor . - P3 CHECK THE EVAPORATOR TEMPERATURE SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect IPC C220A .
- Ignition ON.
Is there any voltage present?
Yes REPAIR the affected circuits. No GO to P4 - P4 CHECK THE EVAPORATOR TEMPERATURE SENSOR CIRCUITS FOR A SHORT TO GROUND
- Ignition OFF.
Are the resistances greater than 10, 000 ohms?
Yes GO to P5 No REPAIR the affected circuits. - P5 CHECK THE EVAPORATOR TEMPERATURE SENSOR CIRCUITS FOR AN OPEN
Are the resistances less than 3 ohms?
Yes GO to P6 No REPAIR the affected circuits. - P6 CHECK THE EVAPORATOR TEMPERATURE SENSOR CIRCUITS FOR A SHORT TOGETHER
Is the resistance greater than 10, 000 ohms?
Yes INSTALL a new evaporator temperature sensor. Refer to: Evaporator Temperature Sensor . If the concern is still present, GO to P7 No REPAIR the circuits. - P7 CHECK THE IPC (INSTRUMENT PANEL CLUSTER) OPERATION
- Ignition OFF.
- Disconnect and inspect the IPC connector.
- Repair:
- corrosion (install new connector or terminals - clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary
- Connect the IPC connector. Make sure it seats and latches correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, Refer to IPC Hardware Testing . No The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
