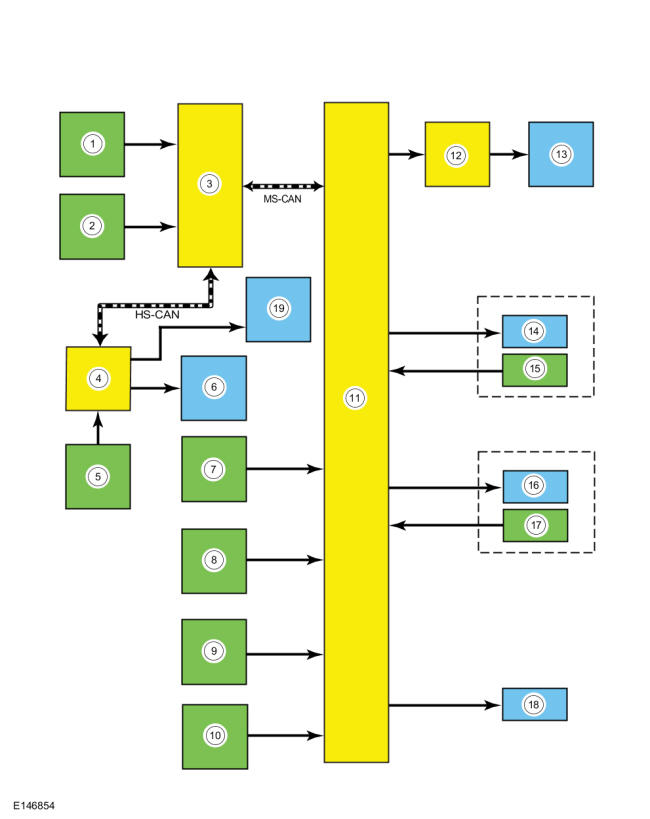

| 1 |
Evaporator temperature sensor |
| 2 |
Ambient air temperature (AAT) sensor |
| 3 |
IPC |
| 4 |
PCM |
| 5 |
A/C pressure transducer |
| 6 |
A/C compressor clutch |
| 7 |
Center register air discharge temperature sensor |
| 8 |
Footwell air discharge temperature sensor |
| 9 |
Sunload sensor |
| 10 |
In-vehicle temperature sensor |
| 11 |
HVAC control module |
| 12 |
Blower motor speed control |
| 13 |
Blower motor |
| 14 |
Air distribution door actuator motor |
| 15 |
Air distribution door actuator position sensor |
| 16 |
Temperature door actuator motor |
| 17 |
Temperature door actuator position sensor |
| 18 |
Air inlet door actuator motor |
| 19 |
Externally controlled variable displacement compressor |
