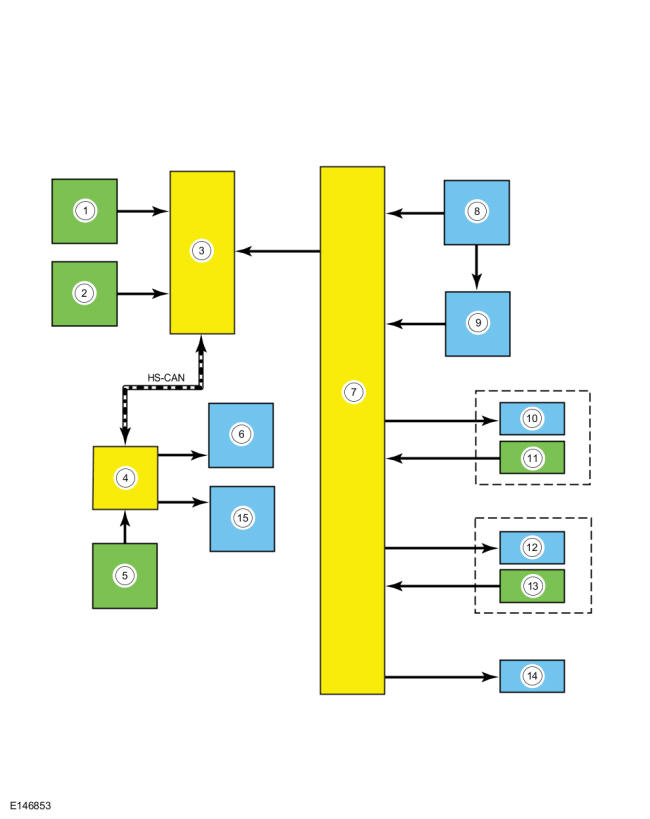

System Diagram
| Item | Description |
|---|---|
| 1 | Evaporator temperature sensor |
| 2 | Ambient air temperature sensor |
| 3 | IPC |
| 4 | PCM |
| 5 | A/C pressure transducer |
| 6 | A/C compressor clutch |
| 7 | HVAC control module |
| 8 | Blower motor |
| 9 | Blower motor resistor |
| 10 | Air distribution door actuator motor |
| 11 | Air distribution door actuator position sensor |
| 12 | Temperature door actuator motor |
| 13 | Temperature door actuator position sensor |
| 14 | Air inlet door actuator motor |
| 15 | Externally controlled variable displacement compressor |
