The Refrigerant Cycle
For information regarding basic HVAC system refrigerant operation, refer to the current Ford Web Based Technical Training courses. The following diagram shows the refrigerant system state in each component.
The following are characteristics of the EMTC system:
- The PCM controls the A/C clutch relay.
- The evaporator temperature sensor monitors the temperature of the evaporator core and sends a signal to the PCM. If the temperature of the evaporator core is low enough to cause the condensed water vapor to freeze, the A/C clutch is disengaged by the PCM.
- The line pressure is monitored so that A/C compressor operation is interrupted if the system pressure becomes too high or too low.
- The A/C compressor relief valve opens and vents refrigerant to relieve unusually high system pressure.

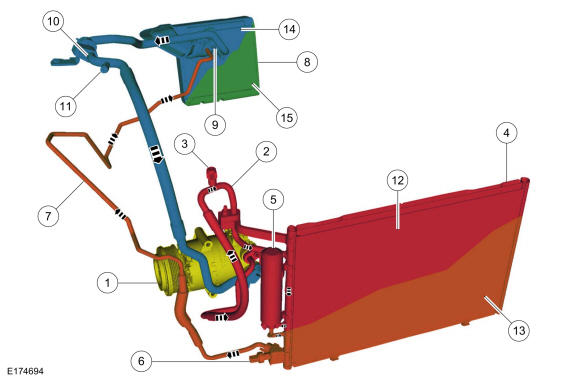

Thermostatic Expansion Valve (TXV) Type Refrigerant System-Gasoline Turbocharged Direct Injection (GTDI)
| Item | Description |
|---|---|
| 1 | A/C compressor |
| 2 | A/C compressor to condenser discharge line |
| 3 | A/C valve charge port (high side) |
| 4 | A/C condenser |
| 5 | Receiver drier |
| 6 | A/C pressure transducer |
| 7 | Evaporator inlet line |
| 8 | A/C evaporator core |
| 9 | Thermostatic Expansion Valve (TXV) |
| 10 | A/C suction line |
| 11 | A/C valve charge port (low side) |
| 12 | High pressure vapor |
| 13 | High pressure liquid |
| 14 | Low pressure vapor |
| 15 | Low pressure liquid |

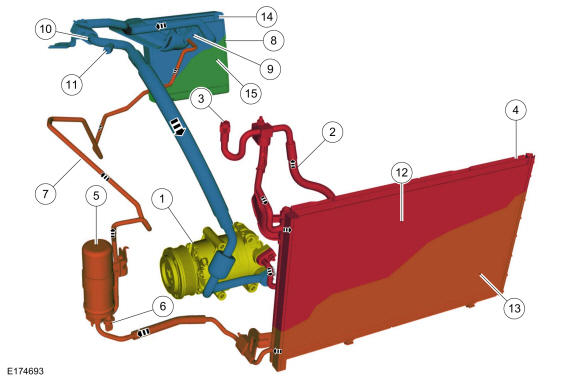

Thermostatic Expansion Valve (TXV) Type Refrigerant System-Twin Independent Variable Cam Timing (TiVCT)
| Item | Description |
|---|---|
| 1 | A/C compressor |
| 2 | A/C compressor to condenser discharge line |
| 3 | A/C valve charge port (high side) |
| 4 | A/C condenser |
| 5 | Receiver drier |
| 6 | A/C pressure transducer |
| 7 | Evaporator inlet line |
| 8 | A/C evaporator core |
| 9 | Thermostatic Expansion Valve (TXV) |
| 10 | A/C suction line |
| 11 | A/C valve charge port (low side) |
| 12 | High pressure vapor |
| 13 | High pressure liquid |
| 14 | Low pressure vapor |
| 15 | Low pressure liquid |
