Piston Diameter
Check
NOTE:
Refer to the appropriate Engine article for the specification.
- 1.

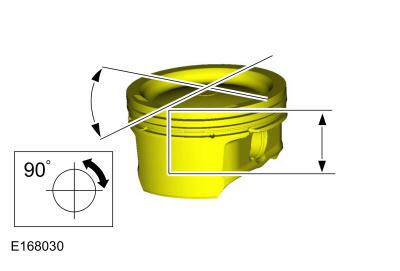

Measure the piston diameter (at the measuring window) 90 degrees from the piston pin and 35.35 mm (1.39 in) down from the top of the piston at the point indicated.
 Courtesy of FORD MOTOR COMPANY
|
