OEM Ground Distribution: Grounds

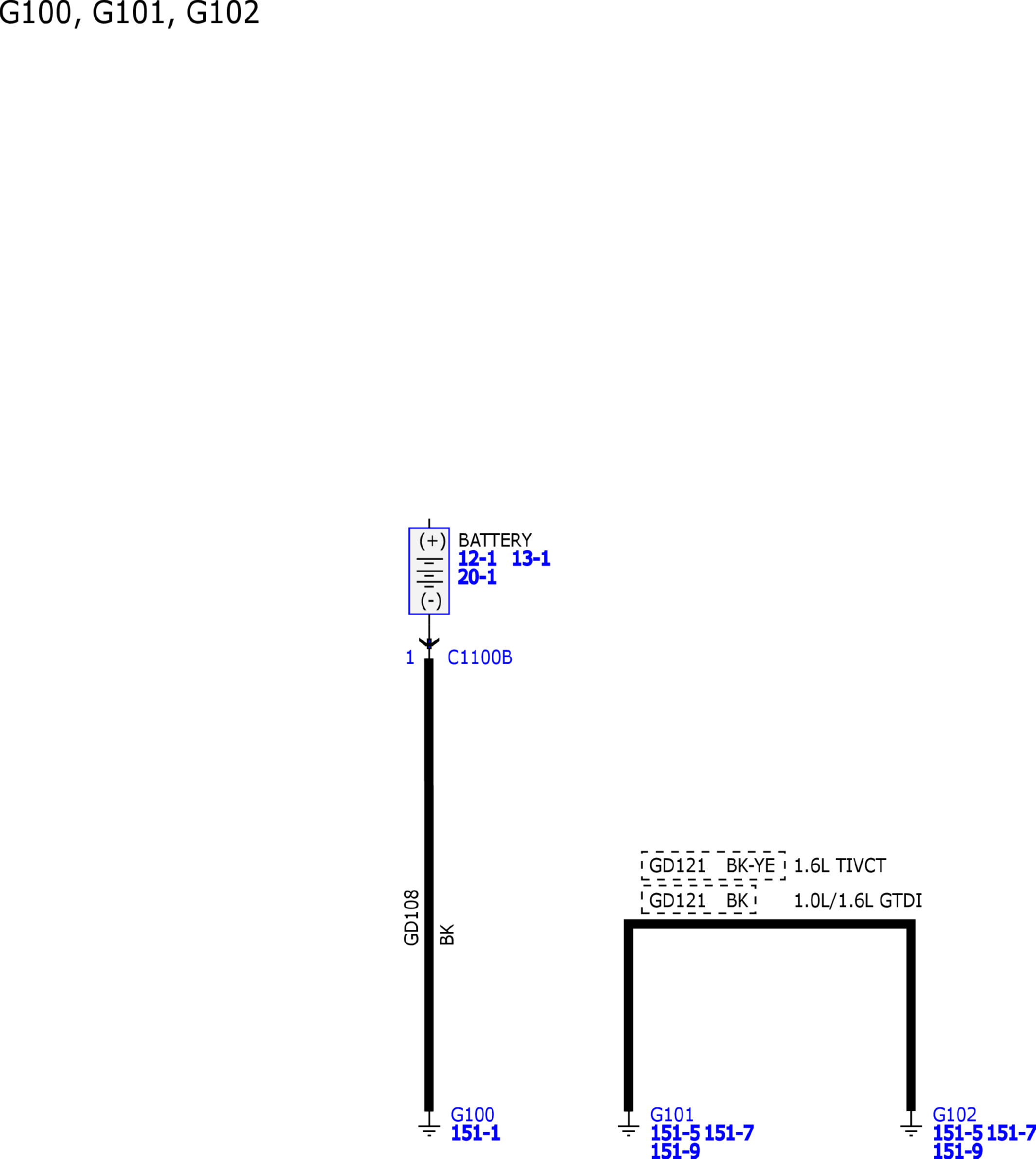

GFDW60830Courtesy of FORD MOTOR COMPANY

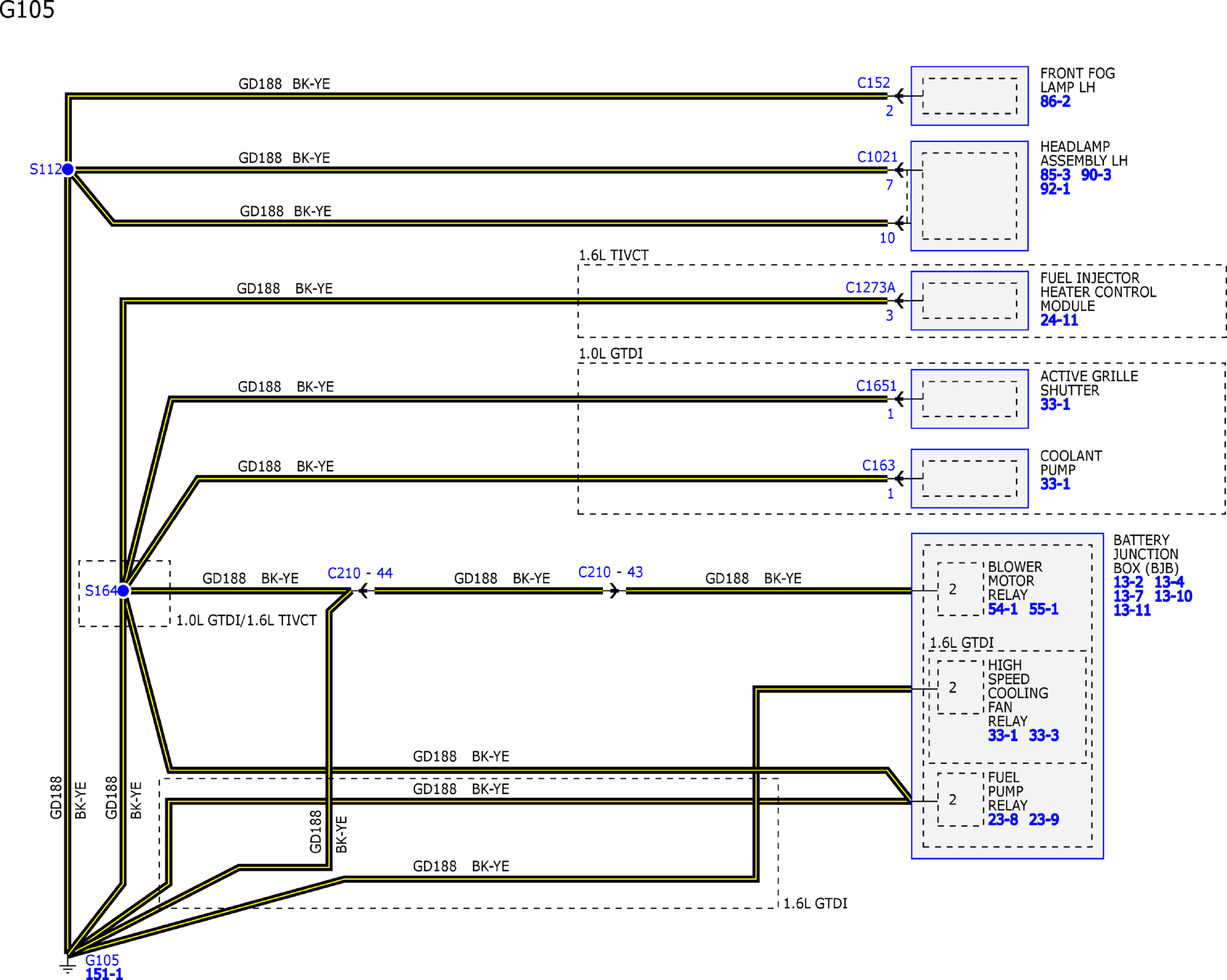

GFDW60831Courtesy of FORD MOTOR COMPANY

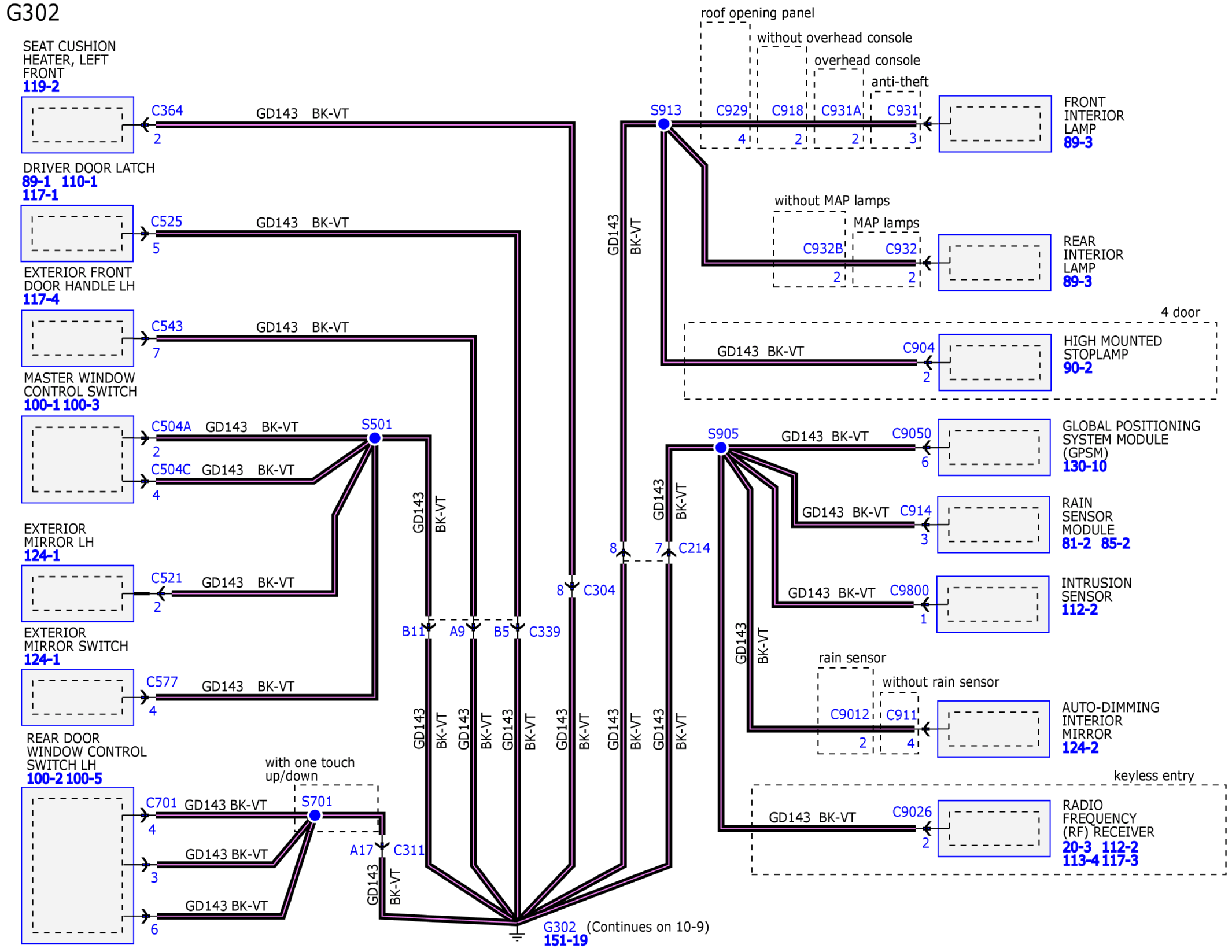

GFDW60832Courtesy of FORD MOTOR COMPANY

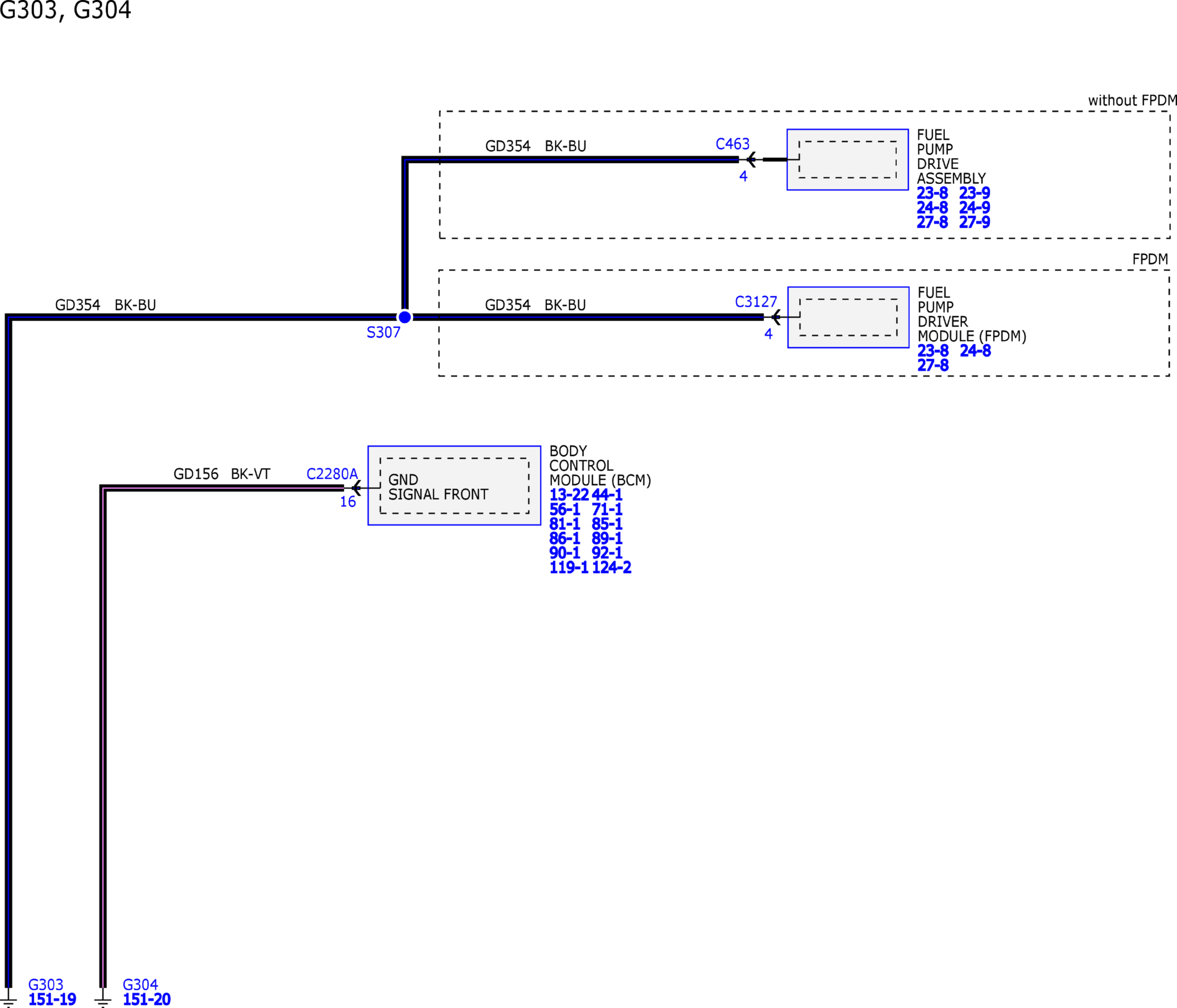

GFDW60833Courtesy of FORD MOTOR COMPANY

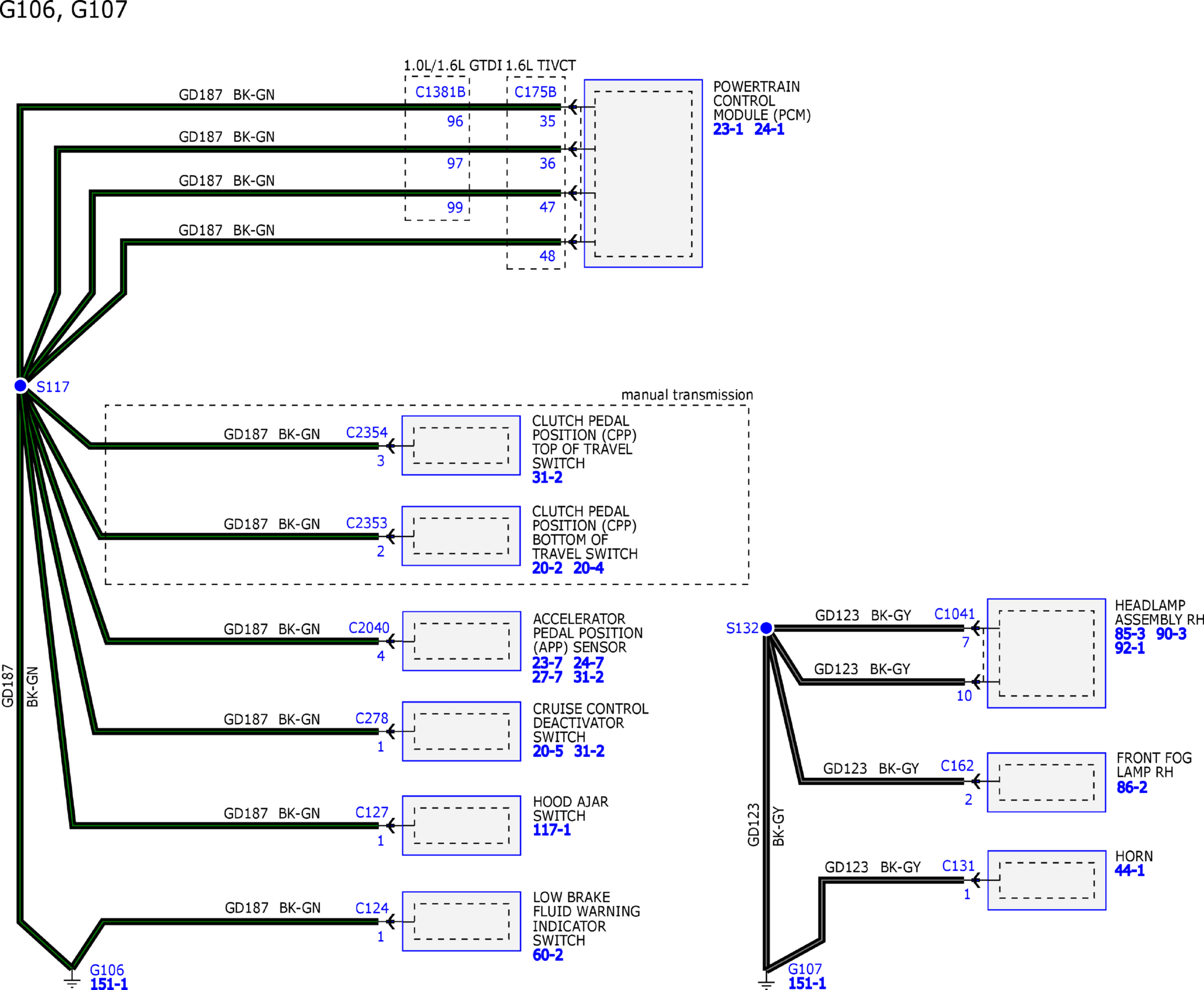

GFDW60834Courtesy of FORD MOTOR COMPANY

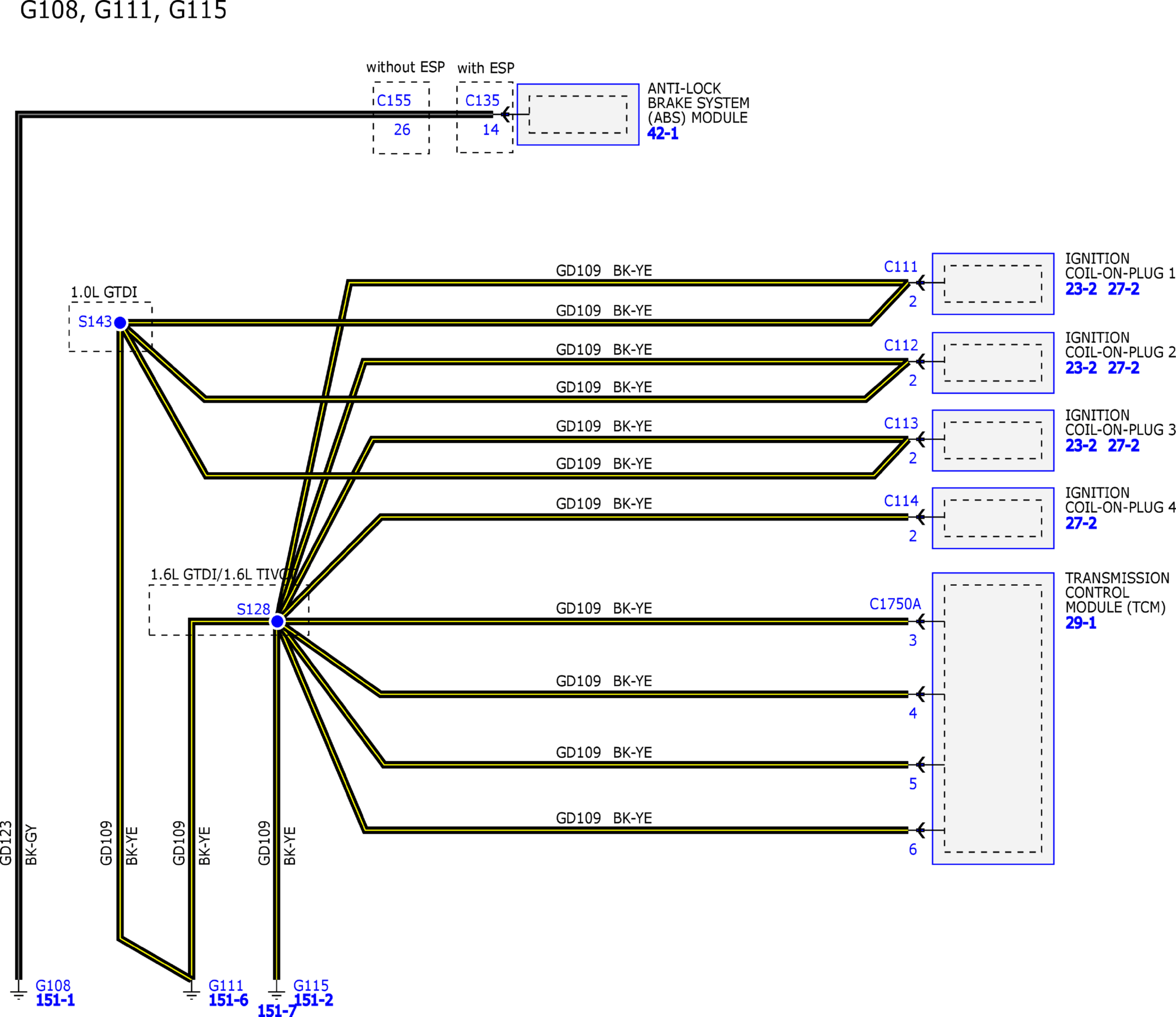

GFDW60835Courtesy of FORD MOTOR COMPANY

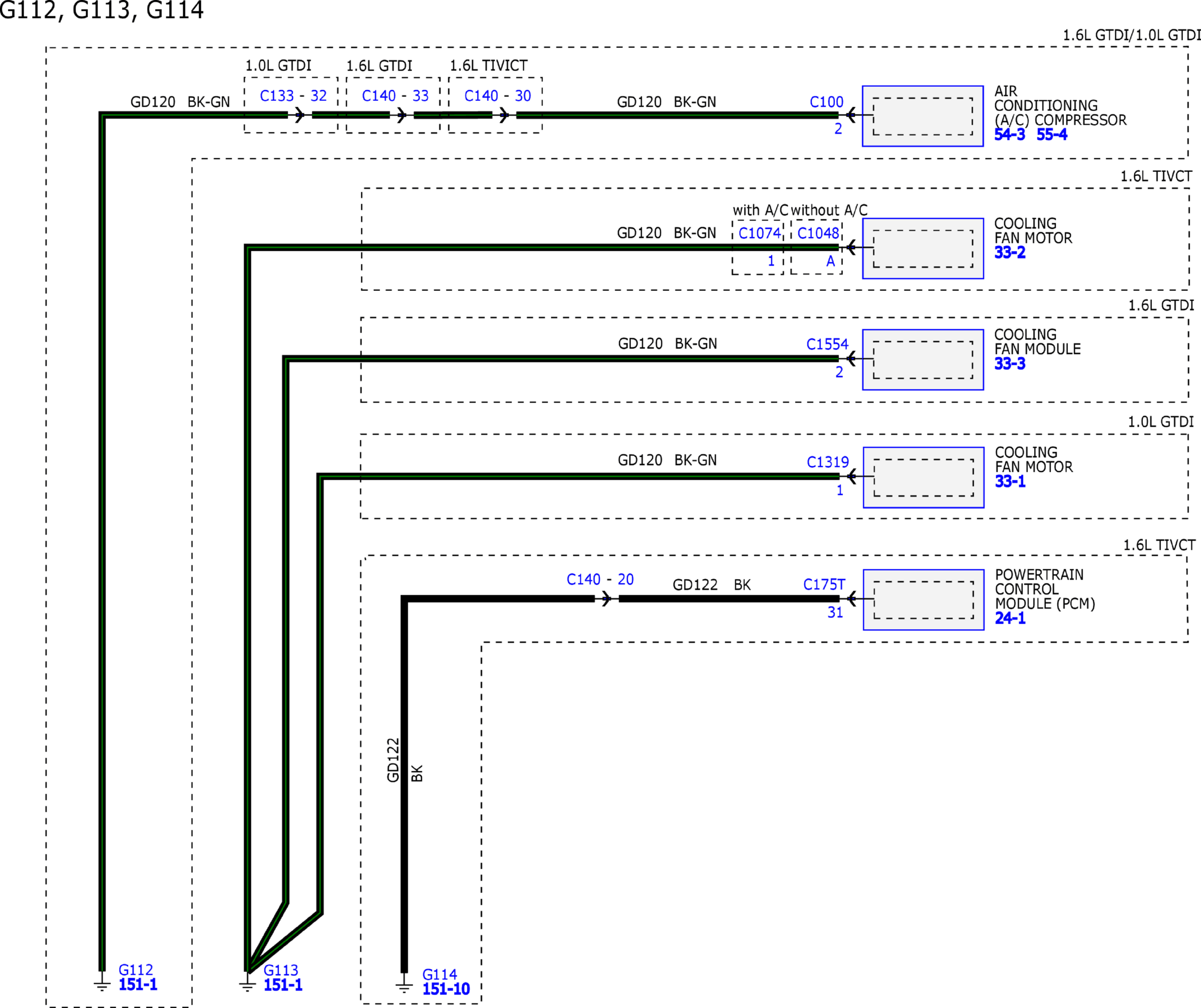

GFDW60836Courtesy of FORD MOTOR COMPANY

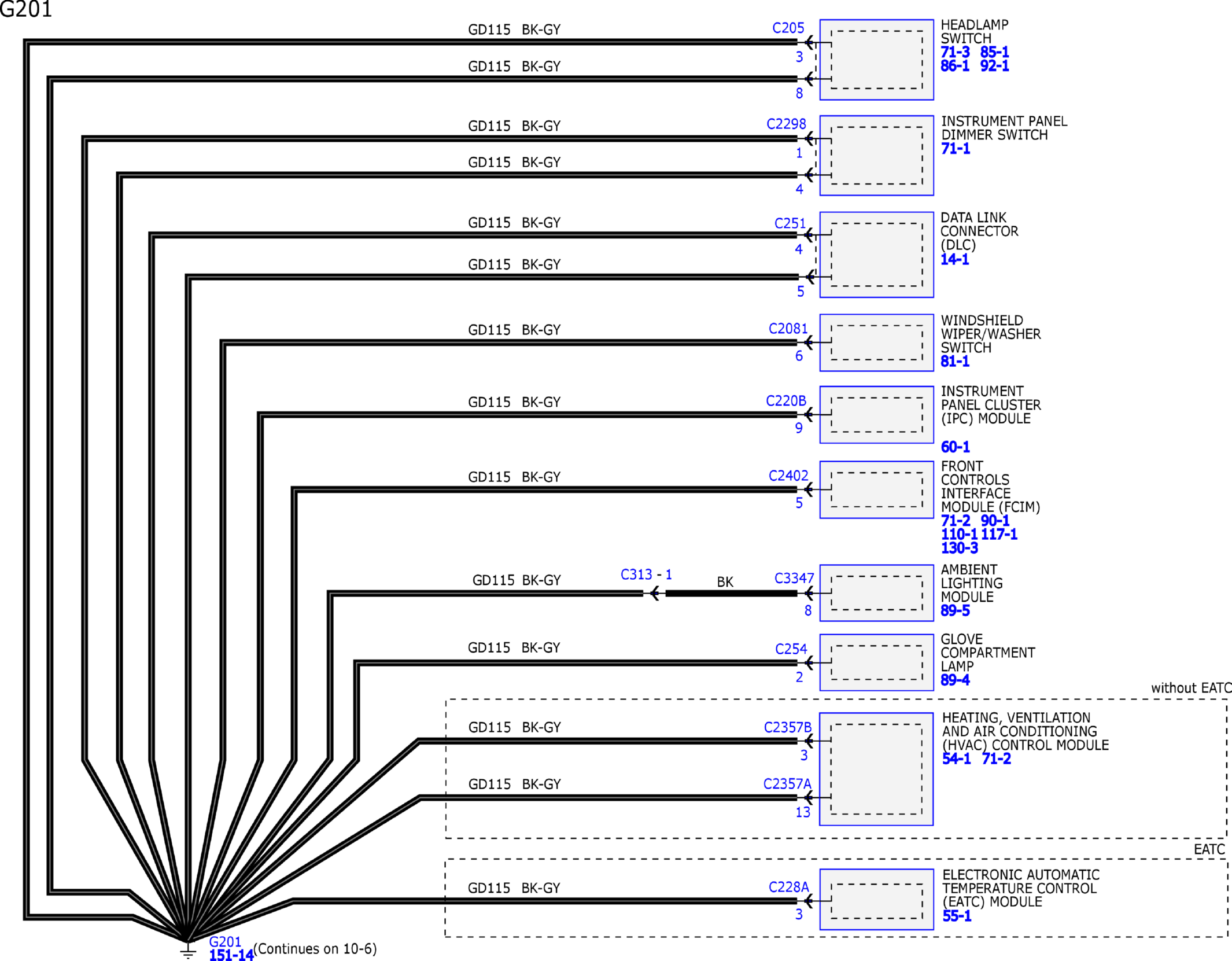

GFDW60837Courtesy of FORD MOTOR COMPANY

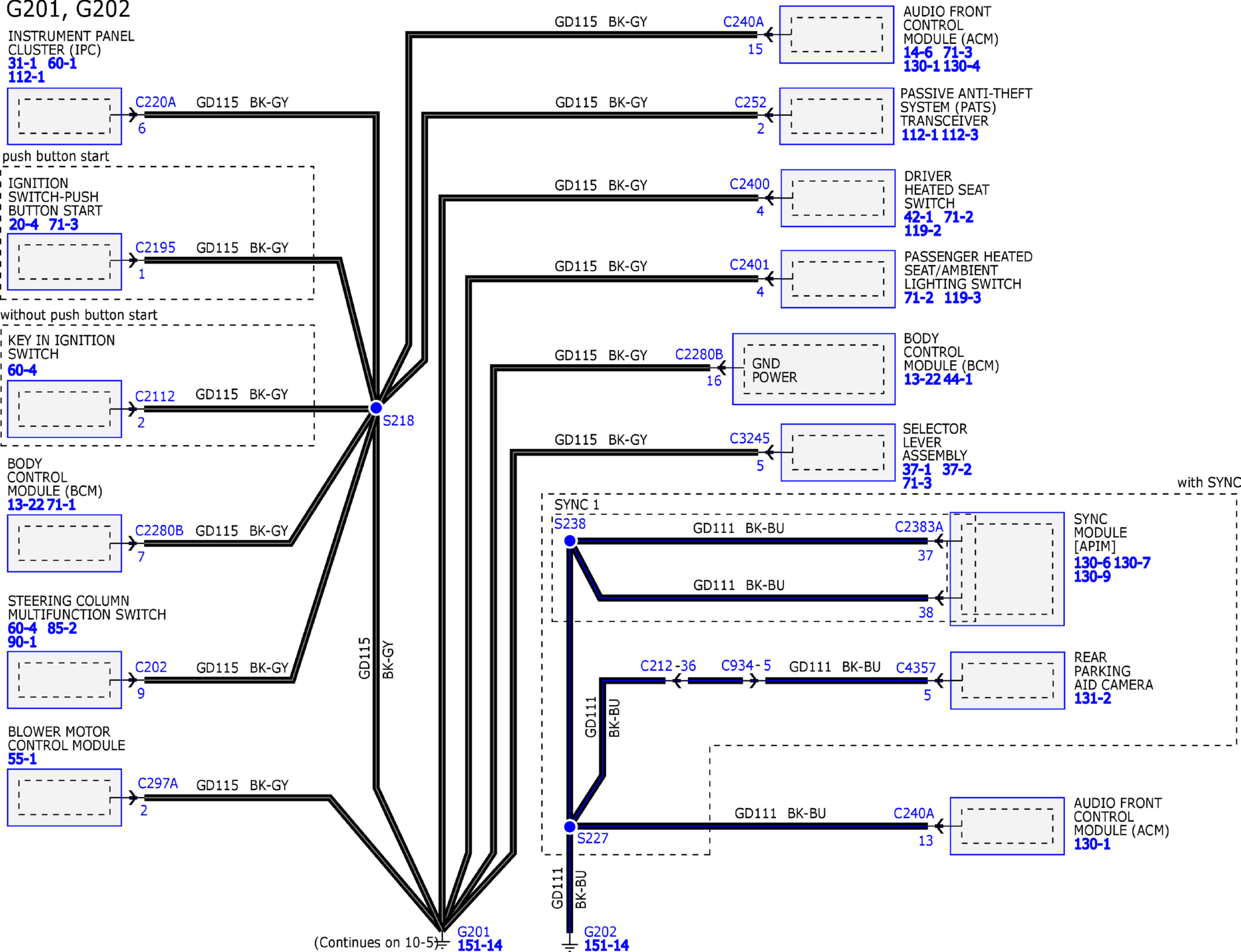

GFDW60838Courtesy of FORD MOTOR COMPANY

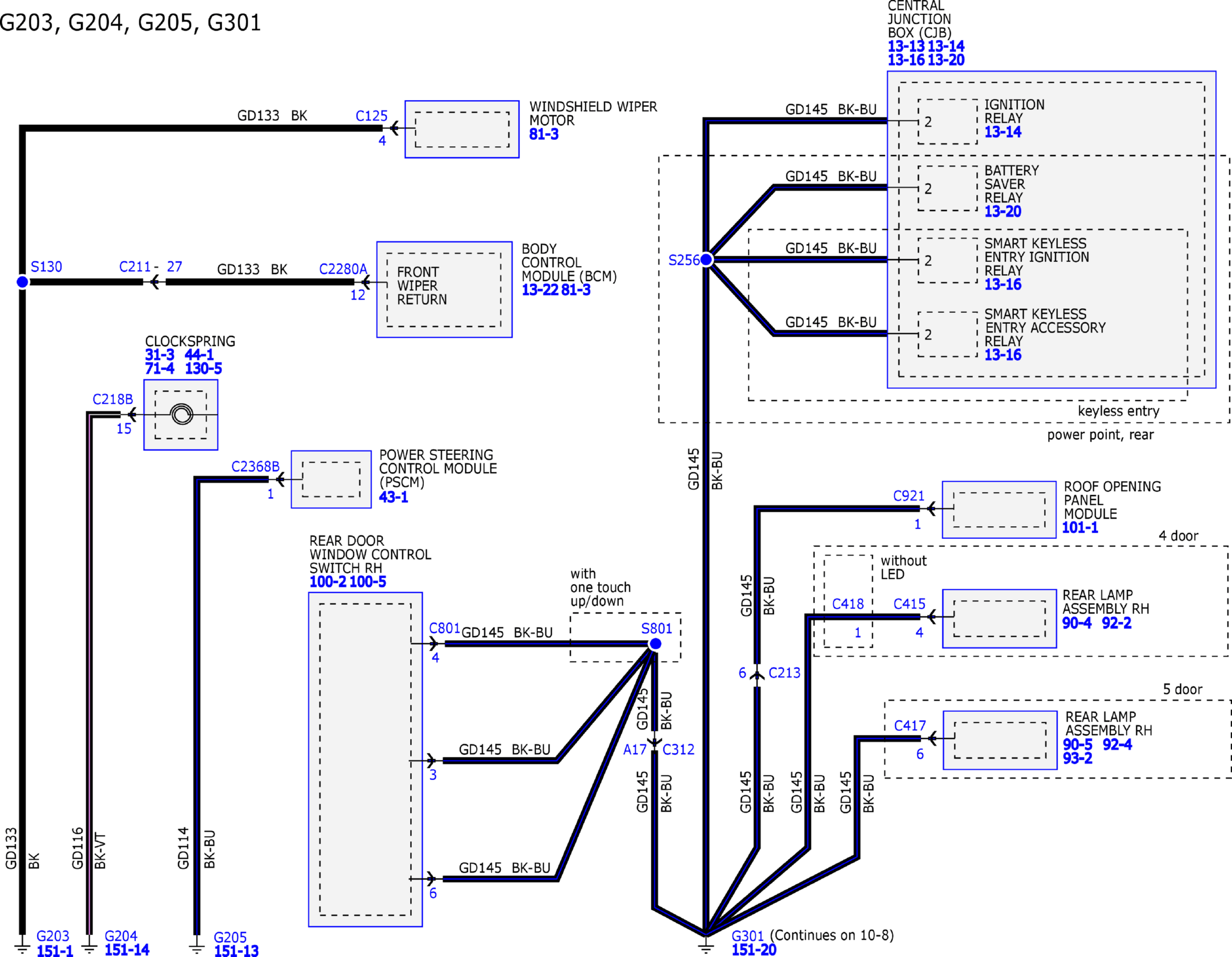

GFDW60839Courtesy of FORD MOTOR COMPANY

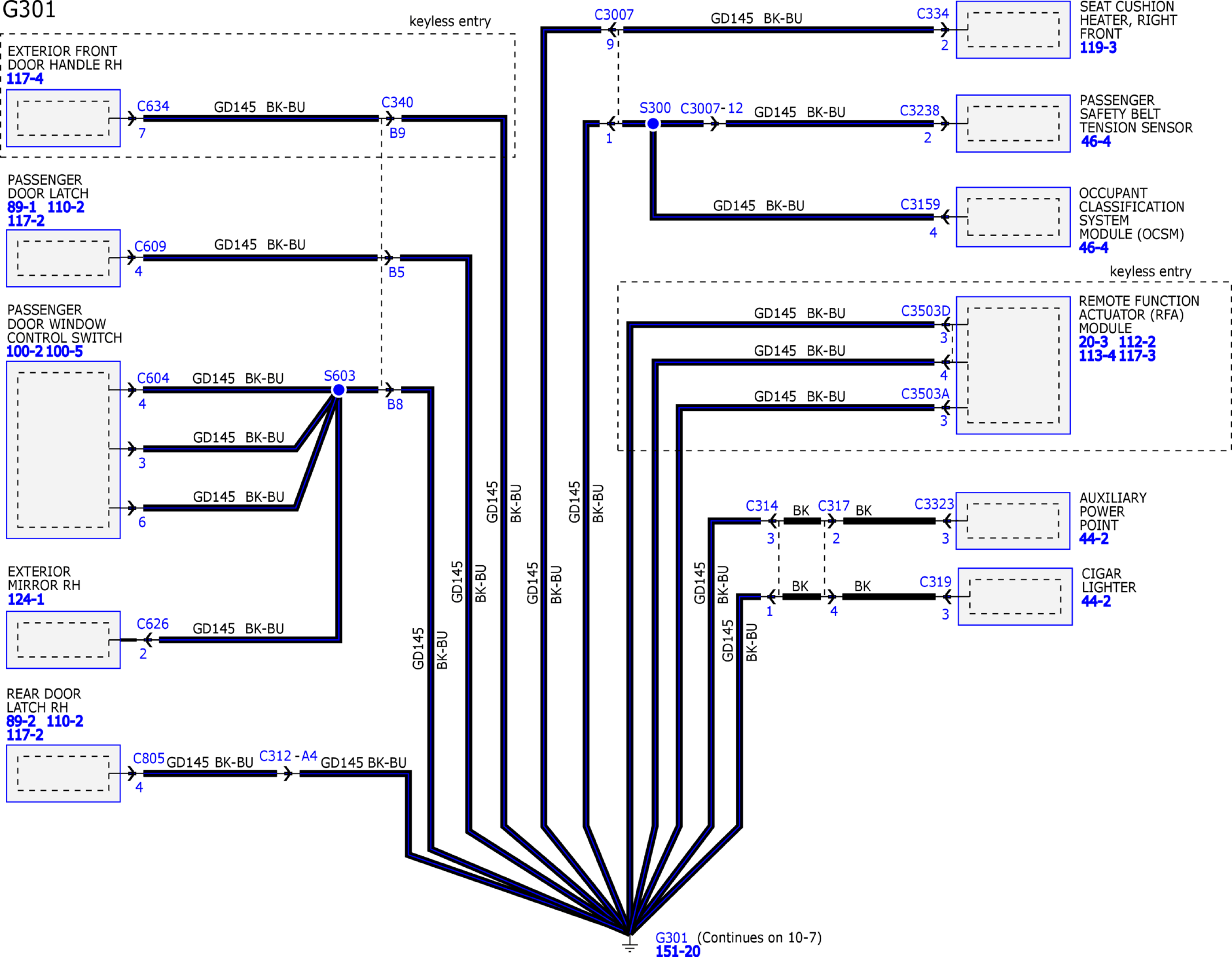

GFDW60840Courtesy of FORD MOTOR COMPANY

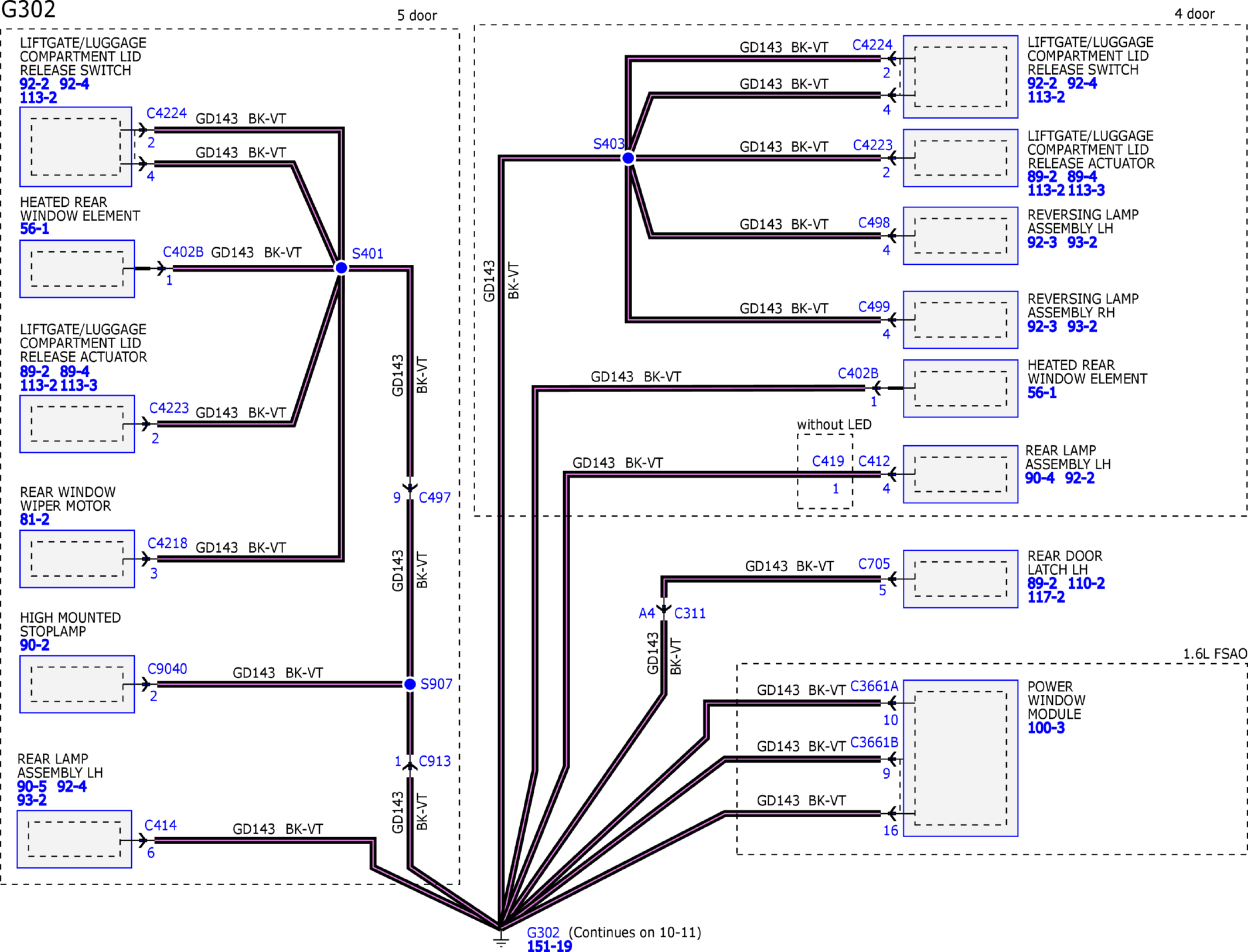

GFDW60841Courtesy of FORD MOTOR COMPANY
