Removal And Installation: Refrigerator: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

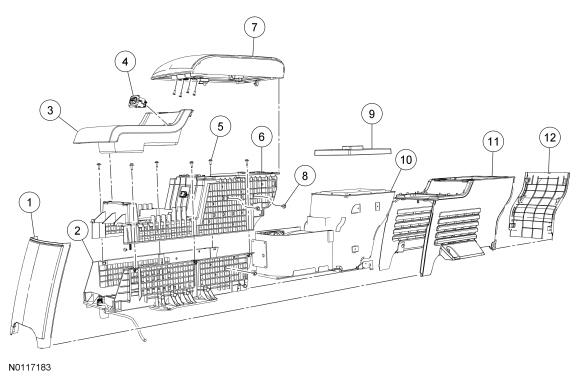

Rear console

GFD59808Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 04567 Front finish panel
2 045A90B Bottom panel
3 13562B Top trim panel
4 14D468 Refrigerator switch assembly
5 W505153 Panel screws (6 required)
6 045A90A Top panel
7 06024 Rear armrest
8 W505153 Refrigerator screws (6 required)
9 044672 Refrigerator lid
10 045A36 Refrigerator
11 045C22 Side finish panel
12 045E24 Rear finish panel
