Ambient Air Temperature Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

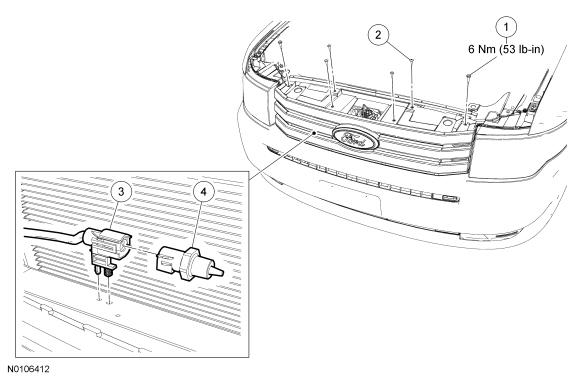

| Item | Part Number | Description |
|---|---|---|
| 1 | W711685 | Front bumper cover bolt (2 required) |
| 2 | W706350 | Front bumper cover scrivet (4 required) |
| 3 | - | Ambient temperature sensor electrical connector (part of 14290) |
| 4 | 12A647 | Ambient temperature sensor |
