Active Torque Coupling Configuration

Special Tool(s) / General Equipment

Configuration

• 1.

  Before replacing the AWD module use the Inhale Routine. After replacing use Exhale Routine. Use the General Equipment: Ford Diagnostic Equipment

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: If the Active Torque Coupling (ATC) solenoid information is not correct, Rear Drive Unit (RDU) damage or driveability concerns can occur.

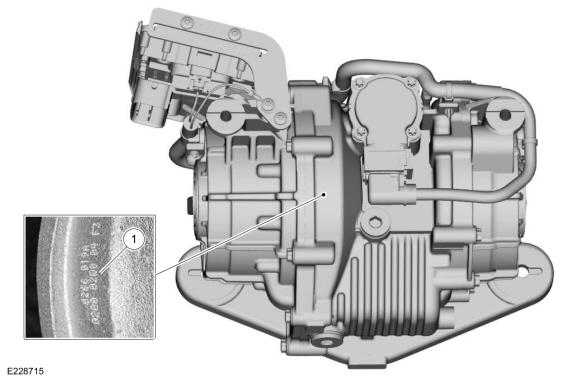

  NOTE: The 20-digit alpha numeric code is located on the rear of the Rear Drive Unit (RDU).

  Using a diagnostic scan tool, perform the Automatic Traction Coupling Barcode Entry procedure. This procedure is located within Powertrain, under the toolbox icon. Follow the instructions displayed on the diagnostic scan tool. Use the General Equipment: Ford Diagnostic Equipment

• 3.


  NOTE: If the AWD module was not replaced, the RDU information is already populated. If the information is different it must be changed to match the label on the Rear Drive Unit (RDU).
  NOTE: The diagnostic scan tool verifies the digits entered are valid and displays a message if the information is not valid.

  Verify and if necessary, change the barcode information to match the information on the Rear Drive Unit (RDU).

• 4.

  Carry out the AWD Drive Cycle after downloading the Active Torque Coupling (ATC) solenoid bar code information to the AWD module.
