Pinpoint Test Dr: Camshaft Position (CMP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

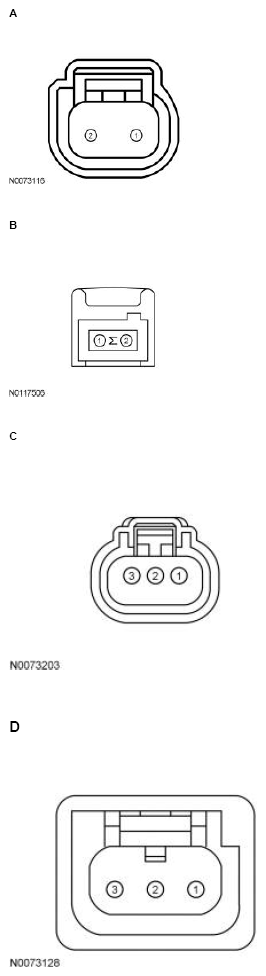

Fig 1: Identifying Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector (1 Of 2)
G10766394Courtesy of FORD MOTOR CO.

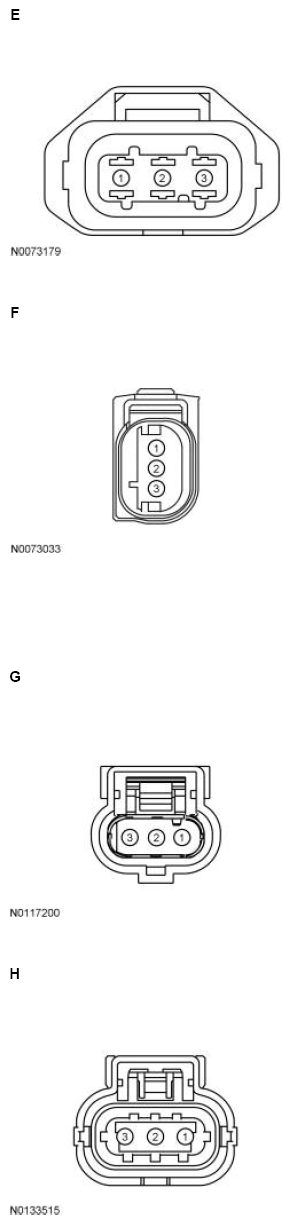

Fig 2: Identifying Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector (2 Of 2)
G10766395Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
E-Series,
F-650/F-750,
F-Series Super Duty 6.8L,
Flex TiVCT 3.5L,
MKT 3.7L,
MKZ 3.7L,
Motorhome/Stripped Chassis/Step Van,
Taurus 3.7L		 A 1
2		 SIGRTN
CMP11
EcoSport 1.6L B 2
1		 SIGRTN
CMP11
EcoSport 2.0L C 1
3
2		 VREF
SIGRTN
CMP11
Edge 2.0L,
Escape/Kuga 2.0L,
Explorer 2.3L,
Focus 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC,
MKT 2.0L,
MKX 2.0L,
MKZ 2.0L,
Mustang 2.3L,
Taurus 2.0L		 D 1
2
3		 VREF
SIGRTN
CMP11
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect 2.5L		 C 1
3
2		 VBPWR
SIGRTN
CMP11
Escape/Kuga 1.6L,
Fiesta GTDI 1.6L,
Fusion 1.5L		 E 3
1
2		 VREF
SIGRTN
CMP11
F-150 5.0L,
Mustang 5.0L,
Mustang 5.2L		 F 1
3
2		 VBPWR
SIGRTN
CMP11
F-Series Super Duty 6.2L F 3
2
1		 VBPWR
SIGRTN
CMP11
Fiesta TiVCT 1.6L,
Focus 1.0L		 G 1
3
2		 VREF
SIGRTN
CMP11
Fiesta 1.0L,
KA		 H 1
3
2		 VREF
SIGRTN
CMP11
Transit Connect 1.6L H 3
1
2		 VREF
SIGRTN
CMP11
All other vehicles G 3
2
1		 VBPWR
SIGRTN
CMP11

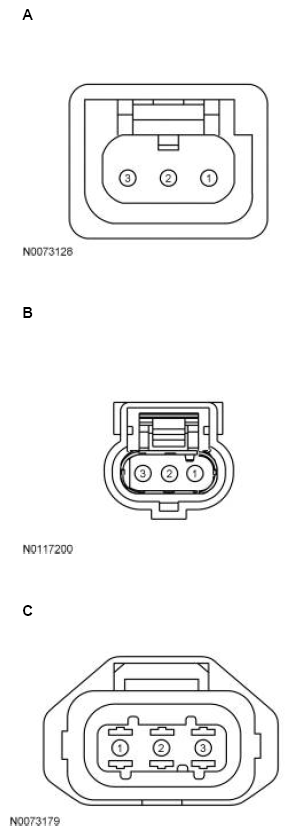

Fig 3: Identifying Camshaft Position Bank 1 Sensor 2 (CMP12) Sensor Connector (1 Of 2)
G10766396Courtesy of FORD MOTOR CO.

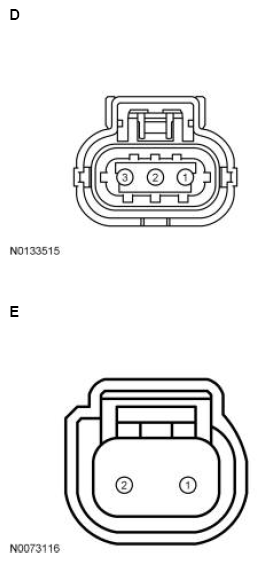

Fig 4: Identifying Camshaft Position Bank 1 Sensor 2 (CMP12) Sensor Connector (2 Of 2)
G10766397Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Escape/Kuga 2.0L,
Edge 2.0L,
Explorer 2.3L,
Focus 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC,
MKT 2.0L,
MKX 2.0L,
MKZ 2.0L,
Mustang 2.3L,
Taurus 2.0L		 A 1
2
3		 VREF
SIGRTN
CMP12
Edge 2.7L,
Expedition,
F-150 GTDI 3.5L,
F-150 2.7L,
MKX 2.7L,
Navigator,
Transit 3.5L		 B 3
2
1		 VBPWR
SIGRTN
CMP12
Escape/Kuga 1.6L,
Fiesta GTDI 1.6L,
Fusion 1.5L		 C 3
1
2		 VREF
SIGRTN
CMP12
Fiesta TiVCT 1.6L,
Focus 1.0L		 B 1
3
2		 VREF
SIGRTN
CMP12
Fiesta 1.0L,
KA		 D 1
3
2		 VREF
SIGRTN
CMP12
Transit Connect D 3
1
2		 VREF
SIGRTN
CMP12
All other vehicles E 1
2		 SIGRTN
CMP12

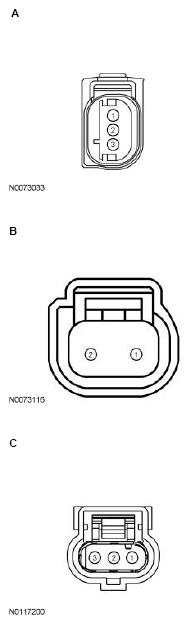

Fig 5: Identifying Camshaft Position Bank 2 Sensor 1 (CMP21) Sensor Connector
G10766398Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
F-150 5.0L,
Mustang 5.0L,
Mustang 5.2L		 A 1
3
2		 VBPWR
SIGRTN
CMP21
F-Series Super Duty A 3
2
1		 VBPWR
SIGRTN
CMP21
Flex TiVCT 3.5L,
MKT 3.7L,
MKZ		 B 1
2		 SIGRTN
CMP21
All other vehicles C 3
2
1		 VBPWR
SIGRTN
CMP21

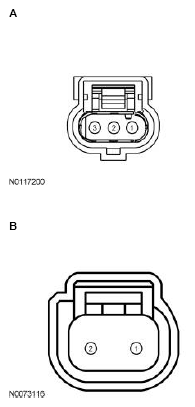

Fig 6: Identifying Camshaft Position Bank 2 Sensor 2 (CMP22) Sensor Connector
G10766399Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Edge 2.7L,
Expedition,
F-150 GTDI 3.5L,
F-150 2.7L,
MKX 2.7L,
Navigator,
Transit 3.5L		 A 3
2
1		 VBPWR
SIGRTN
CMP22
All other vehicles B 1
2		 SIGRTN
CMP22

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle Connector Pin Circuit
E-Series 5.4L 190-PIN E27
E41		 CMP11
SIGRTN
E-Series 6.8L 198 PIN E55
E54		 CMP11
SIGRTN
EcoSport 2.0L Manual Transmission 80 PIN E57
E64
E78		 VREF
CMP11
SIGRTN
EcoSport 2.0L Automatic Transmission 128 PIN T13
T21
T29		 VREF
CMP11
SIGRTN
EcoSport 1.6L 80 PIN E64
E57		 CMP11
SIGRTN
Edge 2.0L,
Escape/Kuga 2.0L,
Explorer 2.3L,
Focus GTDI 2.0L,
Focus 2.3L,
Fusion 1.5L,
Fusion 2.0L,
MKC,
MKT 2.0L,
MKX 2.0L,
MKZ 2.0L,
Mustang 2.3L,
Taurus 2.0L,
Transit Connect 1.6L		 198 PIN E6
E54
E28
E53		 VREF
CMP12
CMP11
SIGRTN
Edge 2.7L,
Expedition,
F-150 2.7L,
F-150 GTDI 3.5L,
MKX 2.7L,
Navigator,
Transit 3.5L		 198 PIN E22
E70
E26
E54
E28
E53		 VBPWR
CMP22
CMP21
CMP12
CMP11
SIGRTN
Escape/Kuga 1.6L 198 PIN E54
E28
E53		 CMP12
CMP11
SIGRTN
Escape/Kuga 2.5L,
Fusion 2.5L		 190-PIN E36
E11
E49		 VBPWR
CMP11
SIGRTN
Explorer GTDI 3.5L,
Flex GTDI 3.5L,
MKS 3.5L,
MKT 3.5L,
Taurus GTDI 3.5L		 198 PIN E22
E26
E28
E53		 VBPWR
CMP21
CMP11
SIGRTN
F-650/F-750 198 PIN E54
E55		 CMP11
SIGRTN
F-Series Super Duty 6.2L 190-PIN E36
E38
E37
E32		 VBPWR
CMP21
CMP11
SIGRTN
F-Series Super Duty 6.8L 190-PIN E46
E29		 CMP11
SIGRTN
Fiesta GTDI 1.6L,
Fiesta 1.0L,
Focus 1.0L		 198 PIN E7
E37
E36
E20		 VREF
CMP12
CMP11
SIGRTN
Fiesta TiVCT 1.6L 128 PIN T13
T19
T21
T27, T29		 VREF
CMP12
CMP11
SIGRTN
Focus GDI 2.0L 154 PIN E15, E16
E79
E80
E44, E47		 VREF
CMP12
CMP11
SIGRTN
KA 128 PIN T28, T30
T11
T12
T21, T22		 VREF
CMP12
CMP11
SIGRTN
MKZ 3.7L 190-PIN E48
E46
E47
E45
E28, E44		 CMP22
CMP21
CMP12
CMP11
SIGRTN
Motorhome/Stripped Chassis/Step Van 198 PIN E46
E29		 CMP11
SIGRTN
Transit Connect 2.5L 198 PIN E17
E45
E35		 VBPWR
CMP11
SIGRTN
All other vehicles 198 PIN E17
E41
E42
E55
E56
E40, E49, E54		 VBPWR
CMP22
CMP21
CMP12
CMP11
SIGRTN
