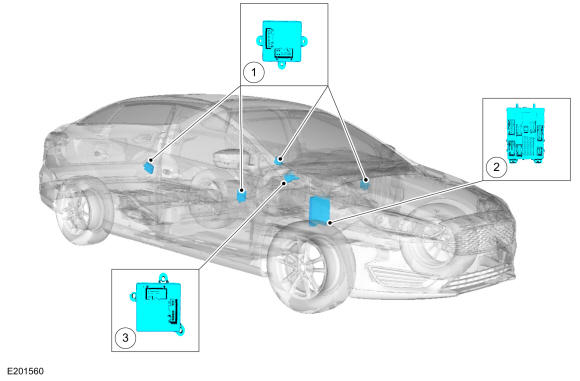

Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Door Modules
2
BCM
3
RFA
Courtesy of FORD MOTOR COMPANY
