Pinpoint Test DK: Accelerator Pedal Position (App) Sensor: Introduction
NOTE:
After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.
This pinpoint test is intended to diagnose the following:
- APP sensor (9F836)
- harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, APPVREF2, VPWR and GND
- PCM (12A650)

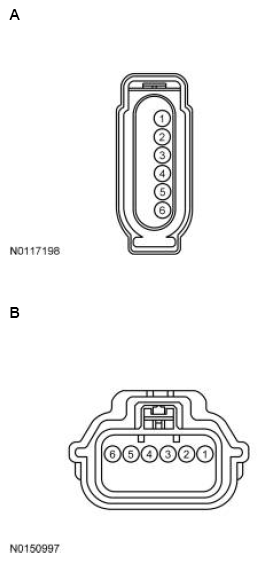

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| EcoSport, Fiesta |
A | 4 6 2 5 3 1 |
GND VPWR APP2 APP1 APPRTN2 APPVREF2 |
| All other vehicles | B | 5 2 4 6 3 1 |
APP2 APP1 APPRTN2 APPVREF2 APPRTN1 APPVREF1 |
| Pin | Circuit |
|---|---|
| 31 | APPVREF2 (Accelerator Pedal Position Reference Voltage 2) |
| 13 | APPRTN2 (Accelerator Pedal Position Return 2) |
| 14 | APP2 (Accelerator Pedal Position 2) |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 5.4L, Escape/Kuga 2.5L, F-Series Super Duty, Fusion 2.5L, MKZ 3.7L |
190-PIN | B29 B28 |
APP2 APP1 |
| E-Series 6.8L, Edge 3.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-150 TiVCT 3.5L, F-150 5.0L, F-650/F-750, Flex TiVCT 3.5L, MKS 3.7L, MKT 3.7L, MKX 3.7L, Motorhome/Stripped Chassis/Step Van, Mustang 3.7L, Mustang 5.0L, Mustang 5.2L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L, Transit Connect 2.5L |
198 PIN | B60 B61 |
APP2 APP1 |
| EcoSport 2.0L Manual Transmission, EcoSport 1.6L |
80 PIN | B11 | APP1 |
| EcoSport 2.0L Automatic Transmission | 128 PIN | E24 | APP1 |
| Fiesta GTDI 1.6L, Fiesta 1.0L |
198 PIN | B45 | APP1 |
| Fiesta TiVCT 1.6L | 128 PIN | B12 | APP1 |
| Focus GDI 2.0L | 154 PIN | B26 B52 |
APP2 APP1 |
| KA | 128 PIN | B8 B21 |
APP2 APP1 |
| All other vehicles | 198 PIN | B54 B55 |
APP2 APP1 |
