Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

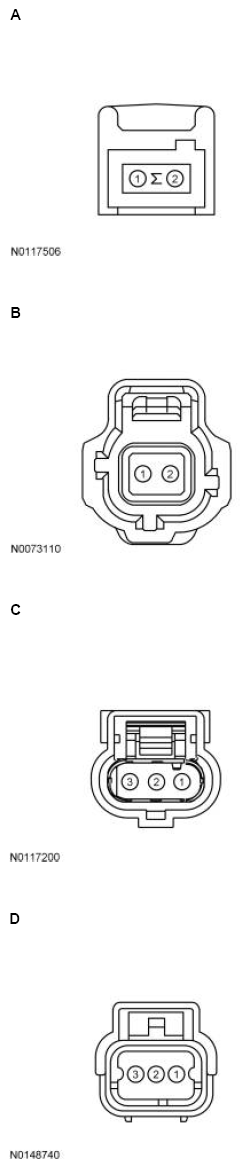

Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector (1 Of 2)
G10766449Courtesy of FORD MOTOR CO.

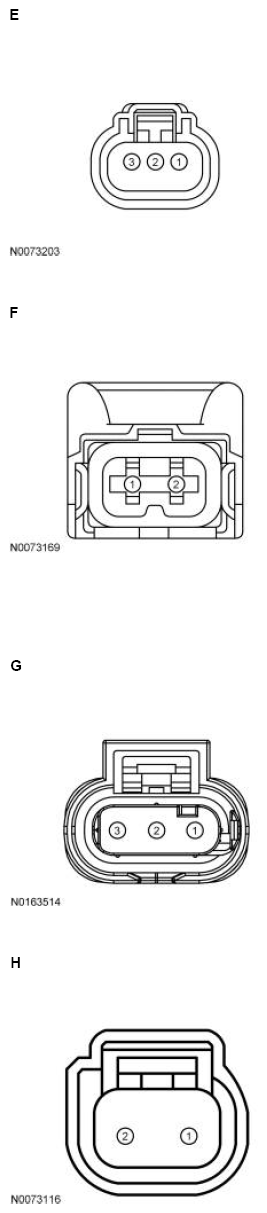

Fig 2: Identifying Crankshaft Position (CKP) Sensor Connector (2 Of 2)
G10766450Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
EcoSport 1.6L A 2
1		 CKPCKP+
EcoSport 2.0L,
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect 2.5L		 B 2
1		 CKPCKP+
Edge 2.0L,
Focus GTDI 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKX 2.0L,
MKX 2.7L,
MKZ 2.0L		 C 2
3
1		 CKP
SIGRTN
VREF
Edge 2.7L,
F-150 2.7L		 C 2
1
3		 CKP
SIGRTN
VREF
Escape/Kuga 1.6L,
Fiesta 1.0L,
Fiesta GTDI 1.6L,
Focus 1.0L,
KA 1.0L,
Transit Connect 1.6L		 D 3
2
1		 CKP
SIGRTN
VREF
Escape/Kuga 2.0L,
Explorer 2.3L,
Focus GDI 2.0L,
MKC,
MKT 2.0L,
Mustang 2.3L,
Taurus 2.0L		 E 2
3
1		 CKP
SIGRTN
VREF
Expedition,
Explorer GTDI 3.5L,
F-150 GTDI 3.5L,
Flex GTDI 3.5L,
MKS 3.5L,
MKT 3.5L,
Navigator,
Taurus GTDI 3.5L,
Transit 3.5L		 C 1
2
3		 CKP
SIGRTN
VREF
Fiesta TiVCT 1.6L,
KA 1.5L		 F 2
1		 CKP-
CKP+
Fusion 1.5L G 3
2
1		 CKP
SIGRTN
VREF
All other vehicles H 1
2		 CKP-
CKP+


Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle Connector Pin Circuit
E-Series 5.4L 190-PIN E58
E42		 CKP+
CKPE-
Series 6.8L,
Edge 3.5L,
Explorer TiVCT 3.5L,
Explorer 3.7L,
F-150 TiVCT 3.5L,
F-150 5.0L,
F-650/F-750,
Flex TiVCT 3.5L,
MKS 3.7L,
MKT 3.7L,
MKX 3.7L,
Motorhome/Stripped Chassis/Step Van,
Mustang 3.7L,
Mustang 5.0L,
Taurus TiVCT 3.5L,
Taurus 3.7L,
Transit 3.7L		 198 PIN E70
E69		 CKP+
CKP-
EcoSport 2.0L Manual Transmission,
EcoSport 1.6L		 80 PIN E9
E2		 CKP+
CKP-
EcoSport 2.0L Automatic Transmission,
Fiesta TiVCT 1.6L		 128 PIN T6
T14		 CKP+
CKP-
Escape/Kuga 2.5L,
Fusion 2.5L,
MKZ 3.7L		 190-PIN E62
E63		 CKP+
CKP-
F-Series Super Duty 190-PIN E13
E12		 CKP+
CKP-
Fiesta GTDI 1.6L,
Fiesta 1.0L,
Focus 1.0L		 198 PIN E49 CKP
Focus GDI 2.0L 154 PIN E45 CKP
KA 1.0L 128 PIN E37 CKP
KA 1.5L 128 PIN E38
E37		 CKP+
CKP-
Mustang 5.2L 198 PIN E70
E60		 CKP+
CKP-
Transit Connect 2.5L 198 PIN E60
E59		 CKP+
CKP-
All other vehicles 198 PIN E11 CKP
