Front Control/Display Interface Module (FCDIM) Component Location

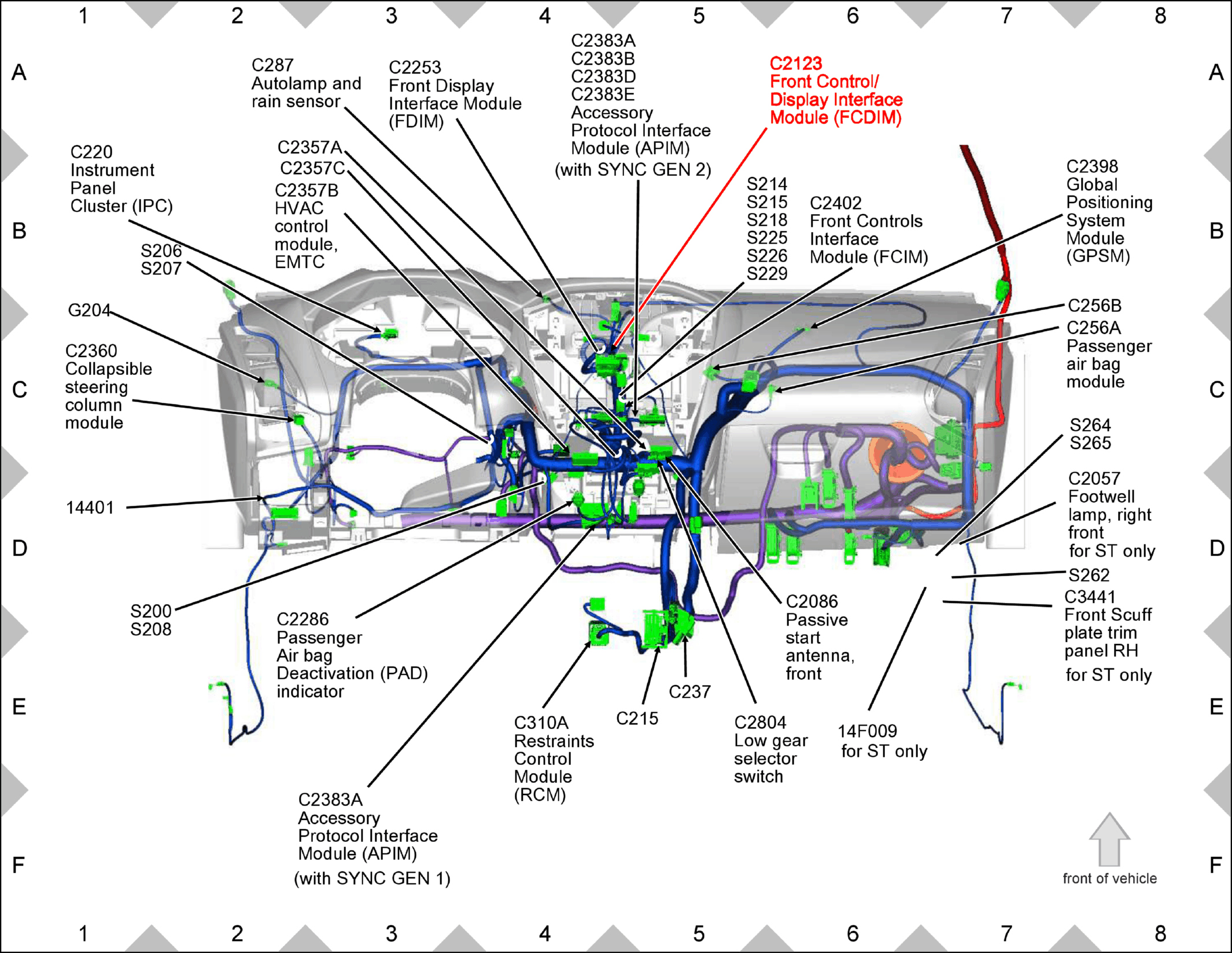

Fig 1: Front Control/Display Interface Module (FCDIM) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
