Engine Start/Stop Switch

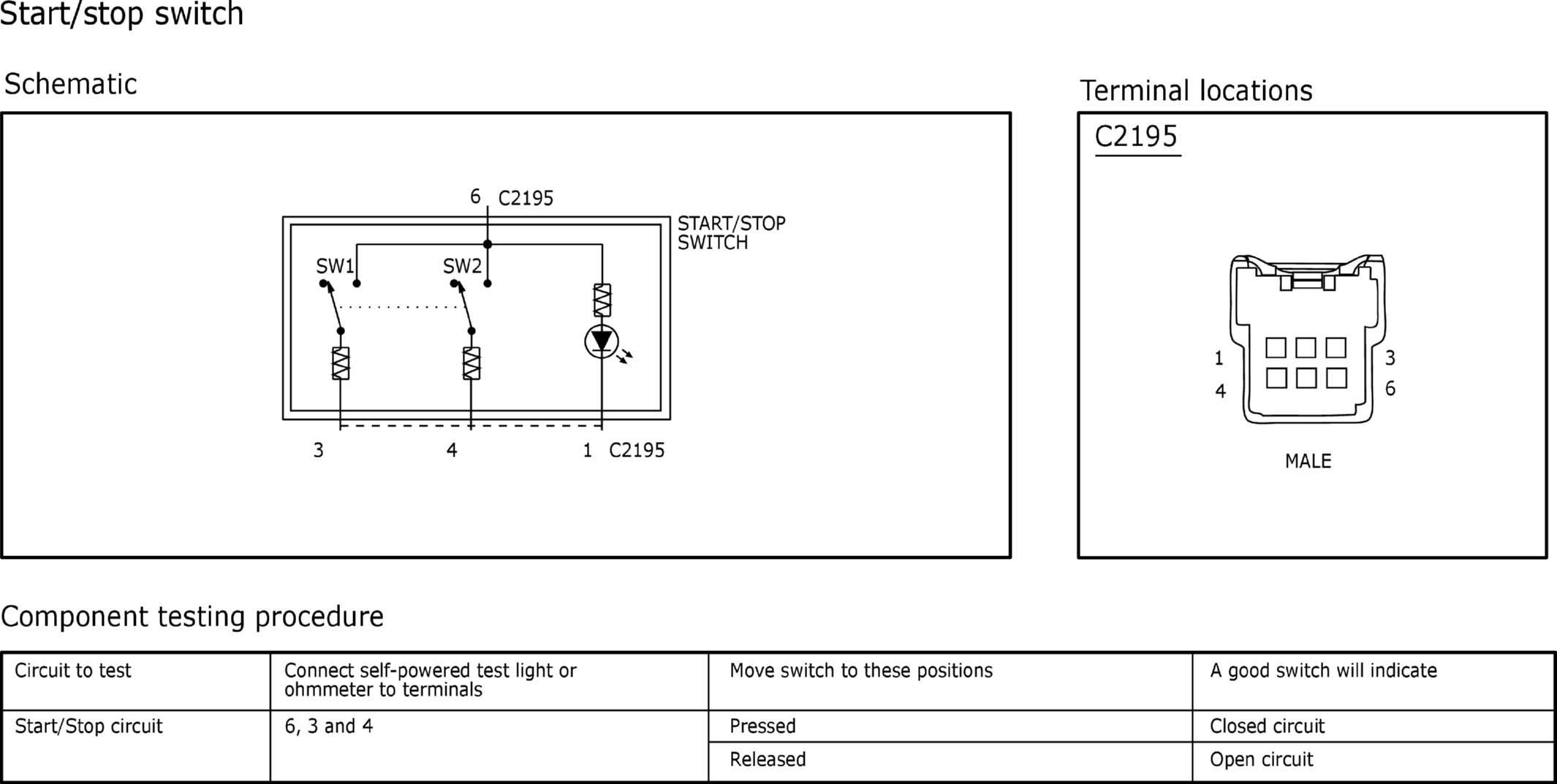

Fig 1: Engine Start/Stop Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
