Master Window Control Switch - W/O Door Modules Or Rear Power Windows

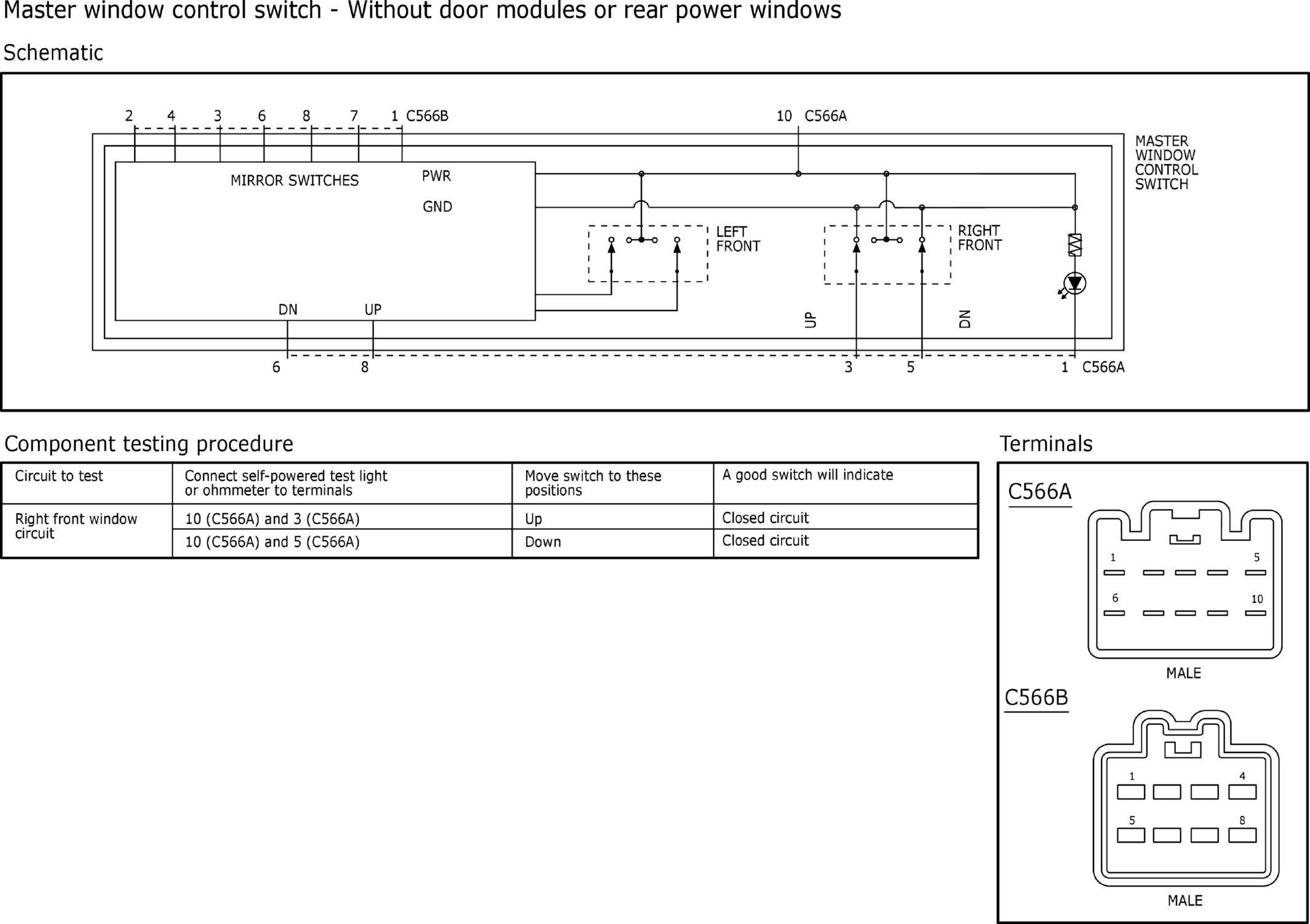

Fig 1: Master Window Control Switch - W/O Door Modules Or Rear Power Windows
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
