Window Control Switch - W/ Door Modules

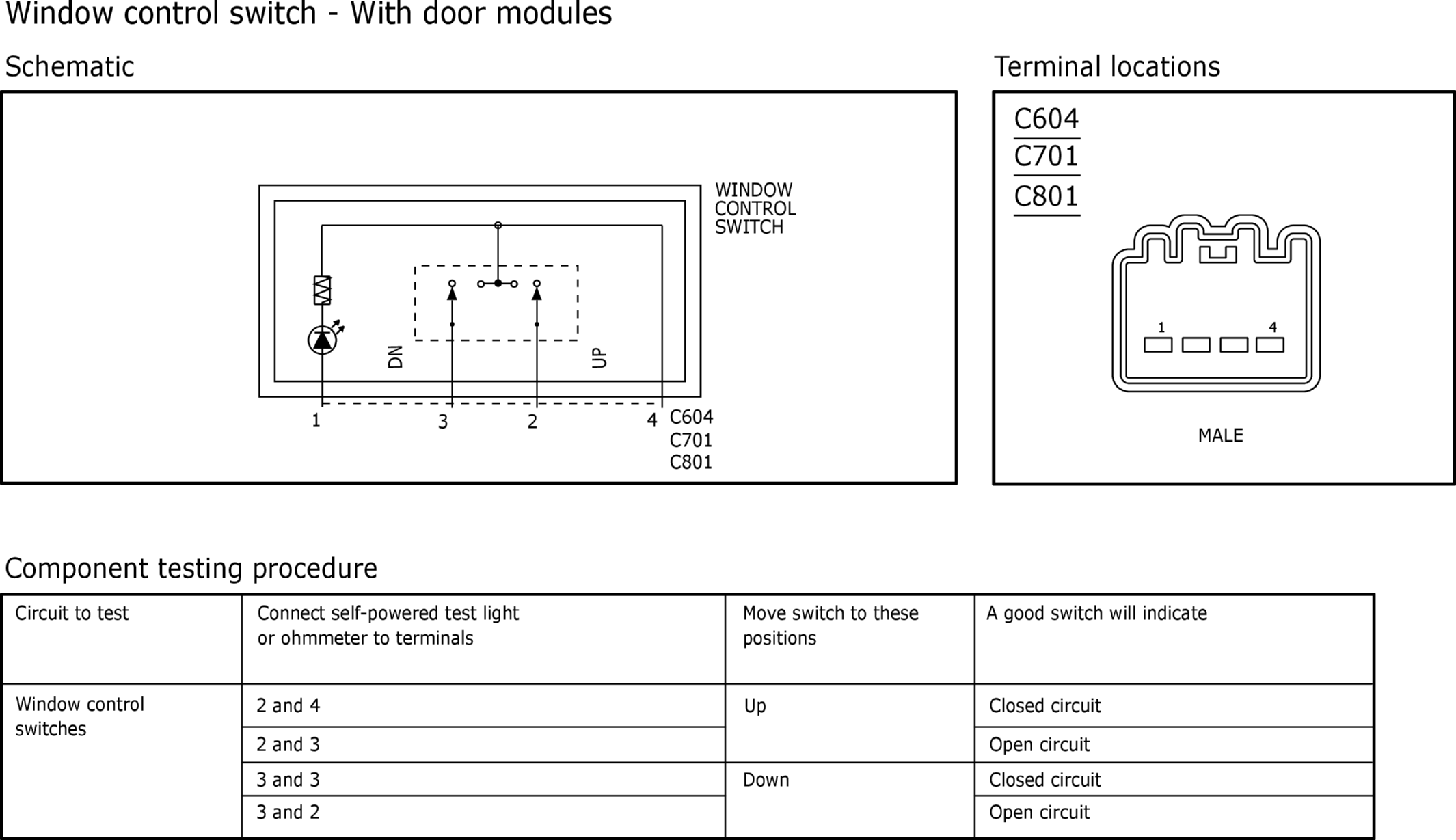

Fig 1: Window Control Switch - W/ Door Modules
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
