Customer Satisfaction Program 16B43

SUBJECT

Certain 2016-2017 Model Year Focus RS Vehicles

Powertrain Control Module Reprogramming

PROGRAM TERMS

This program will be in effect through November 30, 2017. There is no mileage limit for this program.

AFFECTED VEHICLES

Vehicle	Model Year	Assembly Plant	Build Dates
Focus RS	2016-2017	Saarlouis	August 3, 2015 through September 26, 2016

Affected vehicles are identified in OASIS and FSA VIN Lists.

REASON FOR THIS PROGRAM

In some of the affected vehicles, when subjected to high performance driving conditions (this includes extended time at higher engine speeds, high loads, engine braking, hard cornering maneuvers, and track use), it is possible the engine may experience a low oil level condition due to increased oil consumption. Continued high performance driving with low engine oil level may lead to internal engine damage or catastrophic engine failure.

SERVICE ACTION

Dealers are to reprogram the Powertrain Control Module (PCM) using Integrated Diagnostic Software (IDS) release 102.02 or higher. The new PCM program will more accurately predict oil change intervals under performance driving conditions as outlined above. This service must be performed on all affected vehicles at no charge to the vehicle owner. Additionally, an addendum to the owner's manual supplement, recommending the owner conduct more frequent engine oil level checks, will be included with the owner letter mailing. The addendum is to be inserted in the owner's manual.

OWNER NOTIFICATION MAILING SCHEDULE

Owner letters are expected to be mailed the week of November 14, 2016. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information
Attachment IV: Owner's Manual Supplement Addendum

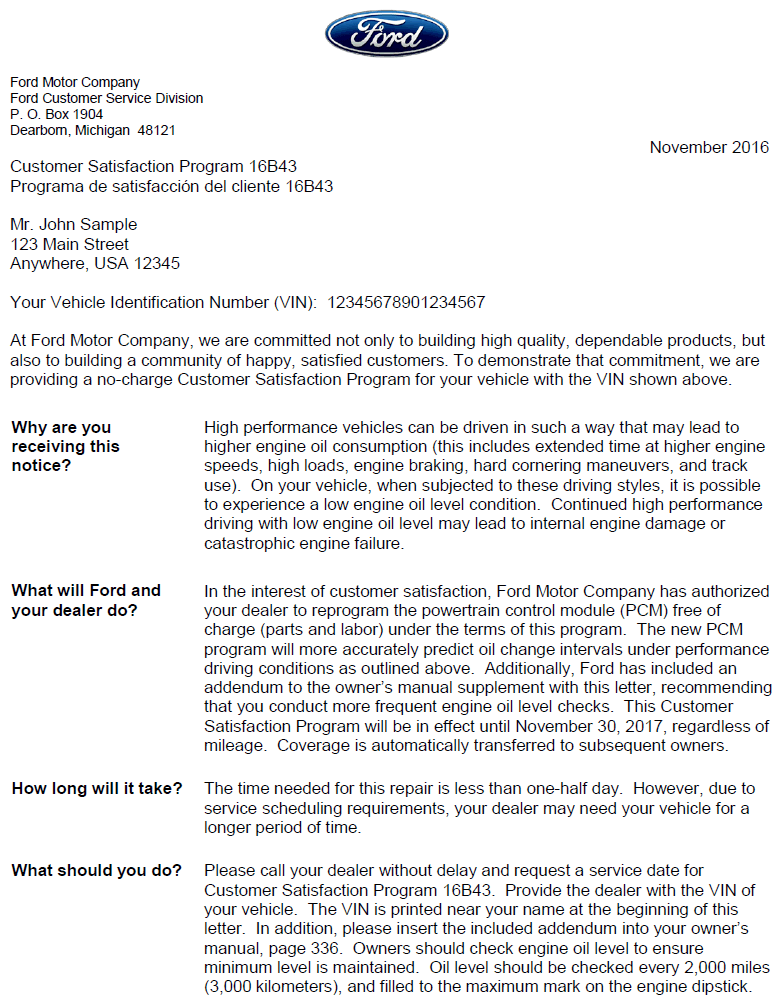

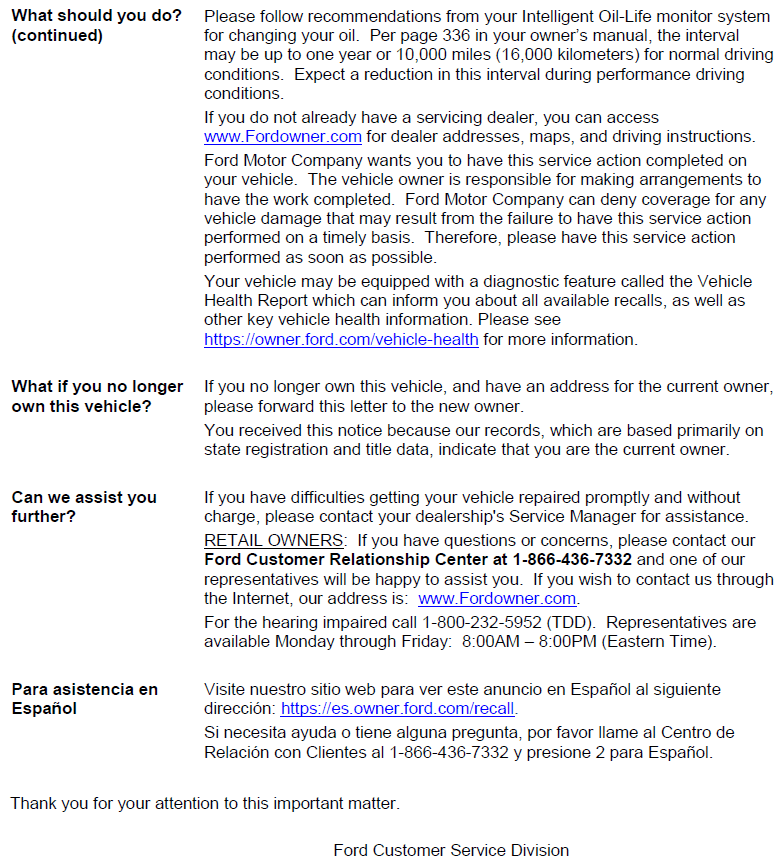

Owner Notification Letter

QUESTIONS & ASSISTANCE

For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site. The SSSC Web Contact Site can be accessed through the Professional Technician Society (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab.

Sincerely,

Michael A. Berardi

OASIS ACTIVATION

OASIS will be activated on November 9, 2016.

FSA VIN LISTS ACTIVATION

FSA VIN Lists will be available through https://web.fsavinlists.dealerconnection.com by November 9, 2016. Owner names and addresses will be available by November 30, 2016.

NOTE: Your FSA VIN Lists may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this program is a violation of law in several states, provinces, and countries. Accordingly, you must limit the use of this listing to the follow-up necessary to complete this service action.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.
Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.
Use OASIS to identify any affected vehicles in your used vehicle inventory.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

ADDITIONAL REPAIR (LABOR TIME AND/OR PARTS)

Additional repairs identified as necessary to complete the FSA should be managed as follows:

For vehicles within new vehicle bumper-to-bumper warranty coverage, follow existing warranty and policy guidelines for related damage claims. No SSSC approval is required for these vehicles:
- Ford vehicles - 3 years or 36,000 miles
For vehicles outside new vehicle bumper-to-bumper warranty coverage, submit an Approval Request to the SSSC Web Contact Site prior to completing the repair.

OWNER REFUNDS

Refunds are not approved for this program.

RENTAL VEHICLES

The use of rental vehicles is not approved for this program.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE) or One Warranty Solution (OWS).
- DWE: refer to ACESII manual for claims preparation and submission information.
- OWS: when entering claims in DMS software, select claim type 31: Field Service Action. The FSA number 16B43 is the sub code.
Additional labor and/or parts must be claimed as related damage on a separate repair line from the FSA.
PROGRAM TERMS: This program will be in effect through November 30, 2017. There is no mileage limit for this program.

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
Reprogram PCM using IDS release 102.02 or higher	16B43B	0.3 Hour

PARTS REQUIREMENTS/ORDERING INFORMATION

Parts are not required to complete this repair.

OVERVIEW

In some of the affected vehicles, when subjected to high performance driving conditions (this includes extended time at higher engine speeds, high loads, engine braking, hard cornering maneuvers, and track use), it is possible the engine may experience a low oil level condition due to increased oil consumption. Continued high performance driving with low engine oil level may lead to internal engine damage or catastrophic engine failure. Dealers are to reprogram the Powertrain Control Module (PCM) using Integrated Diagnostic Software (IDS) release 102.02 or higher. The new PCM program will more accurately predict oil change intervals under performance driving conditions as outlined above. Additionally, an addendum to the owner's manual supplement, recommending the owner conduct more frequent engine oil level checks, will be included with the owner letter mailing. The addendum is to be inserted in the owner's manual, page 336.

SERVICE PROCEDURE

Module Reprogramming

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all DTCs after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

Connect a battery charger to the 12V battery.
Reprogram the PCM using IDS release 102.02 or higher.
NOTE: Calibration files may also be obtained at www.motorcraftservice.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedure.
Disconnect the battery charger from the 12V battery once the reprogramming has completed.
Add Owner's Manual Supplement Addendum to Owner's Manual, at page 336, Protecting Your Investment.
NOTE: For stock units, print the addendum from PTS.

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12V battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, headlamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions key on engine off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Recovering a module when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during module reprogramming (MR) or programmable module installation (PMI).
Disconnect the VCM from the data link connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the original vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the Recycle Bin icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the MODULE PROGRAMMING menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

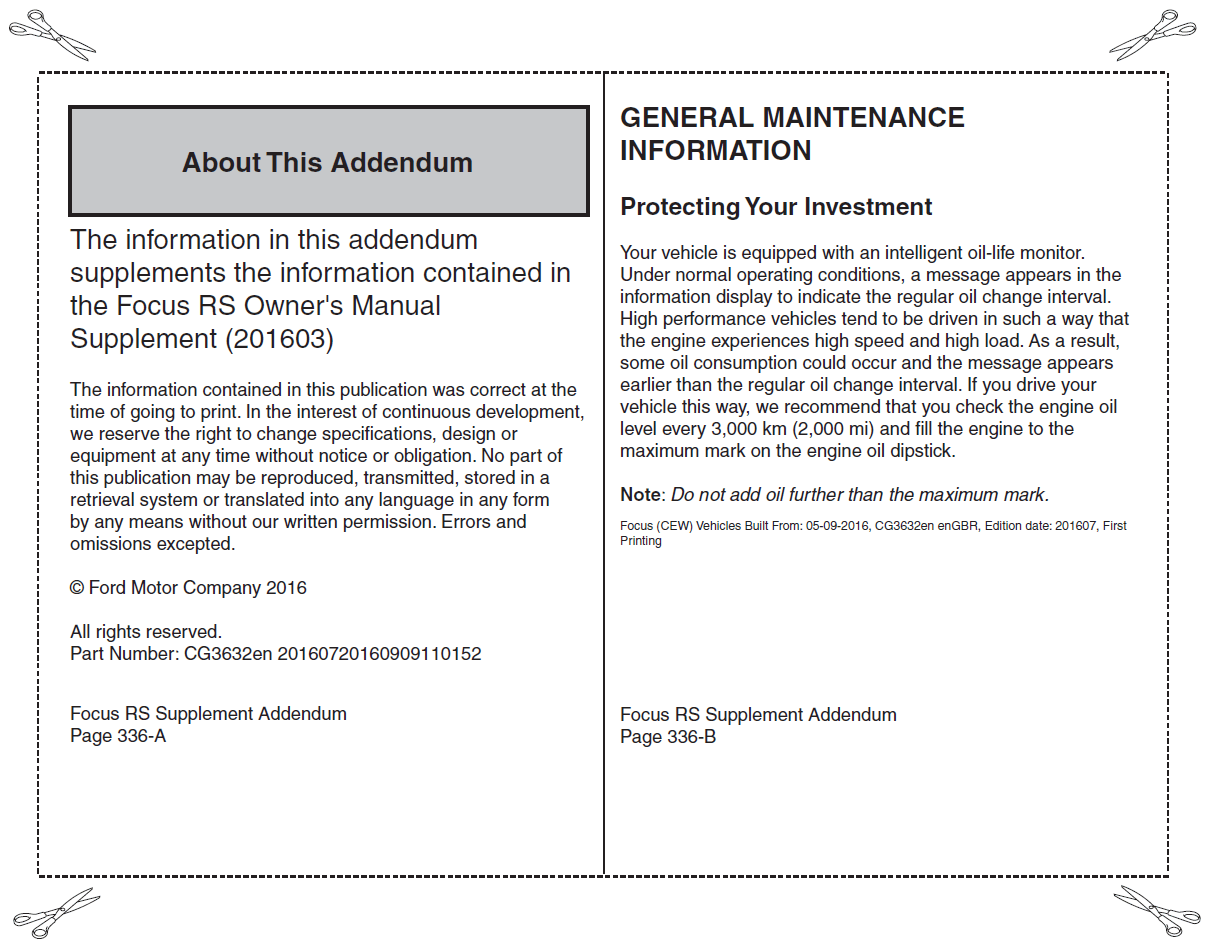

FOCUS RS OWNER'S MANUAL ADDENDUM

Print Attachment IV one sided on a standard sheet of 8.5" x 11" paper
Follow paper folding and trimming instructions on addendum, to fit addendum into owner's manual
- Fold paper along center page solid line, print facing out
- Trim border, following dashed lines
Insert addendum in to the owner's manual, page 336
