Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

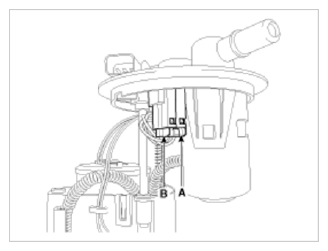

Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel sender (A) in the direction of an arrow.

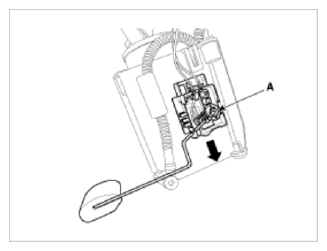

Fig 2: Removing Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA

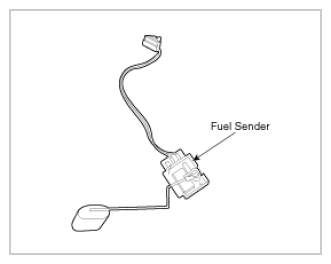

Fig 3: Identifying Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA
