Repair procedures: Inspection

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the electrodes (A) and ceramic insulator (B).

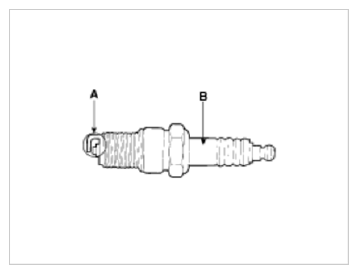

Fig 1: Identifying Electrodes And Ceramic Insulator

Courtesy of HYUNDAI MOTOR AMERICA

ELECTRODES DESCRIPTION

Condition	Dark deposits	White deposits
Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque

Check the electrode gap (A).
Standard: 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

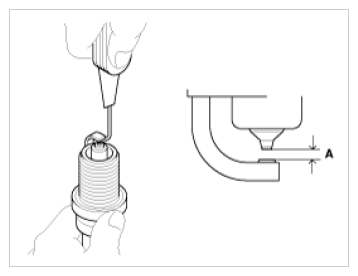

Fig 2: Checking Electrode Gap
Courtesy of HYUNDAI MOTOR AMERICA
