Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location
WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

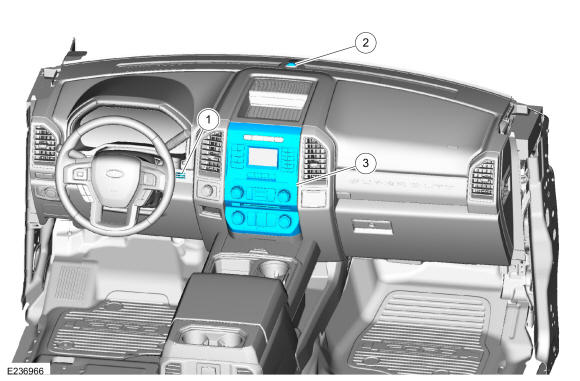

| Item | Description |
|---|---|
| 1 | In-Vehicle Temperature & Humidity Sensor |
| 2 | Auto Lamp Sensor |
| 3 | FCIM & HVAC Module |

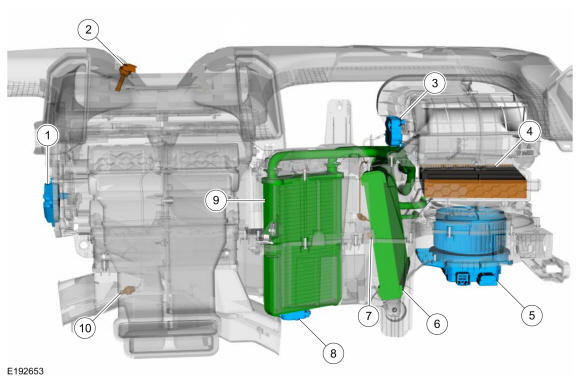

| Item | Description |
|---|---|
| 1 | Air Distribution Door Actuator |
| 2 | Driver Side Register Air Discharge Temperature Sensor |
| 3 | Air Inlet Door Actuator |
| 4 | Cabin Air Filter |
| 5 | Blower Motor Control Module |
| 6 | Evaporator |
| 7 | Evaporator Temperature Sensor |
| 8 | Temperature Door Actuator |
| 9 | Heater Core |
| 10 | Driver Side Footwell Air Discharge Temperature Sensor |
5.0L shown, other gas engines similar

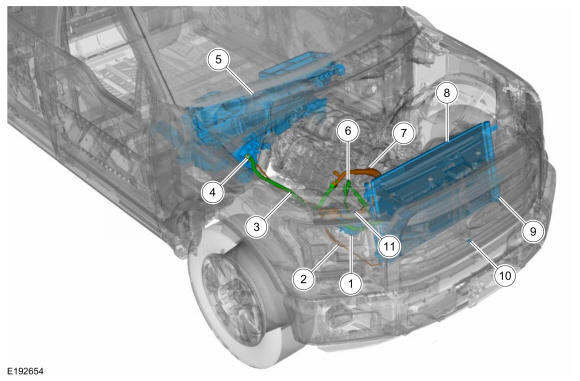

| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | Condenser Outlet Line |
| 3 | Thermostatic Expansion Valve Manifold and Tube Assembly |
| 4 | Thermostatic Expansion Valve |
| 5 | Climate Control Housing |
| 6 | A/C Compressor Outlet Line |
| 7 | A/C Compressor Inlet Line |
| 8 | Condenser |
| 9 | Desiccant Bag |
| 10 | Ambient Air Temperature Sensor |
| 11 | A/C Pressure Transducer |

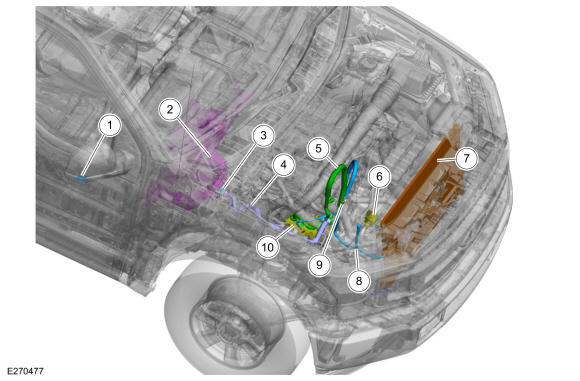

3.0L Power Stroke Diesel
| Item | Description |
|---|---|
| 1 | Ambient Air Temperature Sensor |
| 2 | Climate Control Housing |
| 3 | Thermostatic Expansion Valve |
| 4 | Thermostatic Expansion Valve Manifold and Tube Assembly |
| 5 | A/C Compressor Inlet Line |
| 6 | Cabin Heater Coolant Pump |
| 7 | Condenser |
| 8 | A/C Compressor Outlet Line |
| 9 | A/C Pressure Transducer |
| 10 | A/C Compressor |
