Connector Repair Procedures

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

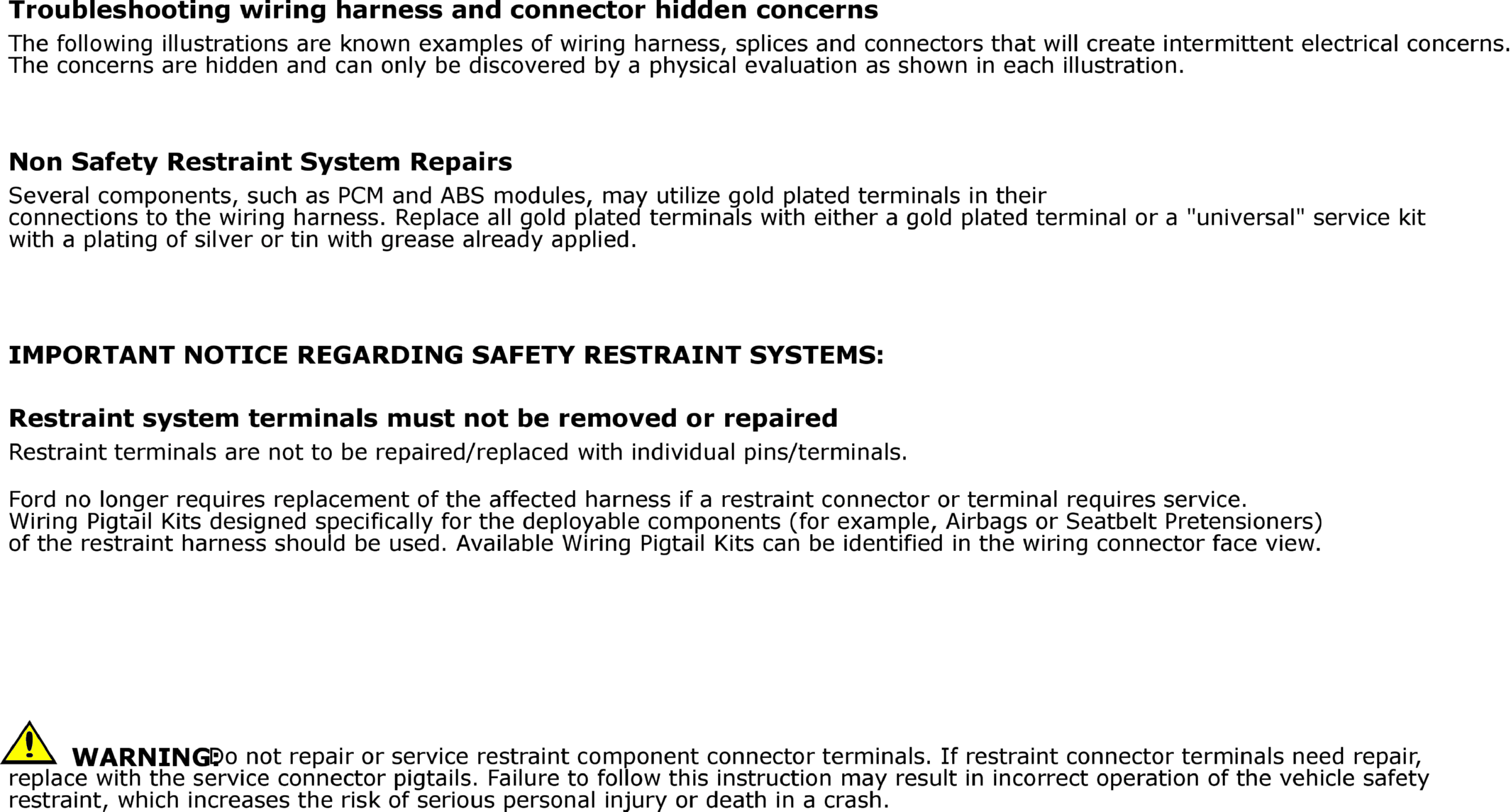

GFDW33610Courtesy of FORD MOTOR COMPANY

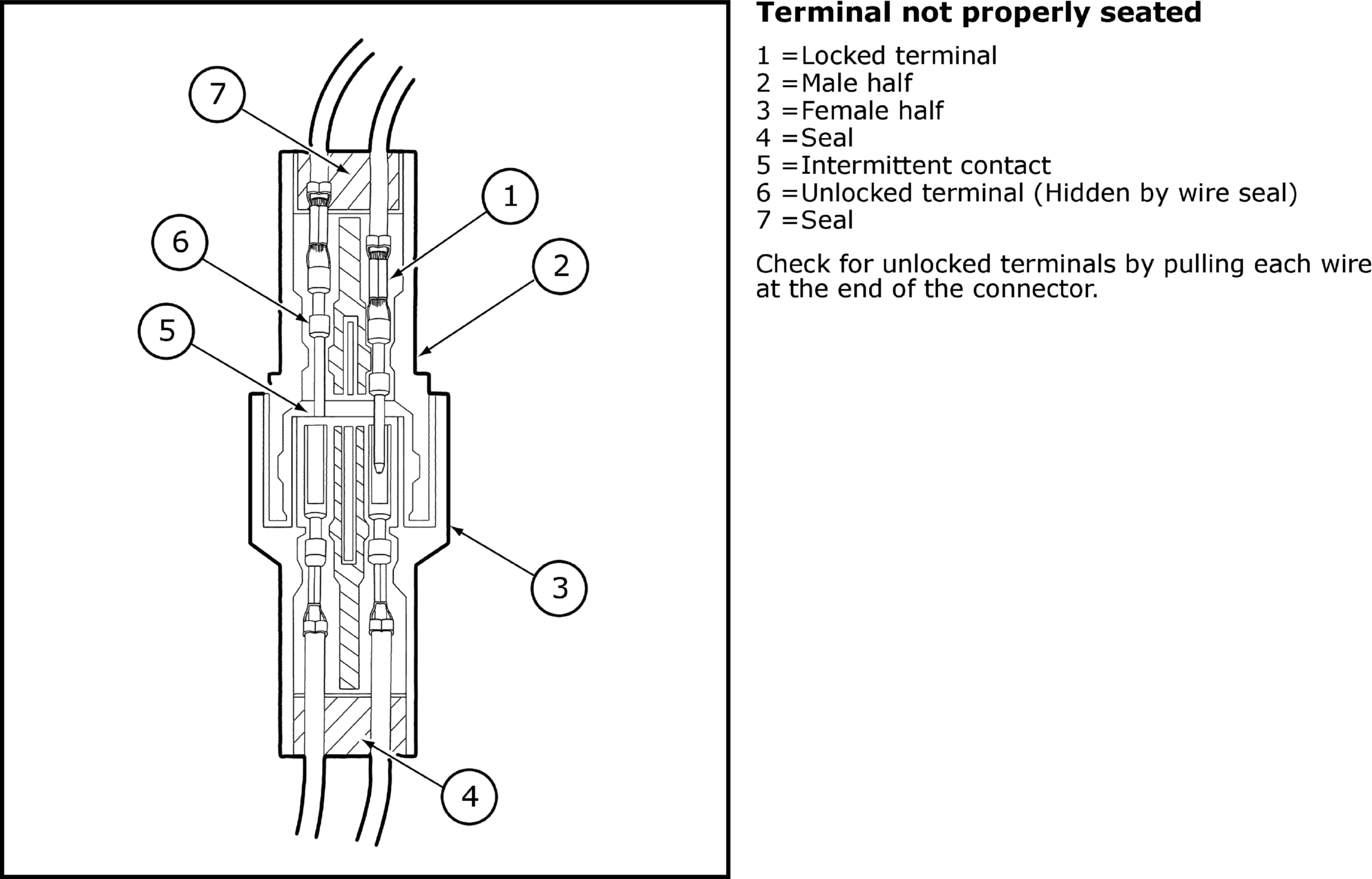

GFDW33611Courtesy of FORD MOTOR COMPANY

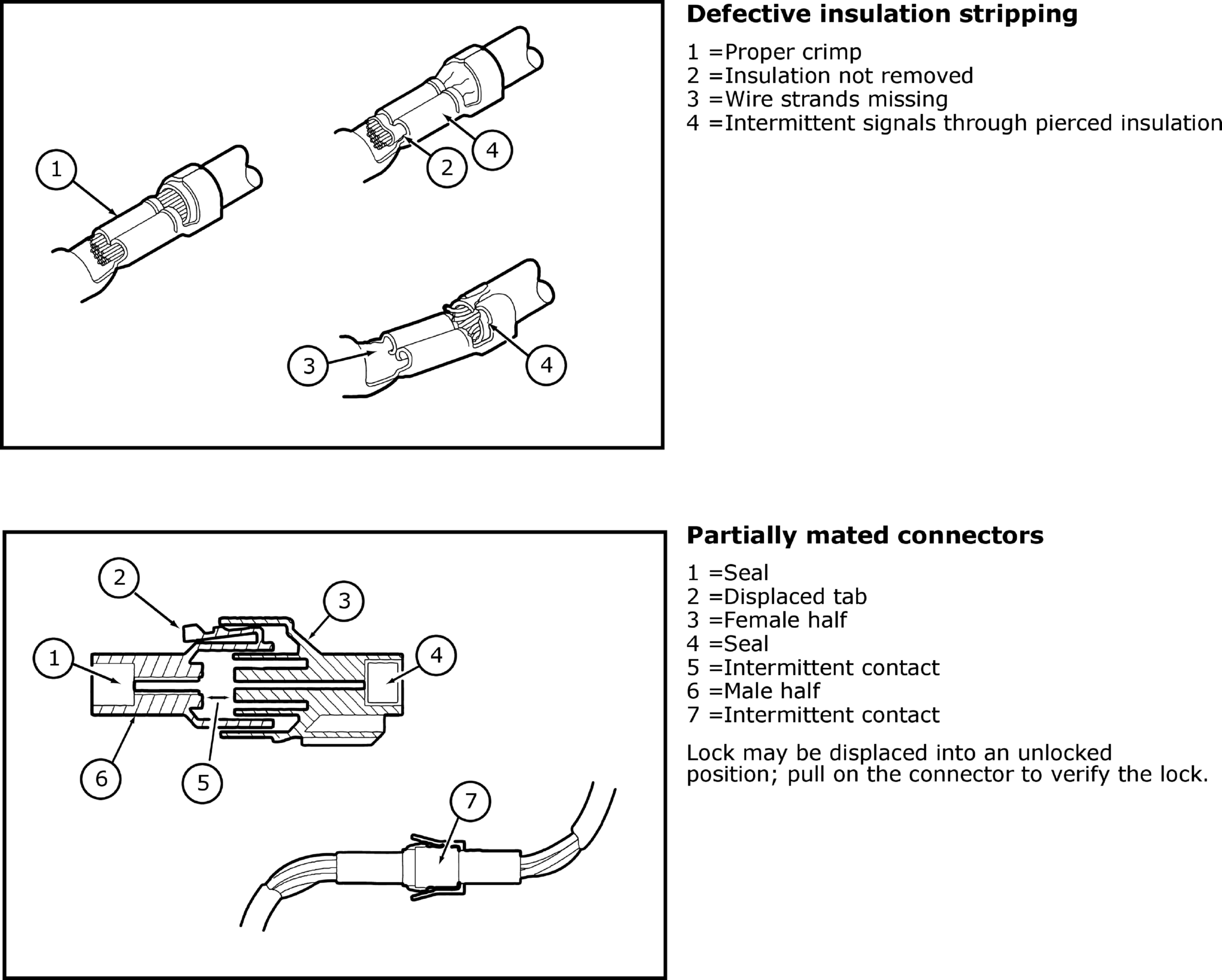

GFDW33612Courtesy of FORD MOTOR COMPANY

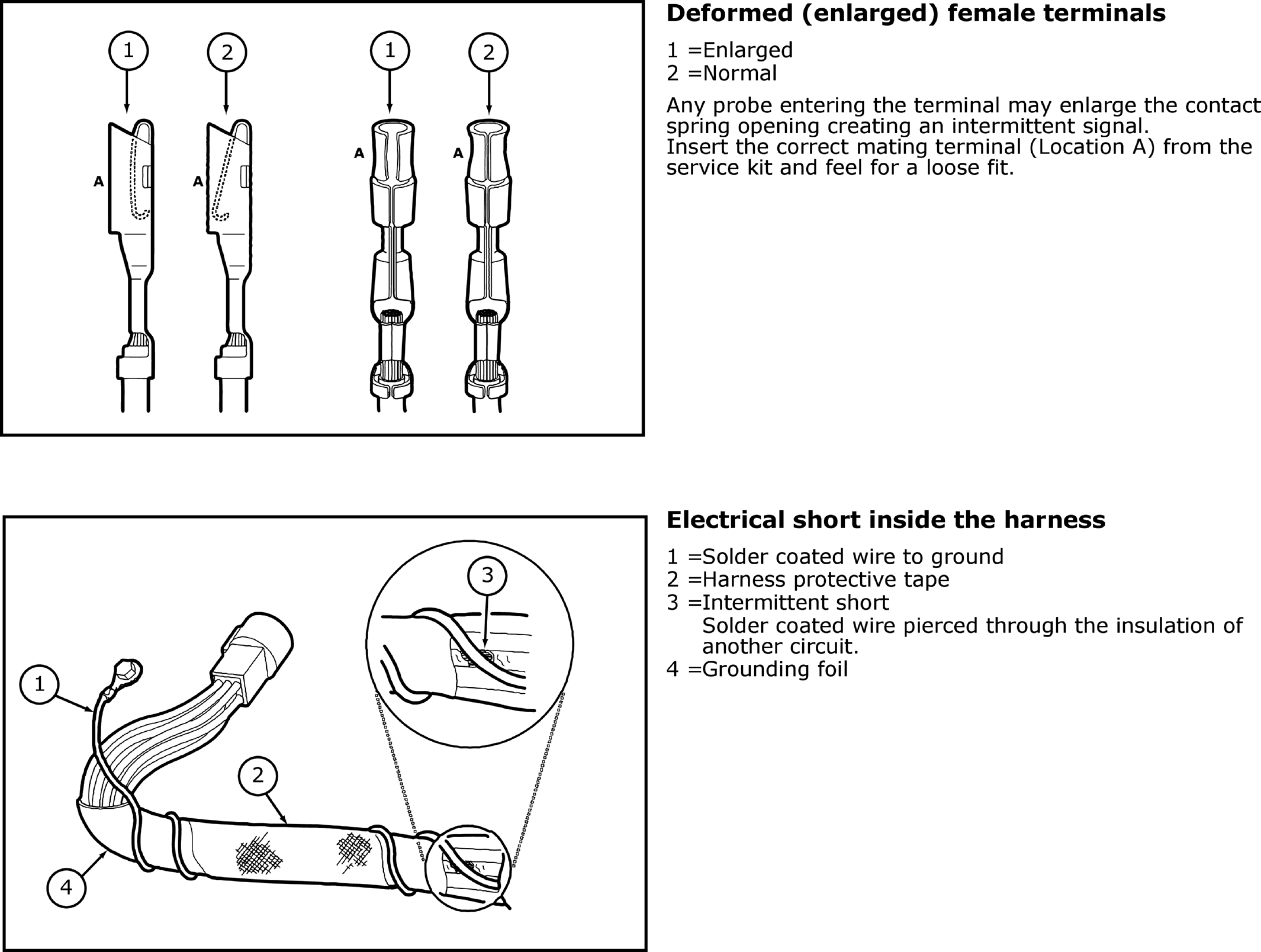

GFDW33613Courtesy of FORD MOTOR COMPANY

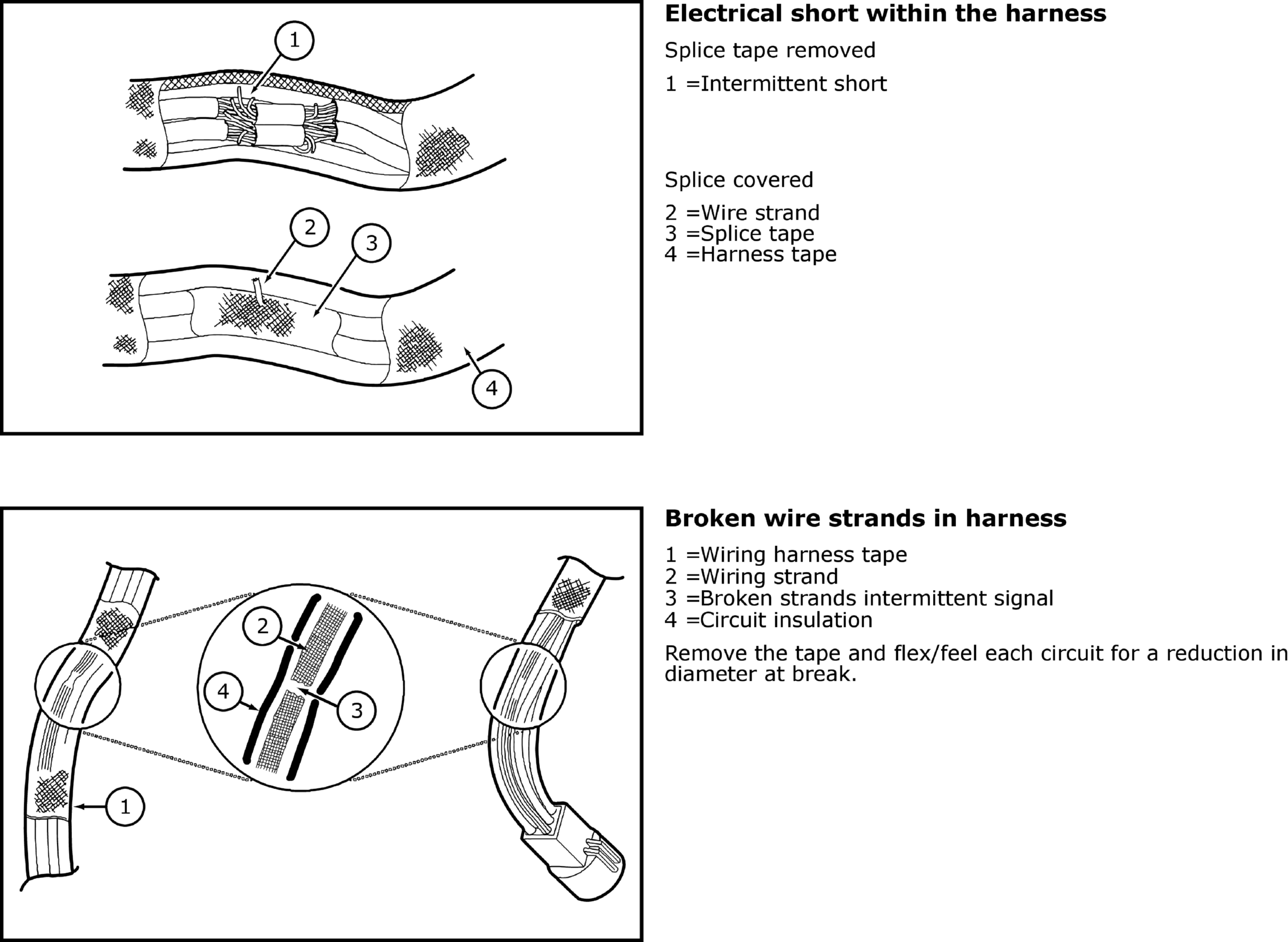

GFDW33614Courtesy of FORD MOTOR COMPANY

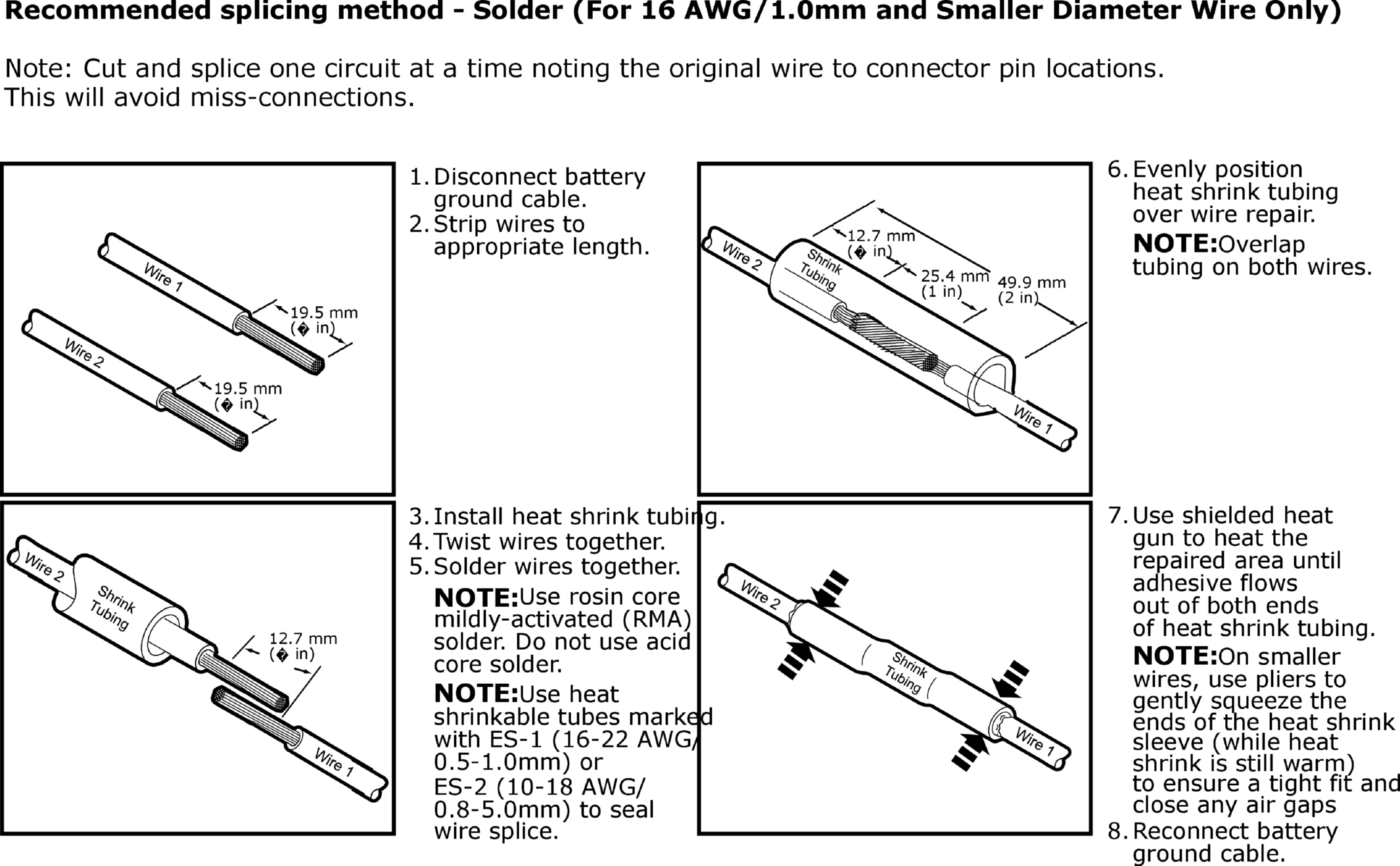

GFDW33615Courtesy of FORD MOTOR COMPANY

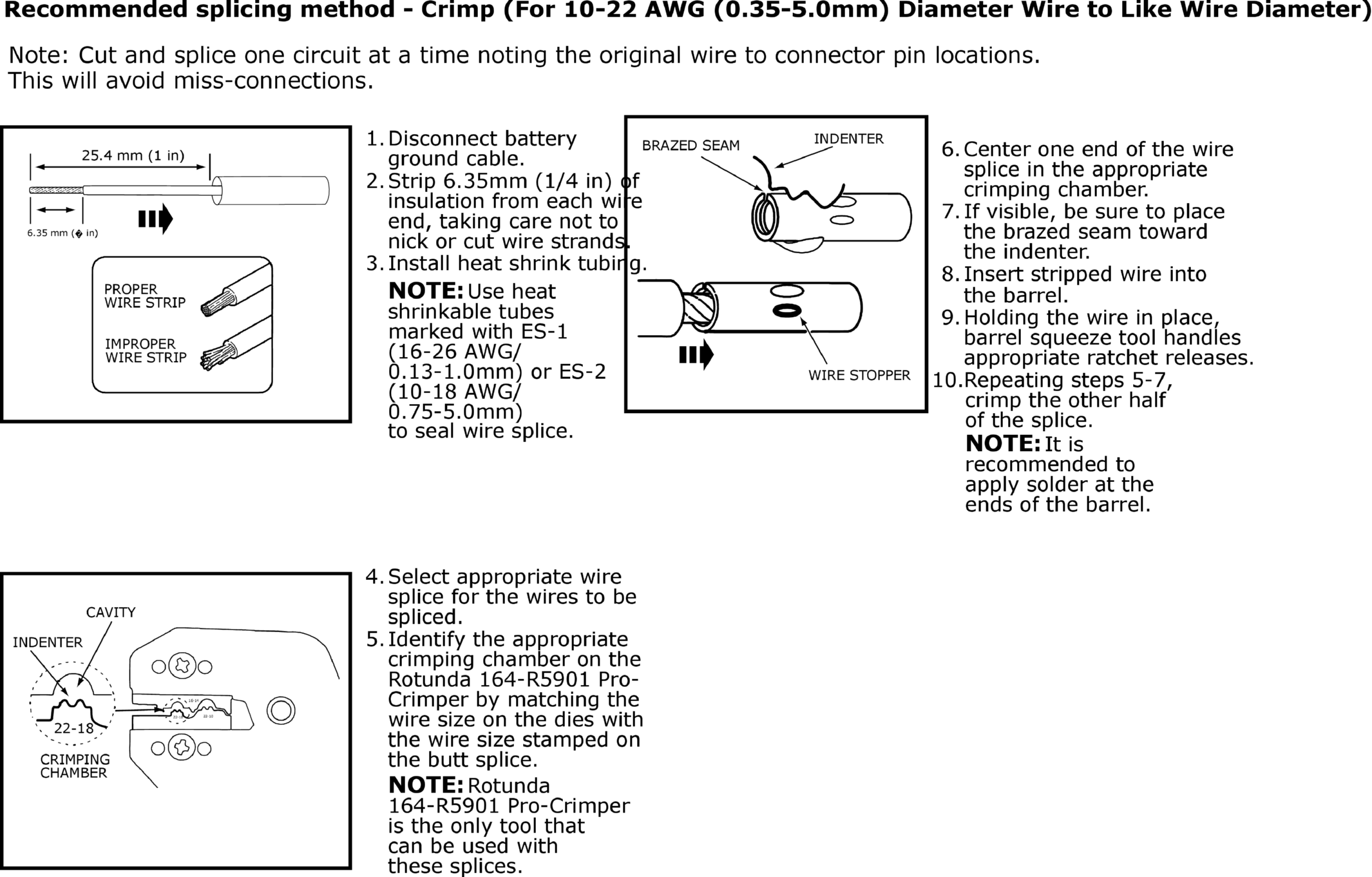

GFDW33616Courtesy of FORD MOTOR COMPANY

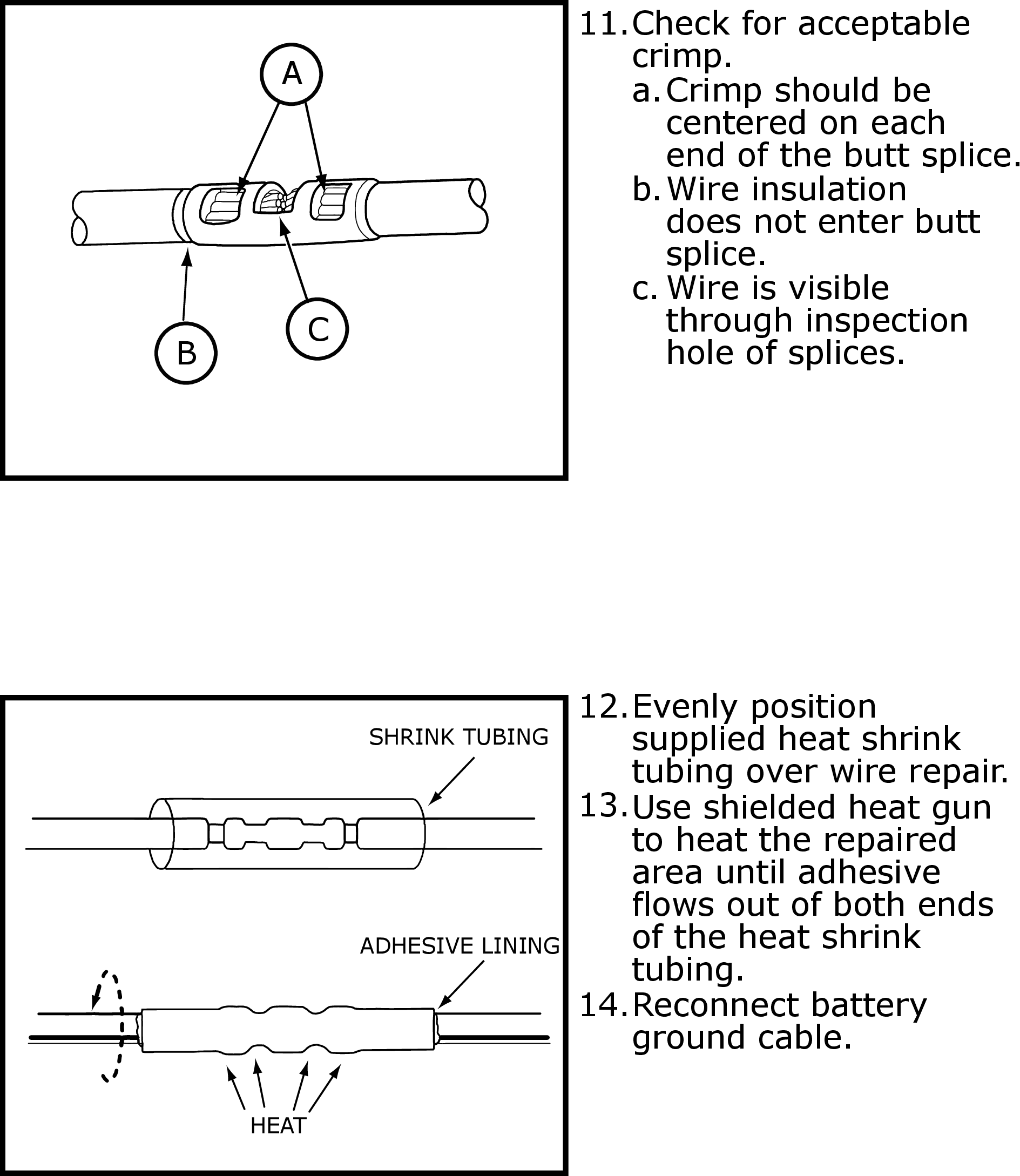

GFDW33617Courtesy of FORD MOTOR COMPANY

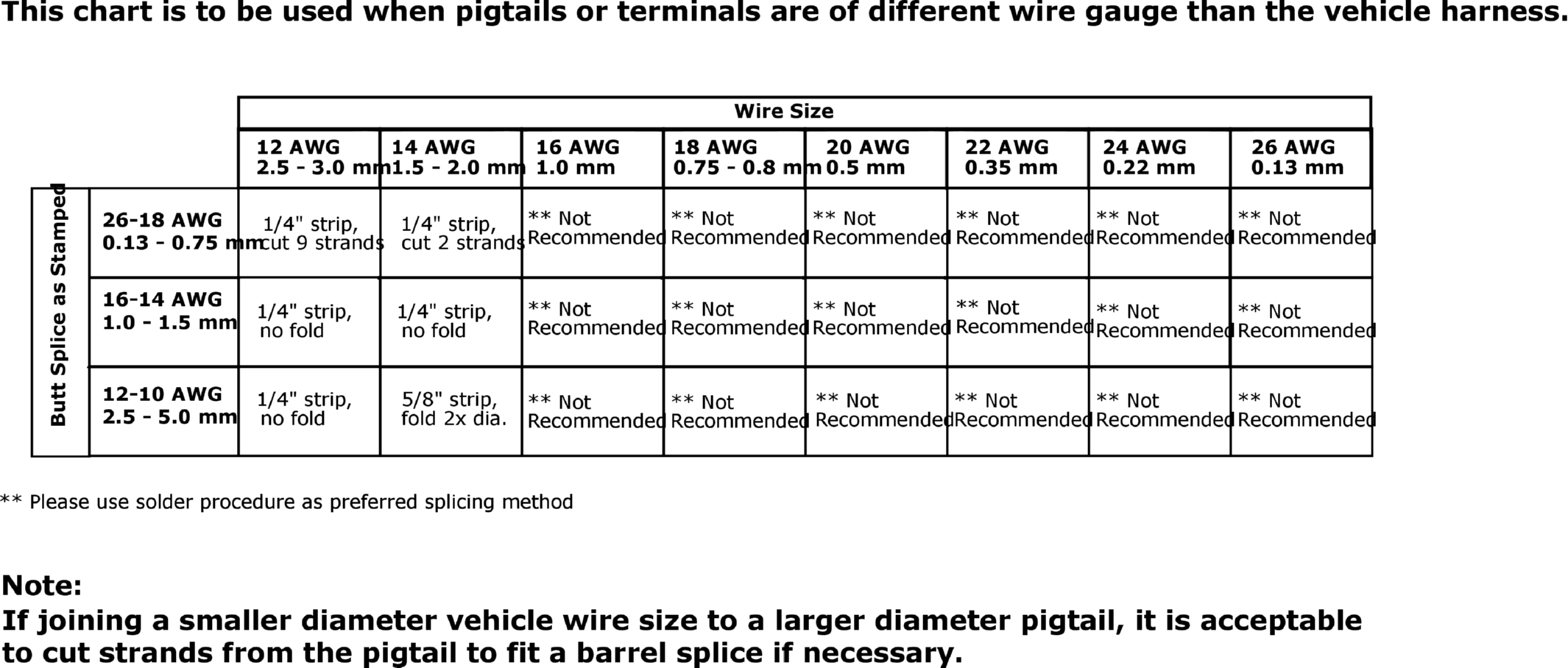

GFDW33618Courtesy of FORD MOTOR COMPANY
